2013 RENAULT KANGOO clutch

13B-162
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08

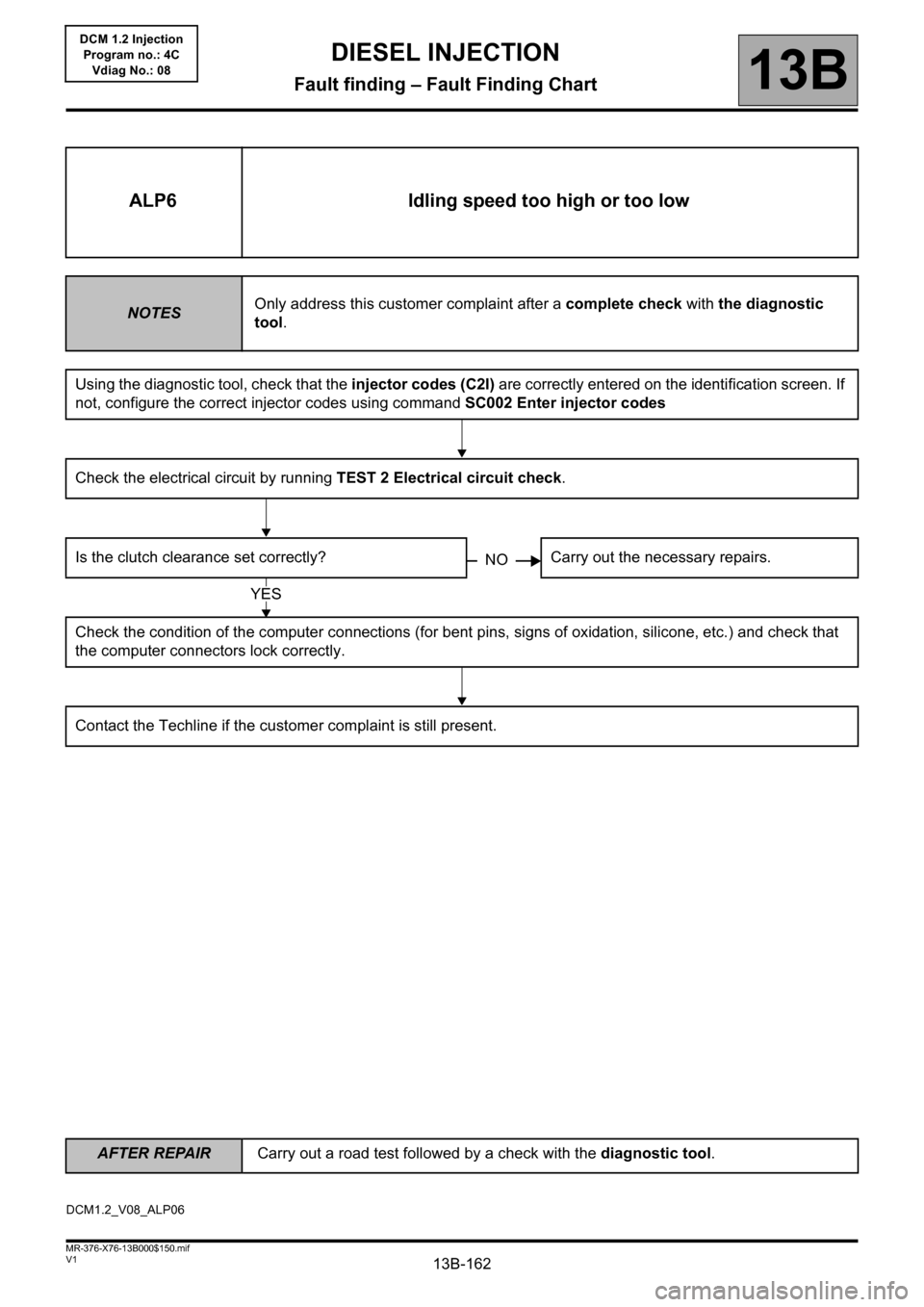

ALP6 Idling speed too high or too low
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Using the diagnostic tool, check that the injector codes (C2I) are correctly entered on the identification screen. If
not, configure the correct injector codes using command SC002 Enter injector codes
Check the electrical circuit by running TEST 2 Electrical circuit check.
Is the clutch clearance set correctly? Carry out the necessary repairs.
Check the condition of the computer connections (for bent pins, signs of oxidation, silicone, etc.) and check that
the computer connectors lock correctly.
Contact the Techline if the customer complaint is still present.
NO
YES
DCM1.2_V08_ALP06

13B-177
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP14 Overspeed when releasing accelerator or changing gear
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Check that there are no obstacles that might impede the accelerator pedal travel (carpet, hard point, etc.).
Using the diagnostic tool, check that the injector codes (C2I) are correctly entered on the identification screen. If
not, configure the correct injector codes using command SC002 Enter injector codes
Visually check the condition of the engine wiring harness.
Is the clutch clearance set correctly?Carry out the necessary
repairs.
Check that the engine has not sucked up its oil (engine racing).
Check that the turbocharger is working properly.
Run TEST 11 Air line at the turbocharger.
Run TEST 10 Turbocharger solenoid valve check.
Run TEST 12 Turbocharger.
Is the turbocharger in order?Carry out the necessary
repairs.
NO
YES
NO
A
YES
DCM1.2_V08_ALP14

13B-179
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP15 Engine dies on pulling away
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Is the clutch clearance set correctly? Carry out the necessary repairs.
Using the diagnostic tool, check that the injector codes (C2I) are correctly entered on the identification screen. If
not, configure the correct injector codes using command SC002 Enter injector codes
Check the air inlet circuit by running TEST 5 Inlet circuit check.
Is the catalytic converter clogged or damaged?Replace the catalytic converter (see MR 388
(Logan/Sandero), MR 451 (Duster), MR 423
(Thalia 2/Symbol 2) or MR 374 (Kangoo VLL),
Mechanical, 19B, Exhaust, Catalytic
converter: Removal - Refitting).
Check the low pressure circuit by running TEST 1 Low pressure circuit check.
Visually check the condition of the engine wiring harness.
Check the condition of the computer connections (for bent pins, signs of oxidation, silicone, etc.) and check that
the computer connectors lock correctly.
Contact the Techline if the customer complaint is still present.
NO
YES
YES
NO
DCM1.2_V08_ALP15
