82D-18
AFTER REPAIRFollow the instructions.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-82D000$080.mif
82D
UCH
Vdiag No.: 0F
DF180
PRESENT
OR
STOREDDECODER -> RING CONNECTION
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
NOTESSpecial Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence of an anti-theft tracking unit.
Check with the call centre that the anti-theft tracking unit has not been activated.
Deal first with the present faults or the stored faults of the anti-theft tracking unit (See
82A, Engine immobiliser).
CC.0Check the connection and condition of the transponder unit connector, component code
957.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the connection and condition of the UCH connector, component code 645.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
If the anti-theft tracking unit is not present in the vehicle:
Check the continuity and insulation of the following connections:
–BP10 between components 260 and 957.
If the connection or connections are faulty and there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace it.
UCH_V0F_DF180
ACCESS - SECURITY
Fault finding – Interpretation of faults

82D-23V1 MR-376-X76-82D000$090.mif
82D
UCH
Vdiag No.: 0F
NOTESOnly check conformity after a complete check with the diagnostic tool.
The values indicated in this conformity check are given as examples.
Application conditions: engine stopped, ignition on.
FunctionParameter or Status
Check or ActionDisplay and notes Fault finding
ImmobiliserET127:Immobiliser
warning lightOFFIn the event of a fault, apply
the interpretation of status
ET127 (see 87B, UCH).
ET184:Valid key codeYES when the ignition is
switched onIn the event of a fault, apply
the interpretation of status
ET184.
ET185:Key code
receivedYES when the ignition is
switched onIn the event of a fault, apply
the interpretation of status
ET185.
ET549:Immobiliser activeNOIn the event of a fault, apply
the interpretation of status
ET549.
KeyPR056:Number of keys
allocated2 keys on leaving the
factory and programming of
up to 4 keys in After-SalesIn the event of a fault, apply
the interpretation of parameter
PR056.
ET183:Key already
programmed for
the vehicleYESIn the event of a fault, apply
the scenario SC015 Key
allocation
DoorsET489:Front doorsOpen when opening a front
door.In the event of a fault, apply
the interpretation of status
ET489 (see 87B, UCH).
ET551:Rear doors or
bootOpen when opening a rear
door or the luggage
compartment lid.In the event of a fault, apply
the interpretation of status
ET551 (see 87B, UCH).
UCH_V0F_CCONF
ACCESS - SECURITY
Fault finding – Conformity check

82D-27
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-82D000$110.mif
ACCESS - SECURITY
Fault finding – Interpretation of statuses82D
UCH
Vdiag No.: 0F
ET549ENGINE IMMOBILISER ACTIVE
NOTESThe immobiliser active status should change to inactive when the + after ignition is
switched on.
The immobiliser status should be active when the key is absent from the ignition switch.
ET549: YES despite the presence of a key in the ignition switch and + after ignition feed
Check that there is no fault before dealing with this status.
Check that status ET004 + 12 V After ignition feed is YES with the ignition on.
Deal with status ET004 if it is NOwith the ignition on.
Check status ET185 Key code received and status ET184 Key code valid with the ignition on.
If statuses ET185 and ET184 are YES, perform fault finding on the injection computer.
If status ET185 is NO, deal with this status first.
If status ET185 is YES and status ET184 is NO, deal with status ET184 first.
If the fault is still present, contact the techline.
UCH_V0F_ET549

82D-38
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
82D
UCH
Vdiag No.: 0F
ALP 7 The vehicle will not start
NOTESOnly refer to the customer complaints after performing a complete check using
the diagnostic tool.
Does the central locking operate?See 87B, Passenger compartment
connection unit.
Switch on the ignition. Has the immobiliser
warning light gone out?
Turn the starter.
Nothing happens.The starter clicks
but the engine
does not turn over.The starter motor
turns but there is
no engagement.The engine turns
but does not start.The engine turns
over progressively
more slowly and
does not start.
Perform an
injection domain
test using the
diagnostic tool.
See 13B, Diesel
Injection or 17B,
Petrol Injection.Check the battery
voltage. Check the
condition of the
starter.
NO
YES
NOA
YES
BCD
UCH_V0F_ALP07
ACCESS - SECURITY
Fault finding – Fault finding chart

82D-41
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F

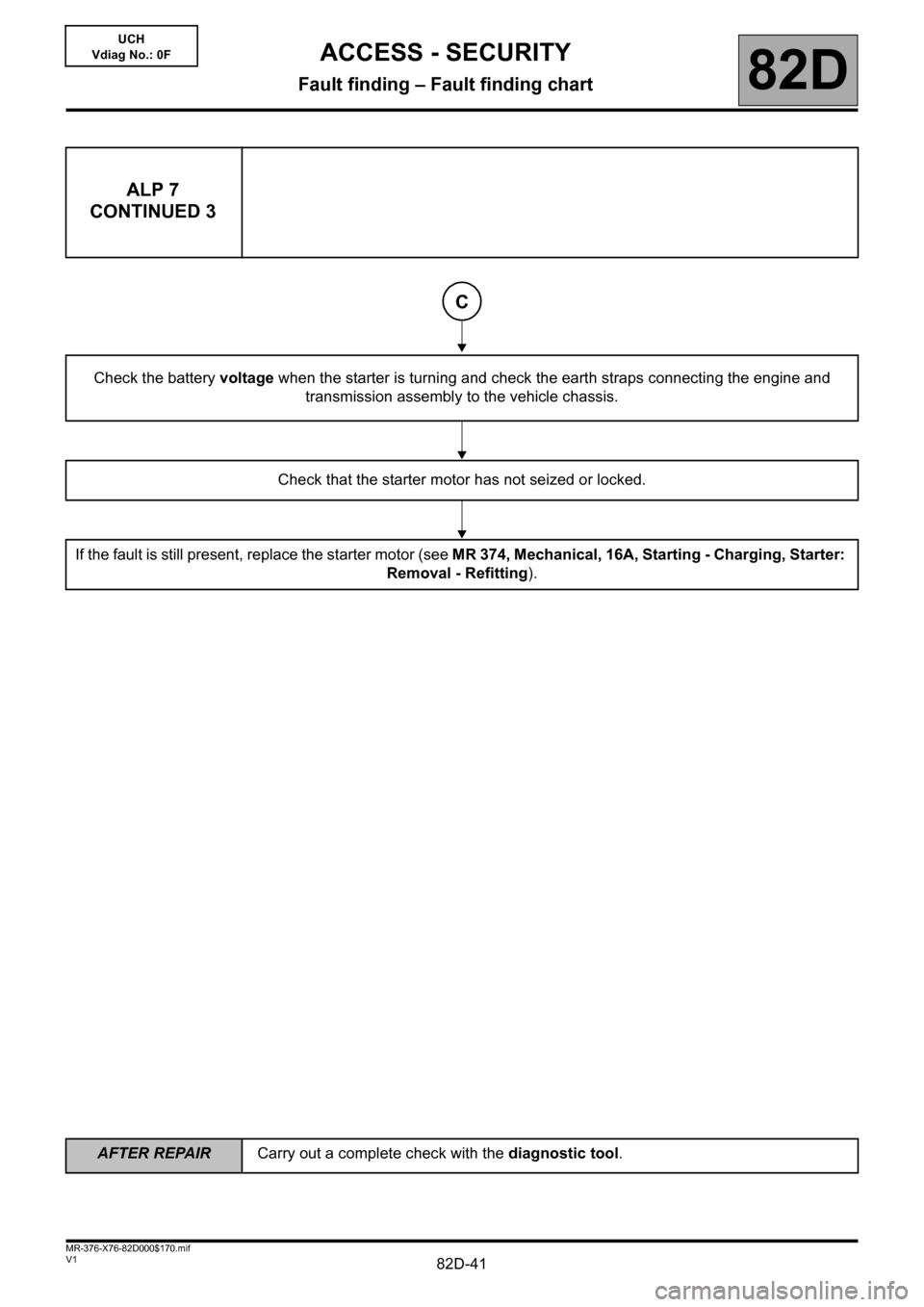

ALP 7
CONTINUED 3
Check the battery voltage when the starter is turning and check the earth straps connecting the engine and
transmission assembly to the vehicle chassis.
Check that the starter motor has not seized or locked.
If the fault is still present, replace the starter motor (see MR 374, Mechanical, 16A, Starting - Charging, Starter:
Removal - Refitting).
C

82D-42
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 7
CONTINUED 4
Check that the starter operates correctly.
Replace the starter motor if necessary (see MR 374, Mechanical, 16A, Starting - Charging, Starter: Removal -
Refitting).
If the fault is still present, check the timing belt (see MR 374 Mechanical, 11A, Top and front of engine, Timing
Belt: Removal - Refitting).
D
