Cavity Car-tridgeFuse Micro
Fuse Description
F77 10 Amp
Red Drivetrain Control
Module/Front Axle Disconnect Module
F78 10 Amp
Red Engine Control
Module / Electric Power Steering
F79 15 Amp
Blue Clearance Lights
F80 10 Amp
Red Universal Garage
Door Opener / Compass
F81 20 Amp
Yellow Trailer Tow Right
Turn/Stop LightsCavity Car- tridgeFuse Micro
Fuse Description
F82 10 Amp
Red Steering Column
Control Module/ Cruise Control
F84 15 Amp
Blue Switch Bank/
Instrument Cluster
F85 10 Amp
Red Airbag Module
F86 10 Amp
Red Airbag Module
F87 10 Amp
Red Air Suspension-If
Equipped / Trailer
Tow / Steering Col- umn Control Mod- ule
7
MAINTAINING YOUR VEHICLE 683

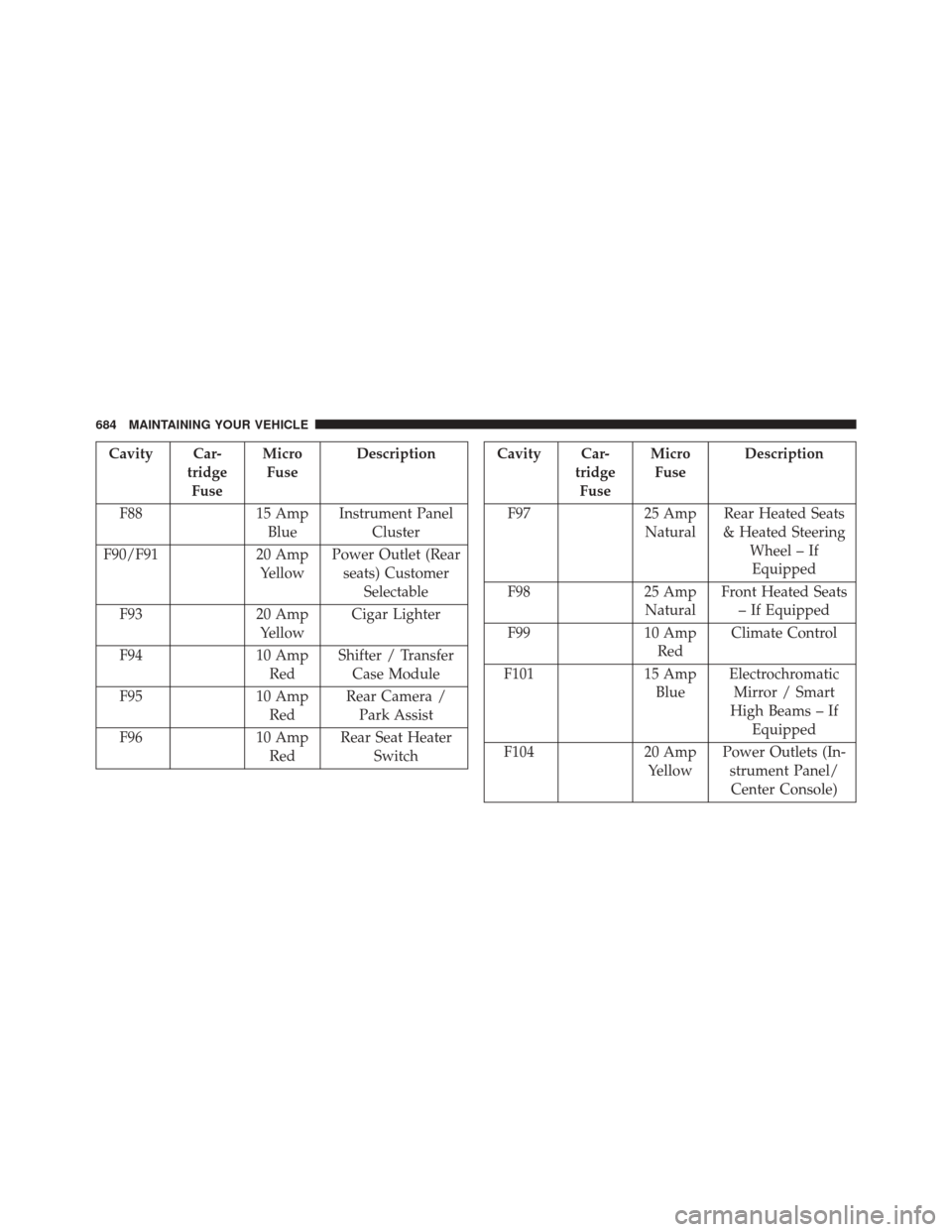

Cavity Car-tridgeFuse Micro
Fuse Description
F88 15 Amp
Blue Instrument Panel
Cluster
F90/F91 20 Amp
Yellow Power Outlet (Rear
seats) Customer Selectable
F93 20 Amp
Yellow Cigar Lighter
F94 10 Amp
Red Shifter / Transfer
Case Module
F95 10 Amp
Red Rear Camera /
Park Assist
F96 10 Amp
Red Rear Seat Heater
SwitchCavity Car- tridgeFuse Micro
Fuse Description
F97 25 Amp
Natural Rear Heated Seats
& Heated Steering Wheel – IfEquipped
F98 25 Amp
Natural Front Heated Seats
– If Equipped
F99 10 Amp
Red Climate Control
F101 15 Amp
Blue Electrochromatic
Mirror / Smart
High Beams – If Equipped
F104 20 Amp
Yellow Power Outlets (In-
strument Panel/Center Console)
684 MAINTAINING YOUR VEHICLE
