FAMILIARISATION
EXTERIOR

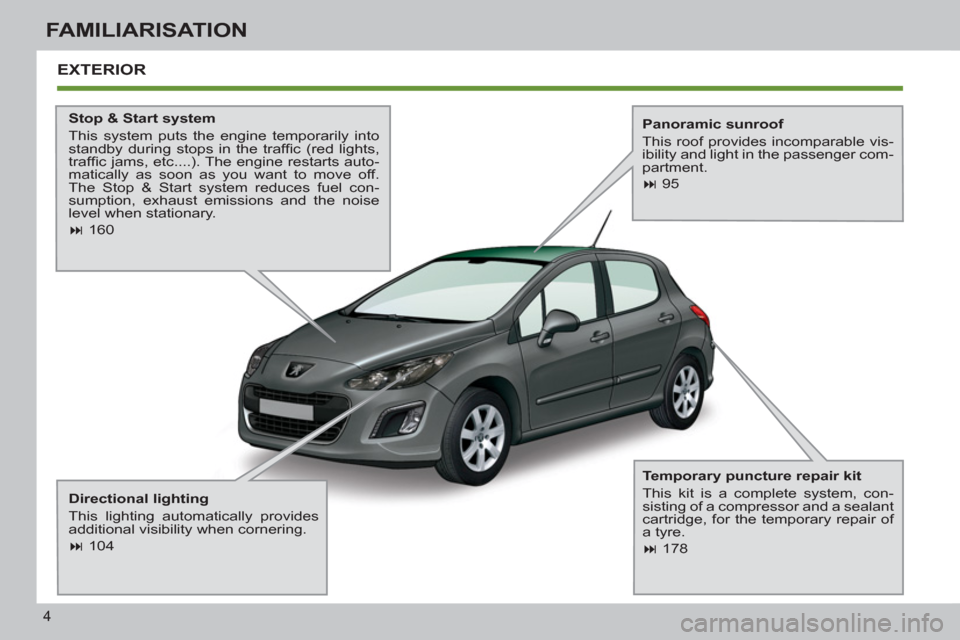

Stop & Start system
This system puts the engine temporarily into
standby during stops in the traffi c (red lights,
traffi c jams, etc....). The engine restarts auto-
matically as soon as you want to move off.
The Stop & Start system reduces fuel con-
sumption, exhaust emissions and the noise
level when stationary.
160
Directional lighting
This lighting automatically provides
additional visibility when cornering.
104
Panoramic sunroof
This roof provides incomparable vis-
ibility and light in the passenger com-
partment.
95
Temporary puncture repair kit
This kit is a complete system, con-
sisting of a compressor and a sealant
cartridge, for the temporary repair of
a tyre.
178
Page 11 of 382
9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Cruise control / speed limiter
switches.
2.
Steering wheel adjustment control.
3.
Lighting and direction indicator
control stalk.
4.
Instrument panel.
5.
Driver's airbag.
Horn.
6.
Gear lever.
7.
Parking brake lever.
8.
Panoramic sunroof blind control.
9.
Heated seat control.
10.
Bonnet release.
11 .
Door mirror controls.
Electric window controls.
12.
Fusebox.
13.
Manual headlamp height
adjustment.
Stop & Start button.
14.
Front side window demisting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting vent.
Page 22 of 382
20
FAMILIARISATION
Stop & Start
Going into engine STOP mode
Going into engine START mode
Deactivation / Activation DRIVING
SAFELY
161
You can deactivate the system at any
time by pressing "ECO OFF"
; the warn-
ing lamp in the button comes on.
The "ECO"
warning lamp comes on
in the instrument panel and the en-
gine automatically goes into standby: The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:
- with a manual gearbox
; when you
fully
depress the clutch pedal,
- with a 6-speed electronic gear
control gearbox;
●
gear lever in position A
or M
, when
you release the brake pedal,
●
or gear lever in position N
and the
brake pedal release, when you
move to position A
or M
,
●
or when you engage reverse.
- with a manual gearbox
; at speeds
below 12 mph (20 km/h), put the
gear lever into neutral, then release
the clutch pedal,
- with a 6-speed electronic gear
control gearbox
; at speeds below
5 mph (8 km/h), when you press
the brake pedal or move the gear
lever to position N
.
In certain circumstances, STOP mode
may not be available; the "ECO" warn-
ing lamp fl ashes for a few seconds,
then goes off.
160
If you change gear without com-
pletely declutching, the engine will
not restart automatically. An alert
message is displayed to encour-
age you to fully depress the clutch
pedal.
161
The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition with the key. In certain circumstances, START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
Page 35 of 382
1INSTRUMENTS and CONTROLS
The other warning lamps appear only in this instrument panel.
The illumination of certain warning lamps may be accompanied by an audible sig-
nal; an additional message is still displayed in the multifunction screen, to help you
identify the fault.

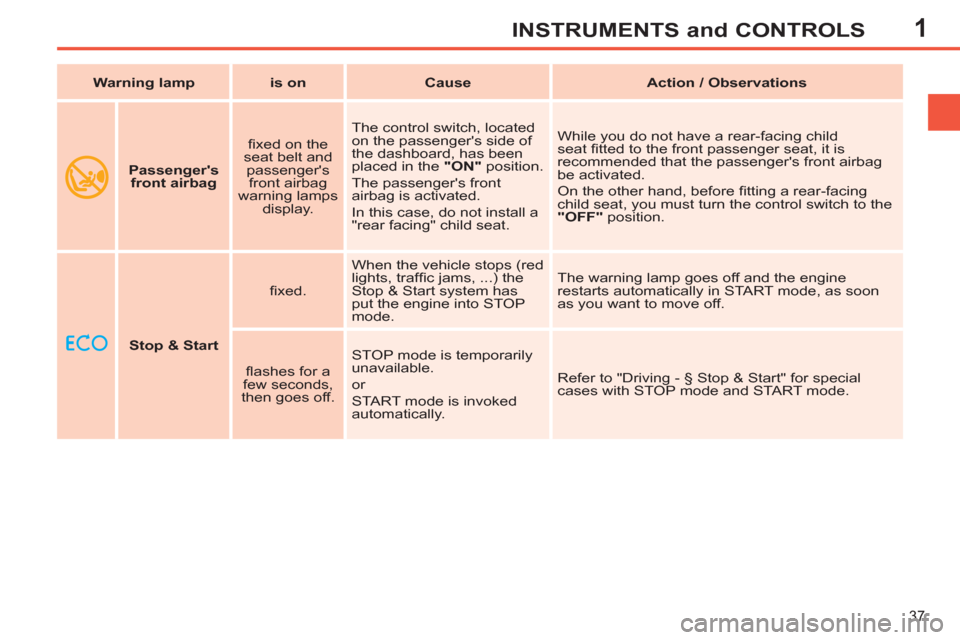

Warning lamp
is on
Cause
Action / Observations
Door(s) open
fi xed if the
speed is
below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied
by an audible
signal if the
speed is
above 6 mph
(10 km/h).
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.
Battery
charge
*
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop. If they are associated with the STOP
warning lamp, you must stop the vehicle
as soon as it is safe to do so!
*
According to destination country.
Page 39 of 382
1
37
INSTRUMENTS and CONTROLS
Stop & Start
fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has
put the engine into STOP
mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.
fl ashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.
Warning lamp
is on
Cause
Action / Observations
Passenger's
front airbag
fi xed on the
seat belt and
passenger's
front airbag
warning lamps
display. The control switch, located
on the passenger's side of
the dashboard, has been
placed in the "ON"
position.
The passenger's front
airbag is activated.
In this case, do not install a
"rear facing" child seat. While you do not have a rear-facing child
seat fi tted to the front passenger seat, it is
recommended that the passenger's front airbag
be activated.
On the other hand, before fi tting a rear-facing
child seat, you must turn the control switch to the
"OFF"
position.
Page 59 of 382
2
57
MULTIFUNCTION SCREENS

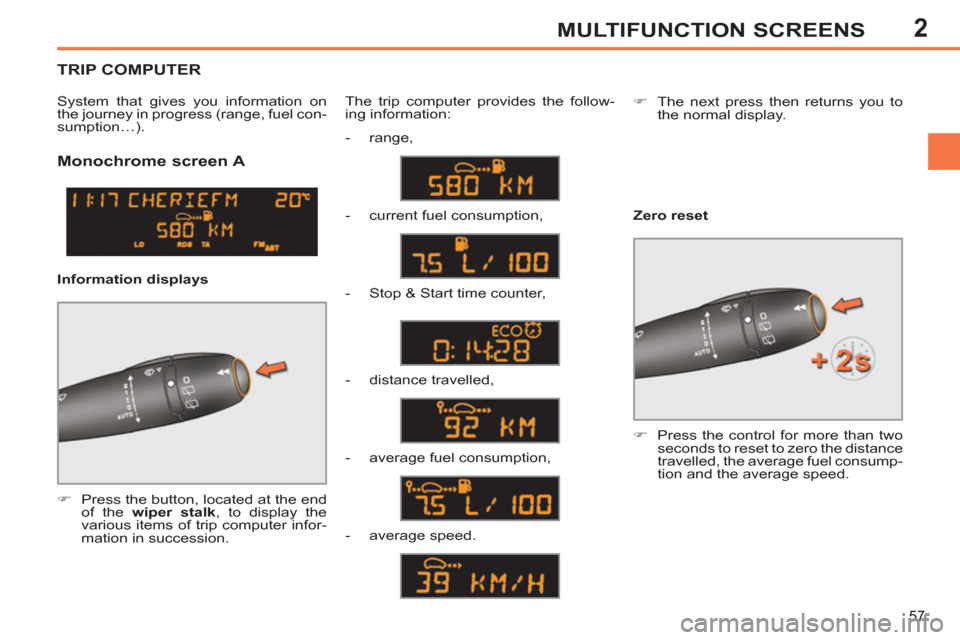

Monochrome screen A
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession. The trip computer provides the follow-
ing information:
Information displays
- range,
- current fuel consumption,
- Stop & Start time counter,
- distance travelled,
- average fuel consumption,
)
The next press then returns you to
the normal display.
- average speed.
Zero reset
)
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
TRIP COMPUTER
System that gives you information on
the journey in progress (range, fuel con-
sumption…).
Page 61 of 382
2
59
MULTIFUNCTION SCREENS
- The trip "2"
tab with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed.
)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.
- The current information tab,
for the trip in use, with:
●
the range,
●
the current fuel consumption,
●
the distance remaining to
be travelled or the Stop &
Start counter.
- The trip "1"
tab with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed.
Trip zero reset
)
When the trip required is displayed,
press the button on the end of the
wiper stalk
for more than two sec-
onds.
)
When the required trip is displayed,
press the "OK"
button on the instru-
ment panel navigator
, associated with
Peugeot Connect Media Navigation
NG4 3D), for more than two seconds.
With the instrument panel
large central
screen
Trips "1"
and "2"
are independent
but their use is identical.
For example, trip "1"
can be used
for daily fi gures, and trip "2"
for
monthly fi gures.

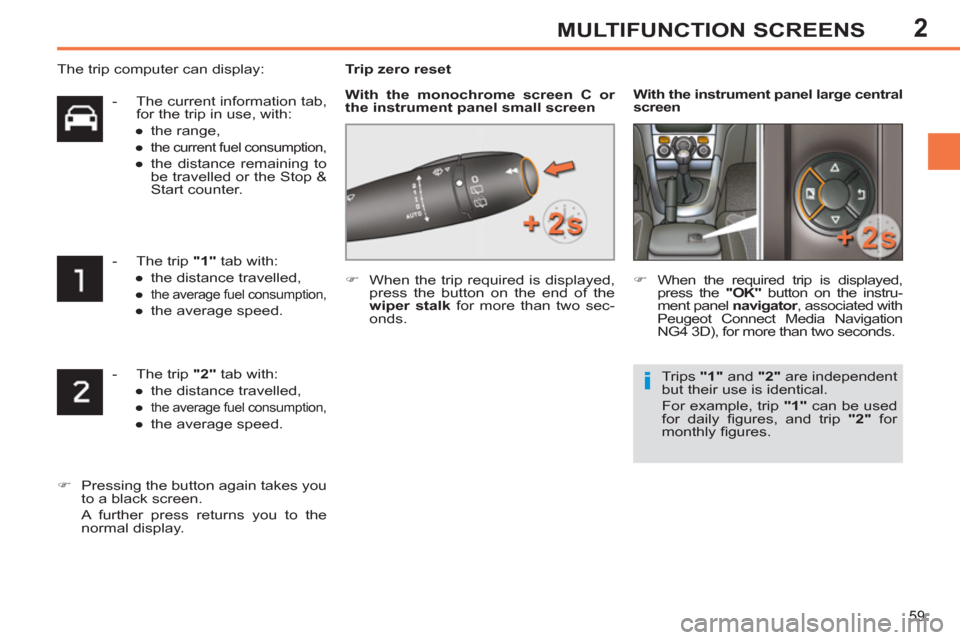

The trip computer can display:
With the monochrome screen C or
the instrument panel small screen
