2013 Peugeot 308 SW BL ECO mode

343

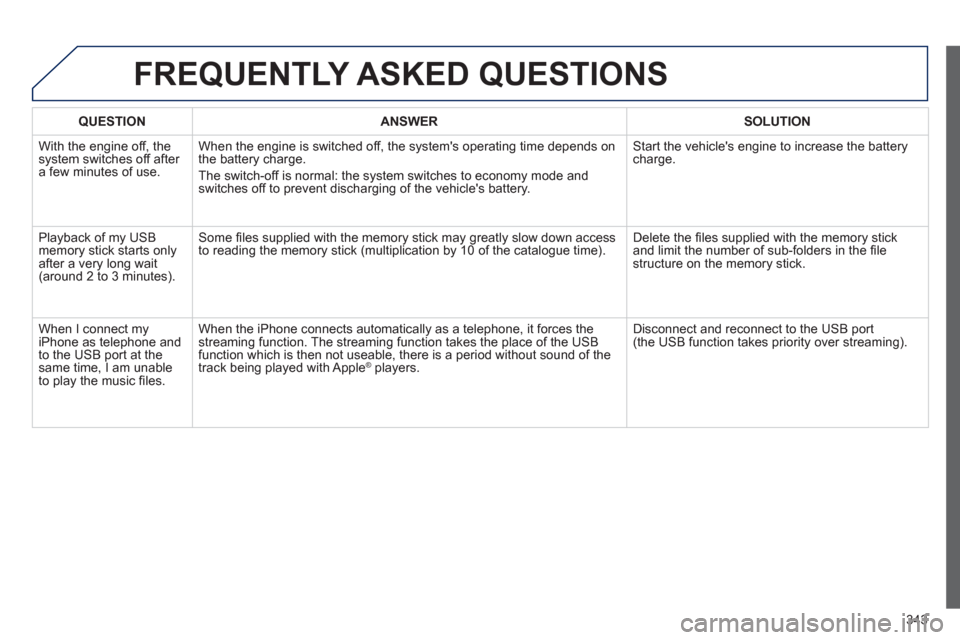

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
With the engine off, the system switches off after a few minutes of use.When the engine is switched o
ff, the system's operating time depends on
the battery charge.
The switch-o
ff is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
Pla
yback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some fi les supplied with the memory stick may greatly slow down access
to reading the memory stick (multiplication by 10 of the catalogue time). Delete the fi les supplied with the memory stickand limit the number of sub-folders in the fi le structure on the memory stick.

When I connect myiPhone as telephone and
to the USB port at thesame time, I am unable
to play the music fi les. When the iPhone connects automaticall
y as a telephone, it forces the
streaming function. The streaming function takes the place of the USBfunction which is then not useable, there is a period without sound of the
track being played with AppleÆ players.Æ
Disconnect and reconnect to the USB port(the USB function takes priority over streaming).

349

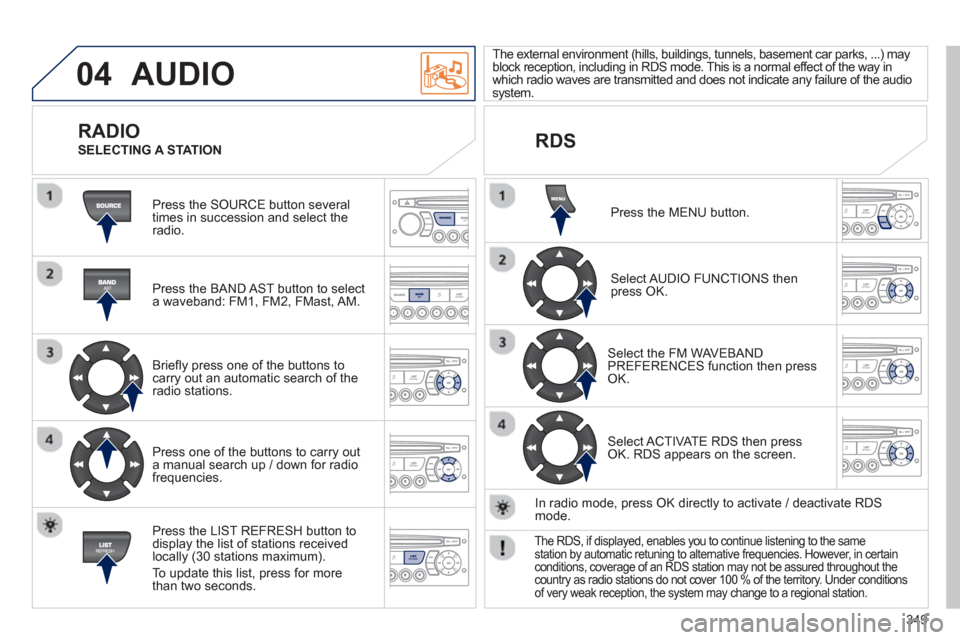

04 AUDIO

Press the SOURCE button several
times in succession and select theradio.

Press the BAND A
ST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl
y press one of the buttons tocarry out an automatic search of theradio stations.

Press one o
f the buttons to carry out
a manual search up / down for radiofrequencies.

Press the LI
ST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
t
han two seconds.

The external environment
(hills, buildings, tunnels, basement car parks, ...) may
block reception, including in RDS mode. This is a normal effect of the way in
which radio waves are transmitted and does not indicate any failure of the audiosystem.



RDS





RADIO

SELECTING A STATION

Press the MENU button.

Select AUDIO FUNCTIONS thenpress OK.

Select the FM WAVEBANDPREFERENCES function then pressOK.

Select ACTIVATE RDS then pressOK. RDS appears on the screen.

In radio mode, press
OK directly to activate / deactivate RDSmode.
The RDS, if displayed, enables you to continue listening to the samestation by automatic retuning to alternative frequencies. However, in certainconditions, coverage of an RDS station may not be assured throughout thecountry as radio stations do not cover 100 % of the territory. Under conditionsof very weak reception, the system may change to a regional station.

355

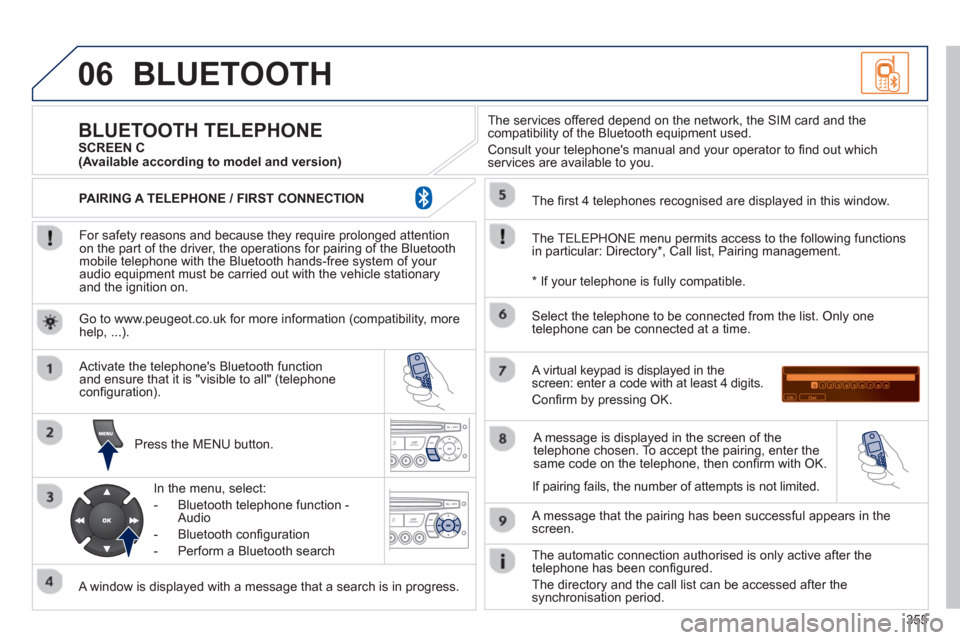

06BLUETOOTH

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Pr
ess the MENU button.

A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth
function
and ensure that it is "visible to all" (telephone confi guration).
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth confi
guration
- P
erform a Bluetooth search
The services o
ffered depend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you.









BLUETOOTH TELEPHONE SCREEN C

The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The
fi rst 4 telephones recognised are displayed in this window.

A virtual ke
ypad is displayed in thescreen: enter a code with at least 4 digits.

Confi rm by pressing OK.

A messa
ge that the pairing has been successful appears in thescreen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A messa
ge is displayed in the screen of the
telephone chosen. To accept the pairing, enter the same code on the telephone, then confi rm with OK.

The automatic connection authorised is onl
y active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
(Available according to model and version)

*
If your telephone is fully compatible.
I
f pairing fails, the number of attempts is not limited. Go to www.peu
geot.co.uk for more information (compatibility, more help, ...).
PAIRING A TELEPHONE / FIR
ST CONNECTION

363
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

364
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

371
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of fuel, Diesel ............... 171

Checking levels .........................174-175


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs..........................194-200


- front

- rear


Opening the bonnet .......................... 170
Under the bonnet, petrol ................... 172
Under the bonnet, Diesel .................. 173
Petrol engines............................219-227
Diesel engines ...........................228-239
Dimensions ....................................... 240
Identifi cation markings ...................... 241

Battery .......................................207-209
Energy economy mode..................... 210

Checking components ...............176-177


- air fi lter

- passenger compartment fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads / discs


Engine
compartment fuses ............201, 204-206

373
ALPHABETICAL INDEX
EBA (Emergency braking assistance) ......139Eco-driving ............................................23Eco-driving (advice)................................23Economical driving................................23Economy mode....................................210Electric window controls.........................89Electronic brake force distribution (EBFD).............................................139Electronic engine immobiliser...........84,86Emergency boot release........................94Emergency braking system..................139Emergency call....................139, 244,245Emergency warning lamps...................137Energy economy mode ........................210Engine, Diesel ...............97, 171, 173,228Engine, petrol........................97, 172,219Engine compartment ....................172,173Engine compartment fusebox...............201Engine oil level indicator................r42,174Engines.........................................219,228Environment .....................................23,86Equipment settings ........45,47,49,52,54
ESP/ASR..............................................140
Filling with fuel...................................96-98Fitting a wheel......................................192Fitting roof bars....................................216Fittings, boot.........................116, 118, 121Flashing indicators...............................137Foglamps, rear.....................................r100Folding the rear seats................72, 74, 76Front foglamps....................100,194, 196Front seats.................................68, 69, 71Fuel.............................................23, 96, 97Fuel consumption...................................23Fuel filler cap..........................................96Fuel filler flap....................................96, 98Fuel gauge.............................................96Fuel tank...........................................96, 98Fusebox, dashboard.............................201Fuses....................................................201
Halogen headlamps.............................194Hands-free kit...............................314, 355Hazard warning lamps..........................137Headlamp adjustment..................103, 104Headlamps, directional.................104, 194Headlamp wash....................................106Headlamp wash reservoir.....................174Head restraints, front..............................70Head restraints, rear...............................72Heated seats..........................................71Heating.............................................23,63Height and reach adjustment, steering wheel....................................82High load retaining net.................120, 123Hill start assist..............................152, 153Hooks...................................117,119, 123Horn......................................................137
Dimensions ...........................................240Dipped beam .........................99, 194,195Dipstick...........................................42,174
Directional lighting ................................104
Direction indicators......137, 194, 197,199Doors ......................................................91Doors emergency control .......................93Door trays.............................................110Driving positions (memorising)...............71
E
FH
G.P.S. ...........................................258, 300Gearbox, automatic ......................157, 177Gearbox, electronic gear control.....................153,160, 177Gearbox, manual .........150,151,160, 177Gear lever...............................................r23Gear lever, automatic gearbox .............157Gear lever, electronic gear controlgearbox............................................153Gear lever, manual gearbox .................150Gear shift indicator...............................r151Glove box .............................................111Grab handles ........................................110Guidance .............................258,298, 305
G
Identification plates ...............................241Ignition ....................................................85Indicators, direction ..............................137Inflating accessories (using the kit) ......178Inflating tyres ..........................................23Inputs for audio system.....274, 331, 352, 354
Instrument panel lighting........................44
Instrument panels .......................25-28,43Instrument panel screen ...........25-27, 151Interior fittings.......................................110Interior mood lighting ............................109ISOFIX child seats................131, 133-135ISOFIX mountings................................131
I
