PRACTICAL INFORMATION
Do not apply excessive force on the
tab as locking will not be possible if
the clip is not positioned correctly;
start the procedure again.













Starting using another battery

When your vehicle's battery is dis-
charged, the engine can be started
using a slave battery (external or on an-
other vehicle) and jump leads.

Disconnecting the (+) cable


)
Raise the locking tab D
fully to re-
lease the cable terminal E
.


Reconnecting the (+) cable


)
Position the open clip E
of the cable
on the positive post (+) of the battery.

)
Press vertically on the clip E
to posi-
tion it correctly on the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab D
.
First check that the slave battery
has a nominal voltage of 12 V and
a capacity at least equal to that of
the discharged battery.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the (+) terminal
when the engine is running.


)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
(or earth
point on the other vehicle).

)
Connect the other end of the green
or black cable to the earth point C

on the broken down vehicle (or on
the engine mounting).

)
Start the vehicle with the good bat-
tery and leave it running for a few
minutes.
)
Operate the starter on the broken
down vehicle and let the engine run.
If the engine does not start straight
away, switch off the ignition and wait
a few moments before trying again.

)
Wait until the engine returns to idle
then disconnect the cables in the re-
verse order.

11
215
PRACTICAL INFORMATION
VERY COLD CLIMATE SCREEN *

Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.

Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,

-
at speeds above 75 mph (120 km/h).



Removal



)
Use a screwdriver as a lever to re-
lease each fi xing clip in turn. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.

Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.



)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.


*
According to country.

12
241
TECHNICAL DATA

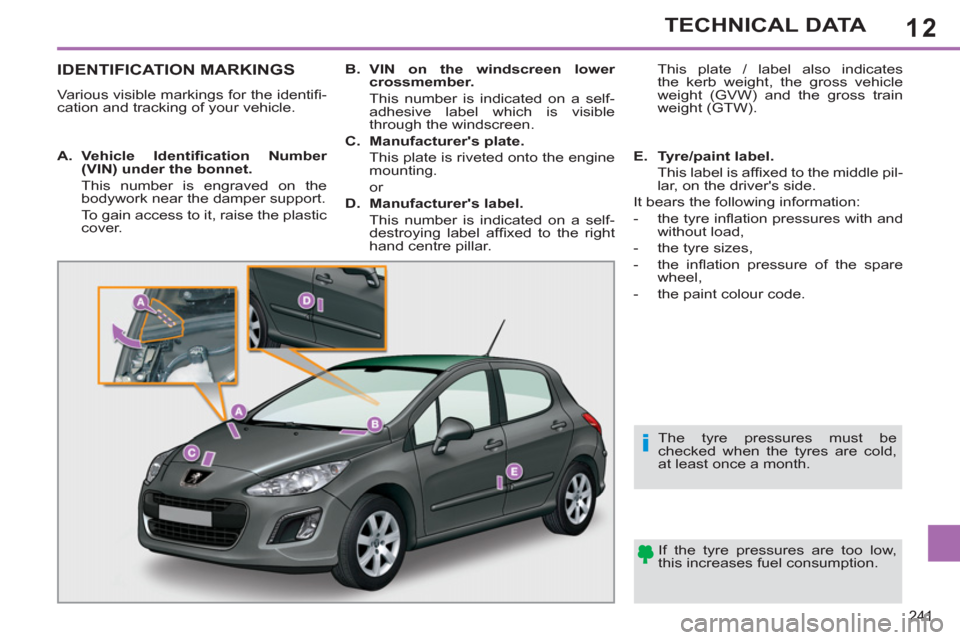

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracking of your vehicle.
If the tyre pressures are too low,
this increases fuel consumption.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.


A.
Vehicle Identifi cation Number
(VIN) under the bonnet.

This number is engraved on the
bodywork near the damper support.
To gain access to it, raise the plastic
cover.
B.
VIN on the windscreen lower
crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's plate.

This plate is riveted onto the engine
mounting.
or

D.
Manufacturer's label.

This number is indicated on a self-
destroying label affi xed to the right
hand centre pillar. This plate / label also indicates
the kerb weight, the gross vehicle
weight (GVW) and the gross train
weight (GTW).

E.
Tyre/paint label.

This label is affi xed to the middle pil-
lar, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the tyre sizes,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

286
QUESTIONANSWERSOLUTION

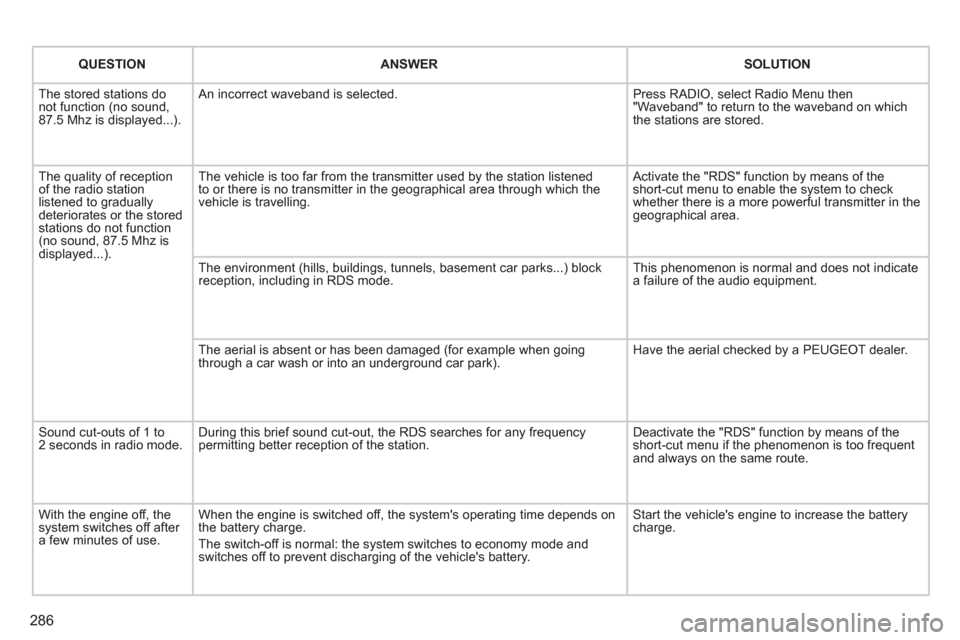

The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press RADIO, select Radio Menu then"Waveband" to return to the waveband on which the stations are stored.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the "RDS" function by means of theshort-cut menu to enable the system to check whether there is a more powerful transmitter in thegeographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequentand always on the same route.

With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the battery charge.
The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the batterycharge.

364
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

371
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE

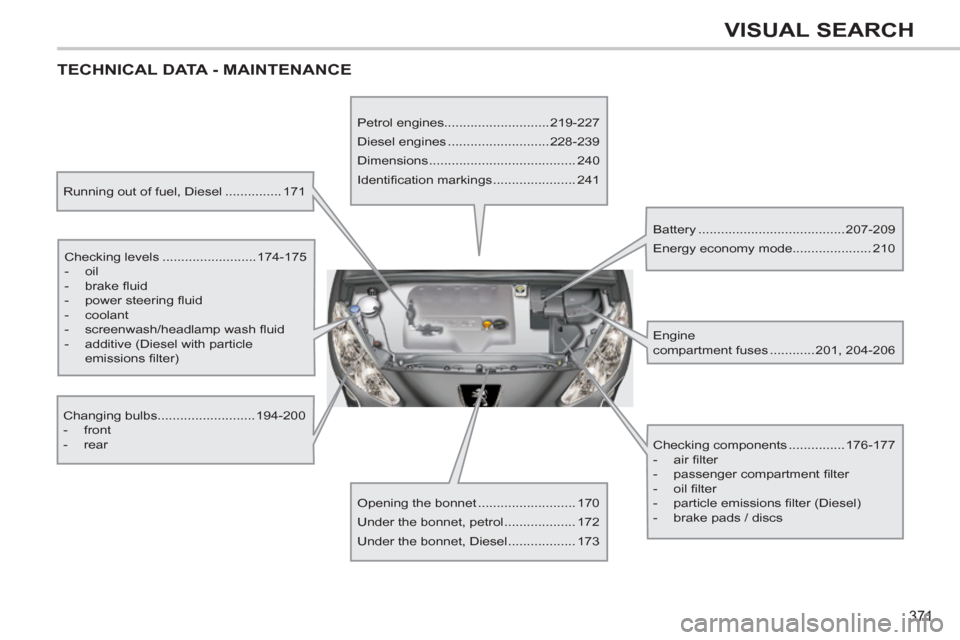

Running out of fuel, Diesel ............... 171
