PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower section
of the dashboard (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating


Functions



F1



15 A

Rear wiper.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.


F6



30 A

Rear one-touch electric windows, trailer fusebox.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor illumination, glove
box illumination, torch.


F8



20 A

Audio equipment, audio/telephone, multifunction
screen, tyre under-infl ation detection.


F9



30 A

Front 12 V socket.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

11
203
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



15 A

Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.


F13



5 A

Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.


F14



15 A

Multifunction screen, amplifi er, Bluetooth system,
rain / sunshine sensor, parking sensors control unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.


Fuse N°



Rating


Functions



G36



30 A

Driver and passenger heated seats.


G37



5 A

Driving position memory unit, lighting dimmer.


G38



30 A

Driver's seat memory unit.


G39



30 A

Trailer fusebox supply.


G40



30 A

Hi-Fi amplifi er.

11
204
PRACTICAL INFORMATION

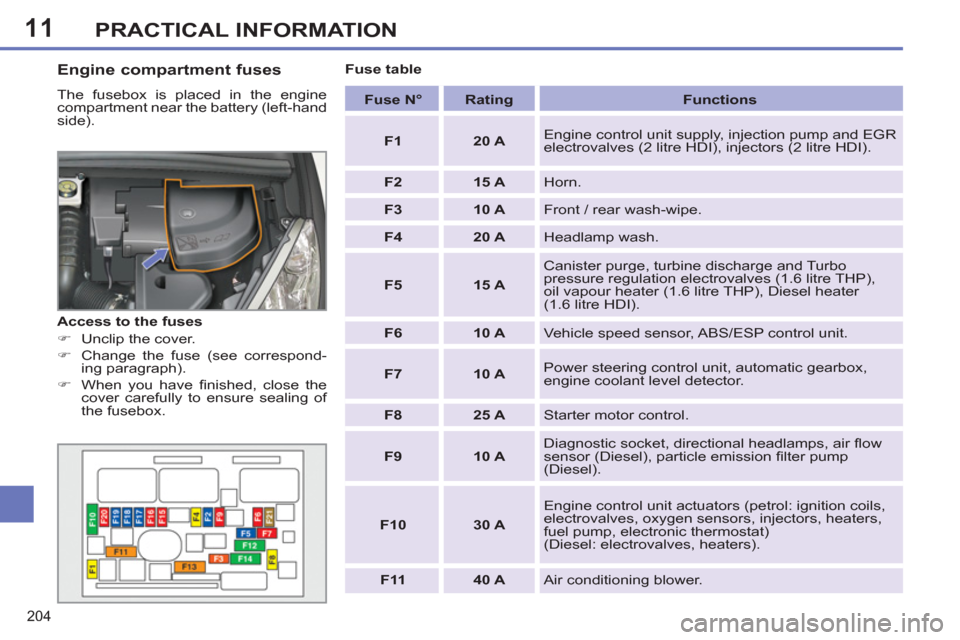

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Fuse N°



Rating


Functions



F1



20 A

Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).


F2



15 A

Horn.


F3



10 A

Front / rear wash-wipe.


F4



20 A

Headlamp wash.


F5



15 A

Canister purge, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP),
oil vapour heater (1.6 litre THP), Diesel heater
(1.6 litre HDI).


F6



10 A

Vehicle speed sensor, ABS/ESP control unit.


F7



10 A

Power steering control unit, automatic gearbox,
engine coolant level detector.


F8



25 A

Starter motor control.


F9



10 A

Diagnostic socket, directional headlamps, air fl ow
sensor (Diesel), particle emission fi lter pump
(Diesel).


F10



30 A

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40 A

Air conditioning blower.
Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
205
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



30 A

Windscreen wipers slow / fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



30 A

Air pump.


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Oil vapour heater (1.4 litre and 1.6 litre VTi),
canister purge electrovalve (1.4 litre
and 1.6 litre VTi), oxygen sensors (petrol),
air cooling electrovalves (Diesel).


F20



10 A

Electronic thermostat, variable timing electrovalves,
airfl ow sensor (1.6 litre THP 200),Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F21



5 A

Fan assembly relay supply, Valvetronic relay
control (1.4 litre and 1.6 litre VTi ), Turbo cooling
(1.6 litre THP), Valvetronic motor (1.6 litre
THP 200), air fl ow sensor (1.6 litre HDI).

11
215
PRACTICAL INFORMATION
VERY COLD CLIMATE SCREEN *

Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.

Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,

-
at speeds above 75 mph (120 km/h).



Removal



)
Use a screwdriver as a lever to re-
lease each fi xing clip in turn. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.

Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.



)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.


*
According to country.

11
217
PRACTICAL INFORMATION

"Protection":
mats * , mud fl aps, seat covers compat-
ible with lateral airbags, vehicle covers,
door sill protectors, translucent bumper
protectors.

*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of
another.

ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Comfort":
parking sensors, side and rear blinds,
door defl ectors, isotherm module, head
restraint-mounted coat hanger, front
centre armrest, reading lamp, scented
air freshener...

Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.

"Transport solutions":
boot liner, boot mat, boot spacers, stor-
age under parcel shelf, transverse roof
bars, bicycle carrier, ski carrier, roof
box, towbars, wiring harnesses...

"Style":
leather steering wheel, aluminium gear
lever knob, alloy wheels, wheel trims,
body styling kit...
"Security and safety":
anti-theft alarm, wheel security locks,
vehicle tracking system, child seats and
booster cushions, breathalyser, fi rst aid
kit, warning triangle, high visibility vest,
dog guard, front foglamp kit, temporary
puncture repair kit, snow chains, anti-
skid covers.
Where the towbar and its wiring har-
ness are not fi tted by a PEUGEOT
dealer, they must be fi tted in line
with the vehicle manufacturer's rec-
ommendations.
