2
55
MULTIFUNCTION SCREENS

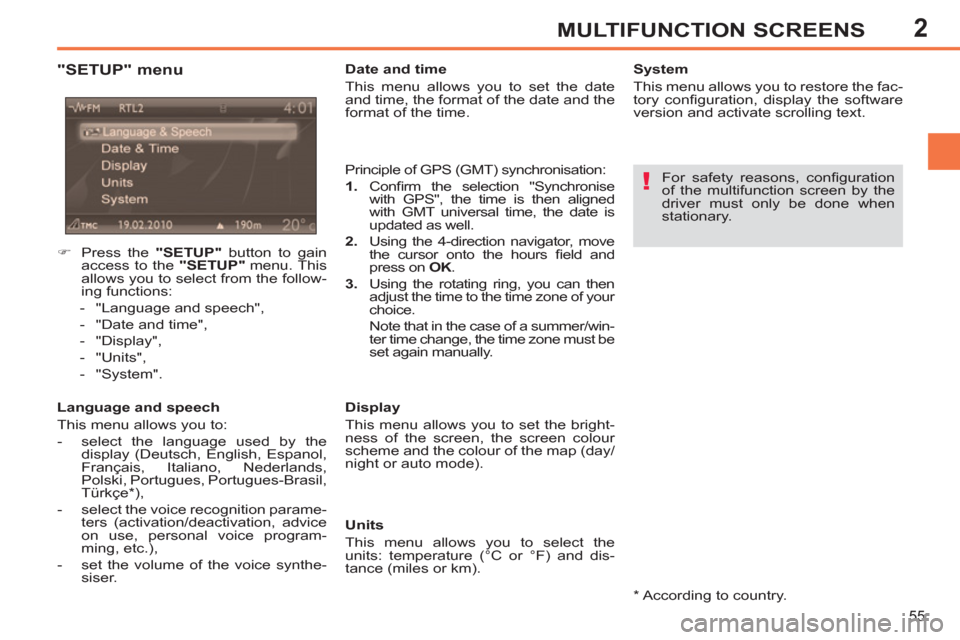

"SETUP" menu
Language and speech
This menu allows you to:
- select the language used by the
display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Portugues-Brasil,
Türkçe * ),
- select the voice recognition parame-
ters (activation/deactivation, advice
on use, personal voice program-
ming, etc.),
- set the volume of the voice synthe-
siser.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.
Principle of GPS (GMT) synchronisation:
1.
Confi rm the selection "Synchronise
with GPS", the time is then aligned
with GMT universal time, the date is
updated as well.
2.
Using the 4-direction navigator, move
the cursor onto the hours fi eld and
press on OK
.
3.
Using the rotating ring, you can then
adjust the time to the time zone of your
choice.
Note that in the case of a summer/win-
ter time change, the time zone must be
set again manually.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).
)
Press the "SETUP"
button to gain
access to the "SETUP"
menu. This
allows you to select from the follow-
ing functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
*
According to country.
Page 62 of 382
2MULTIFUNCTION SCREENS

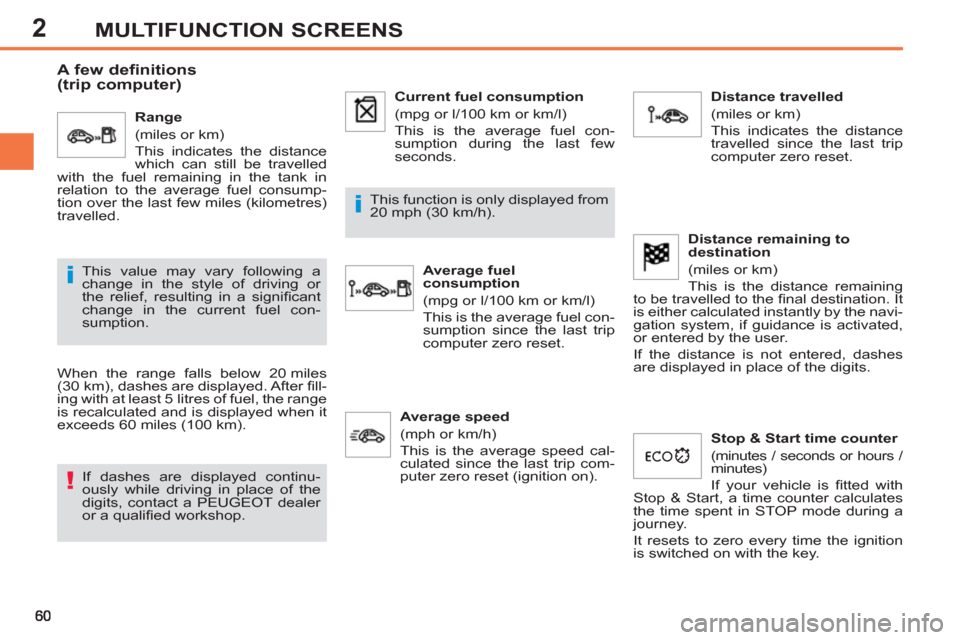

A few definitions
(trip computer)
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer
or a qualifi ed workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Stop & Start time counter
(minutes / seconds or hours /
minutes)
If your vehicle is fi tted with
Stop & Start, a time counter calculates
the time spent in STOP mode during a
journey.
It resets to zero every time the ignition
is switched on with the key.
Page 68 of 382
3
66
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.
)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left / right
setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
Automatic operation
)
Press the "AUTO"
button.
The indicator lamp in the
button comes on.
2. Driver's side adjustment
DUAL-ZONE DIGITAL
AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
)
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off and the indicator lamp
in the "AUTO"
button comes on.
1. Automatic comfort programme
3. Passenger side adjustment
)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 91 of 382
4
89
ACCESS
The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driver's
door control panel, carry out the op-
eration from the control panel of the
passenger door concerned, and vice
versa.

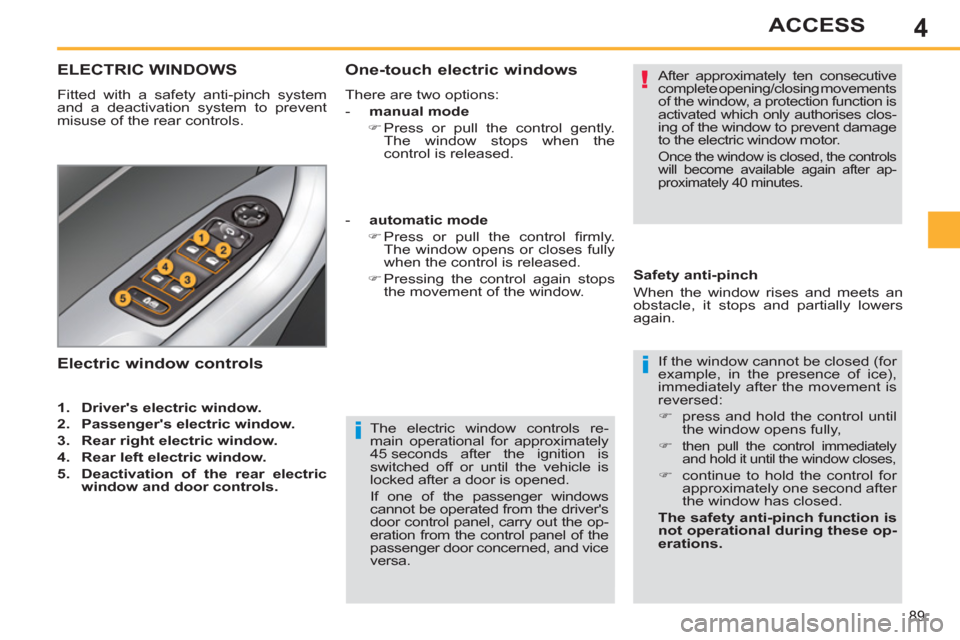

ELECTRIC WINDOWS
Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.
Electric window controls
If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
)
press and hold the control until
the window opens fully,
)
then pull the control immediately
and hold it until the window closes,
)
continue to hold the control for
approximately one second after
the window has closed.
The safety anti-pinch function is
not operational during these op-
erations.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
- automatic mode
)
Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.
)
Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
- manual mode
)
Press or pull the control gently.
The window stops when the
control is released.
After approximately ten consecutive
complete opening/closing movements
of the window, a protection function is
activated which only authorises clos-
ing of the window to prevent damage
to the electric window motor.
Once the window is closed, the controls
will become available again after ap-
proximately 40 minutes.
1.
Driver's electric window.
2.
Passenger's electric window.
3.
Rear right electric window.
4.
Rear left electric window.
5.
Deactivation of the rear electric
window and door controls.
Page 97 of 382
4
95
ACCESS

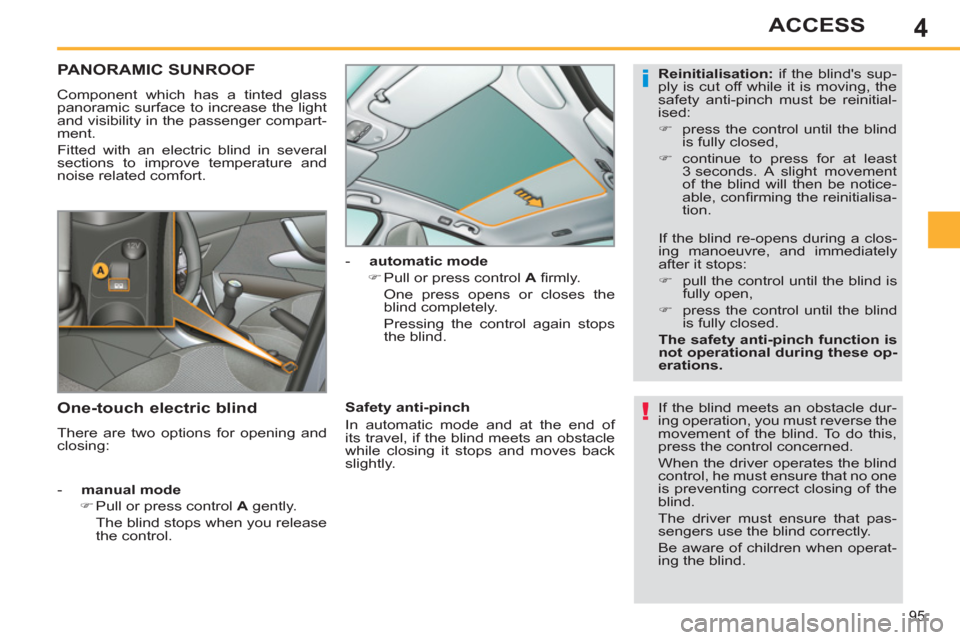

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle dur-
ing operation, you must reverse the
movement of the blind. To do this,
press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when operat-
ing the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
Reinitialisation:
if the blind's sup-
ply is cut off while it is moving, the
safety anti-pinch must be reinitial-
ised:
)
press the control until the blind
is fully closed,
)
continue to press for at least
3 seconds. A slight movement
of the blind will then be notice-
able, confi rming the reinitialisa-
tion.
If the blind re-opens during a clos-
ing manoeuvre, and immediately
after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind
is fully closed.
The safety anti-pinch function is
not operational during these op-
erations.
Page 102 of 382
5
100
VISIBILITY

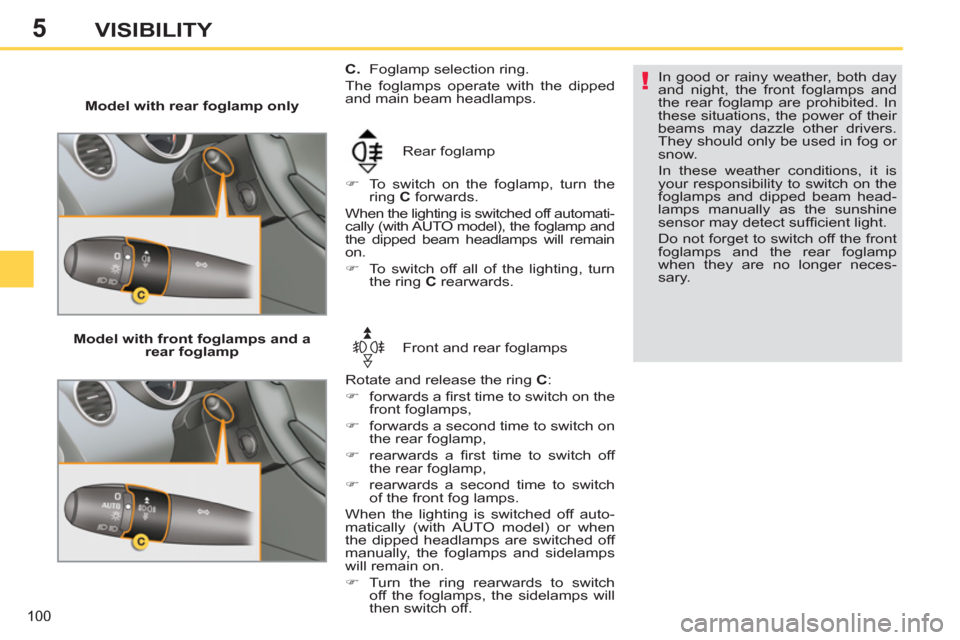

Model with rear foglamp only
Rear foglamp
)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off automati-
cally (with AUTO model), the foglamp and
the dipped beam headlamps will remain
on.
)
To switch off all of the lighting, turn
the ring C
rearwards.
In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the sunshine
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer neces-
sary.
Model with front foglamps and a
rear foglamp Front and rear foglamps
Rotate and release the ring C
:
)
forwards a fi rst time to switch on the
front foglamps,
)
forwards a second time to switch on
the rear foglamp,
)
rearwards a fi rst time to switch off
the rear foglamp,
)
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Page 110 of 382
5
108
VISIBILITY

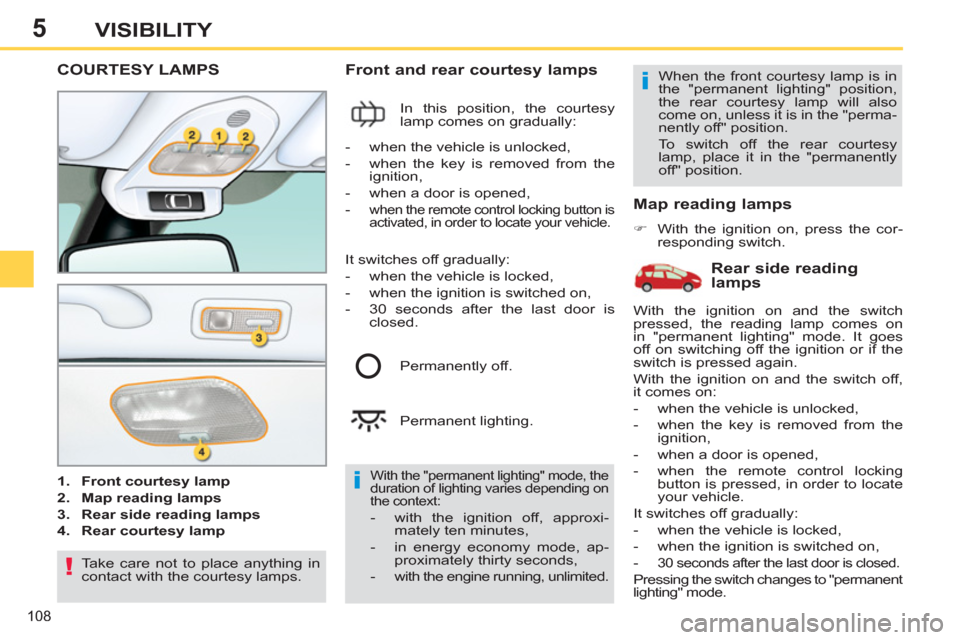

COURTESY LAMPS
1.
Front courtesy lamp
2.
Map reading lamps
3.
Rear side reading lamps
4.
Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
With the "permanent lighting" mode, the
duration of lighting varies depending on
the context:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp is in
the "permanent lighting" position,
the rear courtesy lamp will also
come on, unless it is in the "perma-
nently off" position.
To switch off the rear courtesy
lamp, place it in the "permanently
off" position.
Rear side reading
lamps It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Take care not to place anything in
contact with the courtesy lamps. With the ignition on and the switch
pressed, the reading lamp comes on
in "permanent lighting" mode. It goes
off on switching off the ignition or if the
switch is pressed again.
With the ignition on and the switch off,
it comes on:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking
button is pressed, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
-
30 seconds after the last door is closed.
Pressing the switch changes to "permanent
lighting" mode.
Page 111 of 382
5
109
VISIBILITY
INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
The lighting time varies according
to the circumstances:
- when the ignition is off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running, no
limit. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
BOOT LAMP
Switching on
)
Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
The function is activated or
deactivated via the vehicle
confi guration menu.
This function is activated
by default.
