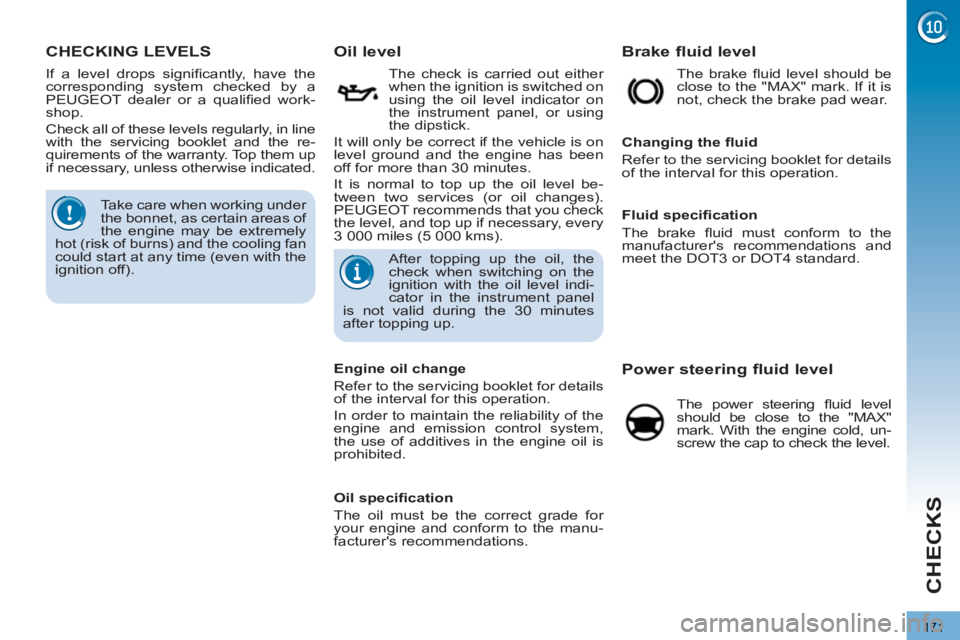

171
CHECKS
CHECKING LEVELS
















Oil level



The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
It will only be correct if the vehicle is on
level ground and the engine has been
off for more than 30 minutes.
It is normal to top up the oil level be-
tween two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 kms).
Take care when working under
the bonnet, as certain areas of
the engine may be extremely
hot (risk of burns) and the cooling fan
could start at any time (even with the
ignition off).

If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Check all of these levels regularly, in line
with the servicing booklet and the re-
quirements of the warranty. Top them up
if necessary, unless otherwise indicated.
After topping up the oil, the
check when switching on the
ignition with the oil level indi-
cator in the instrument panel
is not valid during the 30 minutes
after topping up.

Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.











Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold, un-
screw the cap to check the level.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT3 or DOT4 standard.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.










Brake fluid level


Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.

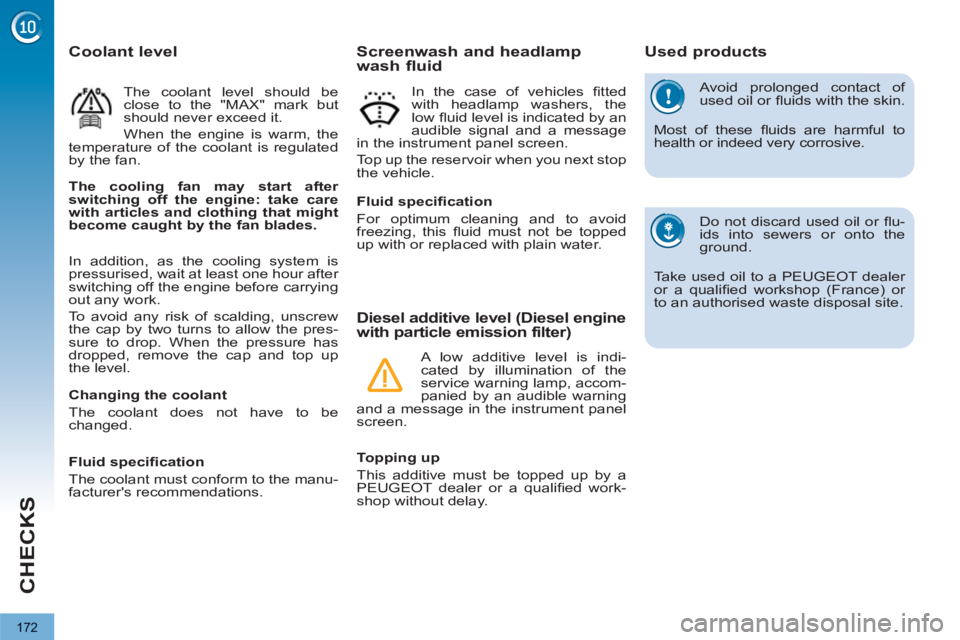

172
CHECKS
Avoid prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl u-
ids into sewers or onto the
ground.
Take used oil to a PEUGEOT dealer
or a qualifi ed workshop (France) or
to an authorised waste disposal site.










Diesel additive level (Diesel engine
with particle emission filter)







Used products


Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.

In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you next stop
the vehicle.





















Screenwash and headlamp
wash fluid






The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.



Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Changing the coolant
The coolant does not have to be
changed.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.











Coolant level

A low additive level is indi-
cated by illumination of the
service warning lamp, accom-
panied by an audible warning
and a message in the instrument panel
screen.

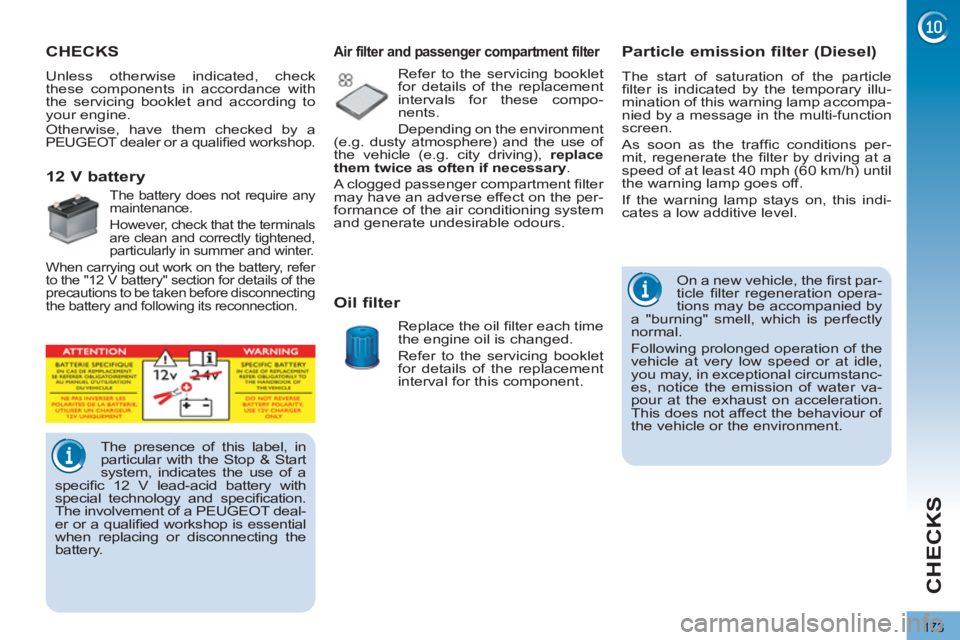

173
CHECKS
CHECKS


Unless otherwise indicated, check
these components in accordance with
the servicing booklet and according to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed workshop.








The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
specifi c 12 V lead-acid battery with
special technology and specifi cation.
The involvement of a PEUGEOT deal-
er or a qualifi ed workshop is essential
when replacing or disconnecting the
battery. Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.














Oil filter


Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
.
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.





















Air filter and passenger compartment filter













12 V battery


The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.











Particle emission filter (Diesel)

The start of saturation of the particle
fi lter is indicated by the temporary illu-
mination of this warning lamp accompa-
nied by a message in the multi-function
screen.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, this indi-
cates a low additive level.

On a new vehicle, the fi rst par-
ticle fi lter regeneration opera-
tions may be accompanied by
a "burning" smell, which is perfectly
normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstanc-
es, notice the emission of water va-
pour at the exhaust on acceleration.
This does not affect the behaviour of
the vehicle or the environment.

180
PRACTICAL INFORMATION

Removing the cartridge




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.

)
Unscrew the cartridge from the
bottom.


Beware of discharges of fl uid.
The expiry date of the fl uid is
indicated on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the car-
tridge into the environment, take it to
an authorised waste disposal site or
a PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers or from a qualifi ed workshop.



Checking tyre pressures /
inflating accessories



)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to the valve
of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.

You can also use the compressor, with-
out injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories (balls, bi-
cycle tyres...).




)
Connect the compressor's electri-
cal connector to the vehicle's 12 V
socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in po-
sition "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.

)
Remove the kit then stow it.

199
PRACTICAL INFORMATION


It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month.











The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.










Charging the battery using a
battery charger


)
Disconnect the battery from the vehicle.


)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Connect the battery starting with the
negative terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
(or earth
point on the other vehicle).

)
Connect the other end of the green
or black cable to the earth point C

on the broken down vehicle (or on
the engine mounting).

)
Start the engine of the vehicle with
the good battery and leave it run-
ning for a few minutes.

)
Operate the starter on the broken
down vehicle and let the engine run
If the engine does not start straight
away, switch off the ignition and wait
a few moments before trying again.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
Do not try to start the engine by con-
necting a battery charger.
Do not disconnect the (+) terminal when
the engine is running.












Starting using another battery

When your vehicle's battery is discharged,
the engine can be started using a slave
battery (external or on another vehicle)
and jump lead cables.

)
Wait until the engine returns to idle
then disconnect the jump lead ca-
bles in the reverse order.

200
PRACTICAL INFORMATION

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 min-
ute before starting to permit initialisation
of the electronic systems. However, if
problems remain following this opera-
tion, contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise (depend-
ing on version):


- the remote control key,

- the electric blind(s),

- ...







Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows and the doors be-
fore disconnecting the battery.









Do not push the vehicle to start the
engine if you have an electronic
gearbox or automatic gearbox.
Protect your eyes and face
before handling the battery.
All operations on the battery
must be carried out in a well ventilat-
ed area and away from naked fl ames
and sources of sparks, so as to avoid
the risk of explosion or fi re.
Do not try to charge a frozen battery;
the battery must fi rst be thawed out to
avoid the risk of explosion. If the bat-
tery has been frozen, before charg-
ing have it checked by a PEUGEOT
dealer or a qualifi ed workshop who
will check that the internal compo-
nents have not been damaged and
the casing is not cracked, which
could cause a leak of toxic and cor-
rosive acid.
Do not reverse the polarity and use
only a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Wash your hands afterwards.

204
PRACTICAL INFORMATION
TOWING A TRAILER

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.


Driving advice

The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)

Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.



Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.


The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.

Towbar suitable for the attachment of a
trailer or installation of a bicycle carrier,
with additional lighting and signalling.

Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.


We recommend the use of
genuine PEUGEOT towbars
and their harnesses that have
been tested and approved from the
design stage of your vehicle, and that
the fi tting of the towbar is entrusted
to a PEUGEOT dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted in accordance with the
vehicle manufacturer's instructions.
Refer to the "Technical data"
section for details of the
weights and towed loads
which apply to your vehicle.

258

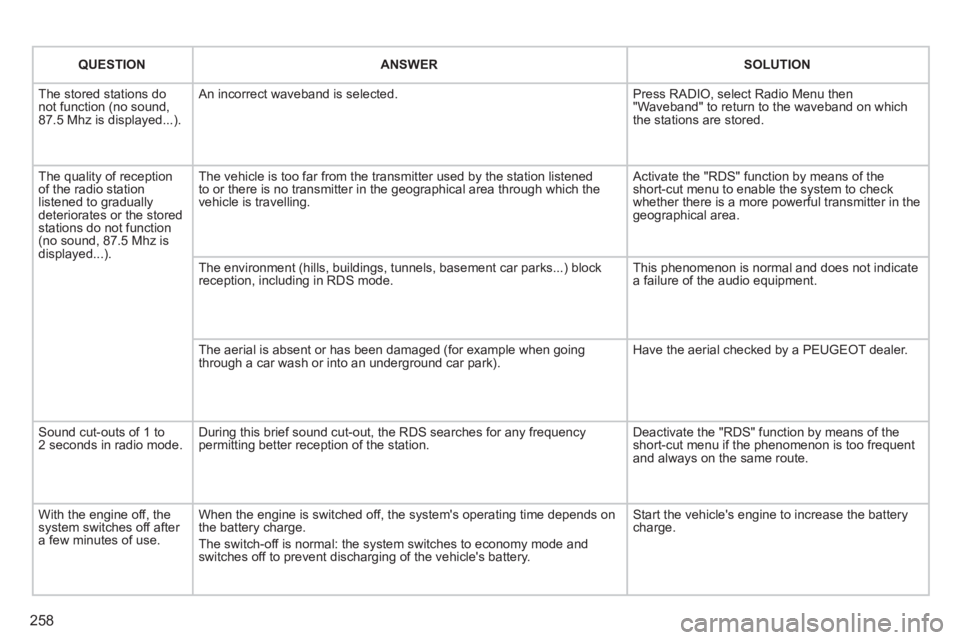

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press RADIO, select Radio Menu then"Waveband" to return to the waveband on which the stations are stored.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the "RDS" function by means of theshort-cut menu to enable the system to check whether there is a more powerful transmitter in thegeographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequentand always on the same route.

With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the battery charge.
The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the batterycharge.
