2013 PEUGEOT 3008 navigation system

271
04

SELECTING A DESTINATION
NAVIGATION - GUIDANCE


TO ONE OF THE RECENT DESTINATIONS
Press NAV
to display the"Navigation - guidance" menu.

Select the desired destination and confi rm to start guidance. TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination" andconfi rm, then select " Directory " and confi rm.

Selection the desired destination from your contacts and confi rm "OK
" to start
the guidance.
Pr
ess NAVto display the"Navigation - guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

275
04

ALERT PARAMETERS
RISK AREAS
Select:
- "Vi
sual alert"
- "A
udible alert"
-
"Alert only in guidance"
- "
Overspeed alarm only".
Th
e choice of time of notifi cation defi nes how long in advance that Risk area
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select "Set parameters for riskareas
" and confi rm.
These
functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updatin
g risk area POIs can be found at
www.peugeot.com.
Press NAVto display the " Navigation - guidance" menu.

277
04NAVIGATION - GUIDANCE

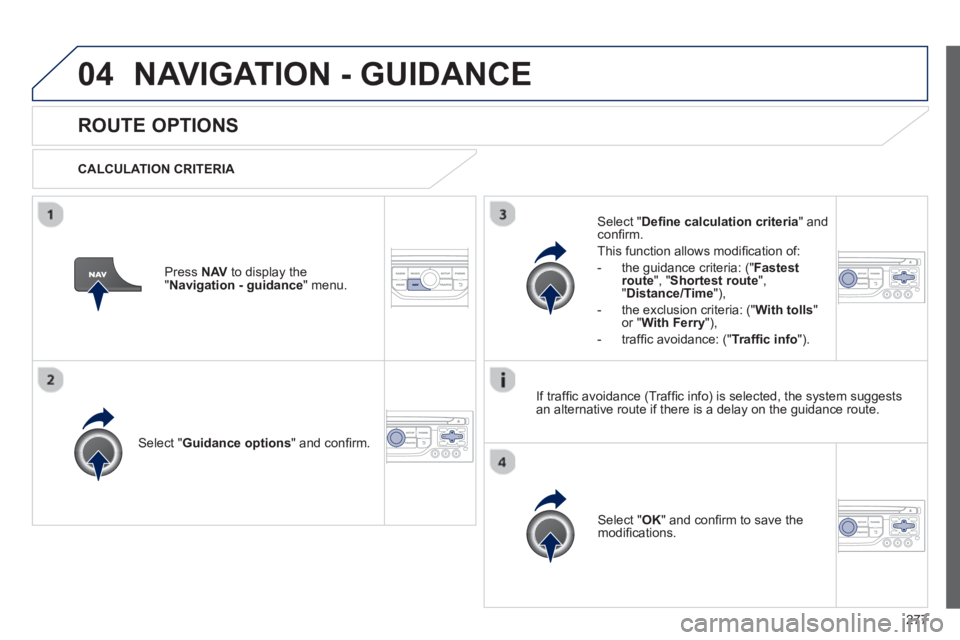

ROUTE OPTIONS

CALCULATION CRITERIA
Select " Guidance options
" and confi rm.
Select " OK
" and confi rm to save themodifi cations.
Select " Defi ne calculation criteria" andconfi rm.
Thi
s function allows modifi cation of:

- the
guidance criteria: (" Fastest
route", " Shortest route", "Distance/Time "),

- the exclusion criteria:
(" With tolls"or "With Ferry
"),

- traffi c avoidance:
(" Traffi c info
").

Press NAV
to display the"Navigation - guidance" menu.
I
f traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

278
04NAVIGATION - GUIDANCE
Press NAV
to display the
"Navigation - guidance" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP
Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on thescreen.

Select "Map details" and confi rm.
Select " By default" to have only "Oil stations, garages" and"Accident-prone area
" appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save the
modifi cations.

281
04NAVIGATION - GUIDANCE

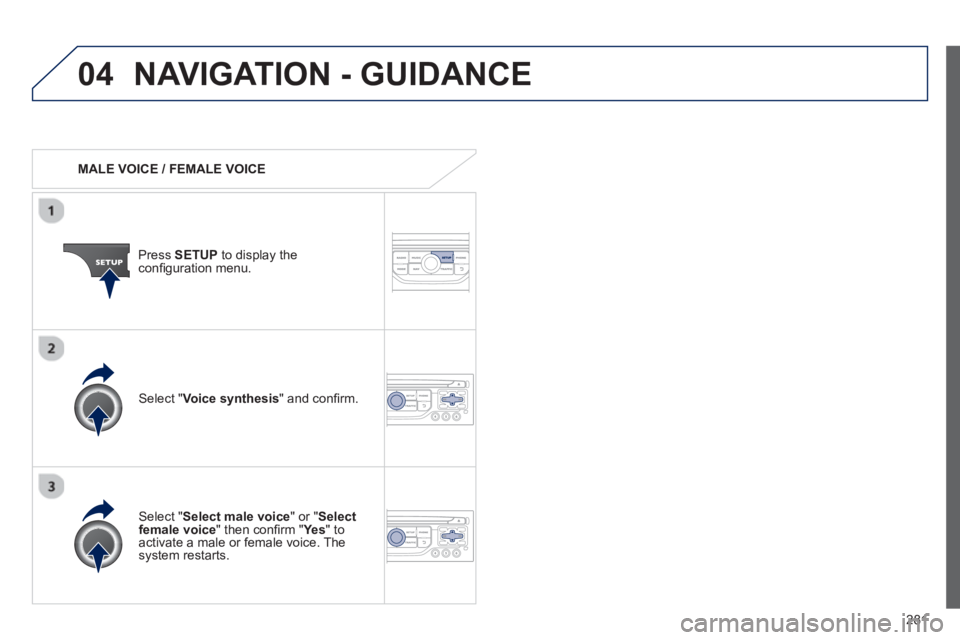

MALE VOICE / FEMALE VOICE
Press SETUP
to display theconfi guration menu.

Select "Select male voice
" or "Selectfemale voice" then confi rm " Ye s
" to activate a male or female voice. Thesystem restarts.

Select "Voice synthesis
" and confi rm.

283

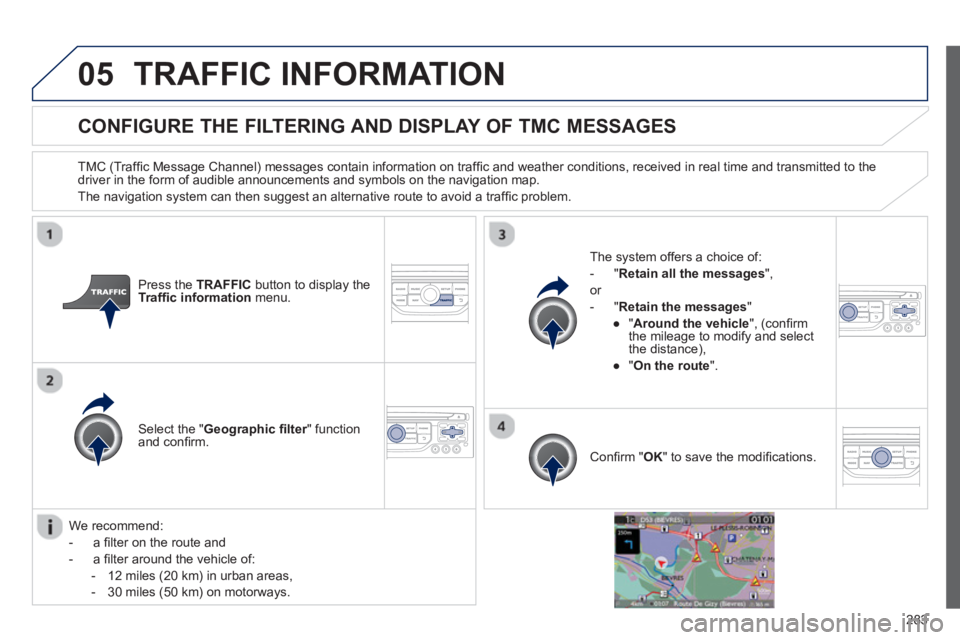

05TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES

TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-"Retain the messa
ges"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

310

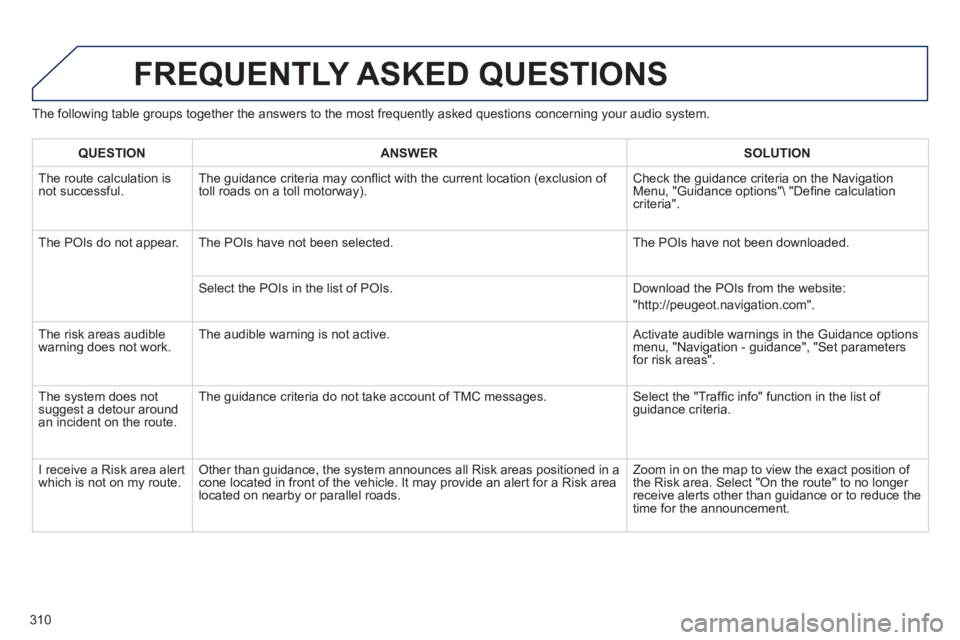

The following table groups together the answers to the most frequently asked questions concerning your audio system.
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The route calculation is not successful. The guidance criteria may confl ict with the current location (exclusion of
toll roads on a toll motorway). Check the guidance criteria on the Navigation Menu, "Guidance options"\ "Defi ne calculation criteria".
The P
OIs do not appear. The POIs have not been selected. The POIs have not been downloaded.
Select the POIs in the list of POIs. Download the POIs from the website:
"http://peugeot.navigation.com".

The risk areas audiblewarning does not work. The audible warning is not active. Activate audible warnings in the Guidance options menu, "Navigation - guidance", "Set parameters
for risk areas".

The system does notsuggest a detour around an incident on the route. The
guidance criteria do not take account of TMC messages. Select the "Traffi c info" function in the list of guidance criteria.
I r
eceive a Risk area alert
which is not on my route. Other than guidance, the system announces all Risk areas positioned in a cone located in front of the vehicle. It may provide an alert for a Risk area located on nearby or parallel roads. Zoom in on the ma
p to view the exact position of
the Risk area. Select "On the route" to no longer receive alerts other than guidance or to reduce the
time for the announcement.

339
ALPHABETICAL INDEX
Labels, identifi cation ...................213
Lamps, warning
and indicator ..................29, 32, 33
LED daytime running lamps .........89
Level, brake fl uid ........................171
Level, headlamp wash ..........94, 172
Level, power steering fl uid ..........171
Levels and checks .............. 169-172
Lighting .........................................98
Lighting, guide-me home ........89, 90
Lighting, interior ......................96, 97
Lighting bulbs
(replacement) ......... 186, 189, 190
Lighting control stalk .....................87
Lighting dimmer ............................41
Loading .................................25, 205
Load reduction mode ..................201
Load space cover .......................107
Locating your vehicle ....................73
Locking from the inside.................82
Long objects, transporting ....66, 104
Luggage retaining net .................108
Luggage retaining strap ..............106
Main beam .................... 87, 186-188
Maintenance .................................25
Map reading lamps .......................96
Markings, identifi cation ...............213
Mat..............................................102
Menu, main .................................320
Mini fuel level ................................85
Mirror, rear view ............................70
Mirrors, door .................................69
Misfuel prevention ........................86
Motorway function
(direction indicators) ................124
Mountings for ISOFIX seats .......120MP3 CD ......................................323
Multimedia, rear ..........................103
Music media players ...........242, 298
MN
L
Navigation.................. 230, 269, 270
Number plate lamps ...................190
O
Oil fi lter .......................................173
Oil level .................................40, 171
Opening the bonnet ....................167
Opening the boot ....................72, 83
Opening the doors ..................72, 81
Opening the panoramic sunroof
blind .........................................105
Opening the retractable screen ....51
Opening the tailgate ...............83, 84
Operation indicator lamps ....29, 31, 32
P
Paint colour code ........................213
Panoramic glass sunroof ............105
Parking brake .............................174
Parking brake, electric ........137, 140
Parking sensors, rear .................164
Particle emission fi lter.........172, 173
Passenger compartment fi lter.....173
PEUGEOT call button .................217
PEUGEOT CONNECT
ASSISTANCE ..........................216
Peugeot Connect Media Navigation
(NG4 3D) ........ 219, 222, 225, 252
R
Peugeot Connect Navigation
(RT6)..................................49, 263
PEUGEOT CONNECT
SOS .................................216, 217
Peugeot Connect Sound
(RD5) ................ 46, 317, 330, 332
PEUGEOT services ....................217
PIN code .....................................250
Player, CD MP3 ..........................323
POIs (updating) ..........................237
Port, USB........... 101, 303, 324, 326
Priming the fuel system ..............168
Protecting children ............. 112, 113,
118, 120-122, 133
Puncture .....................................175
Radio ................. 241, 295, 296, 321
RCA sockets ...............................246
Reading lamps, rear .....................96
Rear foglamp ......................189, 190
Rear screen (demisting) .........59, 69
Recharging the battery ...............199
Reduction of electrical load ........201
Regeneration of the particle
emissions fi lter .........................173
Reinitialising the electric windows ....79
Reinitialising the remote control.....75
Remote control .................72, 73, 76
Removable screen
(snow shield) ...........................205
Removing a wheel ......................184
Removing the mat ......................102
Repair kit, puncture ....................175
Replacing bulbs ......... 186, 189, 190
Replacing fuses ..........................191
Replacing the air fi lter .................173
Replacing the oil fi lter .................173
Replacing the passenger
compartment fi lter ....................173
