2013 PEUGEOT 2008 headlamp

160
Practical information
Changing dipped beam headlampbulbs
) Remove the protective cover by pulling on
the tab. ) Disconnect the bulb connector.)
Spread the spring to release the bulb.)
Extract the bulb and change it.


Amber coloured bulbs, such as thedirection indicators, must be replacedwith bulbs of identical specificationsand colour.
When refitting, close the protective cover carefully to preser ve the sealing of the headlamp.


Rapid flashing of the direction indicator warning lamp (right or left) indicates thefailure of a bulb on that side.
Changing direction indicator bulbs

To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
)Turn the bulb holder an eighth of a turn anti-clockwise and extract it.)Remove the bulb and change it.
To reassemble, carry out these operations inreverse order.

161
7
Practical information

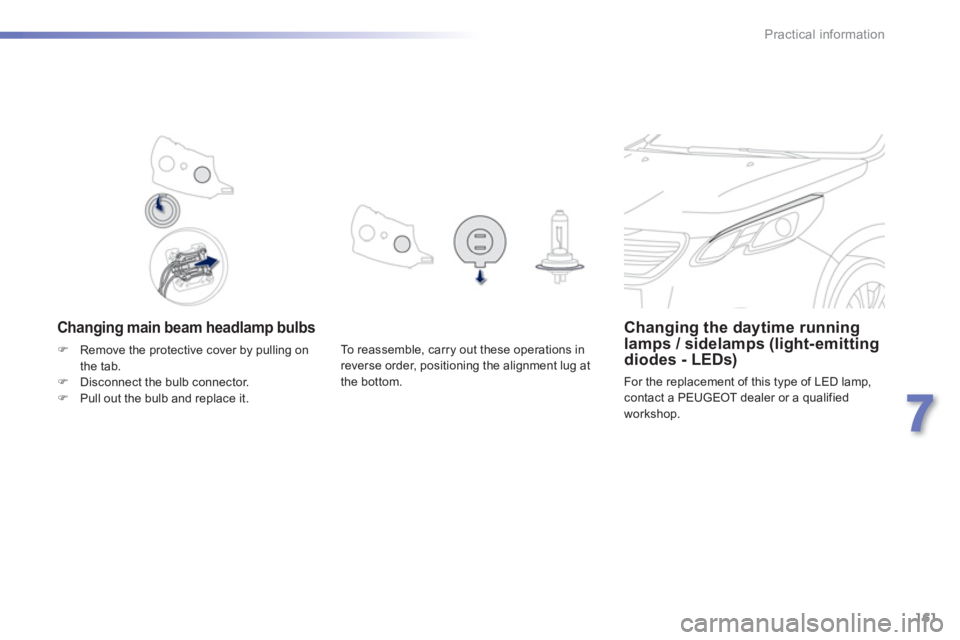

Changing main beam headlamp bulbs Changing the daytime running lamps / sidelamps (light-emittingdiodes - LEDs)

For the replacement of this type of LED lamp, contact a PEUGEOT dealer or a qualified
workshop. To reassemble, carr
y out these operations inreverse order, positioning the alignment lug at
the bottom.

)Remove the protective cover by pulling on
the tab. )Disconnect the bulb connector. )Pull out the bulb and replace it.

168
Practical information
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Access to the fuses
) Refer to the paragraph "Access to the tools".
Fuse N°RatingFunctions
F02 5
A Door mirrors, headlamps, diagnostic socket.
F09 5
A Alarm.
F1
05 A Independent telematic unit, trailer inter face.
F1
15 A Electrochrome rear view mirror, additional heating.
F13 5
A Hi-Fi amplifier, parking sensors .
F1615 A
Front 12 V socket.
F1715 A
Audio system, audio system (accessory).
F18 20
A Touch screen.


Fuse tables

171
7
Practical information
Fuse N°RatingFunctions
F1
615 A Front foglamps.
F18 10 A
Right hand main beam headlamp.
F1
910 A
Left hand main beam headlamp.
F25
30 A Headlamp wash relay (accessory).
F2
940 A Front wiper motor.
F3
080 A
Pre-heater plugs (Diesel).


Engine compartment fuses

The fusebox is placed in the engine compartment near the battery (left-hand side).


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.

Fuse table

175
7
Practical information

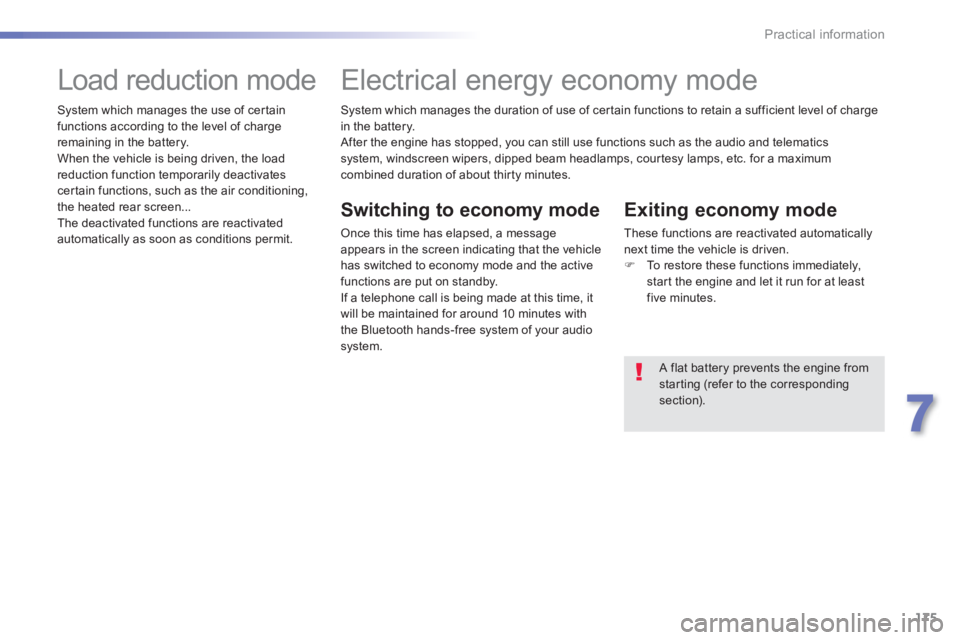

System which manages the duration of use of certain functions to retain a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
s
ystem, windscreen wipers, dipped beam headlamps, cour tesy lamps, etc. for a maximum combined duration of about thir ty minutes.








Electrical energy economy mode
Switching to economy mode
Once this time has elapsed, a message appears in the screen indicating that the vehiclehas switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.) To restore these functions immediately,start the engine and let it run for at least five minutes.

A flat battery prevents the engine from starting (refer to the correspondingsection).









Load reduction mode

System which manages the use of cer tain
functions according to the level of charge
remaining in the battery.
When the vehicle is bein
g driven, the load
reduction function temporarily deactivates certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

312
Visual search
Exterior
Remote control key 44-50 - opening / closing - anti-theft protection - guide-me-home lighting- starting - battery
Boot 55 - opening / closing- emergency release Temporary puncture repair kit 145 -150
Wipe r s 11 6 -11 9 Changing a wiper blade 119, 176
Changing bulbs 163 -165 - rear lamps- 3 rd
brake lamp - number plate lamps - foglamp- reversing lamp
Fuel tank, misfuelprevention 188-191



Panoramic sunroof 56
Roof bars 181
Accessories 182-183

Electronic stabilityprogramme 124-126 Snow chains 158
Tyre pressures 206 Changing a wheel 151-157


- tools

- removing / refitting


Lighting controls 107-113 LED lamps 111 Daytime running lamps 111 Headlamp beam adjustment 114 Cornering lighting 115 Changing bulbs 159 -162 - front lamps - foglamps- direction indicator repeaters
Door mirrors 61-62
Doors 44-49 - opening / closing - central locking- emergency control Alarm 51-52 Electric windows 53-54


Parking sensors 101-102
Park Assist 103-10 6
To w b a r 179
To w i ng 17 7-178

.
315
Visual search
Stop & Star t 92-94 Alarm 51-52 Parking sensors 101-102 Park Assist 103-106
Instrument panels 21-22 Warning lamps 23 -32Indicators 33-37 Gear shift indicator 91
Lighting controls 107-113Direction indicators 12 2
Memorising speeds 100Speed limiter 96 -97Cruise control 98-99


Instruments and controls (cont.)
Trip computer with touch screen 40 - 42 Setting the date/time withthe touch screen 43

Headlamp beam adjustment 114
Wiper controls 116 -119 Tr i p c o m p u t e r 38-39, 42

Hazard warning lamps 12 2 Locking/unlocking from inside 48
Steering wheel adjustment 60 Horn 123

Grip control 127-128

.
317
Alphabetical index
ABS ...............................................................124Accessories..................................................182Accessory socket, 12V...................................72Adjusting headlamps ....................................114Adjusting head restraints................................58Adjusting seat belt height..............................129Adjusting the steering wheel ...........................60Advice on care and maintenance.................181Airbags....................................................32, 132Airbags, curtain .....................................134,135Airbags, front.........................................132,135Airbags, lateral......................................134,135Air conditioning.........................................14,19Air conditioning, digital..................14, 64,67,70Air conditioning, manual...............14, 64,65,70Air distribution adjustment........................66, 69Air filter..........................................................r196Air flow............................................................19Air flow adjustment ...................................66, 69Air intake...................................................66, 69Air recirculation.........................................66, 69Air vents ..........................................................63Alarm...............................................................51Anti-lock braking system (ABS)....................124Anti-theft..........................................................47ASR...............................................................124Assistance, emergency braking...................124Assistance call ......................................123, 208Audible warning............................................123Audio cable..................................244, 279, 305Audio streaming (Bluetooth).................243, 280Audio system (radio)....................236, 272, 298Automatic illumination of headlamps....108,113Automatic operation of hazard warninglamps..........................................................122Automatic rain sensitive windscreen
wipers .................................................116, 118Auxiliary sockets............73, 240, 244, 279,305
Capacity, fuel tank ........................................188CD.................................................240, 275, 301CD MP3........................................240, 276, 302Central locking..........................................44, 45Changing a bulb.....................................159-165Changing a fuse.....................................166-171Changing a wheel ..................................151-159Changing a wiper blade........................119, 176Changing the date...........................................43Changing the remote control battery..............49Changing the time...........................................43Checking levels......................................193-195Checking the engine oil level ..................37, 193Checking tyre pressures (using the kit)........150Checks...................................................185-197Child lock .......................................................144Children..........................................131, 13 6 -14 4Child seats ............................................136-143Child seats, conventional ..............................138Cleaning (advice)..........................................181Closing the boot..............................................55Closing the doors ............................................45Colour screen................................................212Connectors, audio..........73, 240, 244, 279,305
AB
C
Coolant level ...........................................33,194Coolant temperature indicator........................r33Courtesy lamps.............................................120Cruise control..........................................98,100Cup holder.......................................................r71
Battery............................................172-174,196Battery, charging...................................173, 174Battery, remote control.............................49, 50Bluetooth (hands-free)..........................250,281Bluetooth (telephone)............................250, 281Bonnet...........................................................185Bonnet stay ...................................................185Boot.................................................................55Brake discs....................................................197Brake lamps ..........................................163, 164Brake pads....................................................197Date (setting)...................................................43Daytime running lamps.................................111Deactivating the passenger airbag ...............133Defrosting ........................................................70Demisting........................................................70Diesel additive level......................................195Dimensions ...................................................205Dipped beam.........................................107,160Dipstick ....................................................37,193Directional lighting ........................................115Direction indicators......................112, 122, 159,
160, 163,16 4
Door pockets ...................................................71Driving economically.......................................19Dynamic stability control (DSC) ...27,29, 124, 126
D
EBA (Emergency braking assistance) ..........124EBFD.............................................................124Eco-driving......................................................19Economy mode.............................................175Electric window controls.................................53Electronic brake force distribution (EBFD)...124Electronic engine immobiliser...................r47, 50Emergency boot release.................................55Emergency call.....................................123, 208
E
