2013 PEUGEOT 2008 headlamp

.
.
Contents
Instrument panels 21
Indicator and warning lamps 23
Gauges and indicators 33
Tr i p c o m p u t e r 38
Tr ip computer with touch screen 40
Setting the date and time 43
Instruments and controlsFamiliarisation
Remote control key 44
Alarm 5
1
Electric windows 53
Boot 55
Panoramic sunroof 56
Access
Front seats 57
Rear seats 59
Steering wheel adjustment 60
Mirrors 61
Ventilation 63
Heating 65
Manual air conditioning 65
Dual-zone digital air conditioning 67
Rear screen demist - defrost 70
Interior fi ttings 71
Boot fi ttings 75
Comfort
Starting-stopping the engine 78
Manual parking brake 79
Manual gearbox 80
5-speed electronic gearbox 81
6-speed electronic gear control gearbox 84
Automatic gearbox 88
Gear shift indicator 91
Stop & Star t 92
Hill star t assist 95
Speed limiter 96
Cruise control 98
Parking sensors 101
Park Assist 103
Driving
Lighting controls 107
LED lamps 111
Daytime running lamps 111
Automatic illumination of headlamps 113
Headlamp adjustment 114
Cornering lighting 115
Wiper controls 116
Automatic rain sensitive wipers 118
Courtesy lamps 120
Interior mood lighting 121
Visibility Eco-driving

8
Familiarisation
11.Front side window demisting/defrosting
vent.
12.Instrument panel.
13
. Windscreen demisting/defrosting vent. 14 .
Sunshine sensor.
15. Glove box / Passenger's airbagdeactivation.
16.Passenger's airbag.
17. Multifunction screen / Audio system.
18. Central adjustable air vents.
19.Central locking and hazard warningbuttons.
Instruments and controls
1. Cruise control / speed limiter controls. 2.
Steering mounted controls for the touch screen.
3.
Lighting and direction indicator stalk4.
Wiper / screenwash / trip computer stalk. 5.
Bonnet release lever.
6.Steering wheel adjustment control.
7. Driver's airbag.
Horn. 8.Headlamp height adjustment. 9. Switch panel. 10.Side adjustable air vents.
20.
Heating / air conditioning controls.21.12 V accessory socket.
USB por t / auxiliary socket.
Additional USB port.
22. Open storage.
Cup holder. 23. Gear lever. 24.
Grip control switch. 25.Parking brake.26.Panoramic sunroof blind opening andclosing control. 27.
Closed storage compar tment. 28.
Rear 12 V socket.

.
13
Familiarisation
Seeing clearly


Lighting

Ring A

Ring B
Wipers
109
Control stalk A: windscreen wipers
2.
Fast wipe. 1.Normal wipe.
Int.Intermittent wipe.0.Park.AUTO. Automatic wiping.
116

Switching on "AUTO" mode
)
Briefly push the stalk downwards.


Switching off "AUTO" mode
)
Briefly push the stalk downwards or place
the stalk in another position:Int, 1or 2.


Ring B: rear wiper
118
117
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Rear
foglamp.
Park.
Intermittent wipe.
Screenwash.
or
Front and rear
foglamps.
Single wipe: Brief pull on the stalk
towards.
Screenwash: Long pull on stalk
towards you.

.
19
Familiarisation















































Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently, change up without waiting and drive by changing up quite soon. If your vehicle has the system,
the gear shift indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.


With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing the accelerator pedal heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption andCO2emissions and also helps reduce the background traffic noise.


If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your electrical
equipment


Before moving off, if the passenger compar tment is too warm, ventilate it by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep thetemperature in the passenger compar tment down (sunroof and windowblinds...).
Switch off the air conditioning, unless it has automatic digital regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light does not require their use.


Avoid running the engine before moving off, particularly in winter; your vehicle will warm up much faster while driving.


As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting theconsumption of electrical energy, and so of fuel.

Disconnect your por table devices before leaving the vehicle.

24
Instruments and controls
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning / indicator lampStateCauseAction / Observations



Left-hand directionindicatorflashing with buzzer. The lighting stalk is pushed down.



Right-hand direction indicatorrflashing with buzzer. The lighting stalk is pushed up.
Sidelampsfixed.The lighting stalk is in the
"Sidelamps" position.
Dipped beamheadlampsfixed.The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam headlampsfixed.The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglampsfixed.The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglampfixed.The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.

For more information on the lighting controls, refer to the corresponding section.

34
Instruments and controls
Lighting dimmer control
System for the manual adjustment of the
brightness of the instrument panel and touch screen to suit the ambient light level.
Two buttons
With the headlamps on, press button Bto
increase the brightness of the instruments and controls and the interior mood lighting or button A to reduce it.

As soon as the lighting reaches the requiredlevel of brightness, release the button.

One button
Activation)
press the button to adjust the brightness of
the instruments and controls, ) release the button when the desired level isattained.
Switching off
When the vehicle lighting is off or in day mode(daytime running lamps on), pressing the button
has no effect.

Touch screen
)Press MENU
to display the "MAIN MENU"
then select "Preferences".)Select "System Configuration"
then "Brightness".)Press "Turn off screen". The screen goes
off completely.
Press the screen again (anywhere on the surface) to activate it.

62
!
Comfort
If the mirrors are folded using control A,they will not unfold when the vehicle isunlocked. Pull again on control A.


The folding and unfolding of the door mirrors using the remote control can bedeactivated by a PEUGEOT dealer or a qualified workshop.
Fold the mirrors when putting your vehicle through an automatic car wash.
Folding
- Automatic: lock the vehicle using the
remote control or the key.
- Manual: with the ignition on, pull control Arearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
- Manual: with the ignition on, pull control Arearwards.

Automatic day/night model

By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses. Adjustable mirror providing a central rear ward
vi
ew.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...





Rear view mirror



Manual day/night model

Ad
justment
)
Adjust the mirror so that the glass is
directed correctl
y in the "day" position.



Day / night position
)
Pull the lever to change to the "night" anti-
dazzle position.
) Push the lever to change to the normal "day" position.



In order to ensure optimum visibilityduring your manoeuvres, the mirror lightens automatically when reversegear is engaged.

As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

107
5
Visibility

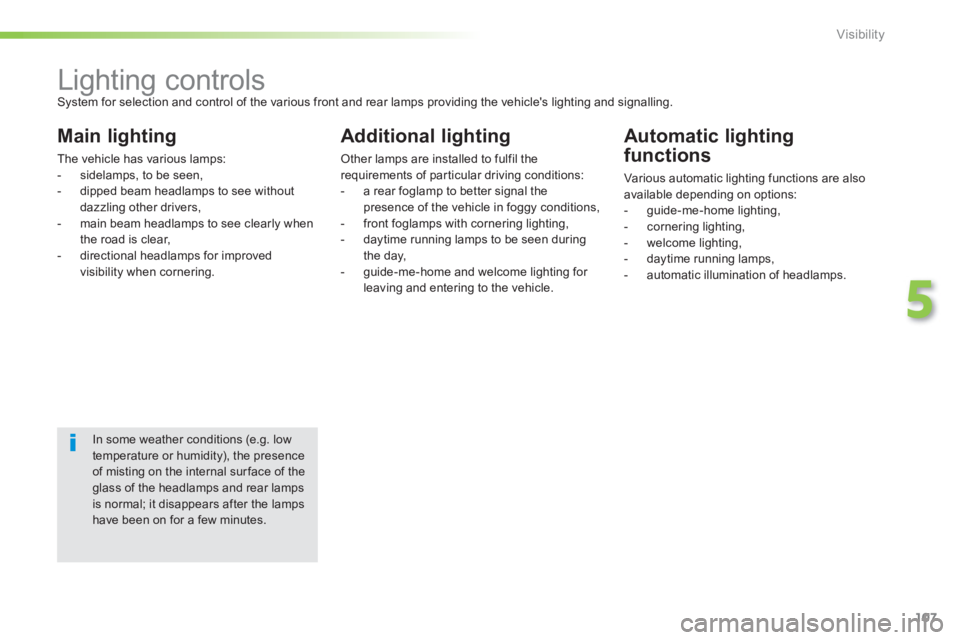

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.


Main lighting

The vehicle has various lamps:


- sidelamps, to be seen,

- dipped beam headlamps to see without
dazzlin
g other drivers,

- main beam headlamps to see clearly when
the road is clear,

- directional headlamps for improved
visibility when cornering.

Additional lighting
Other lamps are installed to fulfil therequirements of particular driving conditions:
- a rear foglamp to better signal the
presence of the vehicle in foggy conditions,
- front foglamps with cornering lighting,
- daytime running lamps to be seen duringthe day,
- guide-me-home and welcome lighting for leaving and entering to the vehicle.


Automatic lighting
functions

Various automatic lighting functions are also
available depending on options:


- guide-me-home lighting,

- cornering lighting,

- welcome lighting,

- daytime running lamps,

- automatic illumination o
f headlamps.


In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.
