2013 PEUGEOT 2008 bluetooth

07

During a call (short cut menu).
or

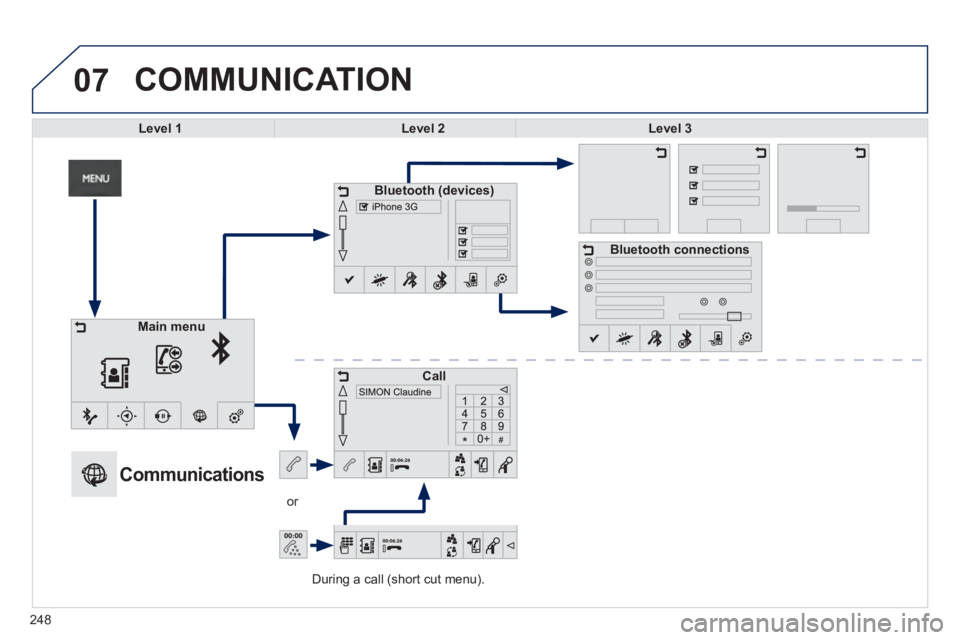

COMMUNICATION
Level 1Level 2Level 3
Bluetooth (devices)
Call
Bluetooth connections
Main menu















Communications
248

249

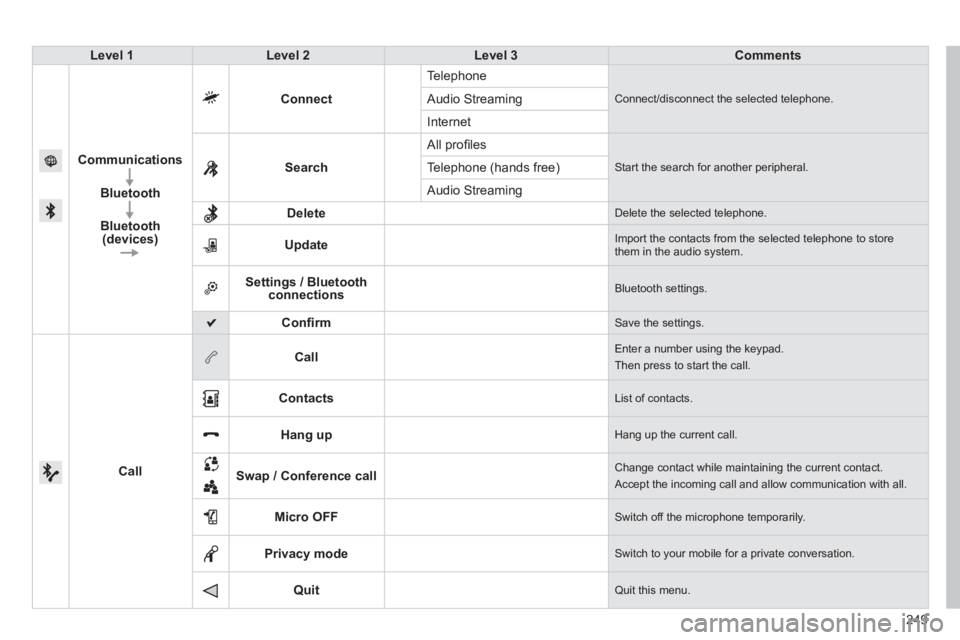

Level 1Level 2Level 3Comments
Communications
Bluetooth
Bluetooth (devices)
Connect
Te l ephone
Connect/disconnect the selected telephone. Audio Streaming
Internet
Search All pro
fi les
Start the search for another peripheral .Telephone (hands free)
Audio Streamin
g
Delete
Delete the selected telephone.
Update
Import the contacts from the selected telephone to storethem in the audio system.
Settings / Bluetooth connections Bluetooth settings.
Confi rm Save the settings.
Call
Call Enter a number using the keypad.
Then press to start the call.
Contacts
List of contacts.
Hang up Hang up the current call.
Swap / Conference call
Change contact while maintaining the current contact.
Accept the incoming call and allow communication with all.
Micro OFF
Switch off the microphone temporarily.
Privacy mode
Switch to your mobile for a private conversation.
Quit Quit this menu.

07
250

The " Hands-free" profi le should be used in preference if "Streaming"
is not desired.

The abilit
y of the system to connect with only one profi le depends on
the telephone. The two profi les may both connect by default.

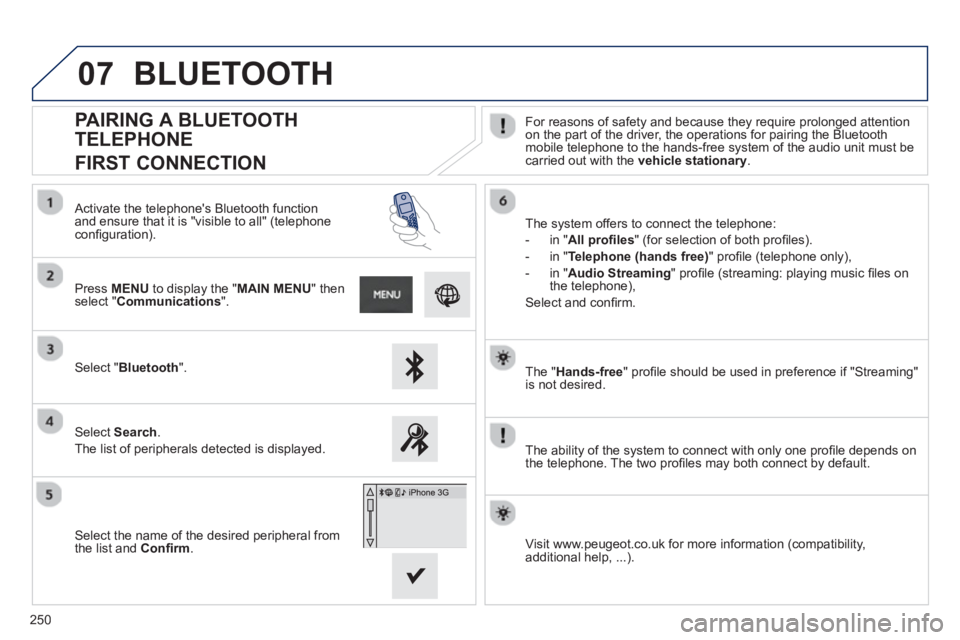

PAIRING A BLUETOOTH
TELEPHONE
FIRST CONNECTION
For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must becarried out with the vehicle stationary
.
Select " Bluetooth".
Press MENU
to display the "MAIN MENU" thenselect "Communications".
Select Search.
The list of peripherals detected is displayed.
Activate the telephone's Bluetooth
function and ensure that it is "visible to all" (telephoneconfi guration).

The system offers to connect the telephone:
-
in"All profi les" (for selection of both profi les).
-
in "Telephone (hands free)" profi le (telephone only),

-
in "Audio Streaming
" profi le (streaming: playing music fi les on
the telephone),

Select and confi rm.
Select the name of the desired peripheral from
t
he list and Confi rm.

Visit www.peugeot.co.uk for more information (compatibility,
additional help, ...).
BLUETOOTH

07
251

Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is started.
Dependin
g on the type of telephone, the system
will ask you to accept or not the transfer of your contacts.

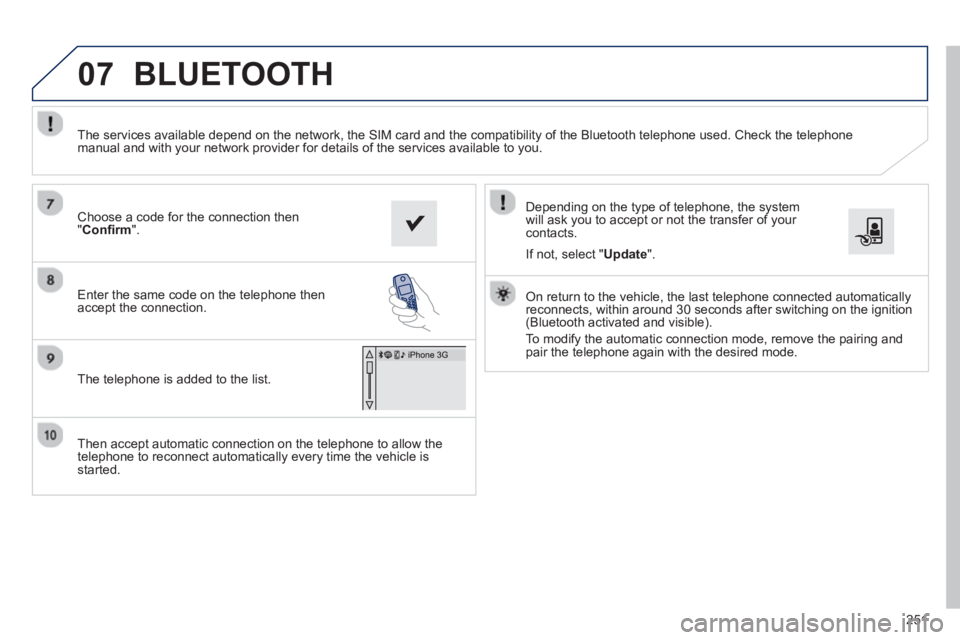

The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services available to you.


On return to the vehicle, the last telephone connected automaticallyreconnects, within around 30 seconds after switching on the ignition (Bluetooth activated and visible).
To modif
y the automatic connection mode, remove the pairing and
pair the telephone again with the desired mode.
Choose a code for the connection then
"Confi rm".

Enter the same code on the telephone then
accept the connection.
The telephone is added to the list.
BLUETOOTH

If not, select " Update".

07

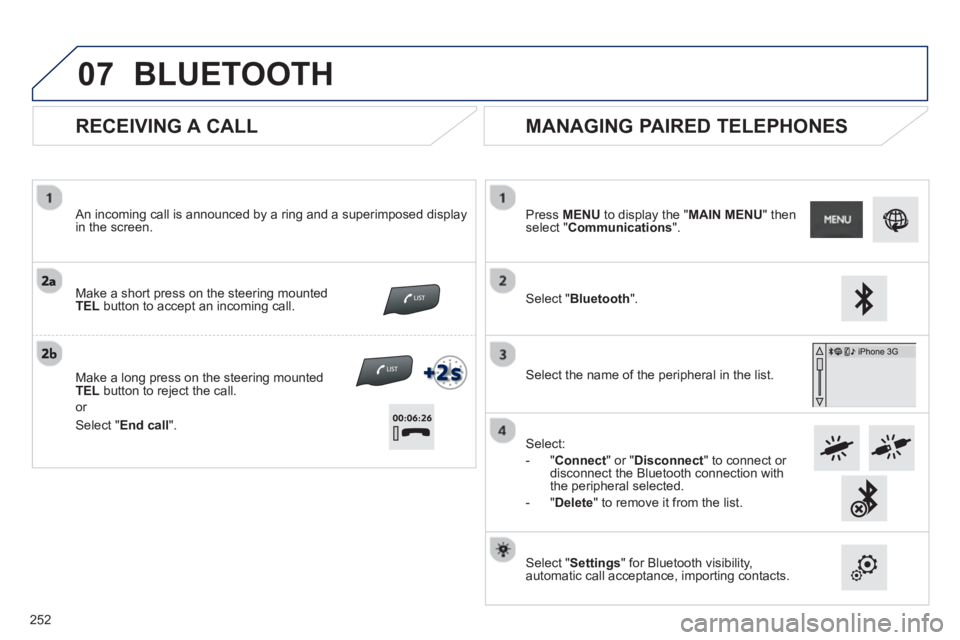

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed displayin the screen.
Make a short press on the steering mounted
TELbutton to accept an incoming call.

Make a lon
g press on the steering mounted TELbutton to reject the call.
or







MANAGING PAIRED TELEPHONES
Press MENUto display the "MAIN MENU" thenselect "Communications".
Select " Bluetooth".
Select the name of the
peripheral in the list.
Select:
- "
Connect
" or " Disconnect
" to connect or disconnect the Bluetooth connection with
the peripheral selected.
- "
Delete" to remove it from the list.

Select " Settings
" for Bluetooth visibility,automatic call acceptance, importing contacts.
BLUETOOTH
Select " End call
".

2
52

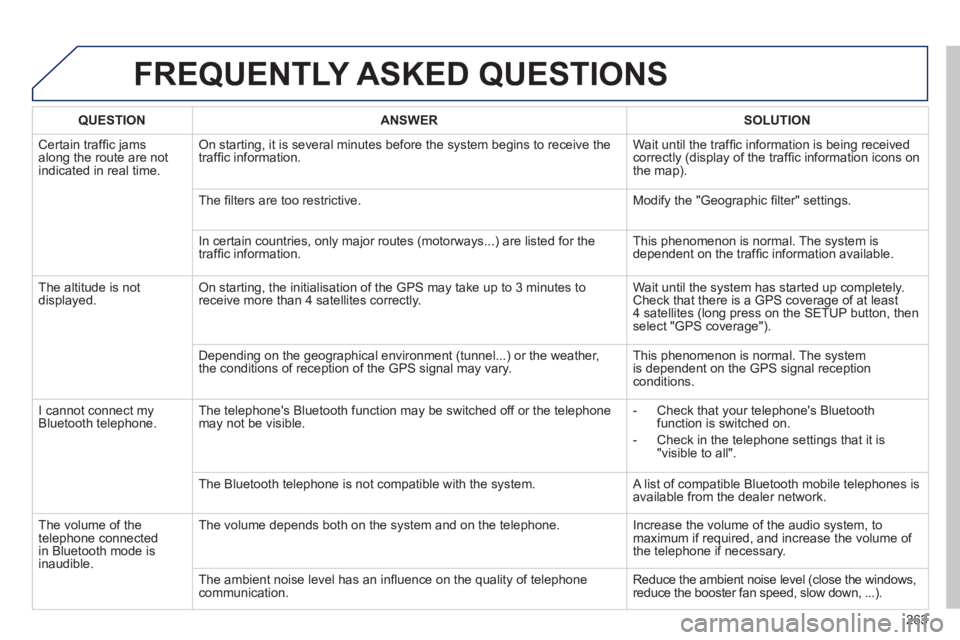

FREQUENTLY ASKED QUESTIONS
263
QUESTIONANSWER SOLUTION
Certain traffi c jams
along the route are notindicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received correctly (display of the traffi c information icons on
the map).
Th
e fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, onl
y major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
Th
e altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then select "GPS coverage").
Dependin
g on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal receptionconditions.
I cannot connect m
yBluetooth telephone.The telephone's Bluetooth function may be switched off or the telephone
may not be visible.
- Check that your telephone's Bluetoothfunction is switched on.

- Check in the telephone settin
gs that it is "visible to all".
The Bluetooth telephone is not compatible with the s
ystem. A list of compatible Bluetooth mobile telephones is available from the dealer network.
Th
e volume of thetelephone connected
in Bluetooth mode isinaudible. The volume depends both on the s
ystem and on the telephone. Increase the volume of the audio system, tomaximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an infl uence on the qualit
y of telephone communication. Reduce the ambient noise level (close the windows,reduce the booster fan speed, slow down, ...).

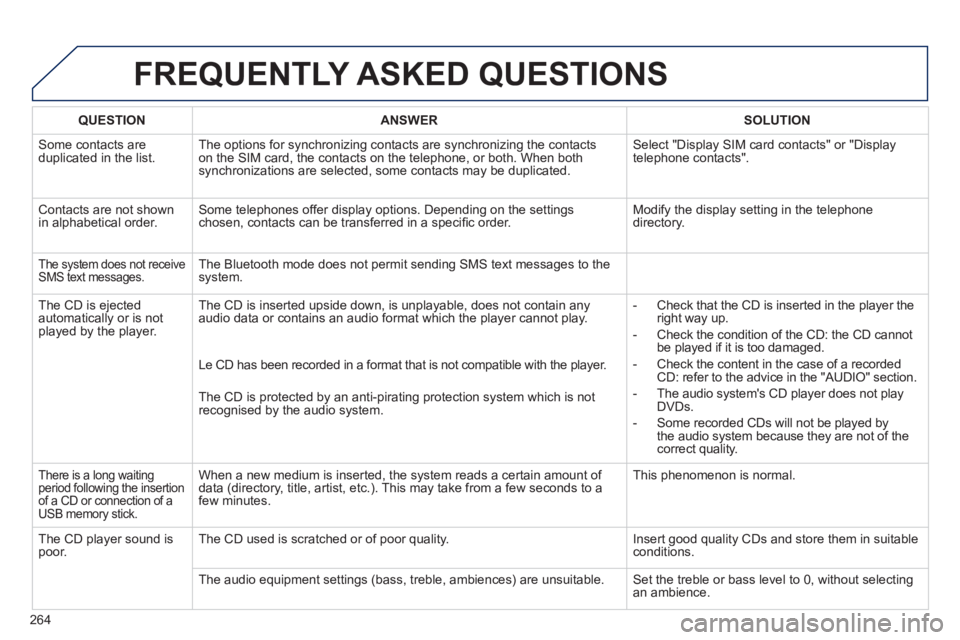

FREQUENTLY ASKED QUESTIONS
264
QUESTIONANSWER SOLUTION
Some contacts areduplicated in the list.The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated.
Select "Display SIM card contacts" or "Displaytelephone contacts".

Contacts are not shown
in alphabetical order.Some telephones offer display options. Depending on the settingschosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.
The system does not receive SMS text messages.The Bluetooth mode does not permit sending SMS text messages to the
system.
The CD is e
jected
automatically or is not played by the player. The CD is inserted upside down, is unpla
yable, does not contain any audio data or contains an audio format which the player cannot play.
- Check that the CD is inserted in the player the
right way up.

-
Check the condition of the CD: the CD cannot
be played if it is too damaged.

-
Check the content in the case of a recordedCD: refer to the advice in the "AUDIO" section.

- The audio s
ystem's CD player does not play
DVDs.

- Some recorded CDs will not be pla
yed bythe audio system because they are not of thecorrect quality. Le
CD has been recorded in a format that is not compatible with the player.
The CD is protected b
y an anti-pirating protection system which is not recognised by the audio system.
There is a long waiting
period following the insertion
of a CD or connection of a USB memory stick.
When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes. This phenomenon is normal.
The
CD player sound ispoor.The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settin
gs (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

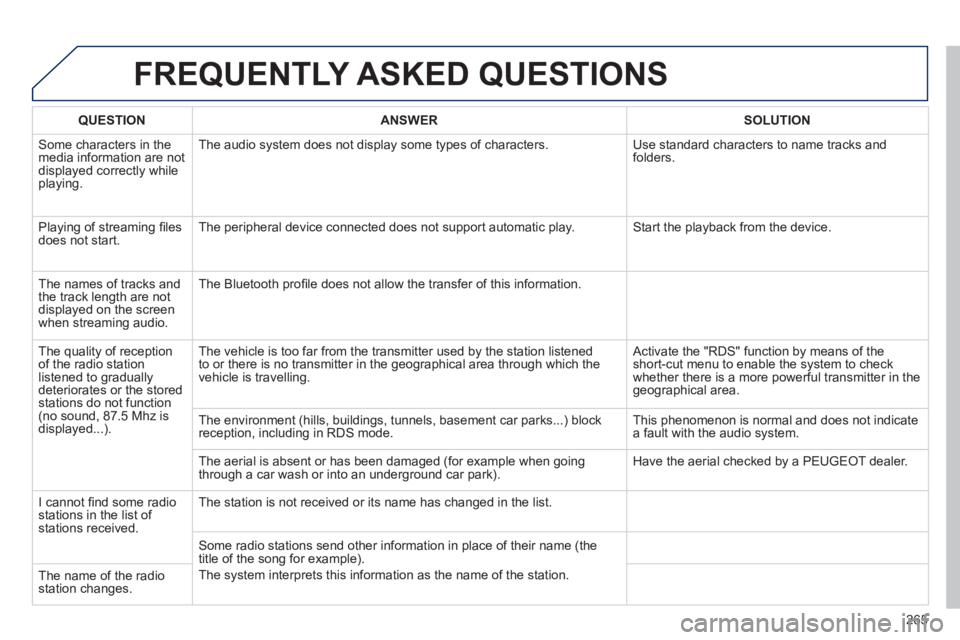

FREQUENTLY ASKED QUESTIONS
265
QUESTIONANSWER SOLUTION
Some characters in themedia information are not displayed correctly while playing. The audio s
ystem does not display some types of characters. Use standard characters to name tracks andfolders.
Pla
ying of streaming fi lesdoes not start. The peripheral device connected does not support automatic play. Start the playback from the device.
Th
e names of tracks and
the track length are notdisplayed on the screen
when streaming audio. The Bluetooth profi le does not allow the transfer of this information.
The quality o
f receptionof the radio station
listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is
displayed...). The vehicle is too
far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the "RDS" function by means of theshort-cut menu to enable the system to check
whether there is a more powerful transmitter in thegeographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
I
cannot fi nd some radiostations in the list of stations received.The station is not received or its name has chan
ged in the list.
Some radio stations send other information in place of their name (the
title of the song for example).
The s
ystem interprets this information as the name of the station.
The name of the radio station changes.
