2013 NISSAN VERSA Owners Manual

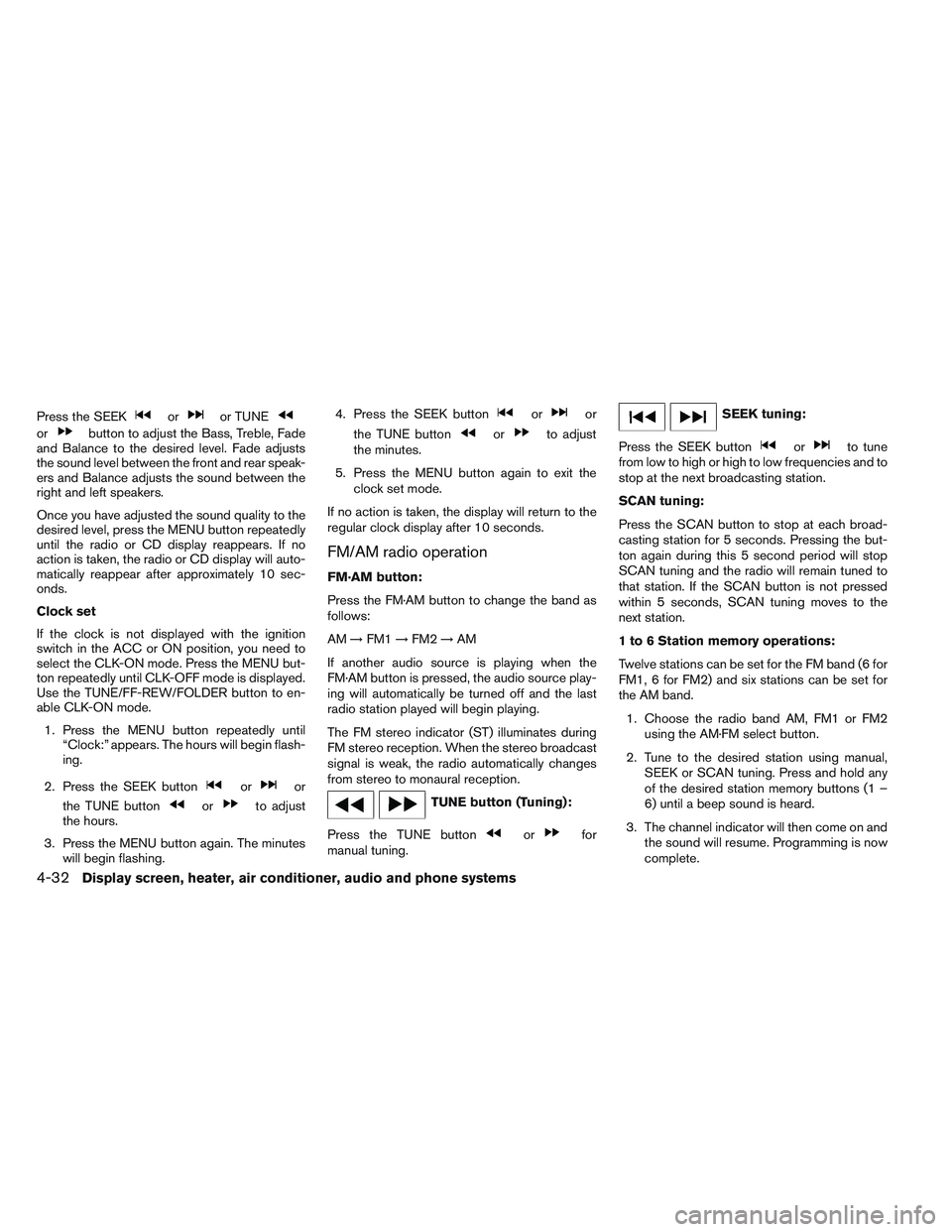

Press the SEEKoror TUNE
orbutton to adjust the Bass, Treble, Fade
and Balance to the desired level. Fade adjusts
the sound level between the front and rear speak-
ers and Balance adjusts the sound between the
right and left speakers.
Once you have adjusted the sound quality to the
desired level, press the MENU button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 10 sec-
onds.
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/FF-REW/FOLDER button to en-
able CLK-ON mode.
1. Press the MENU button repeatedly until “Clock:” appears. The hours will begin flash-
ing.
2. Press the SEEK button
oror
the TUNE button
orto adjust
the hours.
3. Press the MENU button again. The minutes will begin flashing. 4. Press the SEEK button
oror
the TUNE button
orto adjust
the minutes.
5. Press the MENU button again to exit the clock set mode.
If no action is taken, the display will return to the
regular clock display after 10 seconds.
FM/AM radio operation
FM·AM button:
Press the FM·AM button to change the band as
follows:
AM →FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.
TUNE button (Tuning):
Press the TUNE button
orfor
manual tuning.
SEEK tuning:
Press the SEEK button
orto tune
from low to high or high to low frequencies and to
stop at the next broadcasting station.
SCAN tuning:
Press the SCAN button to stop at each broad-
casting station for 5 seconds. Pressing the but-
ton again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station. If the SCAN button is not pressed
within 5 seconds, SCAN tuning moves to the
next station.
1 to 6 Station memory operations:
Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band.
1. Choose the radio band AM, FM1 or FM2 using the AM·FM select button.
2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4-32Display screen, heater, air conditioner, audio and phone systems

4. Other buttons can be set in the same man-ner.
If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.
Compact disc (CD) player operation
If the radio is already operating, it automatically
turns off and the compact disc begins to play.
CD button:
When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play.
TUNE (Rewind or Fast Forward) button:
When the TUNE button
oris
pressed while the compact disc is playing, the
compact disc plays at an increased speed while
reversing or fast forwarding. When the button is
released, the compact disc returns to normal play
speed.
SEEK button:
When the SEEK button
is pressed while
the compact disc is playing, the next track follow-
ing the present one starts to play from the begin-
ning. Press the SEEK button
several times
to skip several tracks. Each time the button is
pressed, the CD advances one additional track.
The track number appears in the display window.
(When the last track on the compact disc is
skipped, the first track is played.)
When the SEEK button
is pressed, the
track being played returns to the beginning.
Press the SEEK button
several times to
skip back several tracks. Each time the button is
pressed the CD moves back one track.
RDM button:
When the RDM button is pressed while a com-
pact disc is playing, the play pattern can be
changed as follows:
1CDRDM←→ 1CDRPT
1 CD RDM: all tracks on the disc will be played
randomly.
1 CD RPT: play pattern returns to normal. RPT button:
When the RPT button is pressed while a com-
pact disc is playing, the play pattern can be
changed as follows:
1TRRPT←→
1CDRPT
1 TR RPT: the current track will be repeated.
1 CD RPT: play pattern returns to normal.
AUX (Auxiliary) button:
The AUX IN jack is located on the front of the
radio. The AUX IN audio input jack accepts any
standard analog audio input such as from a por-
table cassette tape/CD player, MP3 player or a
laptop computer.
Press the AUX button to play a compatible device
when it is plugged into the AUX IN jack.
EJECT button:
When the
button is pressed with a com-
pact disc loaded, the compact disc will eject and
the last source will be played.
When the
button is pressed twice with a
compact disc loaded, the compact disc will be
ejected further for easier CD removal. If the disc
is not removed within 15 seconds, the disc will
reload.
Display screen, heater, air conditioner, audio and phone systems4-33

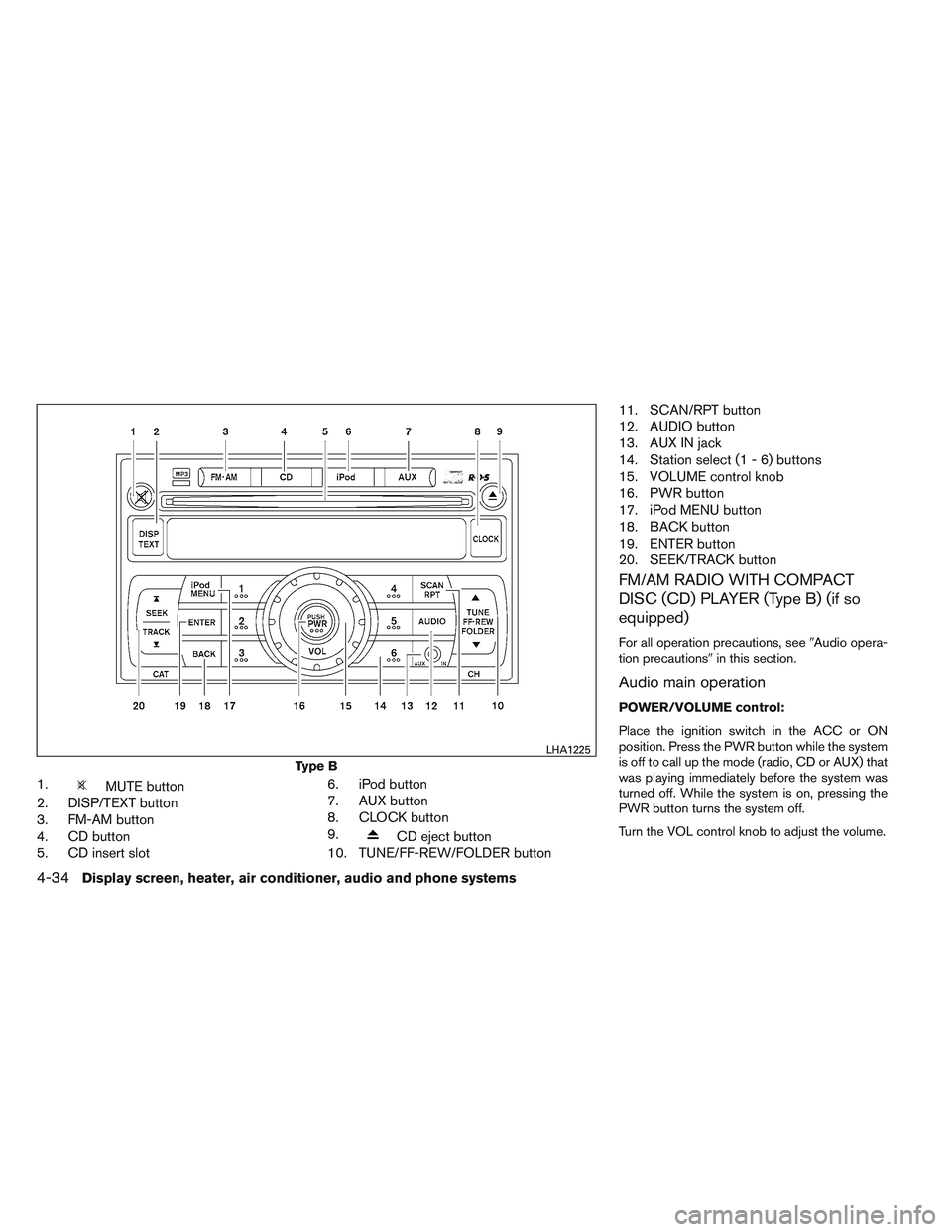

1.MUTE button
2. DISP/TEXT button
3. FM-AM button
4. CD button
5. CD insert slot 6. iPod button
7. AUX button
8. CLOCK button
9.
CD eject button
10. TUNE/FF-REW/FOLDER button 11. SCAN/RPT button
12. AUDIO button
13. AUX IN jack
14. Station select (1 - 6) buttons
15. VOLUME control knob
16. PWR button
17. iPod MENU button
18. BACK button
19. ENTER button
20. SEEK/TRACK button
FM/AM RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)
For all operation precautions, see
Audio opera-
tion precautions in this section.
Audio main operation
POWER/VOLUME control:
Place the ignition switch in the ACC or ON
position. Press the PWR button while the system
is off to call up the mode (radio, CD or AUX) that
was playing immediately before the system was
turned off. While the system is on, pressing the
PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
Type B
LHA1225
4-34Display screen, heater, air conditioner, audio and phone systems

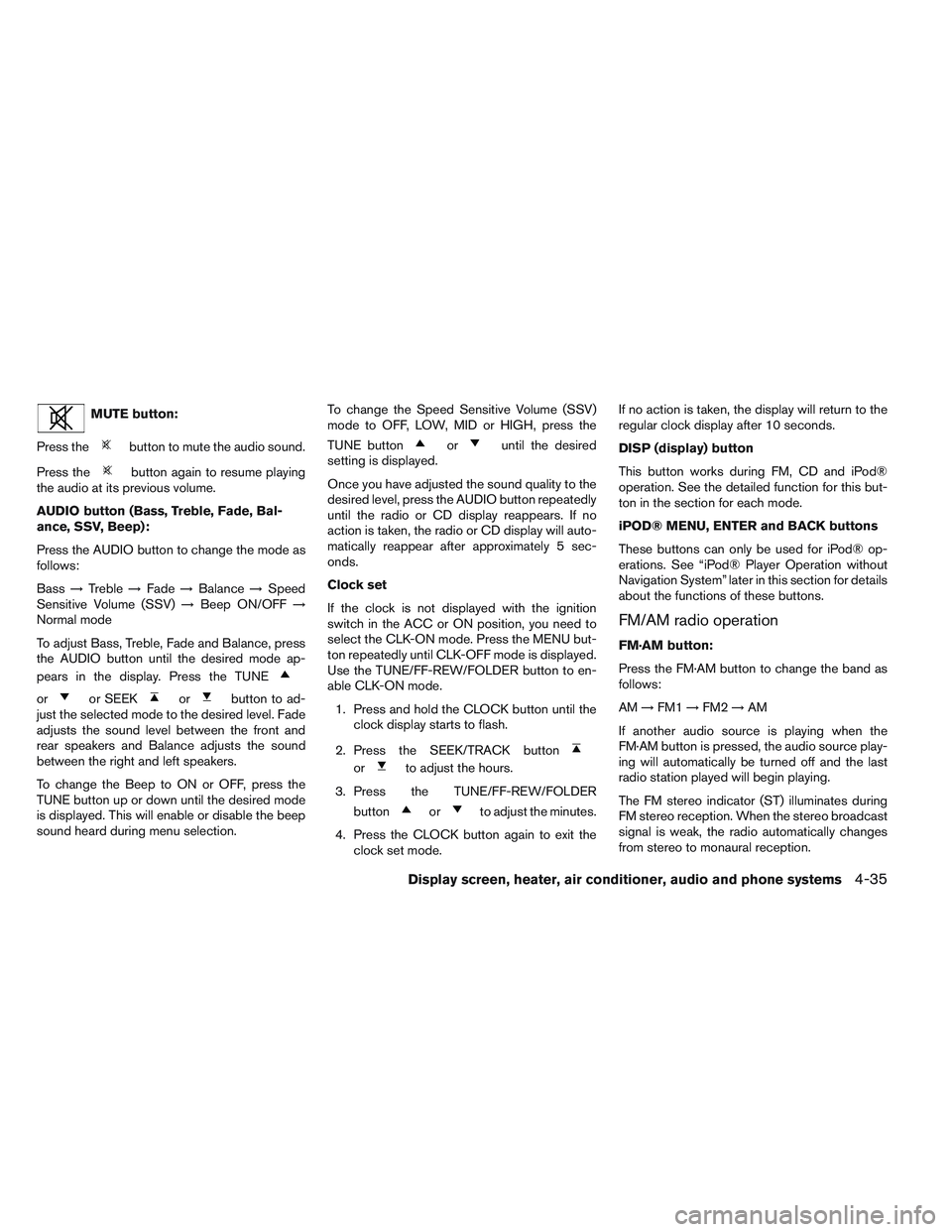

MUTE button:
Press the
button to mute the audio sound.
Press the
button again to resume playing
the audio at its previous volume.
AUDIO button (Bass, Treble, Fade, Bal-
ance, SSV, Beep):
Press the AUDIO button to change the mode as
follows:
Bass →Treble →Fade →Balance →Speed
Sensitive Volume (SSV) →Beep ON/OFF →
Normal mode
To adjust Bass, Treble, Fade and Balance, press
the AUDIO button until the desired mode ap-
pears in the display. Press the TUNE
oror SEEKorbutton to ad-
just the selected mode to the desired level. Fade
adjusts the sound level between the front and
rear speakers and Balance adjusts the sound
between the right and left speakers.
To change the Beep to ON or OFF, press the
TUNE button up or down until the desired mode
is displayed. This will enable or disable the beep
sound heard during menu selection. To change the Speed Sensitive Volume (SSV)
mode to OFF, LOW, MID or HIGH, press the
TUNE button
oruntil the desired
setting is displayed.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 5 sec-
onds.
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/FF-REW/FOLDER button to en-
able CLK-ON mode.
1. Press and hold the CLOCK button until the clock display starts to flash.
2. Press the SEEK/TRACK button
orto adjust the hours.
3. Press the TUNE/FF-REW/FOLDER button
orto adjust the minutes.
4. Press the CLOCK button again to exit the clock set mode. If no action is taken, the display will return to the
regular clock display after 10 seconds.
DISP (display) button
This button works during FM, CD and iPod®
operation. See the detailed function for this but-
ton in the section for each mode.
iPOD® MENU, ENTER and BACK buttons
These buttons can only be used for iPod® op-
erations. See “iPod® Player Operation without
Navigation System” later in this section for details
about the functions of these buttons.
FM/AM radio operation
FM·AM button:
Press the FM·AM button to change the band as
follows:
AM
→FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.
Display screen, heater, air conditioner, audio and phone systems4-35

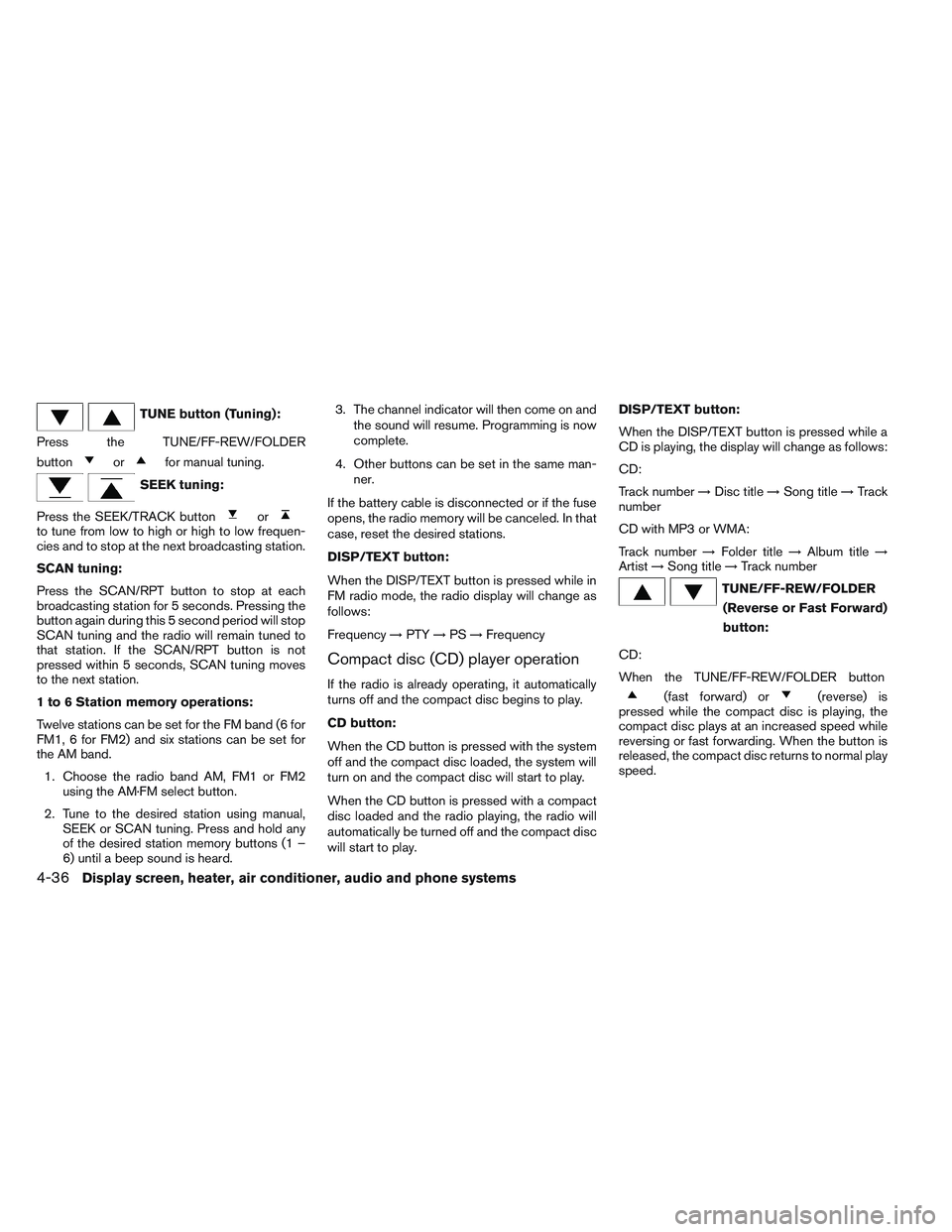

TUNE button (Tuning):
Press the TUNE/FF-REW/FOLDER
button
orfor manual tuning.
SEEK tuning:
Press the SEEK/TRACK button
orto tune from low to high or high to low frequen-
cies and to stop at the next broadcasting station.
SCAN tuning:
Press the SCAN/RPT button to stop at each
broadcasting station for 5 seconds. Pressing the
button again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station. If the SCAN/RPT button is not
pressed within 5 seconds, SCAN tuning moves
to the next station.
1 to 6 Station memory operations:
Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band. 1. Choose the radio band AM, FM1 or FM2 using the AM·FM select button.
2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard. 3. The channel indicator will then come on and
the sound will resume. Programming is now
complete.
4. Other buttons can be set in the same man- ner.
If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.
DISP/TEXT button:
When the DISP/TEXT button is pressed while in
FM radio mode, the radio display will change as
follows:
Frequency →PTY →PS →Frequency
Compact disc (CD) player operation
If the radio is already operating, it automatically
turns off and the compact disc begins to play.
CD button:
When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play. DISP/TEXT button:
When the DISP/TEXT button is pressed while a
CD is playing, the display will change as follows:
CD:
Track number
→Disc title →Song title →Track
number
CD with MP3 or WMA:
Track number →Folder title →Album title →
Artist →Song title →Track number
TUNE/FF-REW/FOLDER
(Reverse or Fast Forward)
button:
CD:
When the TUNE/FF-REW/FOLDER button
(fast forward) or(reverse) is
pressed while the compact disc is playing, the
compact disc plays at an increased speed while
reversing or fast forwarding. When the button is
released, the compact disc returns to normal play
speed.
4-36Display screen, heater, air conditioner, audio and phone systems

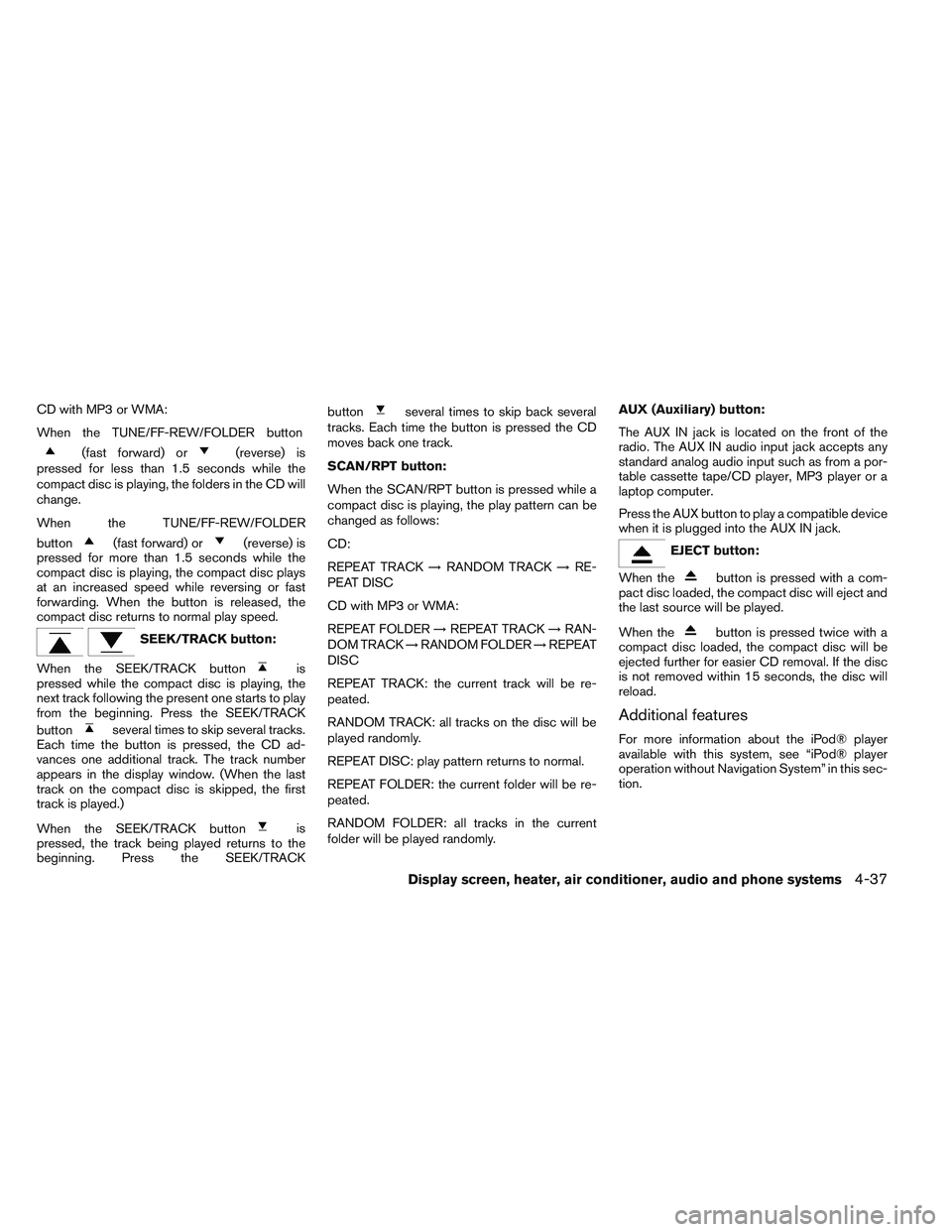

CD with MP3 or WMA:
When the TUNE/FF-REW/FOLDER button
(fast forward) or(reverse) is
pressed for less than 1.5 seconds while the
compact disc is playing, the folders in the CD will
change.
When the TUNE/FF-REW/FOLDER
button
(fast forward) or(reverse) is
pressed for more than 1.5 seconds while the
compact disc is playing, the compact disc plays
at an increased speed while reversing or fast
forwarding. When the button is released, the
compact disc returns to normal play speed.
SEEK/TRACK button:
When the SEEK/TRACK button
is
pressed while the compact disc is playing, the
next track following the present one starts to play
from the beginning. Press the SEEK/TRACK
button
several times to skip several tracks.
Each time the button is pressed, the CD ad-
vances one additional track. The track number
appears in the display window. (When the last
track on the compact disc is skipped, the first
track is played.)
When the SEEK/TRACK button
is
pressed, the track being played returns to the
beginning. Press the SEEK/TRACK button
several times to skip back several
tracks. Each time the button is pressed the CD
moves back one track.
SCAN/RPT button:
When the SCAN/RPT button is pressed while a
compact disc is playing, the play pattern can be
changed as follows:
CD:
REPEAT TRACK →RANDOM TRACK →RE-
PEAT DISC
CD with MP3 or WMA:
REPEAT FOLDER →REPEAT TRACK →RAN-
DOM TRACK →RANDOM FOLDER →REPEAT
DISC
REPEAT TRACK: the current track will be re-
peated.
RANDOM TRACK: all tracks on the disc will be
played randomly.
REPEAT DISC: play pattern returns to normal.
REPEAT FOLDER: the current folder will be re-
peated.
RANDOM FOLDER: all tracks in the current
folder will be played randomly. AUX (Auxiliary) button:
The AUX IN jack is located on the front of the
radio. The AUX IN audio input jack accepts any
standard analog audio input such as from a por-
table cassette tape/CD player, MP3 player or a
laptop computer.
Press the AUX button to play a compatible device
when it is plugged into the AUX IN jack.
EJECT button:
When the
button is pressed with a com-
pact disc loaded, the compact disc will eject and
the last source will be played.
When the
button is pressed twice with a
compact disc loaded, the compact disc will be
ejected further for easier CD removal. If the disc
is not removed within 15 seconds, the disc will
reload.
Additional features
For more information about the iPod® player
available with this system, see “iPod® player
operation without Navigation System” in this sec-
tion.
Display screen, heater, air conditioner, audio and phone systems4-37

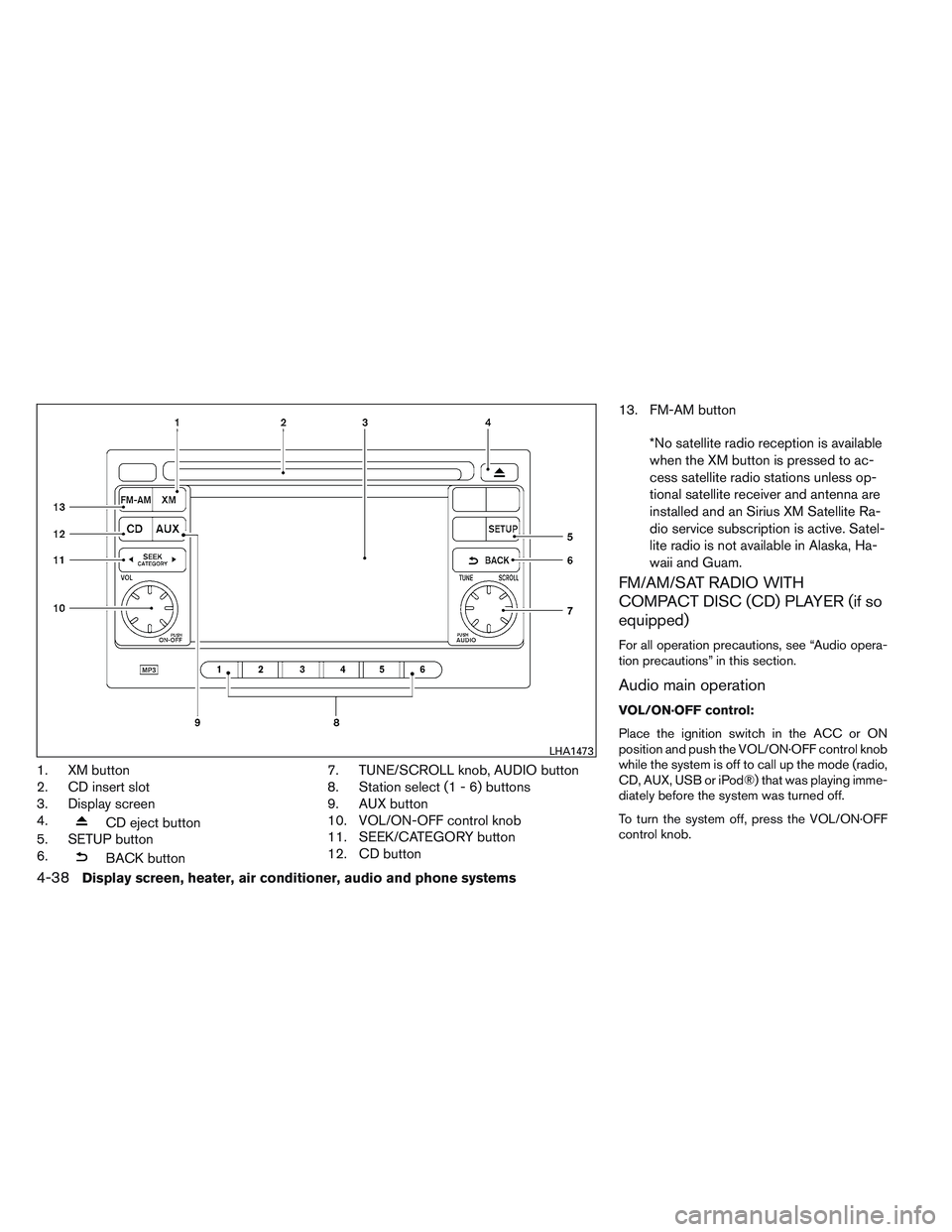

1. XM button
2. CD insert slot
3. Display screen
4.
CD eject button
5. SETUP button
6.
BACK button 7. TUNE/SCROLL knob, AUDIO button
8. Station select (1 - 6) buttons
9. AUX button
10. VOL/ON-OFF control knob
11. SEEK/CATEGORY button
12. CD button 13. FM-AM button
*No satellite radio reception is available
when the XM button is pressed to ac-
cess satellite radio stations unless op-
tional satellite receiver and antenna are
installed and an Sirius XM Satellite Ra-
dio service subscription is active. Satel-
lite radio is not available in Alaska, Ha-
waii and Guam.
FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (if so
equipped)
For all operation precautions, see “Audio opera-
tion precautions” in this section.
Audio main operation
VOL/ON·OFF control:
Place the ignition switch in the ACC or ON
position and push the VOL/ON·OFF control knob
while the system is off to call up the mode (radio,
CD, AUX, USB or iPod®) that was playing imme-
diately before the system was turned off.
To turn the system off, press the VOL/ON·OFF
control knob.
LHA1473
4-38Display screen, heater, air conditioner, audio and phone systems

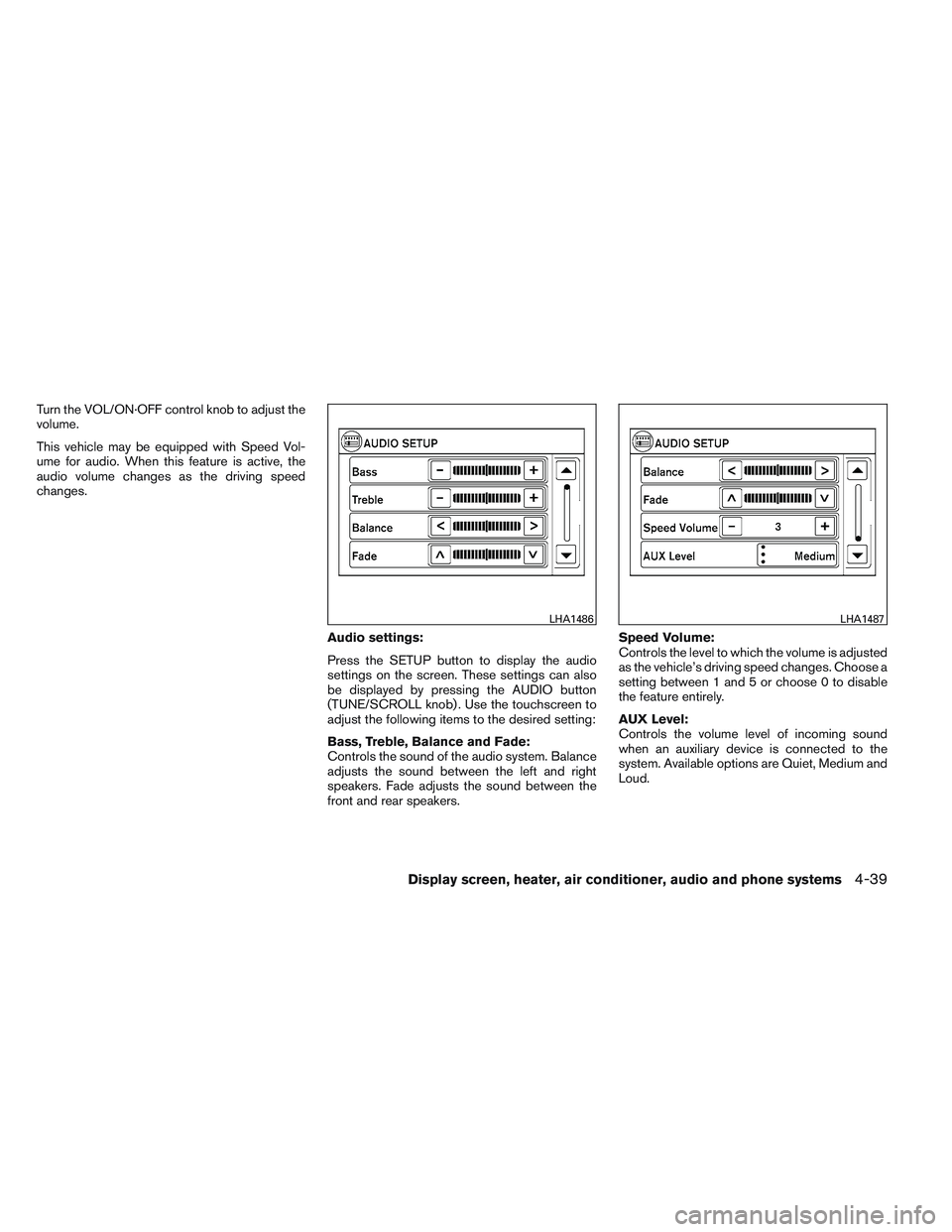

Turn the VOL/ON·OFF control knob to adjust the
volume.
This vehicle may be equipped with Speed Vol-
ume for audio. When this feature is active, the
audio volume changes as the driving speed
changes.Audio settings:
Press the SETUP button to display the audio
settings on the screen. These settings can also
be displayed by pressing the AUDIO button
(TUNE/SCROLL knob) . Use the touchscreen to
adjust the following items to the desired setting:
Bass, Treble, Balance and Fade:
Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.Speed Volume:
Controls the level to which the volume is adjusted
as the vehicle’s driving speed changes. Choose a
setting between 1 and 5 or choose 0 to disable
the feature entirely.
AUX Level:
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium and
Loud.
LHA1486LHA1487
Display screen, heater, air conditioner, audio and phone systems4-39
