2013 NISSAN VERSA Owners Manual

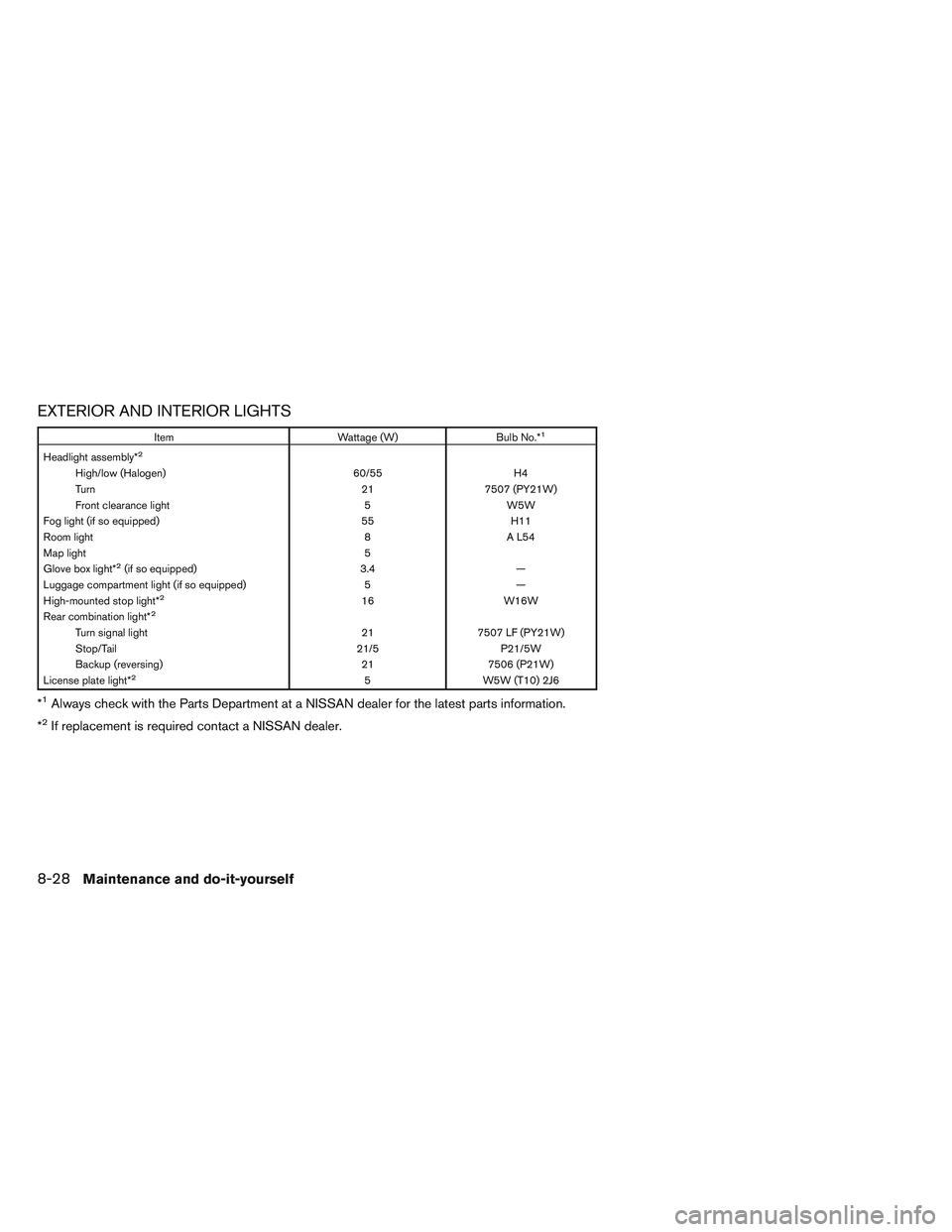

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.*1
Headlight assembly*2
High/low (Halogen) 60/55H4
Turn 217507 (PY21W)
Front clearance light 5W5W
Fog light (if so equipped) 55H11
Room light 8A L54
Map light 5
Glove box light*
2(if so equipped) 3.4—
Luggage compartment light (if so equipped) 5—
High-mounted stop light*
216 W16W
Rear combination light*2
Turn signal light 217507 LF (PY21W)
Stop/Tail 21/5P21/5W
Backup (reversing) 217506 (P21W)
License plate light*
25 W5W (T10) 2J6
*1Always check with the Parts Department at a NISSAN dealer for the latest parts information.
*
2If replacement is required contact a NISSAN dealer.
8-28Maintenance and do-it-yourself

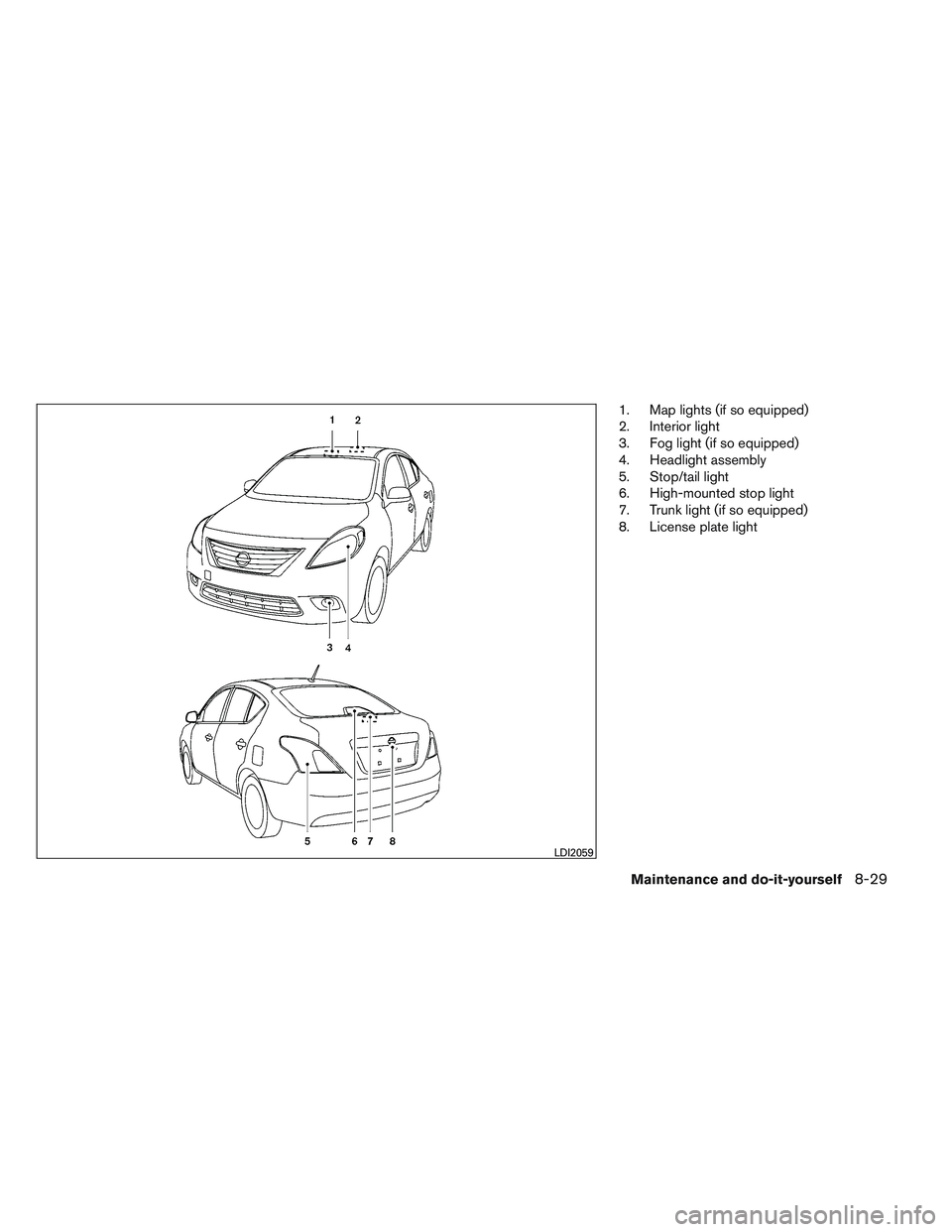

1. Map lights (if so equipped)
2. Interior light
3. Fog light (if so equipped)
4. Headlight assembly
5. Stop/tail light
6. High-mounted stop light
7. Trunk light (if so equipped)
8. License plate light
LDI2059
Maintenance and do-it-yourself8-29

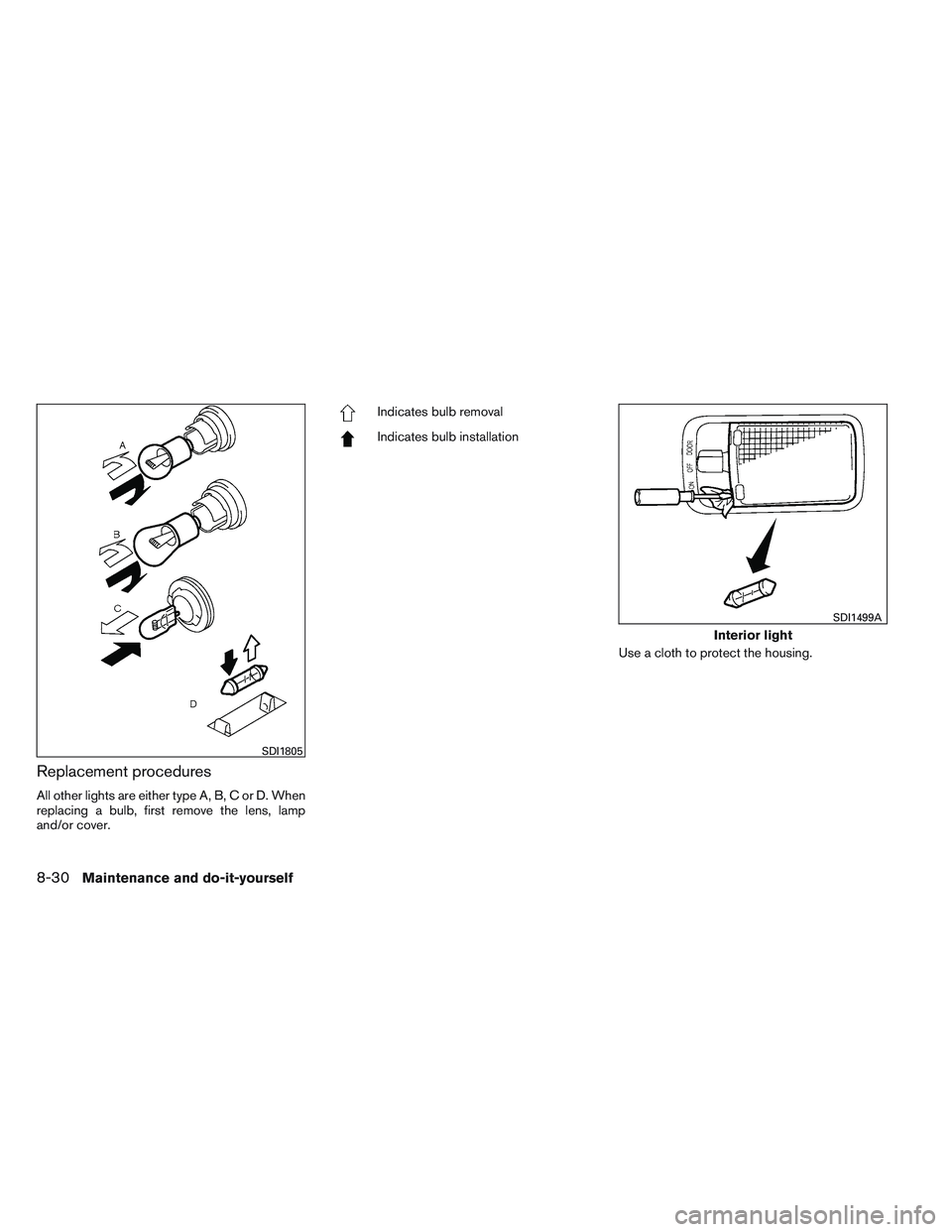

Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to protect the housing.
SDI1805
Interior light
SDI1499A
8-30Maintenance and do-it-yourself

Use a cloth to protect the housing.To change the stop/tail
A, rear turn signalBor
backup (reversing)
Clight bulb, perform the
following:
1. Disconnect the battery negative cable.

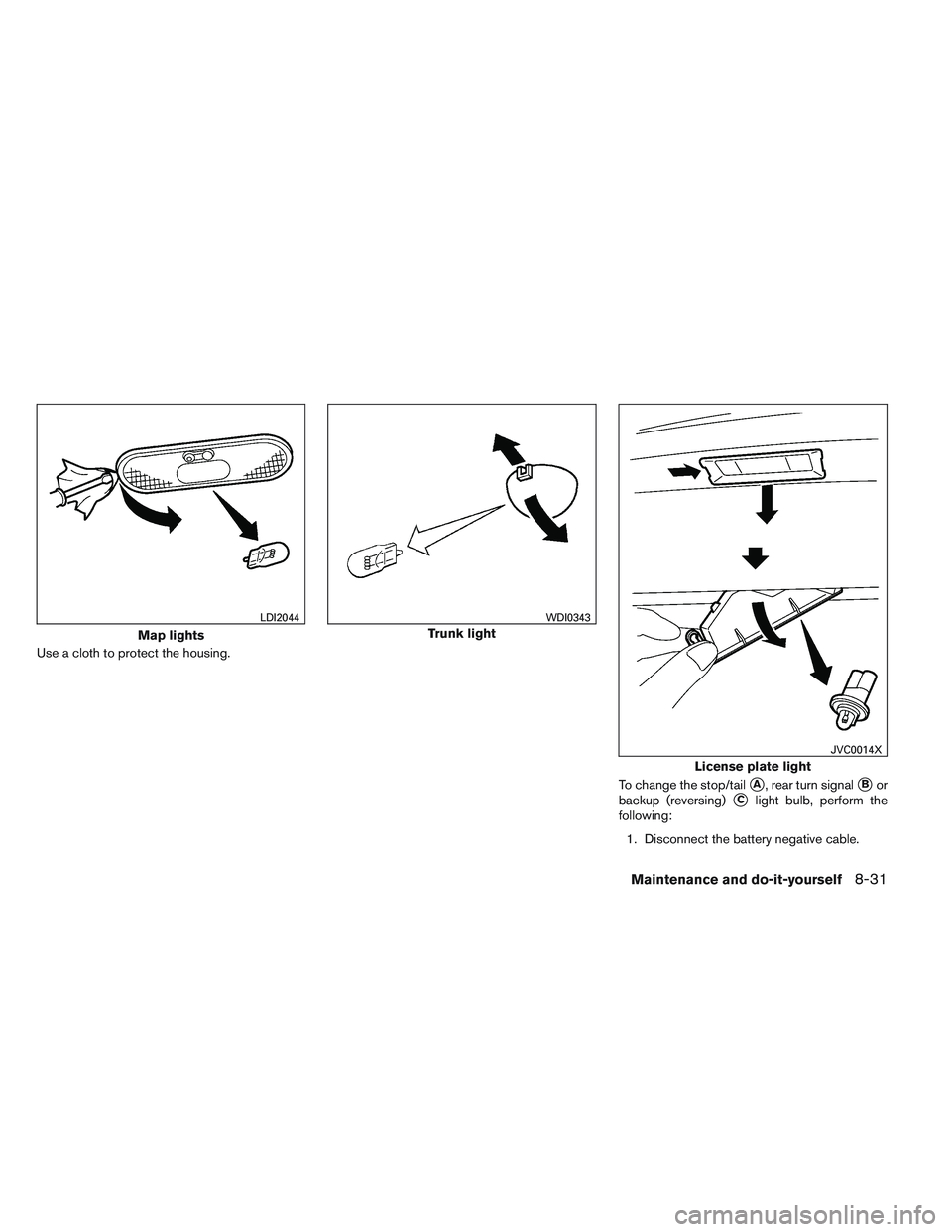

Map lights
LDI2044
Trunk light
WDI0343
License plate light
JVC0014X
Maintenance and do-it-yourself8-31

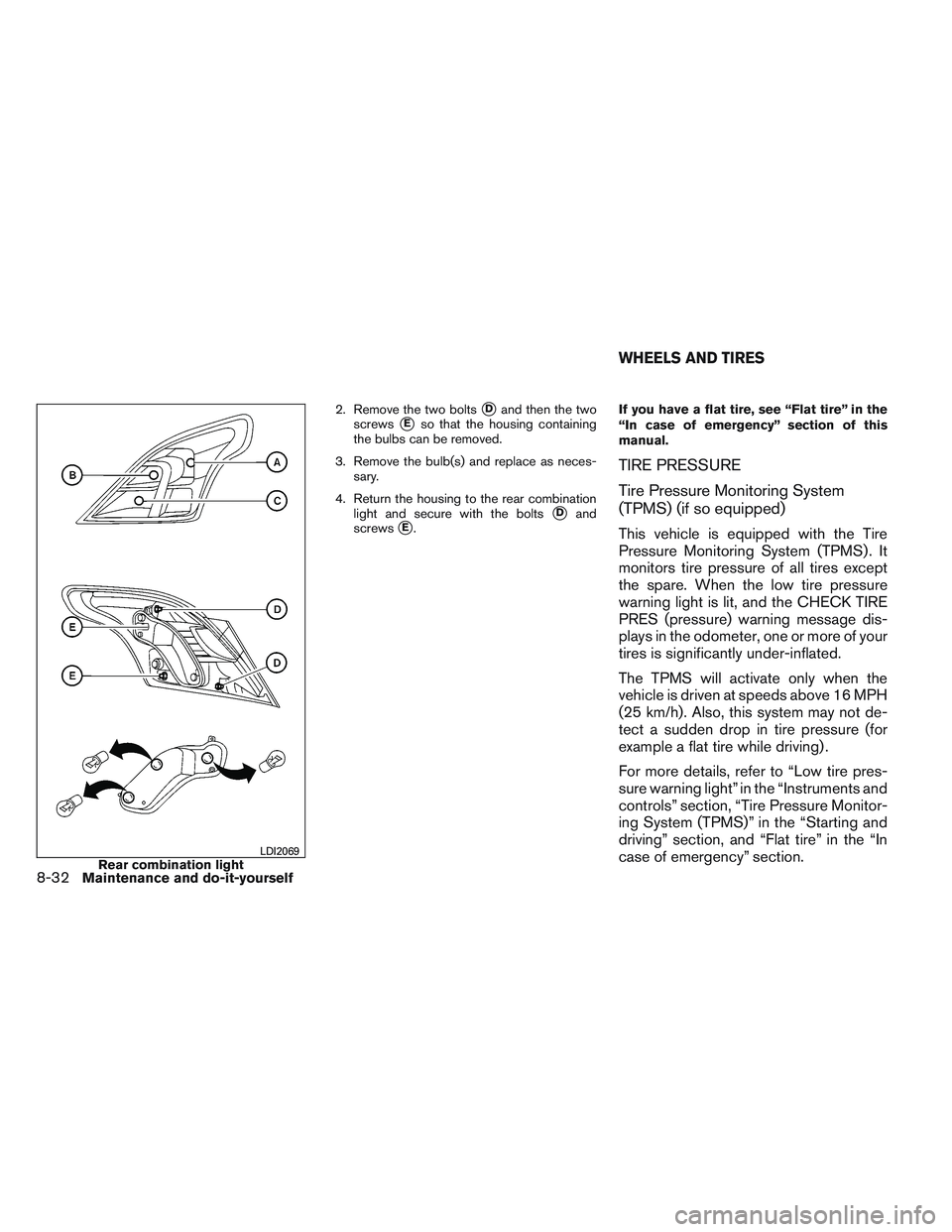

2. Remove the two boltsDand then the two
screws
Eso that the housing containing
the bulbs can be removed.
3. Remove the bulb(s) and replace as neces- sary.
4. Return the housing to the rear combination light and secure with the bolts
Dand
screws
E. If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS) (if so equipped)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS) . It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit, and the CHECK TIRE
PRES (pressure) warning message dis-
plays in the odometer, one or more of your
tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For more details, refer to “Low tire pres-
sure warning light” in the “Instruments and
controls” section, “Tire Pressure Monitor-
ing System (TPMS)” in the “Starting and
driving” section, and “Flat tire” in the “In
case of emergency” section.
Rear combination lightLDI2069
WHEELS AND TIRES
8-32Maintenance and do-it-yourself

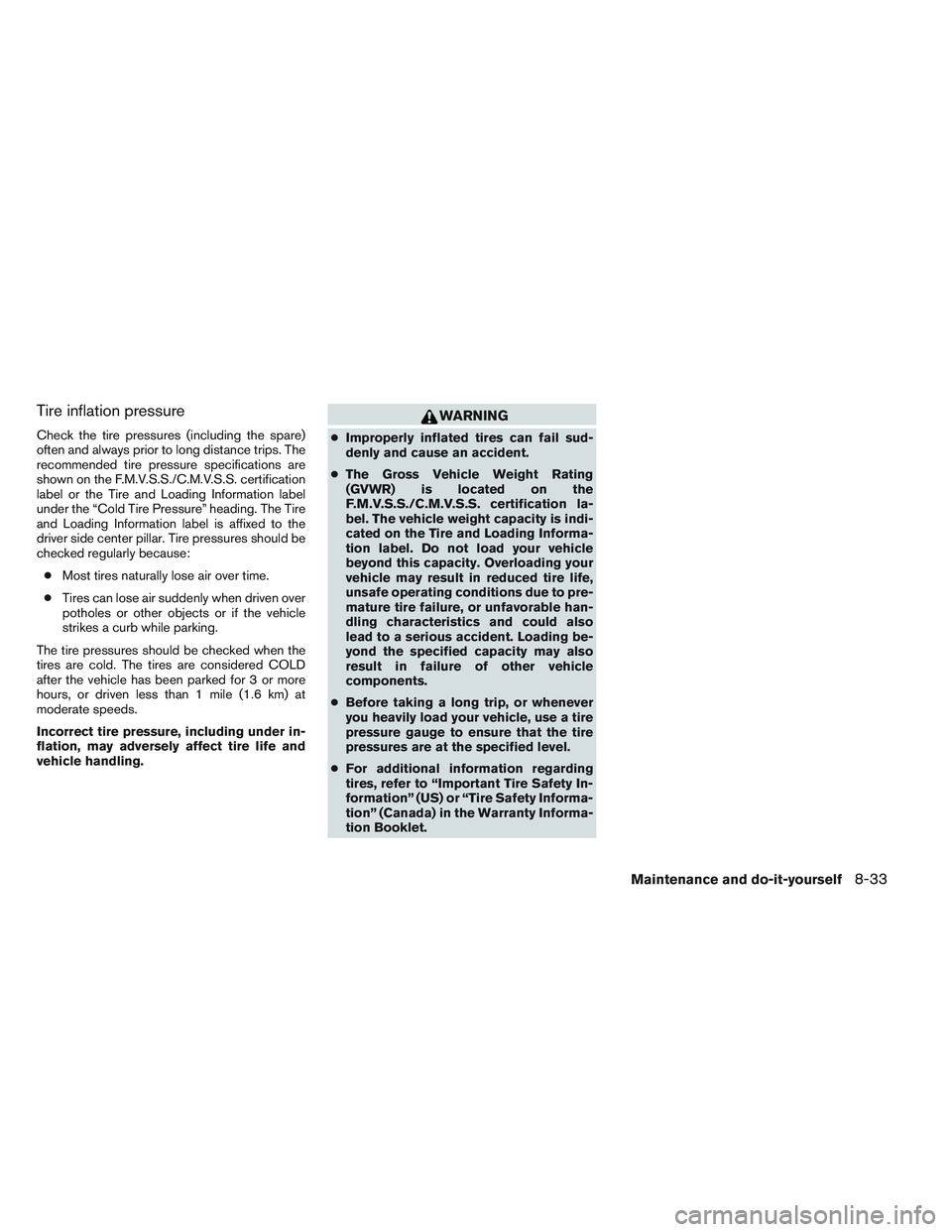

Tire inflation pressure
Check the tire pressures (including the spare)
often and always prior to long distance trips. The
recommended tire pressure specifications are
shown on the F.M.V.S.S./C.M.V.S.S. certification
label or the Tire and Loading Information label
under the “Cold Tire Pressure” heading. The Tire
and Loading Information label is affixed to the
driver side center pillar. Tire pressures should be
checked regularly because:● Most tires naturally lose air over time.
● Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle
strikes a curb while parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
WARNING
● Improperly inflated tires can fail sud-
denly and cause an accident.
● The Gross Vehicle Weight Rating
(GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity is indi-
cated on the Tire and Loading Informa-
tion label. Do not load your vehicle
beyond this capacity. Overloading your
vehicle may result in reduced tire life,
unsafe operating conditions due to pre-
mature tire failure, or unfavorable han-
dling characteristics and could also
lead to a serious accident. Loading be-
yond the specified capacity may also
result in failure of other vehicle
components.
● Before taking a long trip, or whenever
you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
● For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Maintenance and do-it-yourself8-33

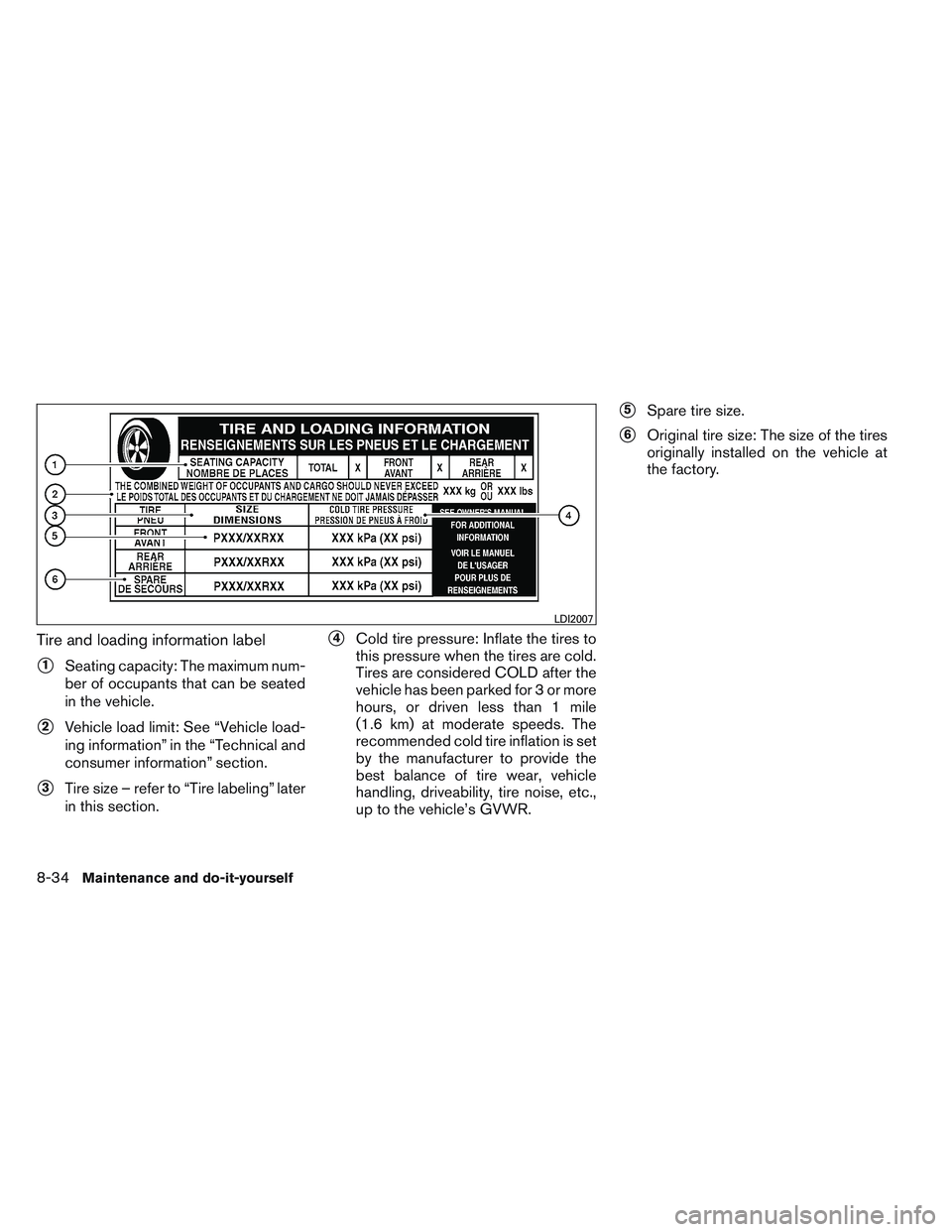

Tire and loading information label
1Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: See “Vehicle load-
ing information” in the “Technical and
consumer information” section.
3Tire size – refer to “Tire labeling” later
in this section.
4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more
hours, or driven less than 1 mile
(1.6 km) at moderate speeds. The
recommended cold tire inflation is set
by the manufacturer to provide the
best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle’s GVWR.
5Spare tire size.
6Original tire size: The size of the tires
originally installed on the vehicle at
the factory.
LDI2007
8-34Maintenance and do-it-yourself

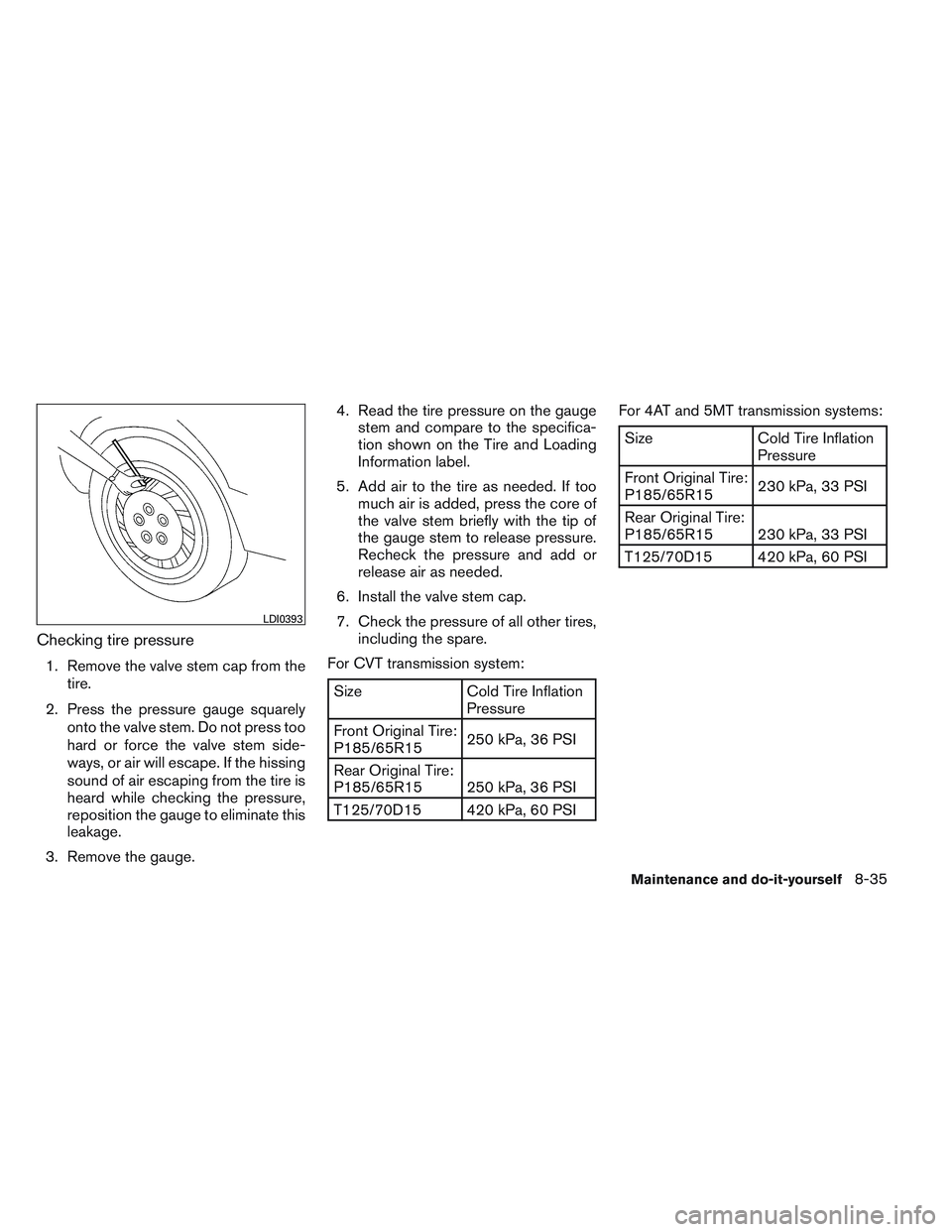

Checking tire pressure
1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3. Remove the gauge. 4. Read the tire pressure on the gauge
stem and compare to the specifica-
tion shown on the Tire and Loading
Information label.
5. Add air to the tire as needed. If too much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or
release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, including the spare.
For CVT transmission system:
Size Cold Tire Inflation
Pressure
Front Original Tire:
P185/65R15 250 kPa, 36 PSI
Rear Original Tire:
P185/65R15 250 kPa, 36 PSI
T125/70D15 420 kPa, 60 PSI For 4AT and 5MT transmission systems:
Size
Cold Tire Inflation
Pressure
Front Original Tire:
P185/65R15 230 kPa, 33 PSI
Rear Original Tire:
P185/65R15 230 kPa, 33 PSI
T125/70D15 420 kPa, 60 PSI
LDI0393
Maintenance and do-it-yourself8-35
