child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. See
“Child restraints” later in this section.
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor and
Tethers for CHildren) system or with the vehicle
seat belt. See “Child restraints” later in this
section for more information.
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
Studies show that children are safer when
properly restrained in the rear seat than in
the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (Air bag system) for the front passen-
ger. See “Supplemental Restraint System”
later in this section.
INFANTSGUID-8B512B1F-1773-4C0A-92B9-DD6E7BC59681Infants up to at least 1 year old should be placed
in a rear-facing child restraint. NISSAN recom-
mends that infants be placed in child restraints
that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint that fits your vehicle and always follow the
manufacturer’s instructions for installation and
use.
SMALL CHILDRENGUID-1389650A-F101-451E-83E7-5ED25B7AA16DChildren that are over 1 year old and weigh at
least 20 lbs (9 kg) should remain in a rear-facing
child restraint as long as possible up to the
height or weight limit of the child restraint.
Children who outgrow the height or weight limit
of the rear-facing child restraint and are at least
1 year old should be secured in a forward-facing
child restraint with a harness. Refer to the
manufacturer’s instructions for minimum and
maximum weight and height recommendations.
NISSAN recommends that small children be
placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.
LARGER CHILDRENGUID-7E131263-864D-4FCD-962F-582BD50C1E9BChildren should remain in a forward-facing child
restraint with a harness until they reach the
maximum height or weight limit allowed by the
child restraint manufacturer.
Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child
restraint, NISSAN recommends that the child beplaced in a commercially available booster seat
to obtain proper seat belt fit. For a seat belt to fit
properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the
shoulder. The lap belt should lie snugly across
the lower hips or upper thighs, not the abdomen.
A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has grown so the shoulder belt
is no longer on or near the face and neck, and
the lap belt can be positioned properly across
the lower hips or upper thighs, use the seat belt
without the booster seat.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo area. The child could be seriously
injured or killed in a sudden stop or
collision.
Safety — Seats, seat belts and supplemental restraint system1-21

Black plate (39,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
— Keep seatbacks as upright aspossible after fitting the child
restraint.
— Infants and children should al- ways be placed in an appropri-
ate child restraint while in the
vehicle.
. When the child restraint is not in
use, keep it secured with the LATCH
system or a seat belt. In a sudden
stop or collision, loose objects can
injure occupants or damage the
vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHil-
dren) system. Some child restraints include rigid
or webbing-mounted attachments that can be
connected to these anchors. For details, see “Lower Anchors and Tethers for
CHildren System (LATCH)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
.
Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
. Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
. If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated anchor point on the vehicle.
Safety — Seats, seat belts and supplemental restraint system1-23

Black plate (114,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-44Instruments and controls
SIC3549
ROOF RACK (if so equipped)GUID-963DC233-F1BF-4195-80FA-612BBCFAEFB2Secure the crossbars to the roof rail before
loading. The crossbars are available from a
NISSAN dealer.
Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg). Be
careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar). For more
information regarding GVWR and GAWR, see
“Vehicle loading information” in the “9. Technical
and consumer information” section.
WARNING
.Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot
comfortably lift the items onto the roof rack from the ground, use a ladder or
stool.

Black plate (321,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-6C8A2EEE-8AF1-45BF-BAF6-930A9AF115CDIf you have a flat tire, see “Flat tire” in the
“6. In case of emergency” section.
TIRE PRESSUREGUID-4D963F91-4B9F-407E-9917-79DCDB9F655A
Tire Pressure Monitoring System (TPMS)GUID-FB5E4DC6-E8CB-41DC-8DD9-88899CEDDA08This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see “Low tire pressure warning
light” in the “2. Instruments and controls”
section, “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section
and “Tire Pressure Monitoring System (TPMS)”
in the “6. In case of emergency” section.
Tire inflation pressureS35-D-110201-90006E03-60AC-4BB9-8393-6BE63790C1B6Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tire
and Loading Information label is affixed to
the driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
. Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.WARNING
. Improperly inflated tires can fail
suddenly and cause an accident.
. The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capa-
city may also result in failure of
other vehicle components.
. Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
Maintenance and do-it-yourself8-31
WHEELS AND TIRES

Black plate (325,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

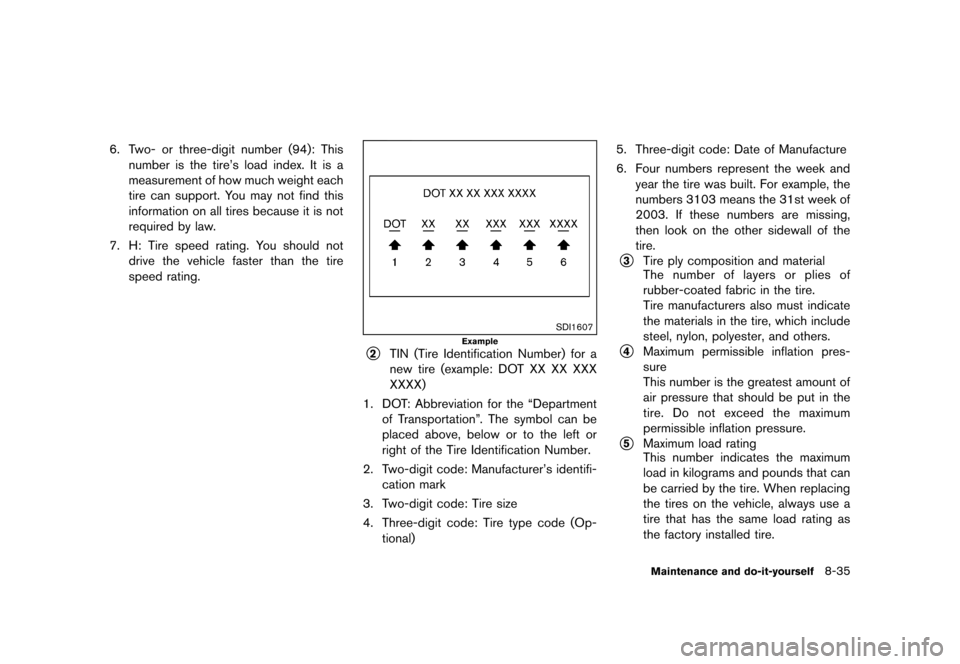

6. Two- or three-digit number (94): Thisnumber is the tire’s load index. It is a
measurement of how much weight each
tire can support. You may not find this
information on all tires because it is not
required by law.
7. H: Tire speed rating. You should not drive the vehicle faster than the tire
speed rating.
SDI1607
Example
*2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)
1. DOT: Abbreviation for the “Departmentof Transportation”. The symbol can be
placed above, below or to the left or
right of the Tire Identification Number.
2. Two-digit code: Manufacturer’s identifi- cation mark
3. Two-digit code: Tire size
4. Three-digit code: Tire type code (Op- tional) 5. Three-digit code: Date of Manufacture
6. Four numbers represent the week and
year the tire was built. For example, the
numbers 3103 means the 31st week of
2003. If these numbers are missing,
then look on the other sidewall of the
tire.
*3Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indicate
the materials in the tire, which include
steel, nylon, polyester, and others.
*4Maximum permissible inflation pres-
sure
This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum
permissible inflation pressure.
*5Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.
Maintenance and do-it-yourself8-35

Black plate (333,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
9 Technical and consumer information
Capacities and recommended fuel/lubricants...
................... 9-2
Fuel recommendation ...
......................................................... 9-3
Engine oil and oil filter recommendation ...
....................... 9-5
Air conditioning system refrigerant and
lubricant recommendations ...
............................................... 9-6
Specifications ...
........................................................................\
..... 9-7
Engine ...
........................................................................\
............ 9-7
Wheels and tires ...
................................................................. 9-7
Dimensions and weights ...
................................................... 9-8
When traveling or registering your vehicle in
another country ...
........................................................................\
.. 9-8
Vehicle identification ...
................................................................. 9-8
Vehicle Identification Number (VIN) plate ...
..................... 9-8
Vehicle identification number (chassis number) ...
.......... 9-9
Engine serial number ...
.......................................................... 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
....................... 9-9
Emission control information label ...
............................... 9-10
Tire and loading information label ...
................................ 9-10
Air conditioner specification label ...
................................ 9-10
Installing front license plate ...
................................................. 9-11 Vehicle loading information
...
................................................. 9-12
Terms ...
........................................................................\
......... 9-12
Vehicle load capacity ...
.................................................... 9-13
Securing the load ...
.......................................................... 9-14
Loading tips ...
..................................................................... 9-15
Measurement of weights ...
.............................................. 9-15
Towing a trailer ...
....................................................................... 9-16
Maximum load limits ...
...................................................... 9-16
Maximum Gross Vehicle Weight (GVW)/maximum
Gross Axle Weight (GAW) ...
......................................... 9-18
Towing load/specification ...
............................................ 9-20
Towing safety ...
.................................................................. 9-20
Flat towing ...
....................................................................... 9-24
Uniform tire quality grading ...
................................................. 9-25
Treadwear ...
........................................................................\
9-25
Traction AA, A, B and C ...
.............................................. 9-25
Temperature A, B and C ...
.............................................. 9-25
Emission control system warranty ...
..................................... 9-26
Reporting safety defects ...
..................................................... 9-26
Readiness for Inspection/Maintenance (I/M) test ...
......... 9-27
Event Data Recorders (EDR) ...
............................................. 9-28
Owner’s Manual/Service Manual order information ...
..... 9-28

Black plate (340,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
9-8Technical and consumer information
DIMENSIONS AND WEIGHTSS35-D-110201-C0BD9505-CF16-45D9-ADC2-03F9DD3B48B2
Overall length in (mm) 183.3 (4,655)*1183.9 (4,670)*2
Overall width in (mm) 70.9 (1,800)
Overall height in (mm) 65.3 (1,658) 66.3 (1,683)*3
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm) 61.0 (1,550)
Wheelbase in (mm) 105.9 (2,690)
Gross Vehicle
Weight Rating
(GVWR) lb (kg)
See the F.M.V.S.S. or
C.M.V.S.S. certification
label on the driver’s
side center pillar.
Gross Axle
Weight Rating
(GAWR)
Front lb (kg)
Rear lb (kg)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: With roof rail
S35-D-110201-97696DB0-9FA1-454C-9A54-75CB658B4436When planning to travel in another coun-
try, you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.S35-D-110201-AF2DD131-9602-439B-9C4F-B002B286C468
STI0457
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
S35-D-110201-3F76E755-25B1-43D9-AFCF-FF5F50E32C88The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION

Black plate (341,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

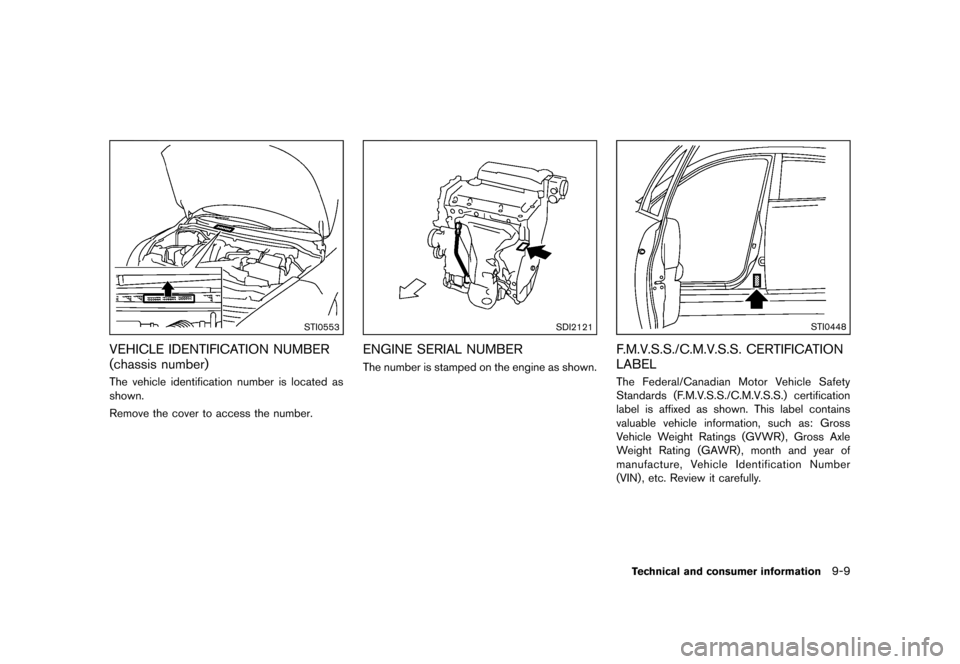

STI0553
VEHICLE IDENTIFICATION NUMBER
(chassis number)
S35-D-110201-859767E6-F86B-4A5A-B7CB-B6320904327EThe vehicle identification number is located as
shown.
Remove the cover to access the number.
SDI2121
ENGINE SERIAL NUMBERS35-D-110201-CB8324CE-1974-419D-AC72-4A30E1369F8BThe number is stamped on the engine as shown.
STI0448
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
S35-D-110201-12E3C8D7-CF92-4ECA-8F69-6F7ACEA8B044The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
Technical and consumer information9-9
