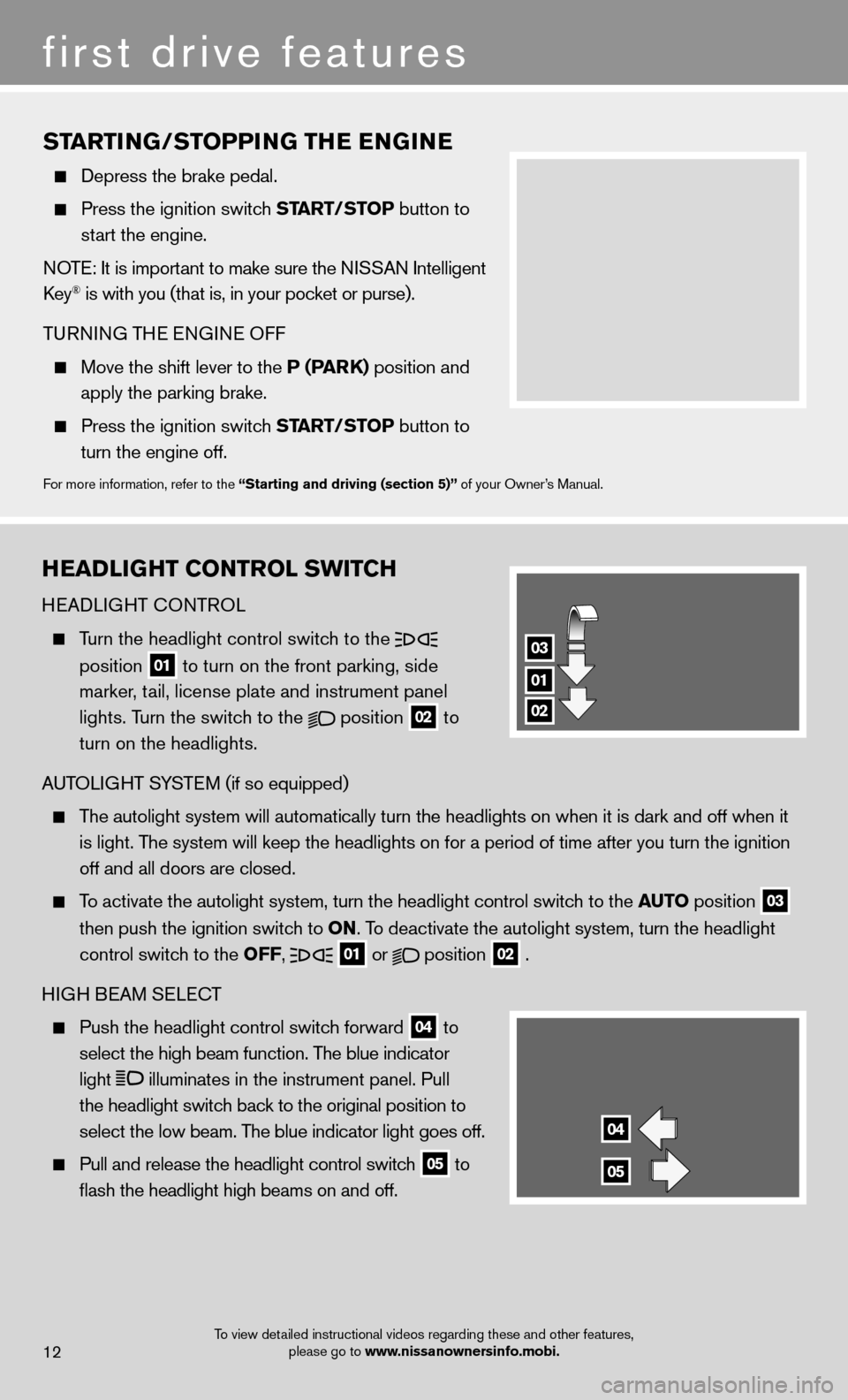

HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL
Turn the headlight control switch to the
position
01 to turn on the front parking, side
marker, tail, license plate and instrument panel
lights. Turn the switch to the
position
02 to
turn on the headlights.
AUTOLIGHT SYSTEM (if so equipped)
The autolight system will automatically turn the headlights on when it is\
dark and off when it
is light. The system will keep the headlights on for a period of time after you tur\
n the ignition
off and all doors are closed.
To activate the autolight system, turn the headlight control switch to the AUTO position
03
then push the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the OFF,
01 or
position
02 .
HIGH BEAM SELECT
Push the headlight control switch forward 04 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull
the headlight switch back to the original position to
select the low beam. The blue indicator light goes off.
Pull and release the headlight control switch 05 to
fl ash the headlight high beams on and off.
12
first drive features
01
03
02
STARTING/STOPPING THE EN GINE
Depress the brake pedal.
Press the ignition switch START/STOP button to
start the engine.
NOTE: It is important to make sure the NISSAN Intelligent
Key
® is with you (that is, in your pocket or purse).
TURNING THE ENGINE OFF
Move the shift lever to the P (PARK) position and
apply the parking brake.
Press the ignition switch START/STOP button to
turn the engine off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
04
05
W
s
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
