2013 NISSAN LEAF TPMS

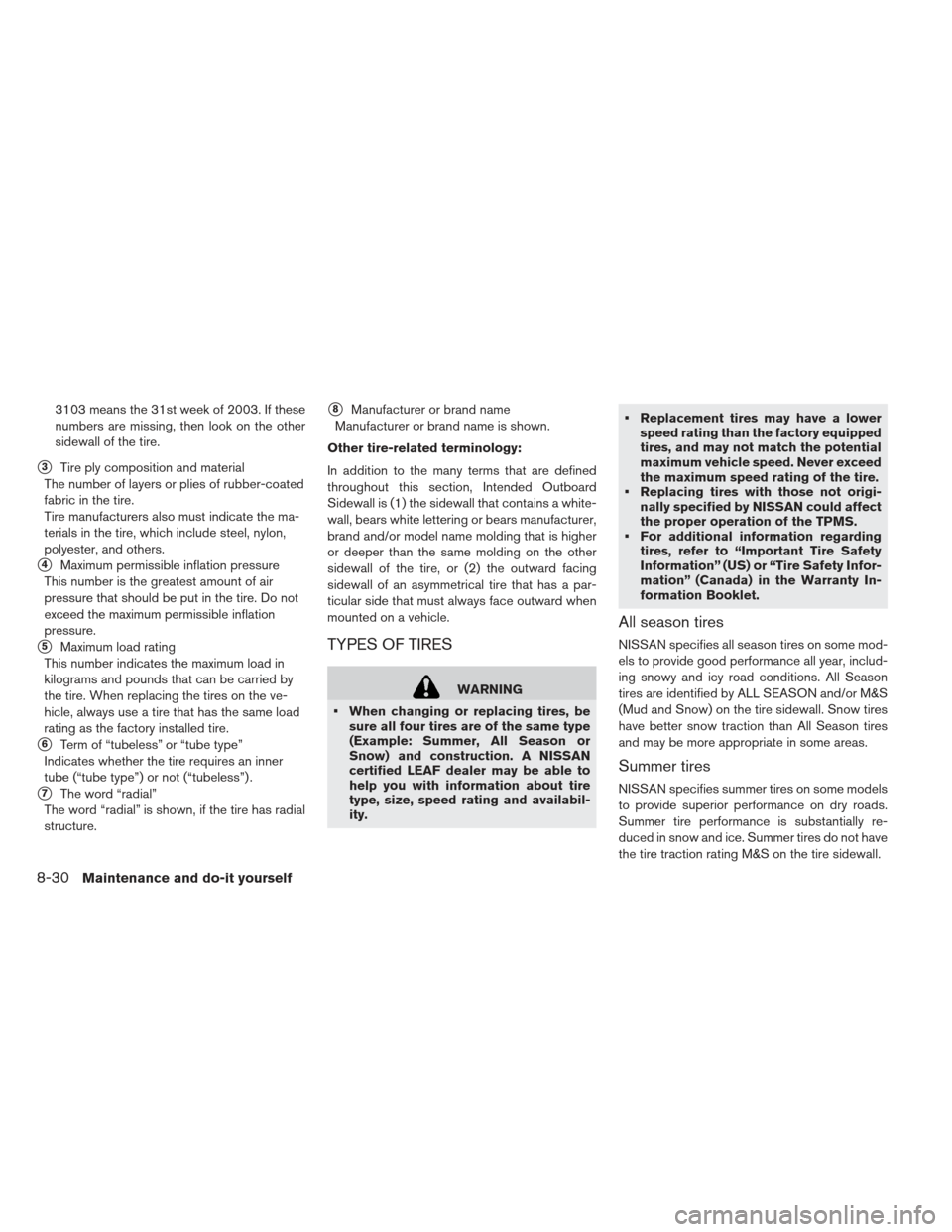

3103 means the 31st week of 2003. If these
numbers are missing, then look on the other
sidewall of the tire.
3Tire ply composition and material
The number of layers or plies of rubber-coated
fabric in the tire.
Tire manufacturers also must indicate the ma-
terials in the tire, which include steel, nylon,
polyester, and others.
4Maximum permissible inflation pressure
This number is the greatest amount of air
pressure that should be put in the tire. Do not
exceed the maximum permissible inflation
pressure.
5Maximum load rating
This number indicates the maximum load in
kilograms and pounds that can be carried by
the tire. When replacing the tires on the ve-
hicle, always use a tire that has the same load
rating as the factory installed tire.
6Term of “tubeless” or “tube type”
Indicates whether the tire requires an inner
tube (“tube type”) or not (“tubeless”) .
7The word “radial”
The word “radial” is shown, if the tire has radial
structure.
8Manufacturer or brand name
Manufacturer or brand name is shown.
Other tire-related terminology:
In addition to the many terms that are defined
throughout this section, Intended Outboard
Sidewall is (1) the sidewall that contains a white-
wall, bears white lettering or bears manufacturer,
brand and/or model name molding that is higher
or deeper than the same molding on the other
sidewall of the tire, or (2) the outward facing
sidewall of an asymmetrical tire that has a par-
ticular side that must always face outward when
mounted on a vehicle.
TYPES OF TIRES
WARNING
When changing or replacing tires, be sure all four tires are of the same type
(Example: Summer, All Season or
Snow) and construction. A NISSAN
certified LEAF dealer may be able to
help you with information about tire
type, size, speed rating and availabil-
ity. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS.
For additional information regarding tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
All season tires
NISSAN specifies all season tires on some mod-
els to provide good performance all year, includ-
ing snowy and icy road conditions. All Season
tires are identified by ALL SEASON and/or M&S
(Mud and Snow) on the tire sidewall. Snow tires
have better snow traction than All Season tires
and may be more appropriate in some areas.
Summer tires
NISSAN specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not have
the tire traction rating M&S on the tire sidewall.
8-30Maintenance and do-it yourself

The original tires have built-in treadwear indicators. When wear indicators
are visible, the tire(s) should be re-
placed.
Tires degrade with age and use. Have tires, over 6 years old checked by a
qualified technician, because some
tire damage may not be obvious. Re-
place the tires as necessary to prevent
tire failure and possible personal in-
jury.
For additional information regarding tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. See Specificationsin
the Technical and consumer information sec-
tion for recommended types and sizes of tires
and wheels.
WARNING
The use of tires other than those rec- ommended or the mixed use of tires of
different brands, construction (bias,
bias-belted or radial) , or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-
tire clearance, tire chain clearance,
speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and
could result in serious personal injury.
If your vehicle was originally equipped with 4 tires that were the same size
and you are only replacing 2 of the 4
tires, install the new tires on the rear
axle. Placing new tires on the front
axle may cause loss of vehicle control
in some driving conditions and cause
an accident and personal injury. If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade
vehicle handling characteristics
and/or interference with the brake
discs. Such interference can lead to
decreased braking efficiency and/or
early brake pad/shoe wear. See
Wheels and tires in theTechnical
and consumer information
section of
this manual for wheel off-set dimen-
sions.
When a wheel is replaced, the TPMS will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Contact your
NISSAN certified LEAF dealer as soon
as possible for tire replacement
and/or system resetting.
Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS.
Do not install a damaged or deformed wheel or tire even if it has been re-
paired. Such wheels or tires could
have structural damage and could fail
without warning.
Maintenance and do-it yourself8-33

Li-ion battery status check..........CH-31
Li-ion battery temperature gauge .........2-7
Li-ion battery warmer ..............EV-5
Limited power ..................2-33
Loading information (See vehicle loading
information) ....................9-10
Lock ........................3-5
Automatic door locks ............3-5
Door locks .................. .3-3
Power door lock .............. .3-3
Rear hatch lock .............. .3-17
Long life mode.................CH-26
Low tire pressure warning light .........2-16
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-2
Luggage side hook ...............2-54
M
Maintenance...................8-11
12-volt battery ............... .8-11
General maintenance ............8-2
Indicators for maintenance ........2-34
Inside vehicle ................ .8-3
Maintenance precautions ..........8-5
Maintenance requirements .........8-2
Outside vehicle ............... .8-2
Seat belt maintenance ...........1-14
Manual front seat adjustment ...........1-3
Maplights ....................2-57 Mechanical key (Intelligent Key system)
.....3-3
Meters and gauges ................2-5
Mirror .......................3-22
Inside rearview mirror ............3-22
Outside mirrors .............. .3-23
Vanity mirror ................ .3-24
Motor....................5-10,9-6
Before starting system...........5-10
Motor compartment................8-7
N
NISSAN Intelligent Key® system ......3-6,5-7
Key operating range of the door
lock/unlock function.............3-8
Key operation ................ .3-9
NISSAN Vehicle Immobilizer System ......2-37
Normalcharge .................CH-9
Home charge ............... .CH-9
Occasional charge .............CH-9
Public charge ............... .CH-9
O
Odometer.....................2-6
Off-road recovery .................5-5
Oil .........................9-2
Capacities and recommended
lubricants .................. .9-2
Opening rear hatch...............3-10 Outside air temperature
.............2-10
Outside mirrors .................3-23
Owner’s Manual/Service Manual order
information ....................9-18
P
Panic alarm....................3-14
Parking ......................5-14
Parking on hills .............. .5-18
Parking brake break-in..............5-21
Power .......................3-3
Power door lock .............. .3-3
Power steering system ...........5-19
Power windows .............. .2-54
Powereconomy.................5-17
Powermeter....................2-7
Power outlet...................2-50
Power steering system .............5-19
Powerswitch.................5-7,5-8
Precautions ....................5-19
Brake precautions .............5-19
Charging ................. .CH-2
Child restraints .............. .1-17
Cruise control ............... .5-15
High voltage precautions .........EV-7
Maintenance ................. .8-5
Road accident precautions ........EV-8
Seat belt usage ............... .1-7
Supplemental restraint system ......1-34
10-4Index

Supplemental restraint system.........1-34
Precautions on supplemental restraint
system................... .1-34
Switch......................2-42
Autolight switch .............. .2-42
Charge timer OFF switch .........2-49
ECO switch ................ .2-46
Fog light switch .............. .2-45
Hazard warning flasher switch .......6-2
Headlight switch ............. .2-42
Power door lock switch ...........3-5
Rear window and outside mirror
defroster switch .............. .2-41
Turn signal switch ............. .2-44
Vehicle dynamic control (VDC) off
switch ................... .2-48
T
Telematics overview...............9-16
Temperature ....................2-7
Li-ion battery temperature gauge ......2-7
Theft (NISSAN Vehicle Immobilizer System) ,
traction motor start................2-37
Tilt steering column ...............3-20
Tire........................2-16
Low tire pressure warning light ......2-16
Tires ........................6-3
Flat tire.................... .6-3
Low tire pressure warning system .....5-2
Tire and Loading information label . . .8-27, 9-9
Tire chains................. .8-31
Tire dressing ................ .7-4
Tire pressure ................ .8-28
Tire pressure monitoring system
(TPMS) ................. .5-2, 6-3
Tire rotation ................ .8-32
Types of tires ............... .8-30
Uniform tire quality grading ........9-14
Wheels and tires ............. .8-26
Wheel/tire size ............... .9-6
Tools.......................6-13
Top........................1-20
Tether strap child restraints ........1-20
Towing......................9-14
Flat towing................. .9-14
Towing a trailer .............. .9-13
Tow truck towing ............. .6-13
TPMS, Tire pressure monitoring system .....5-2
TPMS, Tire pressure warning system ......6-3
Tractionmotor...................9-8
Traction motor serial number ........9-8
Trailer towing...................9-13
Transceiver, HomeLink® Universal .......2-58
Transceiver................. .2-58
Transmitter, With Intelligent Key system
(See Intelligent Key system)...........3-13
Tricklecharge.................CH-11
Trip computer ..................2-27
Turn signal switch ................2-44 Type of charge and how to charge the Li-ion
battery
......................CH-5
U
Underbody cleaning ................7-3
Uniform tire quality grading ...........9-14
Unplugged status ...............CH-31
V
Vanity mirror...................3-24
Vehicle.......................9-6
Dimensions and weights ..........9-6
Identification number (VIN) .........9-7
Loading information .............9-10
Recovery (freeing stuck vehicle) .....6-15
Security system .............. .2-36
Vehicle dynamic control (VDC) off
switch ................... .2-48
Vehicle dynamic control (VDC) system .5-22
Vehicle Dynamic Control (VDC) warning
light ..................... .2-19
Vehicle Dynamic Control (VDC) warning light .2-19
Vehicle security system.............2-36
Vents........................4-6
10-6Index

W
Warning......................6-2
Hazard warning flasher switch.......6-2
Indicators for operation ..........2-23
Tire pressure monitoring system
(TPMS) ................. .5-2, 6-3
Warning/indicator lights and audible
reminders ................. .2-12
Warning information displays .......2-32
Warning lights ............... .2-13
Warningandindicatorlights ..........0-11
Warninginformationdisplays..........2-32
Warninglabels,Airbagwarninglabels.....1-48
Warninglight...................1-48
Air bag warning light........1-48, 2-18
Anti-lock braking system (ABS)
warning light ................ .2-14
BRAKE system warning light (yellow) . .2-14
BRAKE warning light (red) .........2-15
Low tire pressure warning light ......2-16
Seat belt warning light ...........2-18
Vehicle Dynamic Control (VDC)
warning light ................ .2-19
Washer switch..................2-40
Rear window wiper and washer
switch................... .2-40
Windshield wiper and washer switch . .2-38
Washing ......................7-2
Waxing.......................7-2
Weights(Seedimensionsandweights).....9-6 Wheels and tires
.................8-26
Care of wheels............... .7-3
Cleaning aluminum alloy wheels ......7-3
Wheel/tire size...................9-6
When traveling or registering your vehicle
inanothercountry.................9-7
Window(s) .....................7-3
Cleaning................... .7-3
Power windows .............. .2-54
Window washer fluid..............8-10
Windshieldwiperandwasherswitch .....2-38
Wiper.......................8-13
Pulling up the wiper arm ..........8-13
Rear window wiper and washer
switch ................... .2-40
Rear window wiper blade .........8-15
Windshield wiper and washer switch . .2-38
Wiper blades .............8-13, 8-14
Index10-7
