2013 NISSAN LEAF buttons

Locking doors
1LOCKbutton
2UNLOCKbutton
3CHARGE PORT UNLOCK
4PANICbutton
When you lock or unlock the doors, the hazard
indicator will flash and the horn will sound as a
confirmation. For details, see Setting hazard in-
dicator and horn mode.
1. Push the power switch to the OFF position and make sure you carry the Intelligent Key
with you.*1
2. Carry the Intelligent Key with you. 3. Close all the doors.
4. Push the LOCK
button1on the
Intelligent Key.
5. All the doors and the rear hatch will lock.
6. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will not lock with the Intelligent Key
while the power switch is in the ACC or ON
position.
Operate the door handles to confirm that the
doors have been securely locked.
Unlocking doors
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driv- er’s door will unlock.
3. Push the UNLOCK
button on the Intel-
ligent Key again within 1 minute.
4. The hazard indicator flashes once again. All the doors and the rear hatch will unlock.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the UNLOCK
button
while the doors are locked.
Opening any door (including the rear hatch) . Pushing the power switch.
During this 1-minute time period, if the UNLOCK
button on the Intelligent Key is pushed, all
doors will be locked automatically after another 1
minute.
Opening charge port lid
The charge port lid may be opened by pressing
and holding the charge port unlock
button
3.
For additional information see Opening charge
port lid in this section.
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button4on the
Intelligent Key for more than 1 second.
2. The theft warning alarm and headlights will stay on for a period of time.
3. The panic alarm stops when: It has run for a period of time, or
Any of the buttons on the Intelligent Key ispushed. (Note: The PANIC button must be
pushed for more than 1 second.)
3-14Pre-driving checks and adjustments

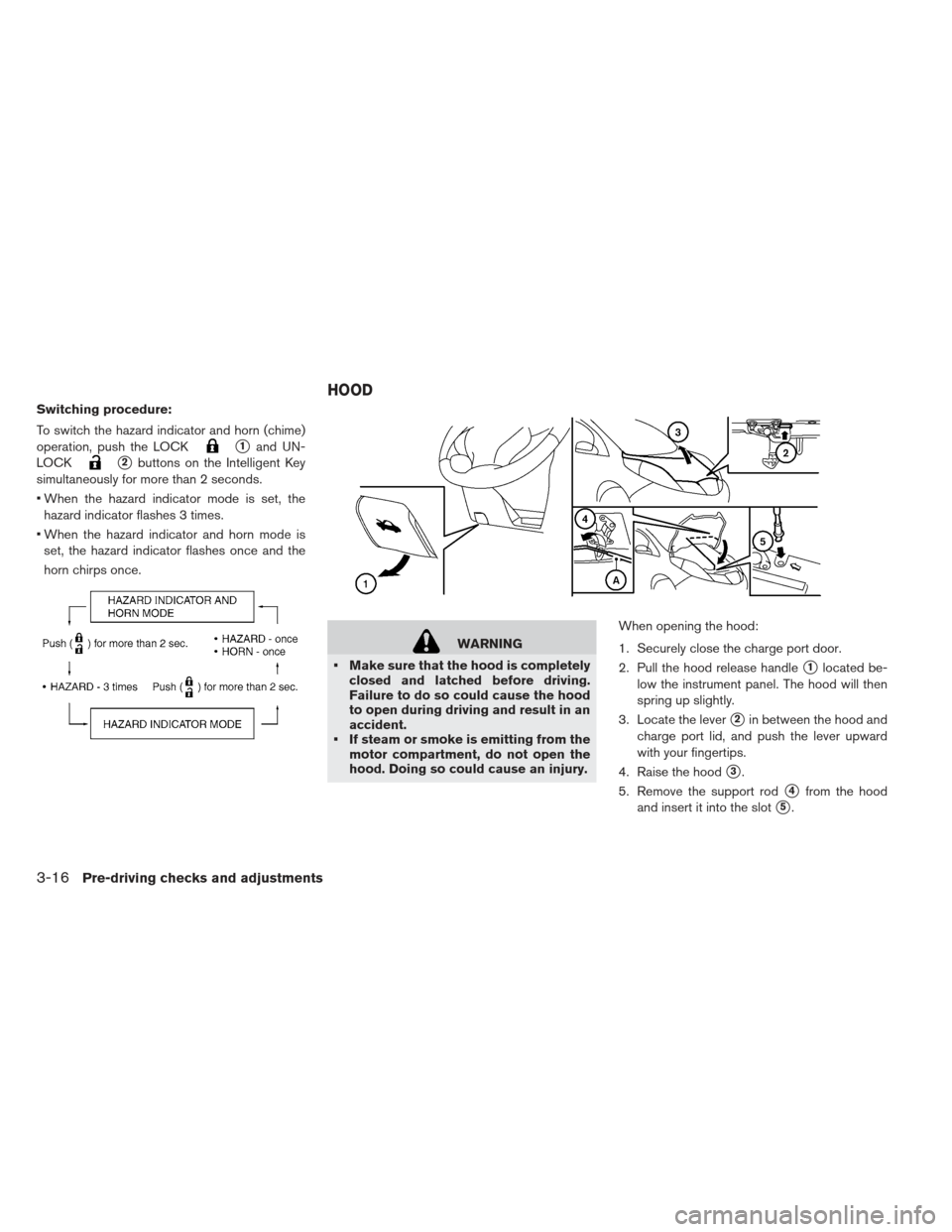

Switching procedure:
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
When the hazard indicator mode is set, the hazard indicator flashes 3 times.
When the hazard indicator and horn mode is set, the hazard indicator flashes once and the
horn chirps once.
WARNING
Make sure that the hood is completely closed and latched before driving.
Failure to do so could cause the hood
to open during driving and result in an
accident.
If steam or smoke is emitting from the motor compartment, do not open the
hood. Doing so could cause an injury. When opening the hood:
1. Securely close the charge port door.
2. Pull the hood release handle
1located be-
low the instrument panel. The hood will then
spring up slightly.
3. Locate the lever
2in between the hood and
charge port lid, and push the lever upward
with your fingertips.
4. Raise the hood
3.
5. Remove the support rod
4from the hood
and insert it into the slot
5.
HOOD
3-16Pre-driving checks and adjustments

4 Heater, air conditioner, audio and phone
systems
Rearview monitor (if so equipped).............4-2
How to read the displayed lines .............4-2
Difference between predicted and actual
distances ......................... .4-3
Adjusting the screen .................. .4-5
Operating tips ...................... .4-5
Vents ............................. .4-6
Center vents ....................... .4-6
Side vents ........................ .4-6
Climate control system ................... .4-7
Automatic climate control (models without
Navigation System) .................. .4-10
Automatic climate control (models with
Navigation System) .................. .4-17
Audio system (models without Navigation System). . .4-26 Radio .......................... .4-26
FM radio reception .................. .4-26
AM radio reception .................. .4-27
Satellite radio reception ................4-27
Audio operation precautions ..............4-28FM-AM-SAT radio with compact disc (CD) player
(models without Navigation System)
.........4-35
USB memory operation ................ .4-39
iPod® player operation ................4-41
CD Care and cleaning ................ .4-43
Steering wheel switch for audio control
(if so equipped) .................... .4-43
Antenna ......................... .4-44
Car phone or CB radio ................ .4-45
Bluetooth® hands-free phone system without
navigation system ..................... .4-45
Regulatory information ................ .4-47
Using the system ................... .4-47
Control buttons .................... .4-49
Getting started ..................... .4-49
List of voice commands ................4-51
Voice adaptation (VA) mode ..............4-55
Manual control ..................... .4-56
Troubleshooting guide ................ .4-58

Operating tips:
The automatic climate control is equipped withsensors as illustrated. The sensors
AandB
help maintain a constant temperature. Do not
put anything on or around these sensors.
Push the AUTO switch to reduce the power consumption of the climate control system.
When the AUTO switch is pushed, both the AUTO and A/C indicator illuminate.
The AUTO indicator will turn off if the MODE button, A/C button, fan speed control buttons,
front defroster button, outside air circulation
button or air circulation button is pushed. When the outside air temperature is low, the air
flow from the foot outlets will be low or may not
operate for up to 150 seconds after turning on
the air conditioner. This is not a malfunction.
Power consumption of the climate control varies depending on the outside temperature and the
temperature set for the climate control. Power
consumption increases if the interior tempera-
ture is cooled down too much in summer or if it
is warmed up too much in winter. This reduces
vehicle range.
When the vehicle is in the ECO position, the climate control operates in the ECO mode
which reduces the power consumption. If the charger is connected to the vehicle when
it is in the ready to drive mode and the air
conditioner or heater is on, the power switch
automatically changes to the ON position. The
climate control system automatically turns off
the heater or air conditioner and switches to the
air recirculation mode. Place the power switch
in the off position to begin charging. Turn on the
desired climate control function.
If the air conditioner or heater is on while charg- ing, the climate control system automatically
turns off the heater or air conditioning and
switches to the air recirculation mode when
charging is complete.
The remote climate control or climate control timer may fog up windows depending on the set
temperature or outside temperature.
When turning on the seat heater switch prior to operating the remote climate control or climate
control timer, the seat heater also will turn on.
The steering wheel heater will turn on automati-
cally when the outside temperature is low.
When the vehicle is in ECO mode, the air con- ditioner will accordingly stay in ECO mode for
lower power consumption.
Heater, air conditioner, audio and phone systems4-15

FM-AM-SAT RADIO WITH
COMPACT DISC (CD) PLAYER
(MODELS WITHOUT NAVIGATION
SYSTEM)
1. FM·AM band select button
2. CD EJECT button3. XM band select button
4. DISP (display) screen
5. Color display
6. iPod MENU button
7. Radio CAT (category)/REW (rewind) button
for SEEK/TRACK
8. Radio SCAN tuning button 9. Radio CAT (category)/FF (fast forward) but-
ton for SEEK/TRACK
10. BACK button
11. CD·AUX button
12. PWR (power) button/VOL (volume) control knob
13. RPT (repeat) play button
14. RDM (random) play button
15. Radio station preset select buttons
16. AUX IN jack
17. TUNE·SCROLL control knob
18. ENTER/SETTING button
For all operation precautions, see “Audio opera-
tion precautions” in this section.
No satellite radio reception is available when the SAT band option is selected unless the optional
satellite receiver and antenna are installed, and
there is an active SiriusXM Satellite Radio sub-
scription.
The satellite radio mode requires an active Siri- usXM Satellite Radio subscription. The satellite
radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
Heater, air conditioner, audio and phone systems4-35

SEEK tuning/CAT (category):
For AM and FM radio Push the SEEK button
orto tune
from low to high or high to low frequencies and
to stop at the next broadcasting station.
For SiriusXM Satellite Radio Push the SEEK button
orto tune
to the first channel of the next or previous
category.
SCAN tuning:
Push the radio SCAN tuning button to tune from
low to high frequencies and stop at each broad-
casting station/channel for 5 seconds. “SCAN” is
shown on the display. Pushing the button again
during this 5 second period will stop SCAN
tuning and the radio will remain tuned to that
station/channel.
If the radio SCAN tuning button is not pushed
within 5 seconds, SCAN tuning moves to the
next station/channel.
1to6Station memory operations:
Twelve stations/channels can be set for the FM
band (6 each for FM1 and FM2) . Eighteen chan-
nels can be set for the SiriusXM Satellite radio (6 each for XM1, XM2 and XM3) (if so equipped)
and six stations can be set for the AM band.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK·CAT, SCAN button or the
TUNE·SCROLL control knob
3. Push and hold the desired station preset but- ton
1to6.
4. The channel indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
Compact disc (CD) player operation
Place the power switch in the ACC or ON posi-
tion and insert the Compact Disc (CD) into the
slot with the label side facing up. The CD will be
guided automatically into the slot and start play-
ing.
After loading the CD, the number of tracks on the
CD and the play time will appear on the display. If the radio is already operating, it will automati-
cally turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the PWR button will start
the CD.
Do not use 3.1 in (8 cm) discs.
CD·AUX button:
When the CD·AUX button is pushed with the
system off and the CD loaded, the system will
turn on and the CD will start to play.
With the CD·AUX button is pushed with the CD
loaded and the radio playing, the radio will auto-
matically be turned off and the CD will start to
play.
Next/Previous Track and Fast
Forward/Rewind:
When the FF or REW button is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or rewind-
ing. When the button is released, the CD will
return to normal play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current track
on the CD will be played.
4-38Heater, air conditioner, audio and phone systems

Say “pound” for “#”. Say “star” for “*” (availablewhen using the “Special Number” command
and the “Send” command during a call) .
See “List of voice commands” and “Special
number” in this section for more information.
Example: 1-555-1212 *123 – “One five five five one two one two star onetwo three”
Say “plus” for “+” (available only when using the “Special Number” command) .
Say “pause” for a 2-second pause (available only when storing a phone book number) .
NOTE:
For best results, say phone numbers as
single digits.
The voice command “Help” is available at any
time. Please use the “Help” command to get
information on how to use the system.
CONTROL BUTTONS
The control buttons for the Bluetooth® Hands-
Free Phone System are located on the steering
wheel. 1.
Phone/send button
2.
Phone/end button
3. Tuning switch
Phone/send
Press thebutton to initiate a VR session or
answer an incoming call.
You can also use the
button to interrupt the
system feedback and give a command at once.
See “List of voice commands” and “During a call”
in this section for more information.
Phone/end
While the Voice Recognition system is active,
press and hold the
button for 5 seconds to
quit the Voice Recognition system at any time.
Tuning switch
While using the Voice Recognition system, tilt the
tuning switch up or down to manually control the
phone system.
GETTING STARTED
The following procedures will help you get
started using the Bluetooth® Hands-Free Phone
System with NISSAN Voice Recognition. For ad-
ditional command options, refer to “List of voice
commands” in this section.
Choosing a language
You can interact with the Bluetooth® Hands-
Free Phone System using English, Spanish or
French.
To change the language, perform the following.
1. Press and hold the
button for more than
5 seconds.
2. The system announces: “Press the PHONE/ SEND (
) button for the hands-free
phone system to enter the voice adaptation
Heater, air conditioner, audio and phone systems4-49

4. Align the tips of the upper and lower parts1,
and then push them together
2until it is
securely closed.
5. Operate the buttons to check that it is func- tioning properly.
See a NISSAN certified LEAF dealer if you need
any assistance for replacement. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.
8-20Maintenance and do-it yourself
