8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
MR16DDT engine ...
............................................................... 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-8
Checking engine oil level ...
.................................................. 8-8
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Brake and clutch (if so equipped) fluid ...
............................ 8-11
Window washer fluid ...
............................................................ 8-12
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-14
Variable voltage control system ...
.......................................... 8-14
Drive belt ...
........................................................................\
.......... 8-15
Spark plugs ...
........................................................................\
..... 8-15
Replacing spark plugs ...
.................................................... 8-16 Air cleaner
...
........................................................................\
....... 8-16
Windshield wiper blades ...
..................................................... 8-17
Cleaning ...
........................................................................\
... 8-17
Replacing ...
........................................................................\
. 8-17
Rear window wiper blade ...
................................................... 8-18
Brakes ...
........................................................................\
.............. 8-18
Self-adjusting brakes ...
.................................................... 8-18
Brake pad wear warning ...
.............................................. 8-18
Fuses ...
........................................................................\
................ 8-19
Engine compartment ...
..................................................... 8-19
Passenger compartment ...
.............................................. 8-21
Key battery replacement ...
...................................................... 8-22
Keyfob ...
........................................................................\
....... 8-23
Intelligent Key ...
.................................................................. 8-24
Lights ...
........................................................................\
................ 8-26
Headlights ...
........................................................................\
8-27
Exterior and interior lights ...
............................................ 8-28
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-35
Changing wheels and tires ...
.......................................... 8-36
Condition:

Black plate (281,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

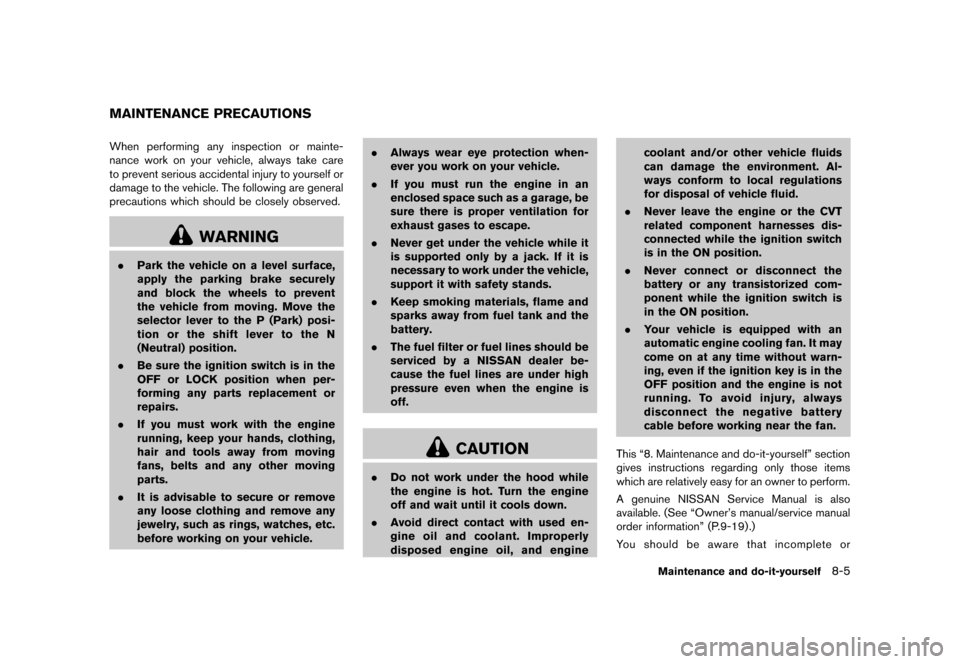

GUID-5DF30ED3-11F3-4E7A-8844-31D0A6DFC586When performing any inspection or mainte-
nance work on your vehicle, always take care
to prevent serious accidental injury to yourself or
damage to the vehicle. The following are general
precautions which should be closely observed.
WARNING
.Park the vehicle on a level surface,
apply the parking brake securely
and block the wheels to prevent
the vehicle from moving. Move the
selector lever to the P (Park) posi-
tion or the shift lever to the N
(Neutral) position.
. Be sure the ignition switch is in the
OFF or LOCK position when per-
forming any parts replacement or
repairs.
. If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving
fans, belts and any other moving
parts.
. It is advisable to secure or remove
any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle. .
Always wear eye protection when-
ever you work on your vehicle.
. If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it
is supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from fuel tank and the
battery.
. The fuel filter or fuel lines should be
serviced by a NISSAN dealer be-
cause the fuel lines are under high
pressure even when the engine is
off.
CAUTION
.Do not work under the hood while
the engine is hot. Turn the engine
off and wait until it cools down.
. Avoid direct contact with used en-
gine oil and coolant. Improperly
disposed engine oil, and engine coolant and/or other vehicle fluids
can damage the environment. Al-
ways conform to local regulations
for disposal of vehicle fluid.
. Never leave the engine or the CVT
related component harnesses dis-
connected while the ignition switch
is in the ON position.
. Never connect or disconnect the
battery or any transistorized com-
ponent while the ignition switch is
in the ON position.
. Your vehicle is equipped with an
automatic engine cooling fan. It may
come on at any time without warn-
ing, even if the ignition key is in the
OFF position and the engine is not
running. To avoid injury, always
disconnect the negative battery
cable before working near the fan.
This “8. Maintenance and do-it-yourself” section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also
available. (See “Owner’s manual/service manual
order information” (P.9-19) .)
You should be aware that incomplete or
Maintenance and do-it-yourself8-5
MAINTENANCE PRECAUTIONS
Condition:

Black plate (298,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-22Maintenance and do-it-yourself
SDI2705
Extended storage fuse switch (if so
equipped)
GUID-7EE1D234-C9B0-4378-9F56-2EAE0BD5CAB4To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the meter may display
a warning message. See “Extended storage fuse
warning message” (P.2-7).
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C531. To remove the extended storage fuse switch,
be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the storage fuse switch and pull it in the direction illustrated.
GUID-E03C12AE-5204-44DA-8C92-75FB6768F780
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
KEY BATTERY REPLACEMENT
Condition:

Black plate (299,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SDI2134
KEYFOBGUID-E55B4110-E79F-4489-B029-F93761BCDF4CReplace the battery in the keyfob as follows:
1. Remove the screw.
2. Insert a small screwdriver into the slit of thecorner and twist it to separate the upper part
from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR1620 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
4. Close the lid securely and install the screw.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Maintenance and do-it-yourself8-23
Condition:

Black plate (300,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-24Maintenance and do-it-yourself
SDI2451

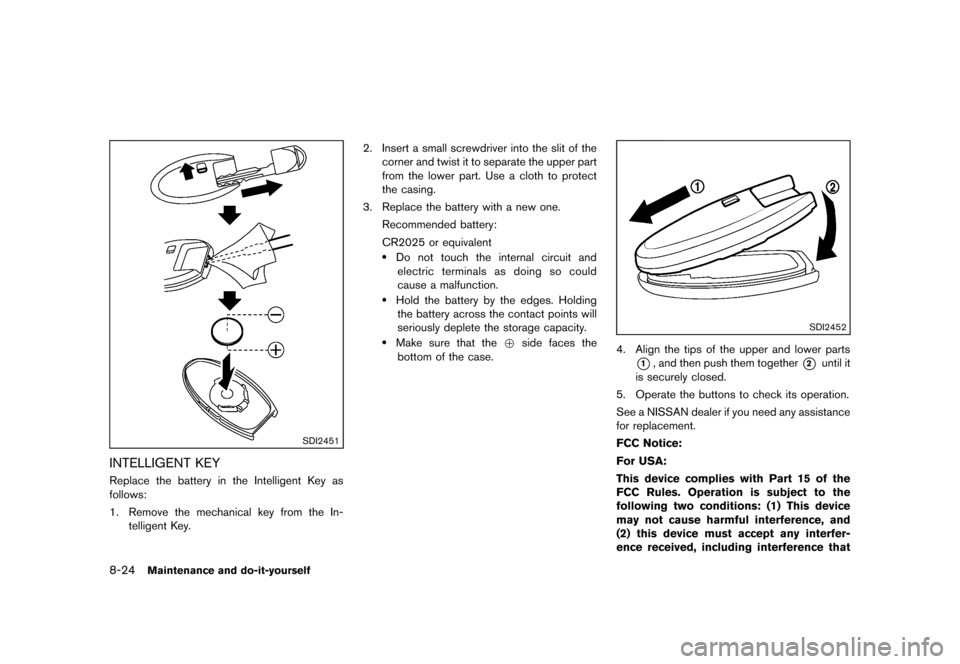

INTELLIGENT KEYGUID-FCDFA8DD-05FA-4AD2-9E13-9978F19EED8DReplace the battery in the Intelligent Key as
follows:
1. Remove the mechanical key from the In-telligent Key. 2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
Condition:

Black plate (337,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-39
Advanced air bag system ...
......................................... 1-41
Air bag system Advanced air bag system ...
.................................. 1-41
Front passenger air bag and status light ...
....... 1-43
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-46
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-46
Air bag warning labels ...
............................................... 1-49
Air bag warning light ...
...................................... 1-49, 2-17
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-13
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Air conditioner operation ...
........................................... 4-15
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-30
Alcohol, drugs and driving ...
.......................................... 5-8
All-wheel drive (AWD) ...
............................................... 5-32
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-39
Anti-lock braking system (ABS) warning light ...
..... 2-13
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-19
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-5
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-35
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
Moonroof ...
................................................................ 2-47
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-11
Avoiding collision and rollover ...
................................... 5-7
B
Back door (See lift gate) ...
.......................................... 3-21
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-24
Battery replacement, Keyfob ...
............................. 8-23
Battery saver system ...
........................................... 2-36
Variable voltage control system ...
........................ 8-14
Before starting the engine ...
........................................ 5-15
Bluetooth
®Hands-Free Phone System ...
................ 4-49
Booster seats ...
............................................................... 1-31
Brake Anti-lock Braking System (ABS) ...
..................... 5-39
Brake and clutch fluid ...
......................................... 8-11
Brake system ...
......................................................... 5-38
Parking brake operation ...
..................................... 5-28
Warning light ...
......................................................... 2-13
Break-in schedule ...
....................................................... 5-30
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-37
Bulb check/instrument panel ...
................................... 2-13
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo cover ...
.................................................................. 2-44
Cargo floor box ...
............................................................ 2-43
Catalytic converter, Three way catalyst ...
................... 5-4
CD/USB memory care and cleaning ...
..................... 4-47
Check tire pressure warning ...
...................................... 2-7
Child restraints ...
............................................................. 1-17
Booster seats ...
........................................................ 1-31
LATCH system ...
...................................................... 1-19
Precautions on child restraints ...
......................... 1-17
Child safety ...
................................................................... 1-15
Child safety rear door lock ...
......................................... 3-7
Chimes, Audible reminders ...
...................................... 2-19
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
.............................................................................. 2-40
Clock (models with navigation system) ...
................... 4-7
Clutch fluid ...
.................................................................... 8-11
Coat hook ...
..................................................................... 2-43
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-42
Compact Disc (CD) player (See
audio system) ...
................................................... 4-34, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:

Black plate (339,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
Glove box...
...................................................................... 2-43
H
Hands-Free Phone System, Bluetooth®...
............... 4-49
Hazard warning flasher switch ...
................................... 6-2
Head restraints ...
.............................................................. 1-4
Headlights Bulb replacement ...
................................................. 8-27
Headlight switch ...
................................................... 2-35
Heated seats ...
................................................................ 2-39
Heater Engine block heater ...
............................................. 5-43
Heater and air conditioner operation ...
.............. 4-13
Hood release ...
................................................................ 3-20
Horn ...
................................................................................ 2-38
How to use the back button ...
...................................... 4-5
How to use the setup button ...
..................................... 4-5
I
Ignition switch
(with Intelligent Key system) ...
............................. 5-12
(without Intelligent Key system) ...
....................... 5-10
Key positions ...
......................................................... 5-12
Immobilizer system ...
...................................................... 2-30
In-cabin microfilter ...
...................................................... 4-19
Indicator lights ...
.............................................................. 2-17
Inside mirror ...
.................................................................. 3-25
Inspection/maintenance (I/M) test ...
.......................... 9-18
Instrument brightness control ...
.................................. 2-37
Instrument panel ...
............................................................ 2-4
Integrated control system ...
............................. 2-21, 5-24
Intelligent Key system ...
................................................ 3-11
Intelligent Key system warning light ...
................ 2-14
Key operating range ...
............................................ 3-13
Key operation ...
........................................................ 3-14 P position selecting warning light
...
.................... 2-16
Remote keyless operation ...
.................................. 3-17
Interior light replacement ...
........................................... 8-28
Interior lights ...
................................................................. 2-49
iPod
®connecting ...
........................................................ 4-36
iPod®player operation ...
............................................... 4-44
ISOFIX child restraint ...
................................................. 1-19
J
Jump starting ...
.................................................................. 6-8
K
Keyless entry
(See remote keyless entry system) ...
.................... 3-7
With Intelligent Key system (See Intelligent
Key system) ...
........................................................... 3-17
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
.................................. 3-11
L
Labels
Air bag warning labels ...
........................................ 1-49
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........... 9-9
Tire and Loading information label ...
....... 8-31, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-19
License plate, Installing front license plate ...
.......... 9-11
Lift gate ...
.......................................................................... 3-21
Light Air bag warning light ...
........................................... 1-49
Bulb replacement ...
................................................. 8-26 Fog light switch
...
.................................................... 2-38
Headlight switch ...
................................................... 2-35
Headlights bulb replacement ...
............................ 8-27
Indicator lights ...
....................................................... 2-17
Interior lights ...
.......................................................... 2-49
Map lights ...
.............................................................. 2-49
Replacement ...
.......................................................... 8-26
Warning/indicator lights and
audible reminders ...
................................................. 2-13
Lights, Exterior and interior light replacement ...
..... 8-28
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-6
Door locks ...
................................................................. 3-4
Lift gate lock ...
.......................................................... 3-21
Power door lock ...
...................................................... 3-4
Loose fuel cap warning ...
.................................... 2-7, 3-23
Low fuel warning light ...
................................................ 2-15
Low tire pressure warning light ...
............................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-4M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-14
Malfunction indicator light (MIL) ...
.............................. 2-18
Manual air conditioner ...
................................................ 4-13
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-49
10-3
Condition:

Black plate (340,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
10-4
Mechanical key (Intelligent Key system)...
................. 3-4
Meter Trip computer ...
........................................................ 2-10
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37
Mirror Inside mirror ...
........................................................... 3-25
Outside mirrors ...
..................................................... 3-25
Vanity mirror ...
........................................................... 3-27
Monitor, Rearview monitor ...
.......................................... 4-8
Moonroof ...
....................................................................... 2-47
N
Navigation setup ...
............................................................ 4-6
New vehicle break-in ...
.................................................. 5-30
NISSAN Vehicle Immobilizer System ...
..................... 2-30
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Outside air temperature display ...
.............................. 2-10
Outside mirrors ...
............................................................ 3-25
Overheat, If your vehicle overheats ...
........................ 6-10
Owner’s Manual/Service Manual
order information ...
......................................................... 9-19
P
Panic alarm ...
.......................................................... 3-9, 3-18
Parking Brake break-in ...
....................................................... 5-38
Parking brake operation ...
..................................... 5-28
Parking on hills ...
..................................................... 5-36
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-49
Car phone or CB radio ...
...................................... 4-49
Power Electric power steering system ...
........................ 5-37
Power door lock ...
...................................................... 3-4
Power outlet ...
.......................................................... 2-41
Power windows ...
.................................................... 2-45
Precautions Audio operation ...
.................................................... 4-20
Braking precautions ...
............................................. 5-38
Child restraints ...
...................................................... 1-17
Cruise control ...
........................................................ 5-29
Driving safety ...
............................................................ 5-8
Maintenance ...
............................................................. 8-5
Seat belt usage ...
....................................................... 1-9
Supplemental restraint system ...
.......................... 1-35
When starting and driving ...
.................................... 5-3
Push starting ...
................................................................ 6-10
Push-button ignition switch ...
.......................... 5-12, 5-13
R
Radio ...
.............................................................................. 4-20
Car phone or CB radio ...
...................................... 4-49
Radio operation ...
.................................................... 4-32
Steering wheel audio controls ...
.......................... 4-47
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-18 Rear door lock, Child safety rear door lock
...
........... 3-7
Rear seats ...
....................................................................... 1-4
Rear window and outside mirror
defroster switch ...
........................................................... 2-34
Rear window wiper and washer switch ...
................ 2-33
Rearview monitor ...
........................................................... 4-8
Recorders, Event data ...
............................................... 9-19
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry function, For Intelligent
Key system ...
.................................................................... 3-17
Remote keyless entry system ...
..................................... 3-7
Reporting safety defects ...
........................................... 9-17
Rollover ...
............................................................................ 5-7
Roof, Moonroof ...
............................................................ 2-48
S
Safety
Child seat belts ...
.................................................... 1-15
Reporting safety defects ...
.................................... 9-17
Satellite radio operation ...
............................................ 4-39
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-15
Infants ...
...................................................................... 1-16
Injured persons ...
..................................................... 1-11
Larger children ...
...................................................... 1-16
Precautions on seat belt usage ...
........................... 1-9
Pregnant women ...
.................................................. 1-11
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-14
Seat belt hooks ...
.................................................... 1-14
Seat belt maintenance ...
........................................ 1-14
Seat belt warning light ...
........................................ 2-16
Seat belts ...
.................................................................. 1-9
Condition:
