2013 NISSAN JUKE key

Black plate (151,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
times of day, while “Automatic” controls the
display automatically.
.Scroll Direction:
The direction that menus scroll can be adjusted.
Choose either “up” or “down”.
SAA3393
Clock:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The
following settings can be adjusted:
. Time Format:
The clock can be set to 12 hours or 24 hours.
. Use GPS Clock:
When this setting is activated, the clock is set
and continually updated via the GPS used by
the Navigation System.
. Set Clock Manually:
When this setting is activated, the clock can be
set manually. Touch the “+” or “−” key to adjust
the hours and minutes up or down. .
Daylight Savings Time:
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time”
key to toggle the setting on or off.
. Time Zone:
Choose the applicable time zone from the list.
Heater, air conditioner, audio and phone systems4-7
Condition:

Black plate (152,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-8Heater, air conditioner, audio and phone systems
SAA3395
Language:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Language” key to adjust the
language used by the system. The language
can be set to English, Franc¸ ais or Espan˜
ol.
Touch click:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
Beep tones:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit (such as the
button) is pressed and held for
two seconds.
Reset all settings/memory:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.
Traffic Info setupGUID-2B2C7F3D-0740-4693-AF6F-14E43A6C1D6BRefer to the separate Navigation System Own-
er’s Manual for information regarding this item.
GUID-E32CDD38-B834-4D2E-9F15-7E5C88FAB9C5When the selector lever or shift lever is shifted
into the R (Reverse) position, the monitor display
shows the view to the rear of the vehicle.
The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
WARNING
. The RearView Monitor is a conve-
nience but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
REARVIEW MONITOR (if so
equipped)
Condition:

Black plate (184,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-40Heater, air conditioner, audio and phone systems
TUNE (Tuning):GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53.For AM and FM radio
Turn the TUNE knob for manual tuning.
. For SiriusXM Satellite Radio
Turn the TUNE knob to seek channels from
all of the categories when any category is
not selected.
SEEK tuning:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53.For AM and FM radio
Push the SEEK/CATEGORY button
or
to tune from low to high or high to low
frequencies and to stop at the next broad-
casting station.
. For SiriusXM Satellite Radio
Push the SEEK/CATEGORY button
or
to tune to the first channel of the next or
previous category.
Tuning with the touch screen (AM and FM
radio):
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When in AM or FM mode, the radio can be
tuned using the touch screen. To bring up the
visual tuner, touch the “Tune” key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that frequency. To return to the regular radio display
screen, touch the “OK” key.
toStation memory operations:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C5312 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK/CATEGORY button or the TUNE
knob.
3. Push and hold the desired station preset button
tountil the beep sound is
heard.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
Channels (SiriusXM Satellite Radio):
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the SiriusXM Satellite Radio is being
played, select “Channels” key to display a list of
channels. Select a preferred channel from the list to change to that channel.
Categories (SiriusXM Satellite Radio):
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the SiriusXM Satellite Radio is being
played, select “Categories” key to display a list
of channels. Select a preferred channel from the
list to display options within that category.
Compact Disc (CD) player operationGUID-E91E4DA0-FB03-4D64-8F6A-1CB5F77E3EF3Place the ignition switch in the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the ON·OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
PLAY:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the CD button is pushed with the system
off and the CD loaded, the system will turn on
and the CD will start to play.
When the CD button is pushed with the CD
loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.
Condition:

Black plate (185,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

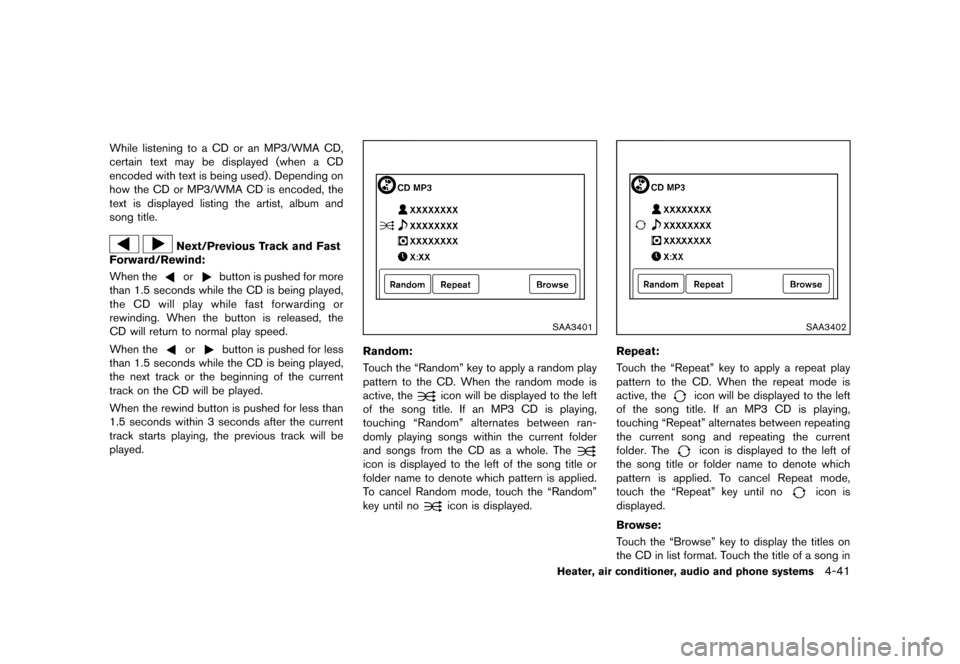

While listening to a CD or an MP3/WMA CD,
certain text may be displayed (when a CD
encoded with text is being used). Depending on
how the CD or MP3/WMA CD is encoded, the
text is displayed listing the artist, album and
song title.
Next/Previous Track and Fast
Forward/Rewind:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.
When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played.
SAA3401
Random:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the “Random” key to apply a random play
pattern to the CD. When the random mode is
active, the
icon will be displayed to the left
of the song title. If an MP3 CD is playing,
touching “Random” alternates between ran-
domly playing songs within the current folder
and songs from the CD as a whole. The
icon is displayed to the left of the song title or
folder name to denote which pattern is applied.
To cancel Random mode, touch the “Random”
key until no
icon is displayed.
SAA3402
Repeat:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the “Repeat” key to apply a repeat play
pattern to the CD. When the repeat mode is
active, the
icon will be displayed to the left
of the song title. If an MP3 CD is playing,
touching “Repeat” alternates between repeating
the current song and repeating the current
folder. The
icon is displayed to the left of
the song title or folder name to denote which
pattern is applied. To cancel Repeat mode,
touch the “Repeat” key until no
icon is
displayed.
Browse:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the “Browse” key to display the titles on
the CD in list format. Touch the title of a song in
Heater, air conditioner, audio and phone systems4-41
Condition:

Black plate (186,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-42Heater, air conditioner, audio and phone systems
the list to begin playing that song. If an MP3 CD
is playing, touching the “Browse” key will also
list the folders on the disc. Follow the procedure
for selecting a song with the touch screen to
choose a folder.
CD EJECT:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
JVH0370X
AUX (Auxiliary) inputGUID-E8B545B9-8E0D-4B73-A348-B43F87C7613C
AUX IN jack:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53The AUX IN jack is located on the lower center
of the instrument panel. The AUX IN audio input
jack accepts any standard analog audio input
such as from a portable cassette tape/CD
player, MP3 player or laptop computer.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
AUX (Auxiliary) button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53To switch to the AUX mode, push the AUX
button when a compatible audio device is
connected into the AUX IN jack.
When the AUX button is pushed with no device
plugged into the jack, the audio system does not
change to the AUX mode.
Condition:

Black plate (188,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-44Heater, air conditioner, audio and phone systems
SAA3491

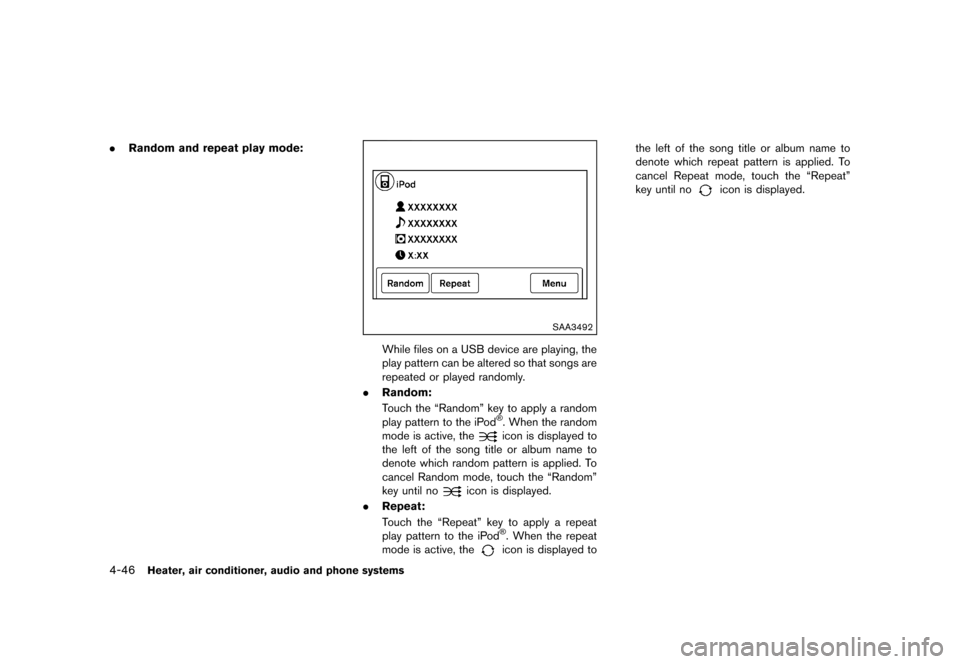

Random and repeat play mode:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53While files on a USB device are playing, the play
pattern can be altered so that songs are
repeated or played randomly.
Random:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the “Random” key to apply a random play
pattern to the USB device. When the random
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which random pattern is applied. To cancel
Random mode, touch the “Random” key until no
icon is displayed. Repeat:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which repeat pattern is applied. To cancel
Repeat mode, touch the “Repeat” key until no
icon is displayed.
SAA3445
iPod®player operationGUID-174C5946-50EE-4D1A-AE09-6155BA8E9CCE
Connecting iPod®:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Connect the iPod®cable to the USB connector.
If the iPod®supports charging via USB, the
battery of the iPod®will be charged while
connected to the vehicle.
Depending on the version of the iPod
®, the
display on the iPod®shows a NISSAN or
Accessory Attached screen when the connec-
tion is completed. When the iPod
®is connected
to the vehicle, the iPod®music library can only
be operated by the vehicle audio controls.
* iPod
®is a trademark of Apple Inc., registered in
the U.S. and other countries.
Condition:

Black plate (190,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-46Heater, air conditioner, audio and phone systems
.Random and repeat play mode:
SAA3492
While files on a USB device are playing, the
play pattern can be altered so that songs are
repeated or played randomly.
. Random:
Touch the “Random” key to apply a random
play pattern to the iPod
®. When the random
mode is active, the
icon is displayed to
the left of the song title or album name to
denote which random pattern is applied. To
cancel Random mode, touch the “Random”
key until no
icon is displayed.
. Repeat:
Touch the “Repeat” key to apply a repeat
play pattern to the iPod
®. When the repeat
mode is active, the
icon is displayed to the left of the song title or album name to
denote which repeat pattern is applied. To
cancel Repeat mode, touch the “Repeat”
key until no
icon is displayed.
Condition:

Black plate (198,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

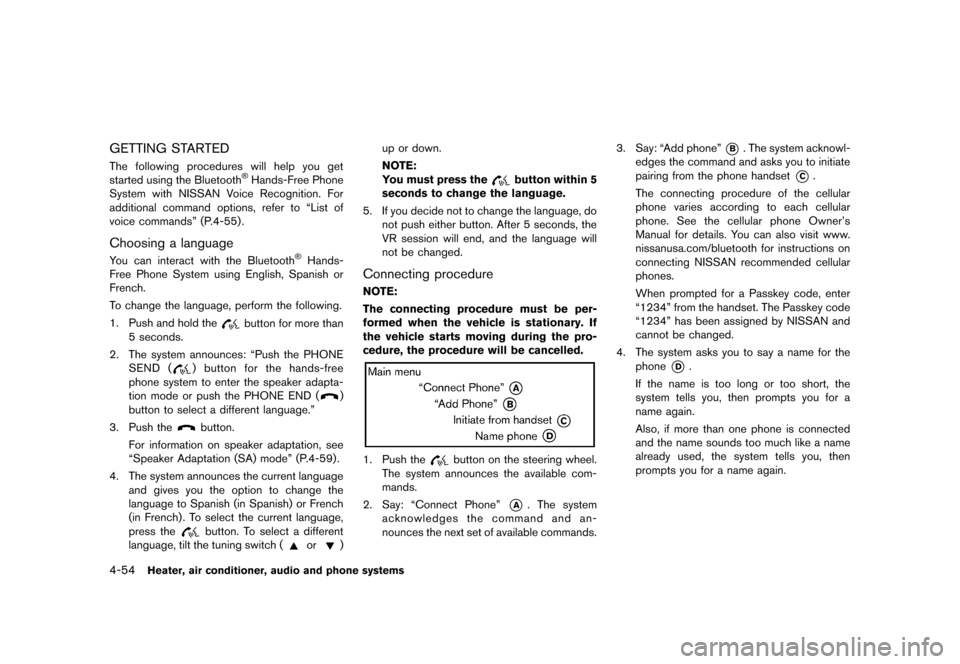

4-54Heater, air conditioner, audio and phone systems
GETTING STARTEDGUID-956E5545-DFA7-4BE5-A8D1-99A610744BD0The following procedures will help you get
started using the Bluetooth®Hands-Free Phone
System with NISSAN Voice Recognition. For
additional command options, refer to “List of
voice commands” (P.4-55) .
Choosing a languageGUID-1D177568-D29C-48B8-B664-DC959EAA9597You can interact with the Bluetooth®Hands-
Free Phone System using English, Spanish or
French.
To change the language, perform the following.
1. Push and hold the
button for more than
5 seconds.
2. The system announces: “Push the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or push the PHONE END (
)
button to select a different language.”
3. Push the
button.
For information on speaker adaptation, see
“Speaker Adaptation (SA) mode” (P.4-59) .
4. The system announces the current language and gives you the option to change the
language to Spanish (in Spanish) or French
(in French) . To select the current language,
press the
button. To select a different
language, tilt the tuning switch (
or) up or down.
NOTE:
You must press the
button within 5
seconds to change the language.
5. If you decide not to change the language, do not push either button. After 5 seconds, the
VR session will end, and the language will
not be changed.
Connecting procedureGUID-3EC7C37F-7297-41AD-88BA-A9F37887255ANOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be cancelled.
NOS2623
1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: “Connect Phone”
*A. The system
acknowledges the command and an-
nounces the next set of available commands. 3. Say: “Add phone”
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
“1234” from the handset. The Passkey code
“1234” has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D.
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then
prompts you for a name again.
Condition:
