2013 NISSAN GT-R display

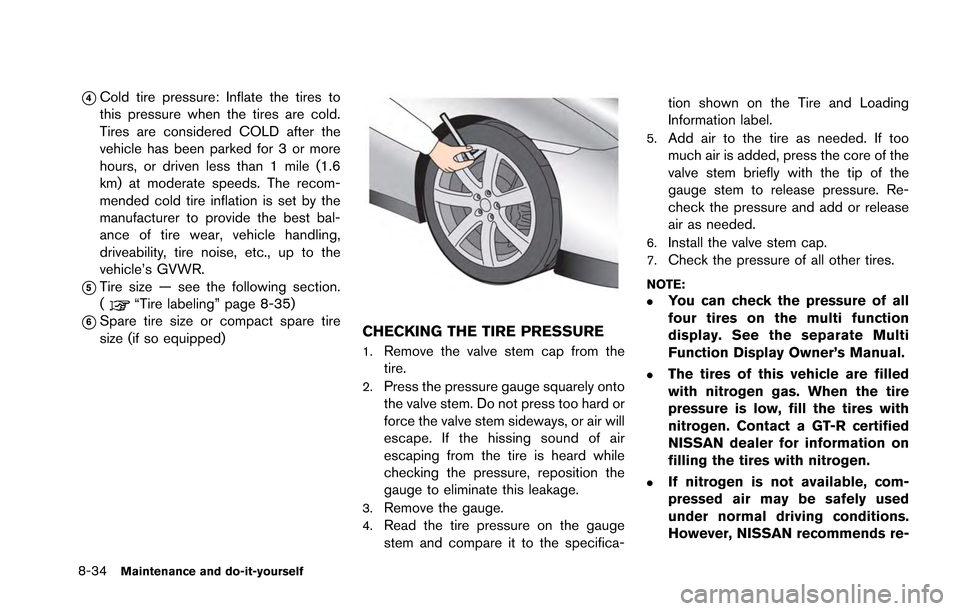

8-34Maintenance and do-it-yourself
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best bal-
ance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size — see the following section.
(
“Tire labeling” page 8-35)
*6Spare tire size or compact spare tire
size (if so equipped)CHECKING THE TIRE PRESSURE
1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely onto
the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires.
NOTE:
.
You can check the pressure of all
four tires on the multi function
display. See the separate Multi
Function Display Owner’s Manual.
.The tires of this vehicle are filled
with nitrogen gas. When the tire
pressure is low, fill the tires with
nitrogen. Contact a GT-R certified
NISSAN dealer for information on
filling the tires with nitrogen.
.If nitrogen is not available, com-
pressed air may be safely used
under normal driving conditions.
However, NISSAN recommends re-

8-38Maintenance and do-it-yourself
ling stability. If necessary, contact a GT-R
certified NISSAN dealer for assistance.
Frequently check the tire pressure information
display on the monitor screen and adjust
pressure of each tire properly. See the separate
Multi Function Display Owner’s Manual.
It can be difficult to tell if a run-flat tire is under-
inflated or flat. Check the tire pressures as
described earlier in this section. If the tire
becomes under-inflated while driving, the low
tire pressure warning light will come on. If the
tire becomes flat while driving, the low tire
pressure warning light and the run-flat tire
warning display will come on.
Low tire pressure:
If the vehicle is being driven with low tire
pressure, the low tire pressure warning light will
illuminate.
Flat tire:
If the vehicle is being driven with one or more flat
tires, the run-flat tire warning display will appear
continuously on the vehicle information display
and a chime will sound for 10 seconds.
The chime will only sound at the first indication
of a flat tire and the run-flat tire warning display
will illuminate continuously. When the flat tire
warning is activated, have the system reset and
the tire checked and replaced if necessary by aGT-R certified NISSAN dealer. Even if the tire is
inflated to the specified COLD tire pressure, the
warning light will continue to illuminate until the
system is reset by a GT-R certified NISSAN
dealer.
If the low tire pressure and the run-flat tire
warning appears on the vehicle information
display:
.
Do not exceed 50 MPH (80 km/h).
. Increase your following distance to allow for
increased stopping distances.
. Avoid sudden maneuvers, hard cornering
and hard braking.
WARNING
.Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tire.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. Drive safely at reduced speeds.
Avoid hard cornering or braking,
which may cause you to lose control
of the vehicle.
NOTICE
.Never install tire chains on a punc-
tured run-flat tire, as this could
damage your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smal-
ler than normal.
. Do not enter an automated car wash
with a punctured run-flat tire.
. Have the punctured tire replaced by
a GT-R certified NISSAN dealer as
soon as possible, as the tire’s
performance capability is reduced.

10-2
Cruise control................................................... 2-15, 5-34
Cruise control operations.......................................... 5-36
Cruise control system warning................................ 2-39
Cup holders.................................................................. 2-55
Current fuel consumption ......................................... 2-15
D
Differential oil............................................................ GTR-4
Dimensions ................................................................... 9-11
Distance to empty....................................................... 2-17
Distortion of rear spoiler...................................... GTR-25
Door pocket.................................................................. 2-57
Door/trunk open warning .......................................... 2-40
Doors................................................................................ 3-4
Draining of coolant water.......................................... 5-51
Drinking alcohol/drugs and driving........................... 5-8
Drive belts..................................................................... 8-19
Drive computer ............................................................ 2-14
DrivingAll-Wheel Drive driving safety precautions ...... 5-9
Cold weather driving........................................... 5-51
Drinking alcohol/drugs and driving..................... 5-8
Driving on snow or ice........................................ 5-52
Driving the vehicle................................................ 5-15
Driving tips............................................................. 5-21
Precautions when starting and driving .............. 5-3
Driving after replacing tires ................................ GTR-12
Dry carbon fiber rear spoiler ..... GTR-7, GTR-27, 7-4
Dual clutch transmission ......................... GTR-28, 5-15
E
Elapsed time and trip odometer.............................. 2-16
Emergency engine shut off.............................. 5-11, 6-2
Emergency trunk lid release..................................... 3-22
Emission control information label.......................... 9-13
Emission control system warranty........................... 9-19
Engine.............................................................................. 9-8 Before starting the engine................................. 5-13
Changing engine coolant................................... 8-12
Changing engine oil and filter........................... 8-13
Checking engine coolant level.......................... 8-11
Checking engine oil level................................... 8-12
Emergency engine shut off....................... 5-11, 6-2
Engine block heater............................................. 5-53
Engine compartment ........................................... 8-23
Engine compartment check locations................ 8-8
Engine coolant temperature gauge .................... 2-7
Engine cooling system........................................ 8-10
Engine oil................................................. GTR-3, 8-12
Engine oil and oil filter recommendation........... 9-6
Engine oil level display........................................ 2-12
Engine oil low pressure warning...................... 2-33
Engine serial number........................................... 9-12
Engine start operation indicator ....................... 2-41
Engine system warning....................................... 2-33
Operating range for engine start ..................... 5-10
Starting the engine .............................................. 5-13
Engine and powertrain....................... GTR-15, GTR-23
Engine oil maintenance.......................................... GTR-3
Engine output......................................................... GTR-24 Engine output according to the
coolant temperature.............................................. GTR-24
Engine settings (balancing right and left
air flow)...................................................................... GTR-8
Engine speed is restricted.................................. GTR-24
Environmental factors influence the rate
of corrosion..................................................................... 7-8
Event Data Recorders................................................ 9-21
Exhaust gas .................................................................... 5-3
Exhaust muffler and trunk carpet ........................ GTR-6
Explanation of maintenance items ............................ 8-4
Extended storage switch........................................... 8-25
Exterior and interior lights ......................................... 8-29
Exterior parts (spoiler, etc.) .................................. GTR-6
F
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-12
Features of each mode.............................................. 5-27
Flat tire............................................................................. 6-2
Flat towing .................................................................... 9-17
Floor mats ....................................................................... 7-6
Fluid
Brake fluid............................................... GTR-4, 8-15
Fluid level check................................................... 8-17
Low brake fluid warning ..................................... 2-35
Low washer fluid warning.................................. 2-40
Power steering fluid............................................. 8-14
Window washer fluid .......................................... 8-16
Fluids...................................................... GTR-14, GTR-19

Forward-facing child restraint installation
using LATCH................................................................ 1-22
Forward-facing child restraint installation using
the seat belts ............................................................... 1-24
Freeing a frozen door lock........................................ 5-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ................................. 1-41
Front seats...................................................................... 1-3
Front/rear tire size discrepancy warning............... 2-37
Fuel........................................................................... GTR-12Average fuel consumption and speed............ 2-16
Capacities and
recommended fuel/lubricants............................... 9-2
Closing the fuel-filler door ................................. 3-25
Current fuel consumption .................................. 2-15
Fuel gauge................................................................ 2-8
Fuel recommendation............................................. 9-4
Fuel-filler door....................................................... 3-23
Increasing fuel economy..................................... 5-40
Low fuel warning.................................................. 2-39
Opening the fuel filler door ............................... 3-24
Fuses.............................................................................. 8-23
G
Gasoline smell ....................................................... GTR-24
Gauge Engine coolant temperature gauge .................... 2-7
Fuel gauge................................................................ 2-8
Meters and gauges................................................. 2-5 General maintenance .......................................... 8-3, 8-4
Glass................................................................................ 7-3
Glove box...................................................................... 2-57
GT-R performance optimization services.......... GTR-7
GT-R special specification parts......................... GTR-3
GT-R specific information ..................................... GTR-3
GT-R specific vehicle characteristics .............. GTR-24
H
Handling of data.......................................................... 9-21
Hazard warning flasher switch................................. 2-52
Head restraints .............................................................. 1-5
Headlight
Headlight and turn signal switch ..................... 2-49
Headlight switch................................................... 2-49
Headlights.............................................................. 8-29
Xenon headlights.................................................. 2-49
Heated seats................................................................ 2-53
High altitude ........................................................... GTR-24
High performance brake system ............................. 8-22
Hill Start Assist............................................................ 5-38
HomeLink
®Universal Transceiver ........................... 2-63
Hood............................................................................... 3-18
Horn................................................................................ 2-53
How to switch the modes ........................................ 5-25
How to use R mode start function......................... 5-33
I
Idle speed is not steady...................................... GTR-24
If your vehicle is stolen.............................................. 2-66 If your vehicle overheats.............................................. 6-7
Ignition switch operation ........................................... 5-10
Ignition switch positions............................................ 5-10
Increase tightening of the drive shaft and
center nut on hub ................................................... GTR-8
Increase tightening of the strut support bar
attachment section with the shock absorber.... GTR-9
Increasing fuel economy............................................ 5-40
Indicator lights.............................................................. 2-61
Indicators and display................................................ 5-36
Infants............................................................................. 1-13
Injured persons.............................................................. 1-8
Inside mirror.................................................................. 3-27
Inspection and adjustments after driving........ GTR-19
Inspection and adjustments before driving .... GTR-14
Installing front license plate...................................... 9-14
Installing top tether strap .......................................... 1-27
Instrument brightness control .................................. 2-11
Instrument panel............................................................ 2-4
Intelligent Key................................................................. 3-2
Intelligent Key battery discharge............................. 5-11
Intelligent Key battery discharge indicator............ 2-43
Intelligent Key battery replacement ........................ 8-26
Intelligent Key functions............................................... 3-9
Intelligent Key insertion indicator ............................ 2-43
Intelligent Key removal indicator.............................. 2-43
Intelligent Key system .................................................. 3-8
Interior light control switch ....................................... 2-62
Interior lights................................................................. 2-61
10-3

10-4
J
Jacking vehicle and removing wheels.................... 8-42
Jump starting....................................................... 6-4, 8-18
K
KeyIntelligent Key........................................................... 3-2
Intelligent Key battery discharge...................... 5-11
Intelligent Key battery discharge indicator..... 2-43
Intelligent Key battery replacement ................. 8-26
Intelligent Key functions......................................... 3-9
Intelligent Key insertion indicator ..................... 2-43
Intelligent Key removal indicator....................... 2-43
Intelligent Key system ............................................ 3-8
Keys............................................................................ 3-2
Locking with mechanical key................................ 3-6
No key warning..................................................... 2-40
Remote keyless entry functions........................ 3-12
L
Larger children............................................................. 1-13
LightAWD warning light .............................................. 5-41
Exterior and interior lights .................................. 8-29
Headlight and turn signal switch ..................... 2-49
Headlight switch................................................... 2-49
Headlights.............................................................. 8-29
Indicator lights....................................................... 2-61
Interior light control switch ................................ 2-62 Interior lights.......................................................... 2-61
Lights....................................................................... 8-28
Map lights .............................................................. 2-61
Supplemental air bag warning light................. 1-44
Vanity mirror lights ............................................... 2-63
Warning lights....................................................... 2-24
Warning/indicator lights and
audible reminders................................................. 2-24
Xenon headlights.................................................. 2-49
Limited Slip Differential.............................................. 5-44
Loading tips.................................................................. 9-16
Lock Anti-lock Braking System................................... 5-48
Anti-lock Braking System warning................... 2-36
Automatic door lock system................................. 3-5
Freeing a frozen door lock................................. 5-51
Locking with inside lock knob ............................. 3-5
Locking with mechanical key................................ 3-6
Locking with power door lock switch................ 3-5
Steering lock release malfunction indicator.... 2-42
Low brake fluid warning ............................................ 2-35
Low fuel warning......................................................... 2-39
Low tire pressure warning ........................................ 2-38
Low washer fluid warning......................................... 2-40
Lower anchors and tethers for children system.... 1-16
M
Maintenance Explanation of maintenance items ...................... 8-4
General maintenance .................................... 8-3, 8-4 Maintenance information ................................. GTR-3
Maintenance precautions...................................... 8-6
Maintenance requirement...................................... 8-3
Readiness for
Inspection/Maintenance test ............................. 9-20
Scheduled maintenance........................................ 8-3
Seat belt maintenance........................................ 1-12
Map lights ..................................................................... 2-61
Measurement of weights........................................... 9-16
Meters and gauges....................................................... 2-5
Mirror Inside mirror........................................................... 3-27
Mirrors..................................................................... 3-27
Outside mirrors..................................................... 3-28
Vanity mirror........................................................... 3-29
Vanity mirror lights ............................................... 2-63
Most common factors contributing to
vehicle corrosion ........................................................... 7-8
Multi function display Owner’s Manual ................... 4-2
N
NISSAN Advanced Air Bag System ...................... 1-37
NISSAN Vehicle Immobilizer System..................... 2-45
No key warning............................................................ 2-40
Noises are heard while driving .......................... GTR-25
O
Odometer/twin trip odometer .................................... 2-6
Off-road recovery.......................................................... 5-7

OilChanging engine oil and filter........................... 8-13
Checking engine oil level................................... 8-12
Differential oil...................................................... GTR-4
Engine oil................................................. GTR-3, 8-12
Engine oil and oil filter recommendation........... 9-6
Engine oil level display........................................ 2-12
Engine oil low pressure warning...................... 2-33
Transmission oil ..................................... GTR-4, 8-14
Transmission oil high temperature warning.... 2-34
Opening and closing the trunk................................ 3-21
Opening the doors ....................................................... 3-7
Opening the fuel filler door ...................................... 3-24
Opening the hood....................................................... 3-18
Operating range for engine start ............................ 5-10
Operating the HomeLink
®
universal transceiver ................................................... 2-65
Operation displays...................................................... 2-41
Outside air temperature ............................................ 2-17
Outside door handles .................................................. 7-4
Outside mirrors............................................................ 3-28
Outside temperature display indicates
higher temperature................................................ GTR-24
Overheat If your vehicle overheats........................................ 6-7
Owner’s Manual/Service Manual
order information ......................................................... 9-22
P
Parking Parking brake ........................................................ 5-33
Parking brake break-in........................................ 5-47
Parking brake release warning ......................... 2-35
Parking/parking on hills ...................................... 5-45
Passenger compartment ........................................... 8-24
Power
Locking with power door lock switch................ 3-5
Power outlets ........................................................ 2-54
Power steering...................................................... 5-46
Power steering fluid............................................. 8-14
Power windows .................................................... 2-59
Trunk release power cancel switch................. 3-21
Precautions................................................................... 8-17 All-Wheel Drive driving safety precautions ...... 5-9
Braking precautions............................................. 5-47
Maintenance precautions...................................... 8-6
Precautions on child restraints......................... 1-14
Precautions on cruise control........................... 5-35
Precautions on seat belt usage........................... 1-6
Precautions on supplemental
restraint system..................................................... 1-31
Precautions when starting and driving .............. 5-3
Precautions before driving.................................. GTR-10
Precautions on performance driving ................ GTR-13
Pregnant women ........................................................... 1-8
Programming HomeLink
®.......................................... 2-64
Programming HomeLink®for
Canadian customers .................................................. 2-65 Programming trouble-diagnosis .............................. 2-65
Push starting .................................................................. 6-7
“PUSH” warning.......................................................... 2-42
Push-button ignition switch........................................ 5-9
R
R mode start function ................................................ 5-32
Rapid air pressure loss................................................ 5-8
Readiness for Inspection/Maintenance test......... 9-20
Rear window defroster switch................................. 2-48
Rear-facing child restraint installation
using LATCH................................................................ 1-18
Rear-facing child restraint installation using the
seat belts....................................................................... 1-20
Recommended fluids and
maintenance interval............................................. GTR-20
Reducing tight corner braking phenomenon ....... 5-42
Refueling precautions .......................................... GTR-24
Remote keyless entry functions............................... 3-12
Removing spots............................................................. 7-3
Removing the cowl top cover.................................... 8-9
Repair and replacement procedure........................ 1-44
Replacement of brake pads and disc rotors.... GTR-5
Replacing spark plugs ............................................... 8-20
Replacing the brake pads......................................... 8-23
Replacing the wiper blades...................................... 8-21
Reporting safety defects .......................................... 9-19
Reprogramming a single HomeLink
®button ....... 2-66
Roadside assistance program ................................... 6-2
Run-flat tire warning................................................... 2-38
10-5

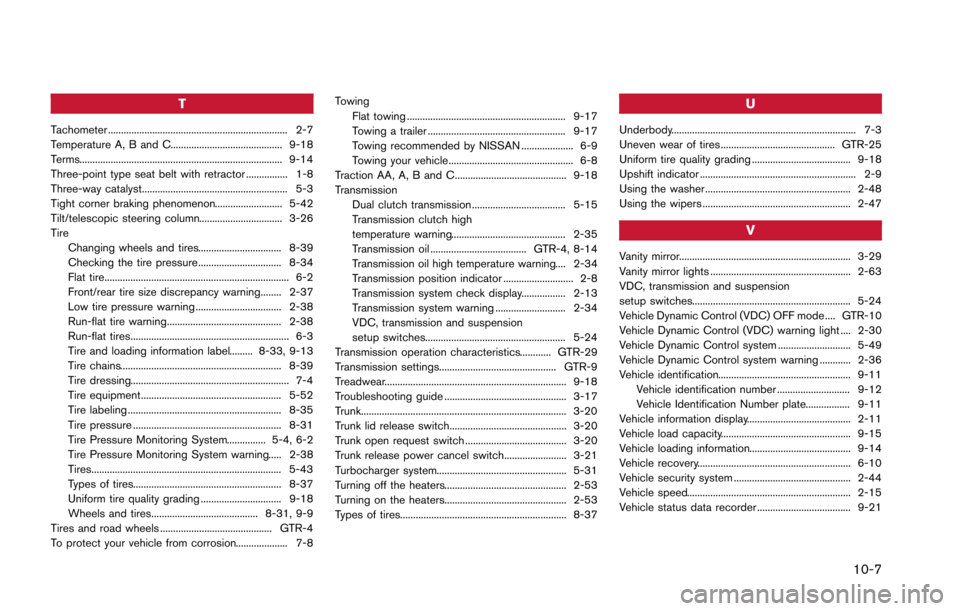

T
Tachometer ..................................................................... 2-7
Temperature A, B and C........................................... 9-18
Terms.............................................................................. 9-14
Three-point type seat belt with retractor ................ 1-8
Three-way catalyst........................................................ 5-3
Tight corner braking phenomenon.......................... 5-42
Tilt/telescopic steering column................................ 3-26
TireChanging wheels and tires................................ 8-39
Checking the tire pressure................................ 8-34
Flat tire....................................................................... 6-2
Front/rear tire size discrepancy warning........ 2-37
Low tire pressure warning ................................. 2-38
Run-flat tire warning............................................ 2-38
Run-flat tires............................................................. 6-3
Tire and loading information label......... 8-33, 9-13
Tire chains.............................................................. 8-39
Tire dressing............................................................. 7-4
Tire equipment...................................................... 5-52
Tire labeling ........................................................... 8-35
Tire pressure ......................................................... 8-31
Tire Pressure Monitoring System............... 5-4, 6-2
Tire Pressure Monitoring System warning..... 2-38
Tires......................................................................... 5-43
Types of tires......................................................... 8-37
Uniform tire quality grading ............................... 9-18
Wheels and tires......................................... 8-31, 9-9
Tires and road wheels ........................................... GTR-4
To protect your vehicle from corrosion.................... 7-8 Towing
Flat towing ............................................................. 9-17
Towing a trailer ..................................................... 9-17
Towing recommended by NISSAN .................... 6-9
Towing your vehicle................................................ 6-8
Traction AA, A, B and C........................................... 9-18
Transmission
Dual clutch transmission .................................... 5-15
Transmission clutch high
temperature warning............................................ 2-35
Transmission oil ..................................... GTR-4, 8-14
Transmission oil high temperature warning.... 2-34
Transmission position indicator ........................... 2-8
Transmission system check display................. 2-13
Transmission system warning ........................... 2-34
VDC, transmission and suspension
setup switches...................................................... 5-24
Transmission operation characteristics............ GTR-29
Transmission settings............................................. GTR-9
Treadwear...................................................................... 9-18
Troubleshooting guide ............................................... 3-17
Trunk............................................................................... 3-20
Trunk lid release switch............................................. 3-20
Trunk open request switch ....................................... 3-20
Trunk release power cancel switch........................ 3-21
Turbocharger system.................................................. 5-31
Turning off the heaters............................................... 2-53
Turning on the heaters............................................... 2-53
Types of tires................................................................ 8-37
U
Underbody....................................................................... 7-3
Uneven wear of tires ............................................ GTR-25
Uniform tire quality grading ...................................... 9-18
Upshift indicator ............................................................ 2-9
Using the washer ........................................................ 2-48
Using the wipers ......................................................... 2-47
V
Vanity mirror.................................................................. 3-29
Vanity mirror lights ...................................................... 2-63
VDC, transmission and suspension
setup switches............................................................. 5-24
Vehicle Dynamic Control (VDC) OFF mode .... GTR-10
Vehicle Dynamic Control (VDC) warning light .... 2-30
Vehicle Dynamic Control system ............................ 5-49
Vehicle Dynamic Control system warning ............ 2-36
Vehicle identification................................................... 9-11 Vehicle identification number ............................ 9-12
Vehicle Identification Number plate................. 9-11
Vehicle information display........................................ 2-11
Vehicle load capacity.................................................. 9-15
Vehicle loading information....................................... 9-14
Vehicle recovery........................................................... 6-10
Vehicle security system ............................................. 2-44
Vehicle speed............................................................... 2-15
Vehicle status data recorder .................................... 9-21
10-7

10-8
W
WarningAnti-lock Braking System warning................... 2-36
AWD clutch high temperature warning.......... 2-36
AWD system warning ......................................... 2-37
AWD warning light .............................................. 5-41
Brake pad wear warning.................................... 8-22
Cruise control system warning......................... 2-39
Door/trunk open warning ................................... 2-40
Engine oil low pressure warning...................... 2-33
Engine system warning....................................... 2-33
Front/rear tire size discrepancy warning........ 2-37
Hazard warning flasher switch.......................... 2-52
Low brake fluid warning ..................................... 2-35
Low fuel warning.................................................. 2-39
Low tire pressure warning ................................. 2-38
Low washer fluid warning.................................. 2-40
No key warning..................................................... 2-40
Parking brake release warning ......................... 2-35
“PUSH” warning................................................... 2-42
Run-flat tire warning............................................ 2-38
Shift lever position warning............................... 2-34
Shift “P” warning.................................................. 2-42
Supplemental air bag warning labels.............. 1-43
Supplemental air bag warning light................. 1-44
Tire Pressure Monitoring System warning..... 2-38
Transmission clutch high
temperature warning............................................ 2-35
Transmission oil high temperature warning.... 2-34
Transmission system warning ........................... 2-34 Vehicle Dynamic Control system warning ..... 2-36
Warning (drive computer).................................. 2-23
Warning display.................................................... 2-32
Warning lights....................................................... 2-24
Warning signals.................................................... 3-16
Warning/indicator lights and
audible reminders................................................. 2-24
Warranty information .............................................. GTR-3
Washing........................................................................... 7-2
Waxing............................................................................. 7-3
Wheel alignment ....................................... GTR-10, 5-39
Wheel alignment inspection and adjustment
(if necessary) (including tire
pressure adjustment) ............................................. GTR-8
Wheels............................................................................. 7-3
Wheels and tires............ GTR-16, GTR-23, 8-31, 9-9
When traveling or registering your vehicle in
another country............................................................ 9-11
Where to go for service.............................................. 8-3
Window washer fluid ................................................. 8-16
Windows ....................................................................... 2-59
Windshield wiper and washer switch.................... 2-46
Windshield wiper blades........................................... 8-21
Wiper Replacing the wiper blades............................... 8-21
Using the wipers .................................................. 2-47
Windshield wiper and washer switch............. 2-46
Windshield wiper blades.................................... 8-21
X
Xenon headlights......................................................... 2-49
