HeaDLIGHT CONTrOL SwITCH
HEADLIGHT
cONTR
OL
Turn the headlight control switch to the
position
01 to turn on the front parking, side marker, tail, license plate and instrument panel lights. Turn the switc
h to the
position
02 to turn on the headlights.
A UTOLIGHT SYSTEM (if so equipped)
The autolight system will automatically turn the headlights on when it is\
dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.
To activate the autolight system, turn the headlight control switch to the auTO position
03
th
en push the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the
OFF,
01 or
position
02 .
HIGH BEAM SELE
cT
Push the headlight control switch forward
04 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull the
headlight switch back to the original position to select
the low beam. The blue indicator light goes off.
Pull and release the headlight control switch 05 to flash the headlight high beams on and off.
7
MaNuaL TraNSMISSION (if so equipped)
Depress the brake pedal.
Move the shift lever to the N (Neutral) position .
Depress the clutch pedal to the floor.
Turn the ignition switch to start the engine.
T
URNING THE ENGINE OFF
Apply the foot brake and place the vehicle in first gear,
then apply the parking brake and turn the ignition
switch to
OFF.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
03
01
02
04
05
1221378_13a_Cube_QRG_092112.indd 1110/2/12 9:26 AM
first drive features
8

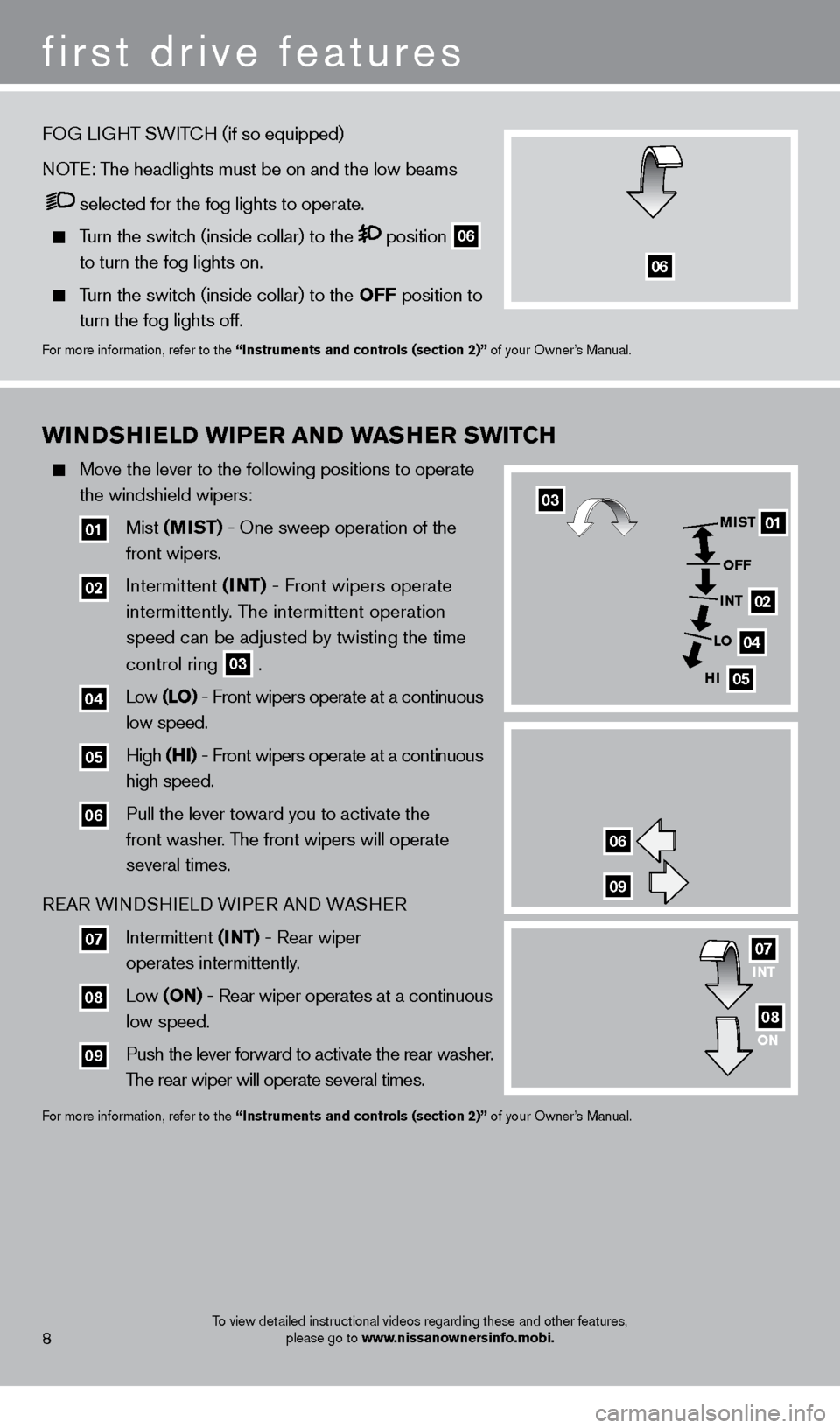

wINDSHIeLD wIPe r aN D w aS Her SwIT CH
Move the lever to the following positions to operate
the windshield wipers:
01 Mist (MIST) - One sweep operation of the
front
wipers.
02 Intermittent (INT) - Front wipers operate
intermittently. T
he intermittent operation
speed can be adjusted by twisting the time
control
ring
03 .
04 Low (LO) - Front wipers operate at a continuous
low
speed.
05 High (HI) - Front wipers operate at a continuous
high
speed.
06 Pull the lever toward you to activate the
front washer. T
he front wipers will operate
several
times.
REAR WINDSHIELD WIPER AND WASHER
07 Intermittent (INT) - Rear wiper
operates
intermittently.
08 Low (ON) - Rear wiper operates at a continuous
low
speed.
09 Push the lever forward to activate the rear washer.
The rear wiper will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
04
05
MIST
OFF
INT
INT
LO
ON
HI
06
09
07
08
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
FOG LIGHT SWITcH (if so equipped)
NO TE: The headlights must be on and the low beams
selected for the fog lights to operate.
Turn the switch (inside collar) to the position
06
to turn the fog lights on.
Turn the switch (inside collar) to the
OFF position to
turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
06
03
