2013 NISSAN ARMADA Quick Reference Guide

Quick RefeRence Guide
2 013
ARMAdA

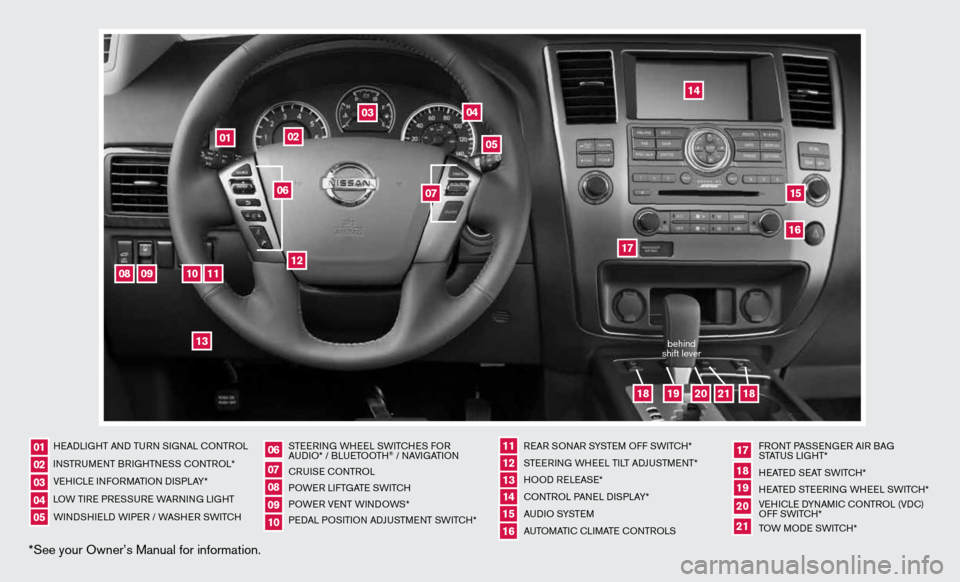

*See your Owner’s Manual for information.
HeAd LiGHT And Tu Rn S iG nAL c OnTROL
in STR uM enT BR iGHTne SS cOnTROL*
Ve Hic Le infORMATi On di SPLAY*
LOW T iRe PRe SSuRe WARnin G LiGHT
W ind SHieL d W iPeR / WASHeR SW iT c H STee
Rin G WH eeL SW iTc HeS fOR
A udi O* / BLueTOOTH
® / nAVi GATiOn
cR uiSe cOn TROL
POW eR LifTGATe SW iTc H
POW eR VenT W indOWS*
P ed AL POS iTiOn Ad Ju STM enT SW iTc H* R
eAR SO nAR SYSTe M Off SW iTc H*
ST eeRin G WHeeL T iLT AdJu STMen T*
HOO d ReLeAS e*
cOn TROL PA neL diSPLAY*
A u d i O SYST eM
A uTOMATic c LiMATe c OnTROLS f
RO nT PASS enGeR Ai R BAG
STATu S LiGHT*
H eATed S eAT SWiTc H*
H eATed STee Rin G WH eeL SW iTc H*
Ve Hic Le d YnAM ic cOnTROL (Vdc)
Off SWi TcH*
TOW MOde SWiTcH*
0102030405
0607080910
11 12131415
17
16
18192021
01
02
04
03
05
08
09
10
11
12
13
14
1516
17
19
21
18
18
20
06
07
behind
shift lever

TABLe Of cOnTenTS
Ess Ential i nformation
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
first DrivE fEatur Es
ni SSAn intelligent k ey
® System (if so equipped) ....................3
Power Liftgate Release (if so equipped) ............................3
Power front Seat Adjustments (if so equipped) ......................4
2nd Row Seat Adjustments (if so equipped) ........................ 4
3rd Row Power f olding Seats (if so equipped) ...................... 5
Automatic drive Positioner (if so equipped) ......................... 5

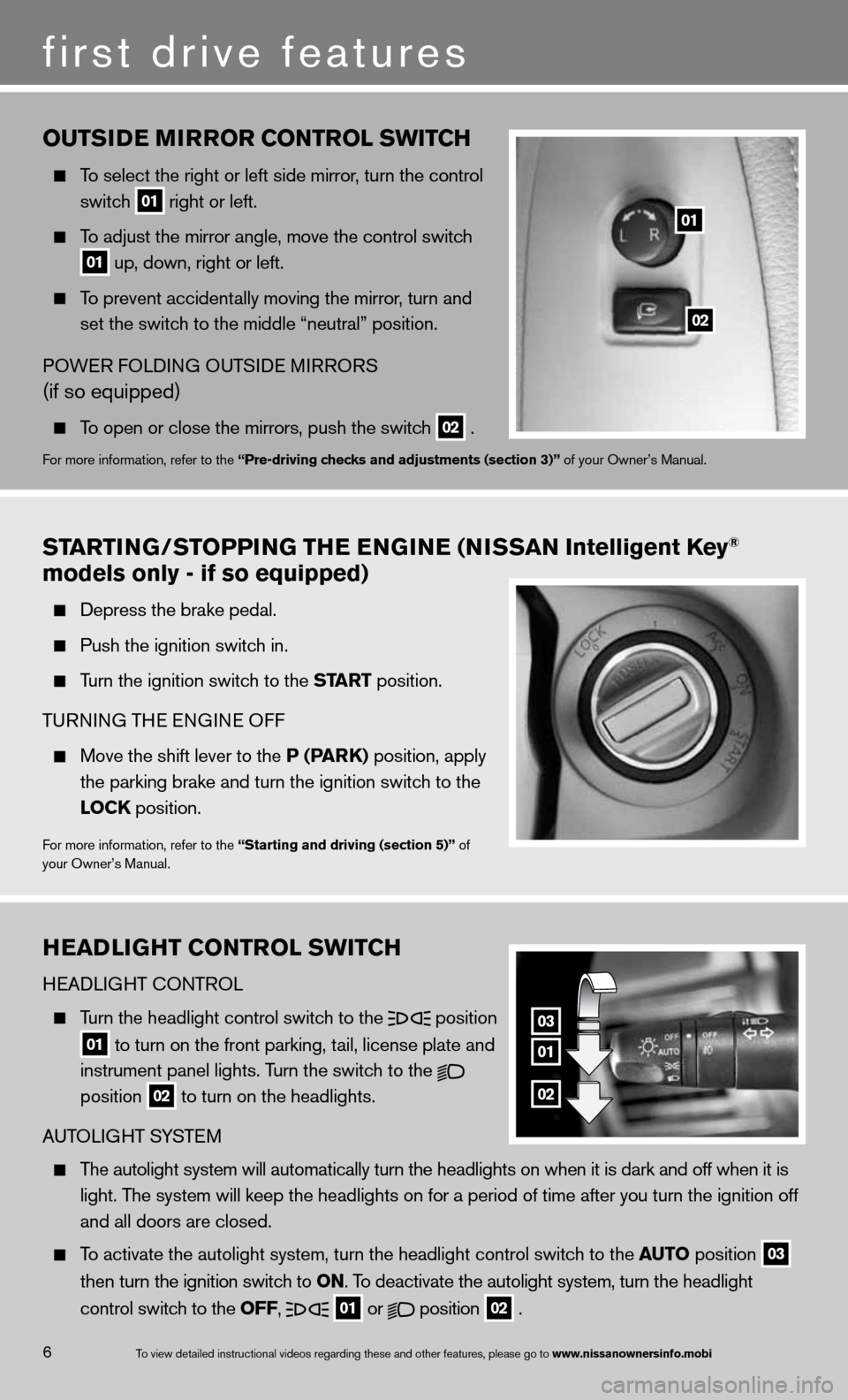

Outside Mirror control Switch .................................... 6
Starting/Stopping the engine (ni SSAn intelligent key
® models only -
if so equipped) ................................................. 6
Headlight control Switch ........................................ 6
Windshield Wiper/Washer Switch ................................. 7

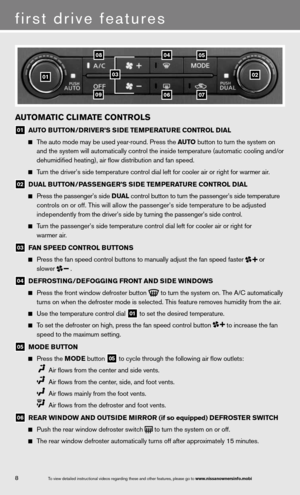

Automatic climate controls ...................................... 8

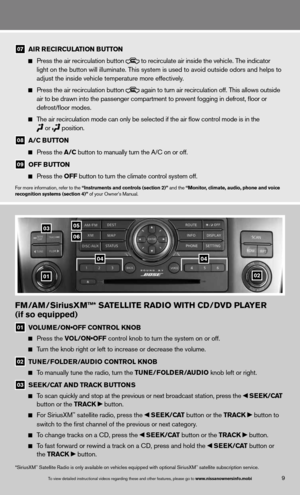

f M/AM/SiriusXM
™ Satellite Radio with cd/ dVd Player (if so equipped) ....9
u SB/iPod® interface ........................................... 10

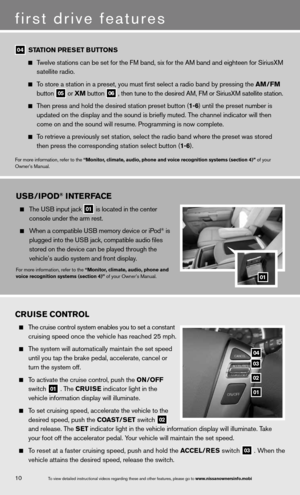

cruise control ................................................ 10

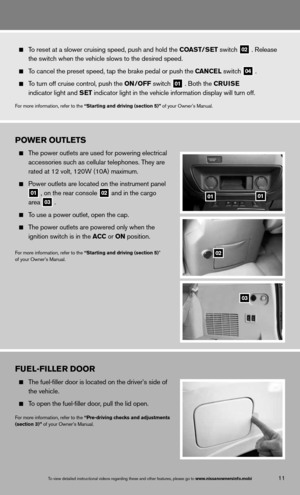

Power Outlets ................................................ 11
fuel-filler door ............................................... 11
s yst Em GuiDE

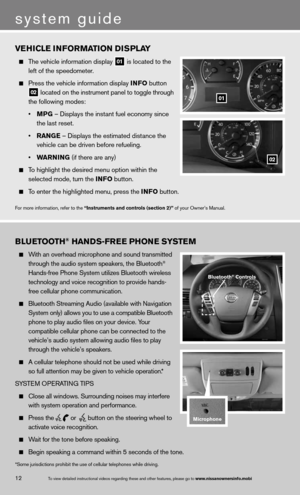

Vehicle information display ...................................... 12
Bluetooth
® Hands-free Phone System ............................. 12
System Operating Tips ....................................... 12

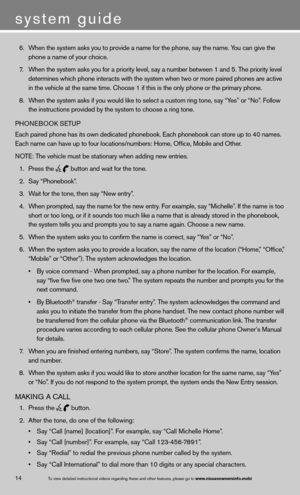

Bluetooth

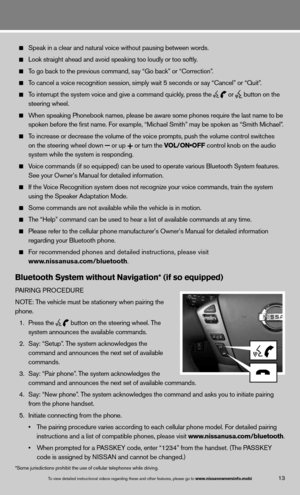

® System without navigation (if so equipped) ............ 13

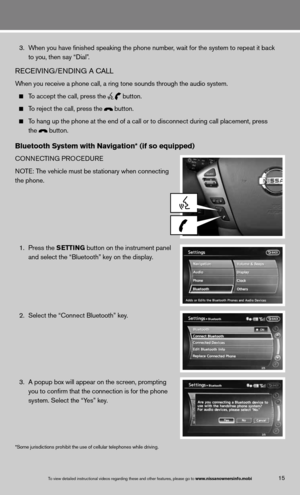

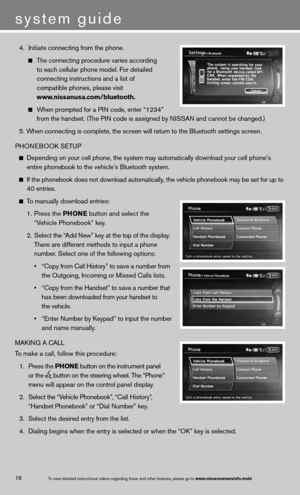

Bluetooth® System with navigation (if so equipped) ...............15
navigation System (if so equipped) ...............................17

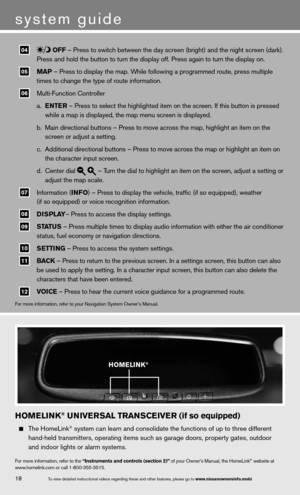

HomeLink
® universal Transceiver (if so equipped) ...................18
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)”, “monitor, climate, audio,
phone and voice recognition systems (section 4)” and the “starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/armada or snap this barcode with an appropriate barcode reader.

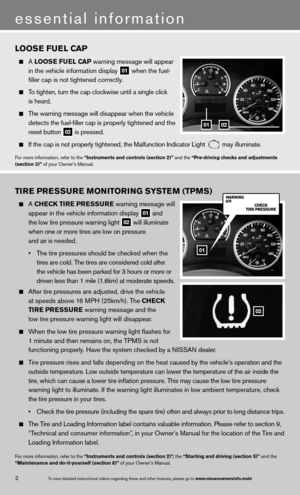

tirE Pr Essur E monitorin G systEm (tPms)
A ChEC k tirE PrEssurE warning message will

appear in the vehicle information display
01 and
the low tire pressure warning light 02 will illuminate
when one or more tires are low on pressure
and air is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mile (1.6km) at moderate speeds.

After tire pressures are adjusted, drive the vehicle
at speeds above 16 MPH (25km/h). The Ch ECk
tirE P rEssurE warning message and the
low tire pressure warning light will disappear.

When the low tire pressure warning light flashes for
1 minute and then remains on, the TPMS is not
functioning properly. Have the system checked by a ni SSAn dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. if the warning light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior to long distance trips.

The Tire and Loading information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading information label.
for more information, refer to the “instruments and controls (section 2)”, the “starting and driving (section 5)” and the
“maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
loos E fuEl C aP
A loos E fuEl CaP warning message will appear
in the vehicle information display

01 when the fuel-
filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed.


if the cap is not properly tightened, the Malfunction indicator Light may illuminate.
f
or more information, refer to the “instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
2
essential information
0102
02
01
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi

3
01
first drive features

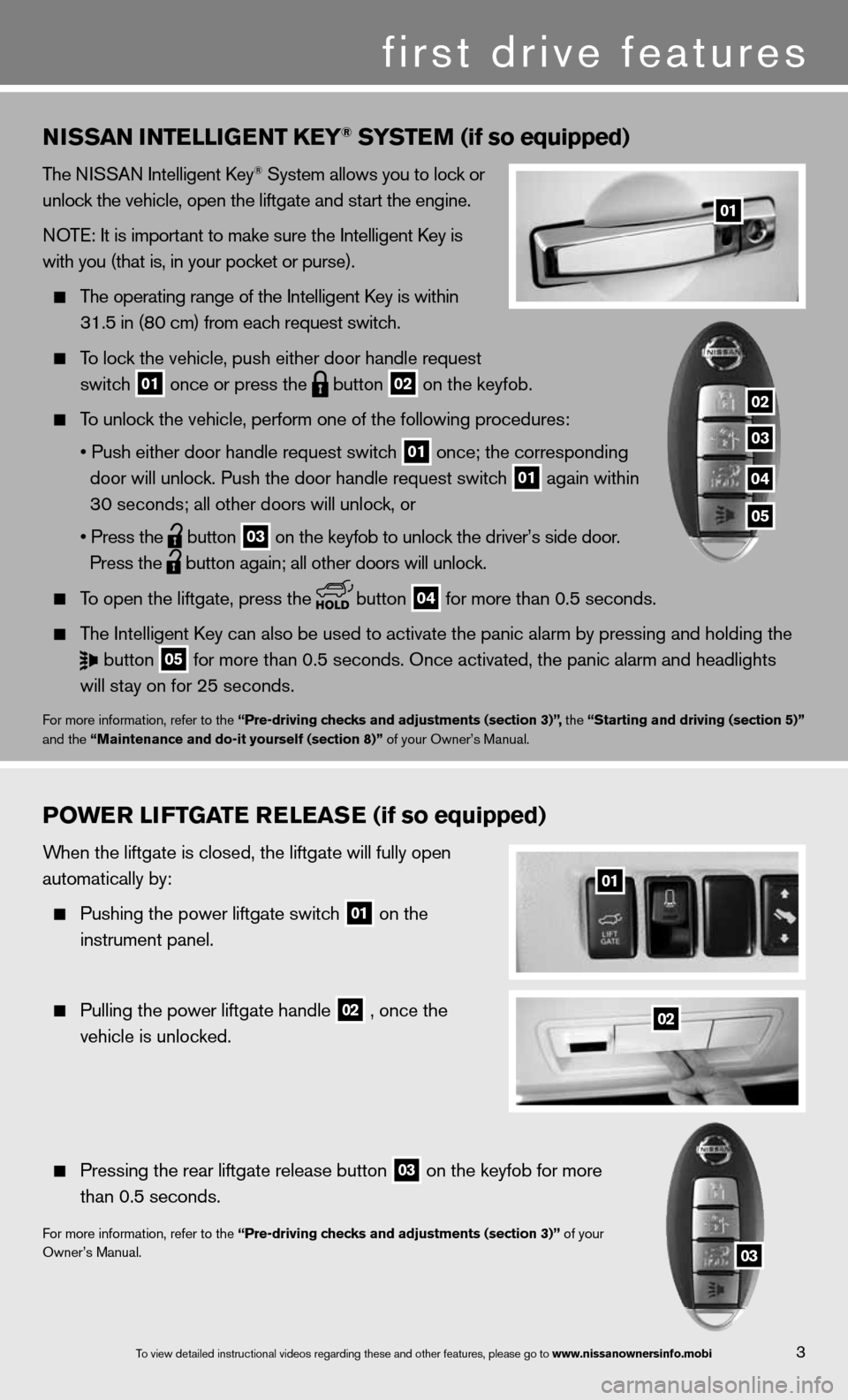

nissan intElliGE nt k Ey® systE m (if so equipped)
The niSSAn intelligent k ey® System allows you to lock or
unlock the vehicle, open the liftgate and start the engine.
n OTe: it is important to make sure the intelligent k ey is
with you (that is, in your pocket or purse).

The operating range of the intelligent k ey is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle request
switch

01 once or press the
button
02 on the keyfob.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch

01 once;
the corresponding
door will unlock. Push the door handle request switch
01 again within
30 seconds; all other doors will unlock, or
• Press the

button
03 on the keyfob to unlock the driver’s side door.
Press the
button again; all other doors will unlock.

To open the liftgate, press the
button
04 for more than 0.5 seconds.

The intelligent k ey can also be used to activate the panic alarm by pressing and holding \
the


button
05 for more than 0.5 seconds. Once activated, the panic alarm and headlight\
s

will stay on for 25 seconds.
for more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “starting and driving (section 5)”
and the “maintenance and do-it yourself (section 8)” of your Owner’s Manual.
P o WE r li ft Gat E rElE as E (if so equipped)
When the liftgate is closed, the liftgate will fully open
automatically by:

Pushing the power liftgate switch
01 on the
instrument panel.

Pulling the power liftgate handle
02 , once the
vehicle is unlocked.

Pressing the rear liftgate release button
03 on the keyfob for more
than 0.5 seconds.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
02
01
03
02
03
04
05
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi

4
first drive features

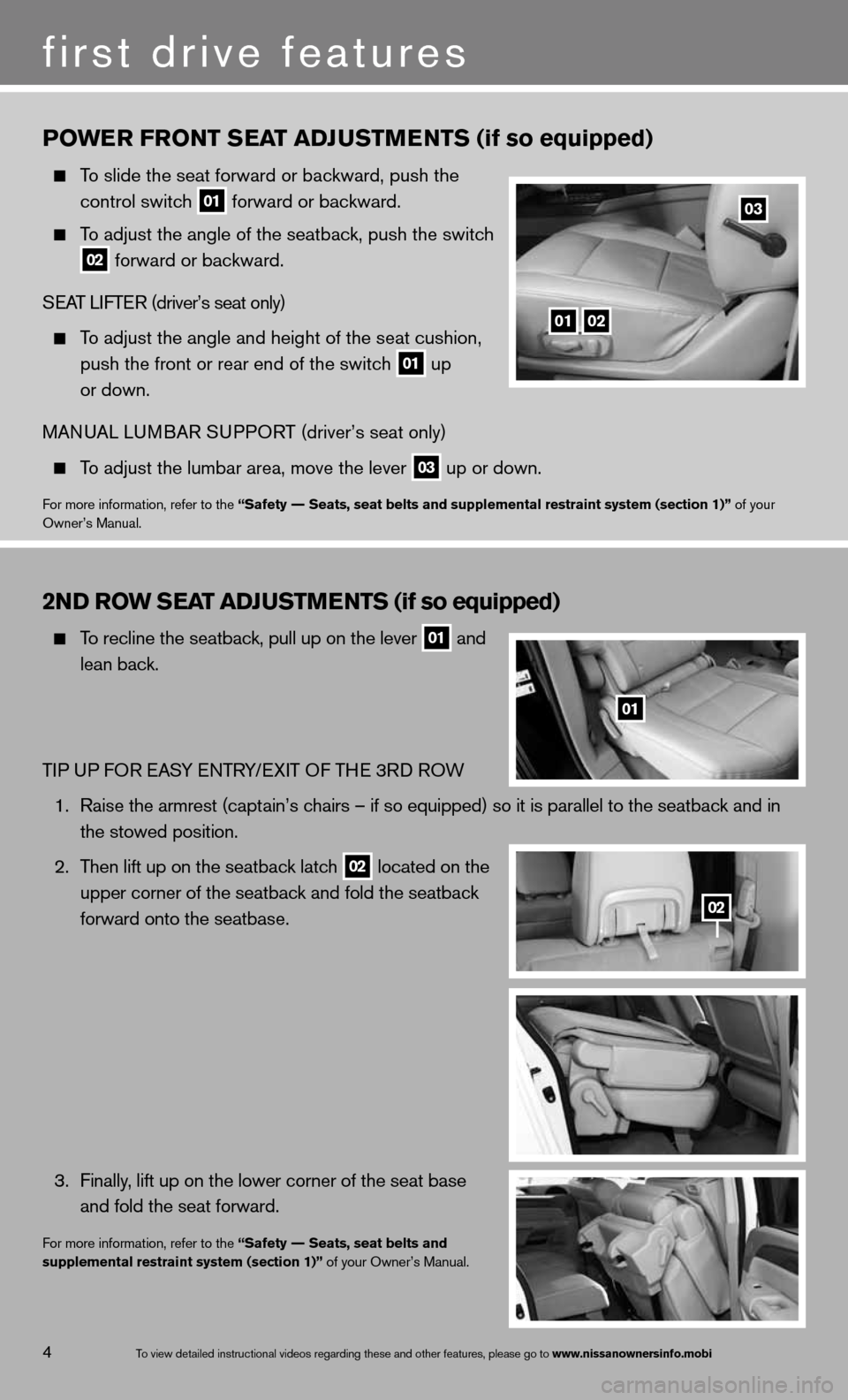

Po WE r front s Eat aDJustmEnts (if so equipped)
To slide the seat forward or backward, push the
control switch

01 forward or backward.

To adjust the angle of the seatback, push the switch


02 forward or backward.
SeAT LifTe R (driver’s seat only)

To adjust the angle and height of the seat cushion,
push the front or rear end of the switch

01 up
or down.
MAnu AL LuMBAR S uPPORT (driver’s seat only)

To adjust the lumbar area, move the lever
03 up or down.
f
or more information, refer to the “safety –– seats, seat belts and supplemental restraint system (section 1)” of your
Owner’s Manual.
0102
03
2n D ro W sEat aDJ ustmEnts (if so equipped)
To recline the seatback, pull up on the lever
01 and
lean back.
Ti P u P fOR eASY enTRY/ eX iT O f TH e 3R d ROW
1. Raise the armrest (captain’s chairs – if so equipped) so it is parallel to the seatback and in
the stowed position.
2. Then lift up on the seatback latch

02 located on the

upper corner of the seatback and fold the seatback
forward onto the seatbase.
3. finally, lift up on the lower corner of the seat base
and fold the seat forward.
for more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
01
02

5

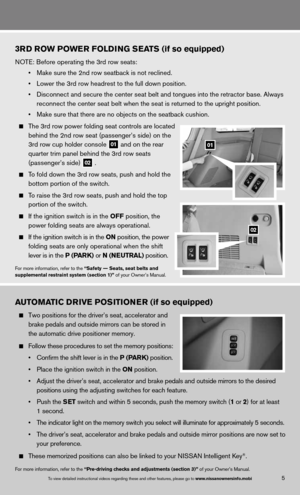

3rD ro W PoWE r folD inG s Eats (if so equipped)
nOTe: Before operating the 3rd row seats:
• Make sure the 2nd row seatback is not reclined.
• Lower the 3rd row headrest to the full down position.
• Disconnect and secure the center seat belt and tongues into the retractor base. Always
reconnect the center seat belt when the seat is returned to the upright \
position.
• Make sure that there are no objects on the seatback cushion.

The 3rd row power folding seat controls are located
behind the 2nd row seat (passenger’s side) on the
3rd row cup holder console

01 and on the rear
quarter trim panel behind the 3rd row seats
(passenger’s side)

02 .

To fold down the 3rd row seats, push and hold the
bottom portion of the switch.

To raise the 3rd row seats, push and hold the top
portion of the switch.

if the ignition switch is in the off position, the
power folding seats are always operational.

if the ignition switch is in the on position, the power
folding seats are only operational when the shift
lever is in the P (P ark) or n (nEutral) position.
for more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
automati C DrivE P osition Er (if so equipped)
Two positions for the driver’s seat, accelerator and
brake pedals and outside mirrors can be stored in
the automatic drive positioner memory.

follow these procedures to set the memory positions:
• Confirm the shift lever is in the P (P ark) position.
• Place the ignition switch in the on position.
• Adjust the driver’s seat, accelerator and brake pedals and outside mirrors to the desired
positions using the adjusting switches for each feature.
• Push the s Et switch and within 5 seconds, push the memory switch (1 or 2) for at least
1 second.
• The indicator light on the memory switch you select will illuminate for approximately 5 seconds.
• The driver’s seat, accelerator and brake pedals and outside mirror positions are now set to
your preference.

These memorized positions can also be linked to your ni SSAn intelligent key®.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
01
02

6
first drive features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
outsiDE mirror Control sWit Ch
To select the right or left side mirror , turn the control
switch

01 right or left.

To adjust the mirror angle, move the control switch

01 up, down, right or left.

To prevent accidentally moving the mirror, turn and
set the switch to the middle “neutral” position.
POWe R fOLdinG Ou TSide MiRRORS
(if so equipped)
To open or close the mirrors, push the switch
02 .f
or more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
02
01
startinG/stoPPin G thE EnG in E (nissan intelligent k ey®
models only - if so equipped)
depress the brake pedal.

Push the ignition switch in.

Turn the ignition switch to the start position.
T uRnin G THe enGine Off

Move the shift lever to the P (P ark) position, apply
the parking brake and turn the ignition switch to the
loCk position.
for more information, refer to the “starting and driving (section 5)” of
your Owner’s Manual.
h EaD liGht Control sWit Ch
H eAd LiGHT c OnTROL

Turn the headlight control switch to the
position


01 to turn on the front parking, tail, license plate and

instrument panel lights. Turn the switch to the

position
02 to turn on the headlights.
A uTOLi GHT SYSTe M

The autolight system will automatically turn the headlights on when it is\
dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.

To activate the autolight system, turn the headlight control switch to the auto position
03
then turn the ignition switch to on. To deactivate the autolight system, turn the headlight

control switch to the off,

01 or
position
02 .

01
03
02
