2013 NISSAN ALTIMA COUPE Owners Manual

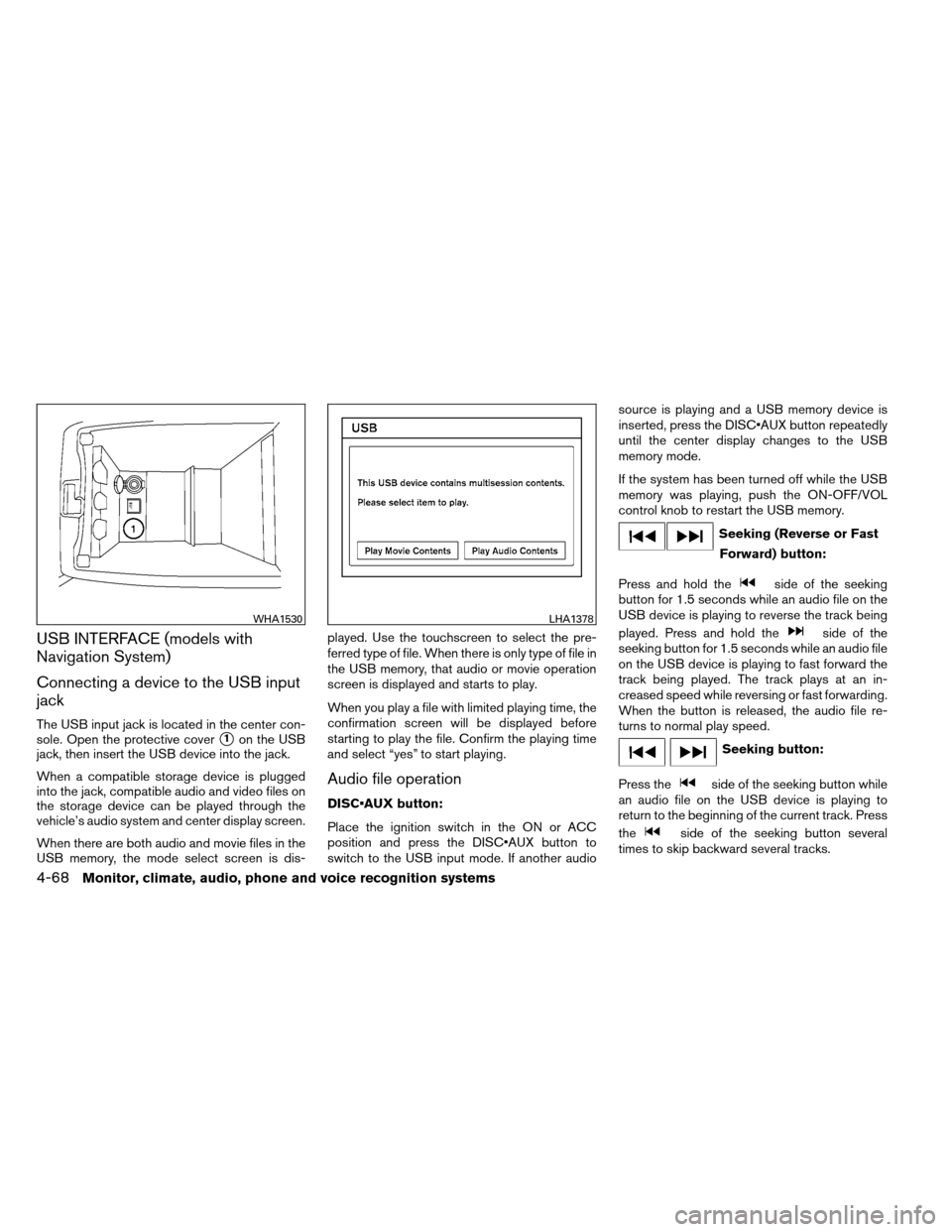

USB INTERFACE (models with
Navigation System)
Connecting a device to the USB input
jack
The USB input jack is located in the center con-
sole. Open the protective cover
1on the USB
jack, then insert the USB device into the jack.
When a compatible storage device is plugged
into the jack, compatible audio and video files on
the storage device can be played through the
vehicle’s audio system and center display screen.
When there are both audio and movie files in the
USB memory, the mode select screen is dis- played. Use the touchscreen to select the pre-
ferred type of file. When there is only type of file in
the USB memory, that audio or movie operation
screen is displayed and starts to play.
When you play a file with limited playing time, the
confirmation screen will be displayed before
starting to play the file. Confirm the playing time
and select “yes” to start playing.
Audio file operation
DISC button:
Place the ignition switch in the ON or ACC
position and press the DISC button to
switch to the USB input mode. If another audiosource is playing and a USB memory device is
inserted, press the DISC button repeatedly
until the center display changes to the USB
memory mode.
If the system has been turned off while the USB
memory was playing, push the ON-OFF/VOL
control knob to restart the USB memory.
Seeking (Reverse or Fast
Forward) button:
Press and hold the
side of the seeking
button for 1.5 seconds while an audio file on the
USB device is playing to reverse the track being
played. Press and hold the
side of the
seeking button for 1.5 seconds while an audio file
on the USB device is playing to fast forward the
track being played. The track plays at an in-
creased speed while reversing or fast forwarding.
When the button is released, the audio file re-
turns to normal play speed.
Seeking button:
Press the
side of the seeking button while
an audio file on the USB device is playing to
return to the beginning of the current track. Press
the
side of the seeking button several
times to skip backward several tracks.
WHA1530LHA1378
4-68Monitor, climate, audio, phone and voice recognition systems

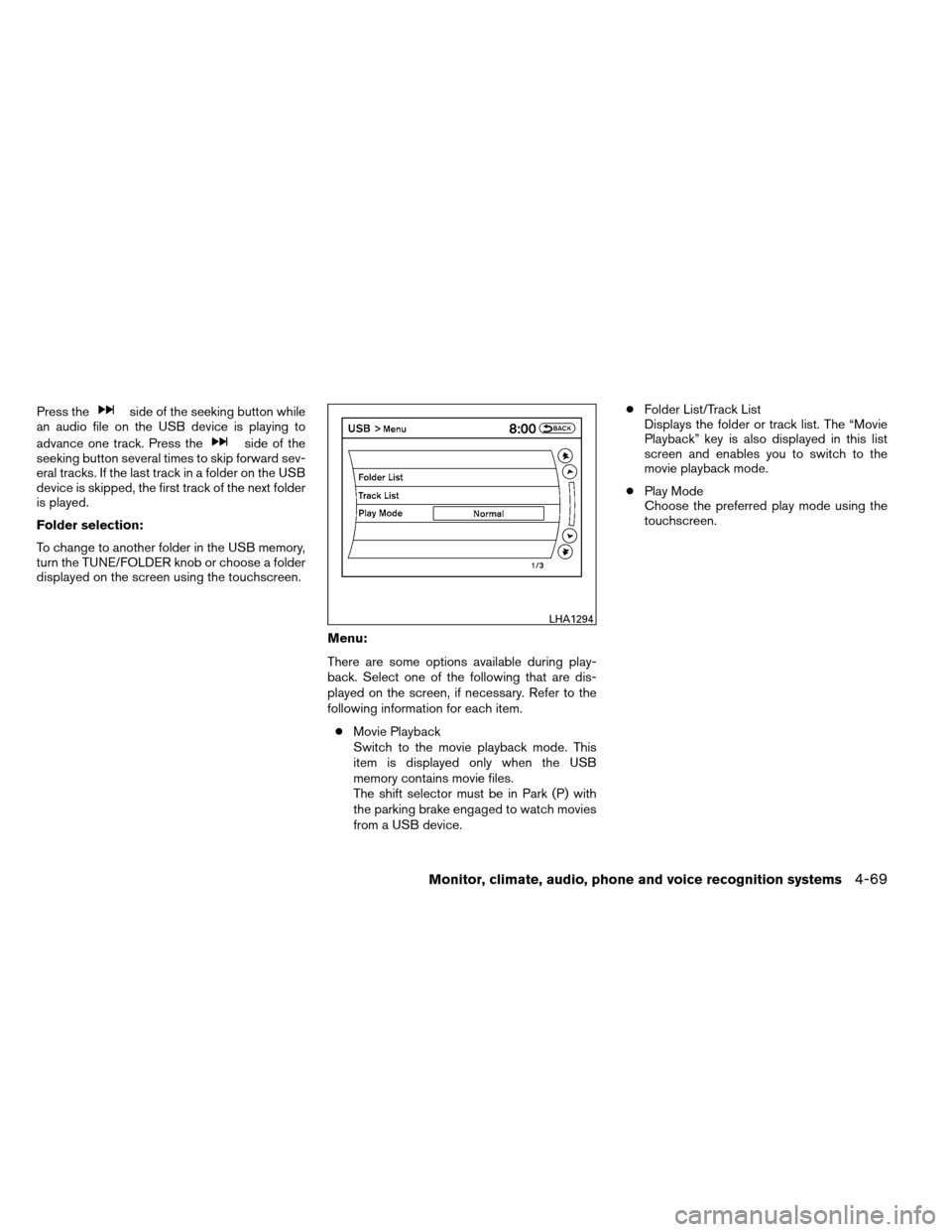

Press theside of the seeking button while
an audio file on the USB device is playing to
advance one track. Press the
side of the
seeking button several times to skip forward sev-
eral tracks. If the last track in a folder on the USB
device is skipped, the first track of the next folder
is played.
Folder selection:
To change to another folder in the USB memory,
turn the TUNE/FOLDER knob or choose a folder
displayed on the screen using the touchscreen.
Menu:
There are some options available during play-
back. Select one of the following that are dis-
played on the screen, if necessary. Refer to the
following information for each item.● Movie Playback
Switch to the movie playback mode. This
item is displayed only when the USB
memory contains movie files.
The shift selector must be in Park (P) with
the parking brake engaged to watch movies
from a USB device. ●
Folder List/Track List
Displays the folder or track list. The “Movie
Playback” key is also displayed in this list
screen and enables you to switch to the
movie playback mode.
● Play Mode
Choose the preferred play mode using the
touchscreen.
LHA1294
Monitor, climate, audio, phone and voice recognition systems4-69

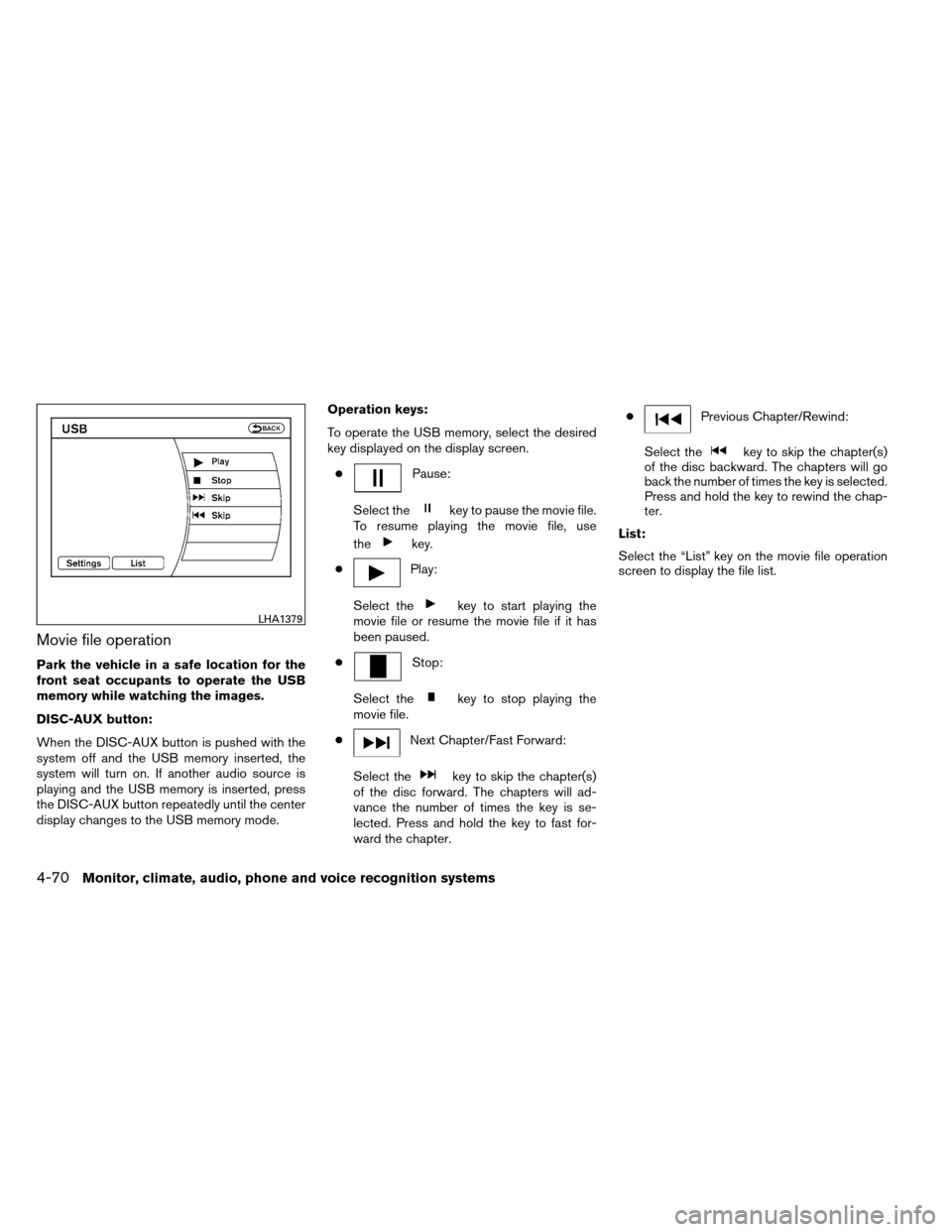

Movie file operation
Park the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
DISC-AUX button:
When the DISC-AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on. If another audio source is
playing and the USB memory is inserted, press
the DISC-AUX button repeatedly until the center
display changes to the USB memory mode.Operation keys:
To operate the USB memory, select the desired
key displayed on the display screen.
●
Pause:
Select the
key to pause the movie file.
To resume playing the movie file, use
the
key.
●
Play:
Select the
key to start playing the
movie file or resume the movie file if it has
been paused.
●
Stop:
Select the
key to stop playing the
movie file.
●
Next Chapter/Fast Forward:
Select the
key to skip the chapter(s)
of the disc forward. The chapters will ad-
vance the number of times the key is se-
lected. Press and hold the key to fast for-
ward the chapter. ●
Previous Chapter/Rewind:
Select the
key to skip the chapter(s)
of the disc backward. The chapters will go
back the number of times the key is selected.
Press and hold the key to rewind the chap-
ter.
List:
Select the “List” key on the movie file operation
screen to display the file list.
LHA1379
4-70Monitor, climate, audio, phone and voice recognition systems

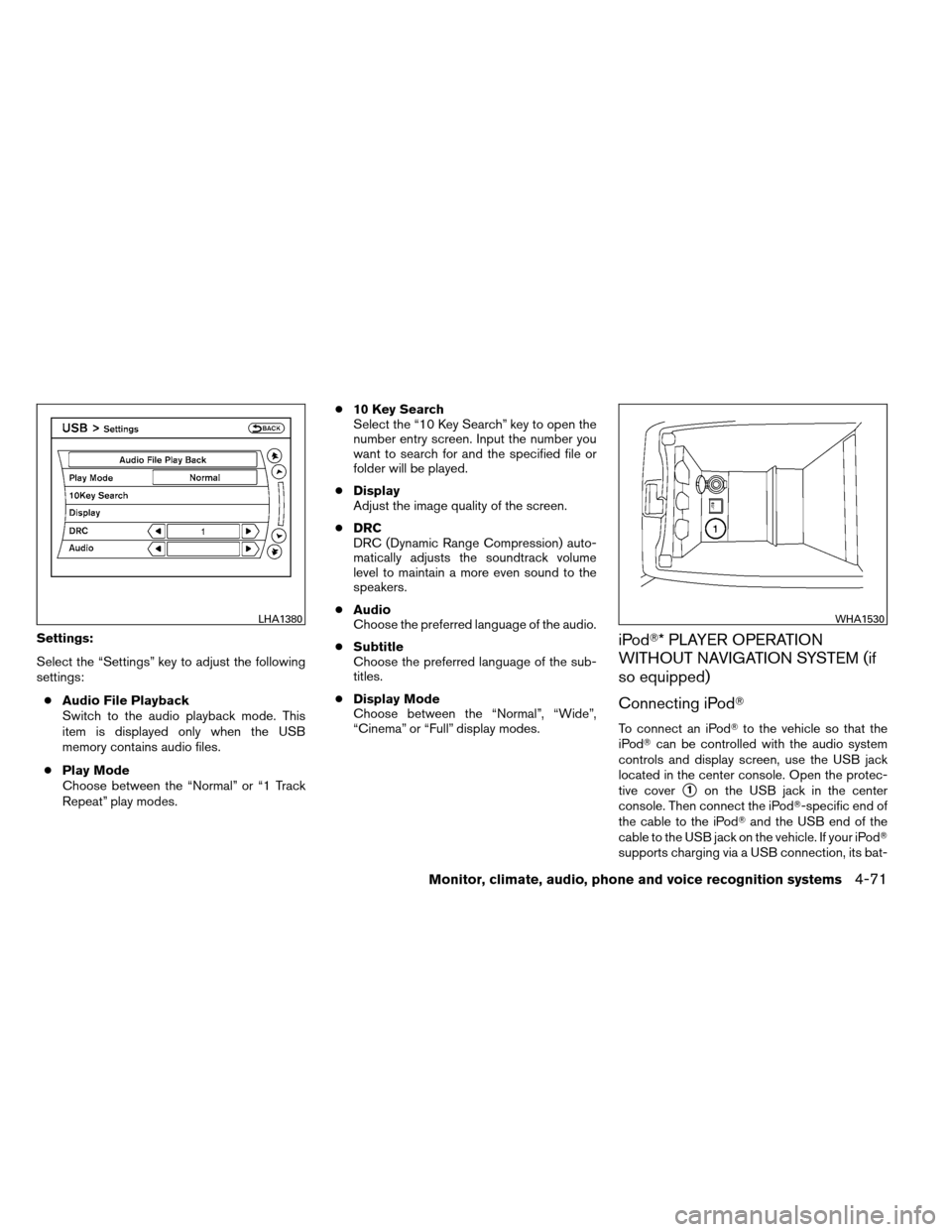

Settings:
Select the “Settings” key to adjust the following
settings:● Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains audio files.
● Play Mode
Choose between the “Normal” or “1 Track
Repeat” play modes. ●
10 Key Search
Select the “10 Key Search” key to open the
number entry screen. Input the number you
want to search for and the specified file or
folder will be played.
● Display
Adjust the image quality of the screen.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Choose the preferred language of the audio.
● Subtitle
Choose the preferred language of the sub-
titles.
● Display Mode
Choose between the “Normal”, “Wide”,
“Cinema” or “Full” display modes.iPod* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)
Connecting iPod
To connect an iPod to the vehicle so that the
iPod can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Open the protec-
tive cover
1on the USB jack in the center
console. Then connect the iPod-specific end of
the cable to the iPod and the USB end of the
cable to the USB jack on the vehicle. If your iPod
supports charging via a USB connection, its bat-
LHA1380WHA1530
Monitor, climate, audio, phone and voice recognition systems4-71

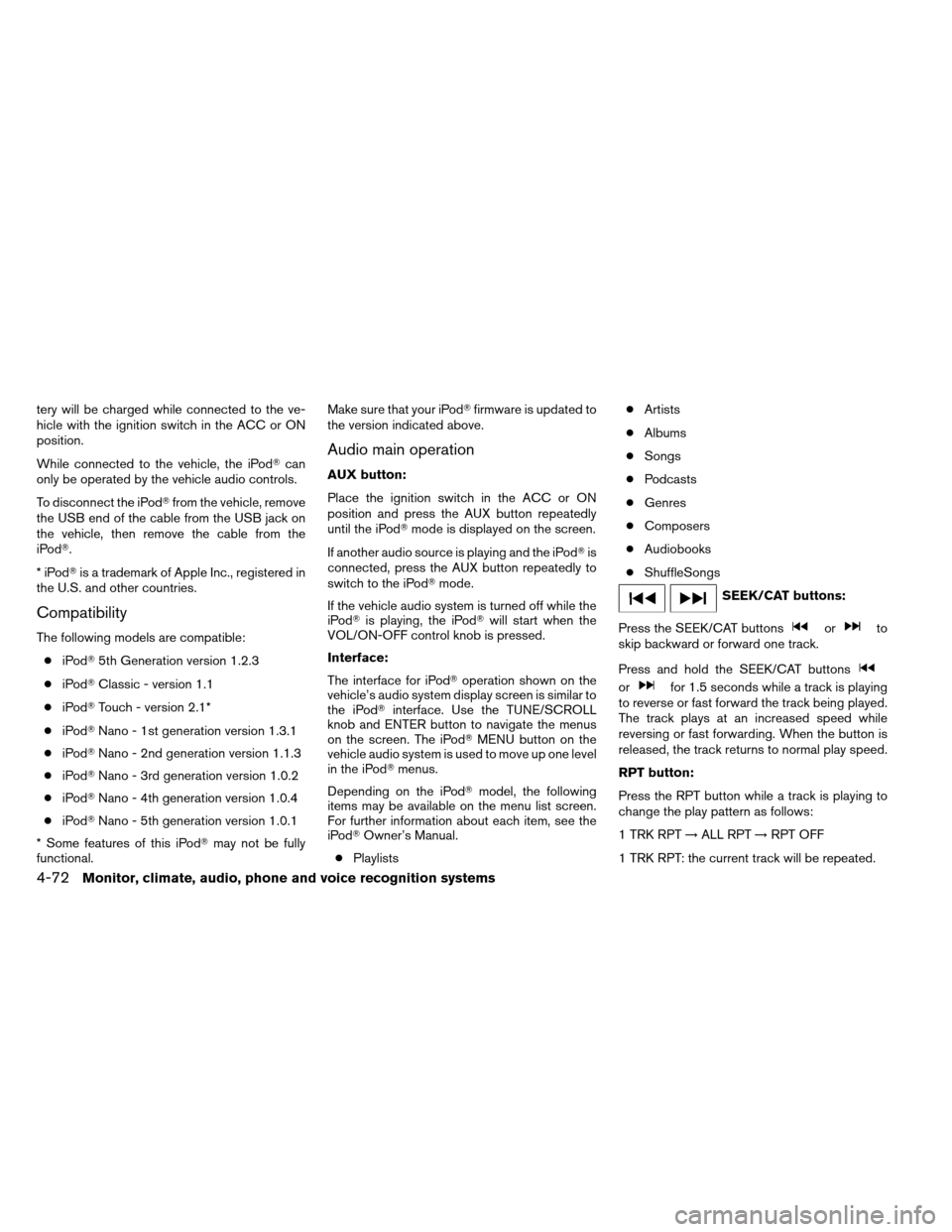

tery will be charged while connected to the ve-
hicle with the ignition switch in the ACC or ON
position.
While connected to the vehicle, the iPodcan
only be operated by the vehicle audio controls.
To disconnect the iPod from the vehicle, remove
the USB end of the cable from the USB jack on
the vehicle, then remove the cable from the
iPod.
*iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod 5th Generation version 1.2.3
● iPod Classic - version 1.1
● iPod Touch - version 2.1*
● iPod Nano - 1st generation version 1.3.1
● iPod Nano - 2nd generation version 1.1.3
● iPod Nano - 3rd generation version 1.0.2
● iPod Nano - 4th generation version 1.0.4
● iPod Nano - 5th generation version 1.0.1
* Some features of this iPod may not be fully
functional. Make sure that your iPod
firmware is updated to
the version indicated above.
Audio main operation
AUX button:
Place the ignition switch in the ACC or ON
position and press the AUX button repeatedly
until the iPod mode is displayed on the screen.
If another audio source is playing and the iPod is
connected, press the AUX button repeatedly to
switch to the iPod mode.
If the vehicle audio system is turned off while the
iPod is playing, the iPod will start when the
VOL/ON-OFF control knob is pressed.
Interface:
The interface for iPod operation shown on the
vehicle’s audio system display screen is similar to
the iPod interface. Use the TUNE/SCROLL
knob and ENTER button to navigate the menus
on the screen. The iPod MENU button on the
vehicle audio system is used to move up one level
in the iPod menus.
Depending on the iPod model, the following
items may be available on the menu list screen.
For further information about each item, see the
iPod Owner’s Manual.
● Playlists ●
Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● ShuffleSongs
SEEK/CAT buttons:
Press the SEEK/CAT buttons
orto
skip backward or forward one track.
Press and hold the SEEK/CAT buttons
orfor 1.5 seconds while a track is playing
to reverse or fast forward the track being played.
The track plays at an increased speed while
reversing or fast forwarding. When the button is
released, the track returns to normal play speed.
RPT button:
Press the RPT button while a track is playing to
change the play pattern as follows:
1 TRK RPT →ALL RPT →RPT OFF
1 TRK RPT: the current track will be repeated.
4-72Monitor, climate, audio, phone and voice recognition systems

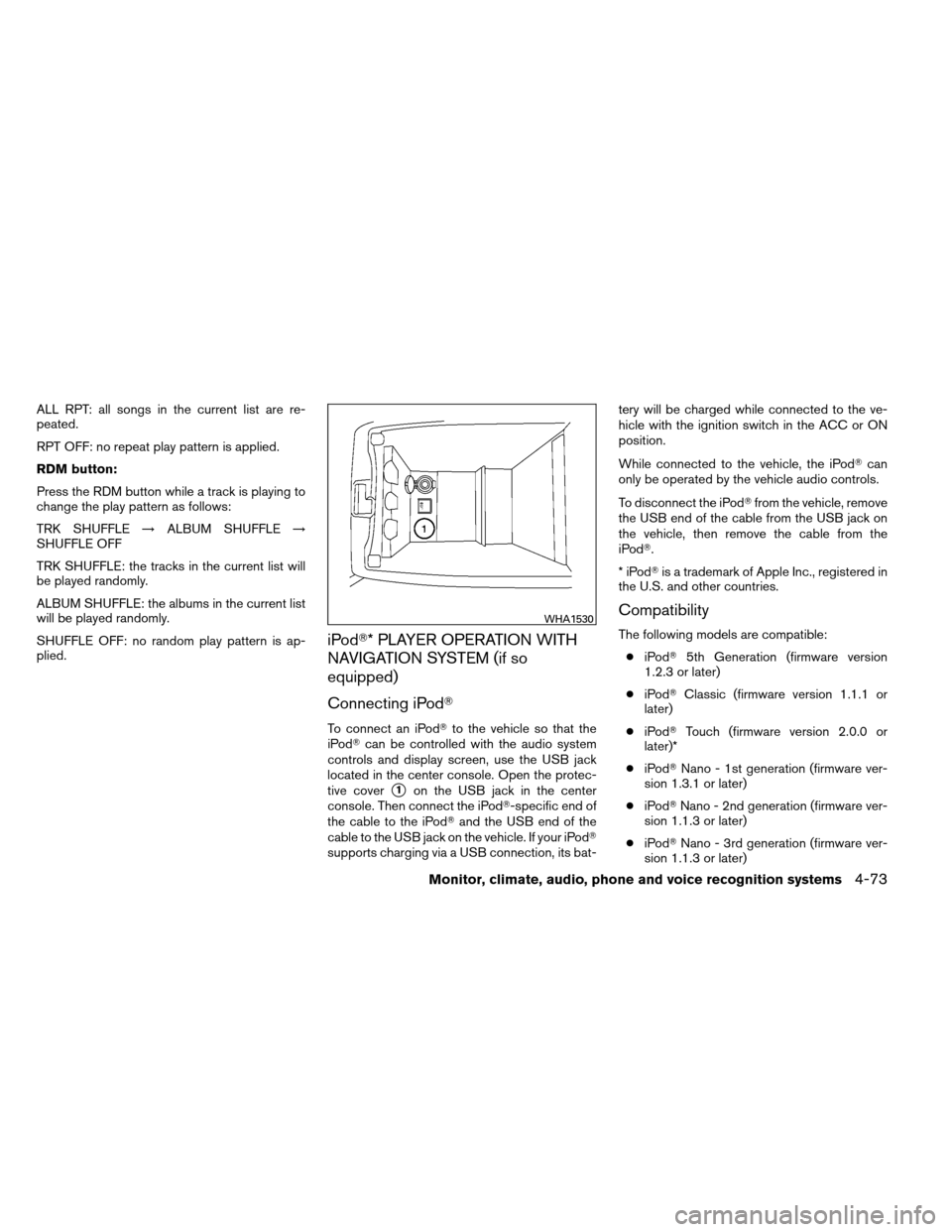

ALL RPT: all songs in the current list are re-
peated.
RPT OFF: no repeat play pattern is applied.
RDM button:
Press the RDM button while a track is playing to
change the play pattern as follows:
TRK SHUFFLE→ALBUM SHUFFLE →
SHUFFLE OFF
TRK SHUFFLE: the tracks in the current list will
be played randomly.
ALBUM SHUFFLE: the albums in the current list
will be played randomly.
SHUFFLE OFF: no random play pattern is ap-
plied.
iPod* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)
Connecting iPod
To connect an iPod to the vehicle so that the
iPod can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Open the protec-
tive cover
1on the USB jack in the center
console. Then connect the iPod-specific end of
the cable to the iPod and the USB end of the
cable to the USB jack on the vehicle. If your iPod
supports charging via a USB connection, its bat- tery will be charged while connected to the ve-
hicle with the ignition switch in the ACC or ON
position.
While connected to the vehicle, the iPod
can
only be operated by the vehicle audio controls.
To disconnect the iPod from the vehicle, remove
the USB end of the cable from the USB jack on
the vehicle, then remove the cable from the
iPod.
*iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod 5th Generation (firmware version
1.2.3 or later)
● iPod Classic (firmware version 1.1.1 or
later)
● iPod Touch (firmware version 2.0.0 or
later)*
● iPod Nano - 1st generation (firmware ver-
sion 1.3.1 or later)
● iPod Nano - 2nd generation (firmware ver-
sion 1.1.3 or later)
● iPod Nano - 3rd generation (firmware ver-
sion 1.1.3 or later)
WHA1530
Monitor, climate, audio, phone and voice recognition systems4-73

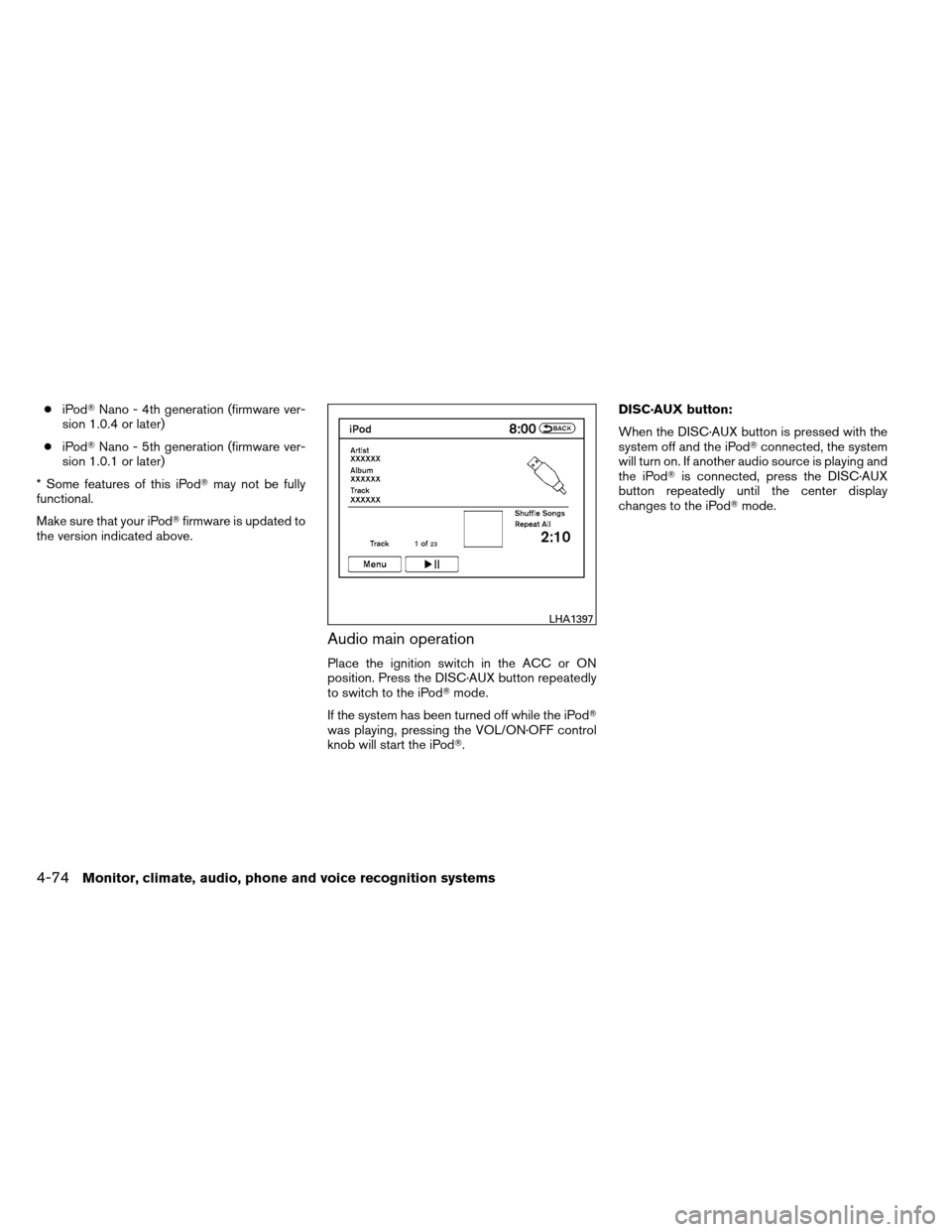

●iPod Nano - 4th generation (firmware ver-
sion 1.0.4 or later)
● iPod Nano - 5th generation (firmware ver-
sion 1.0.1 or later)
* Some features of this iPod may not be fully
functional.
Make sure that your iPod firmware is updated to
the version indicated above.
Audio main operation
Place the ignition switch in the ACC or ON
position. Press the DISC·AUX button repeatedly
to switch to the iPod mode.
If the system has been turned off while the iPod
was playing, pressing the VOL/ON·OFF control
knob will start the iPod. DISC·AUX button:
When the DISC·AUX button is pressed with the
system off and the iPod
connected, the system
will turn on. If another audio source is playing and
the iPod is connected, press the DISC·AUX
button repeatedly until the center display
changes to the iPod mode.
LHA1397
4-74Monitor, climate, audio, phone and voice recognition systems

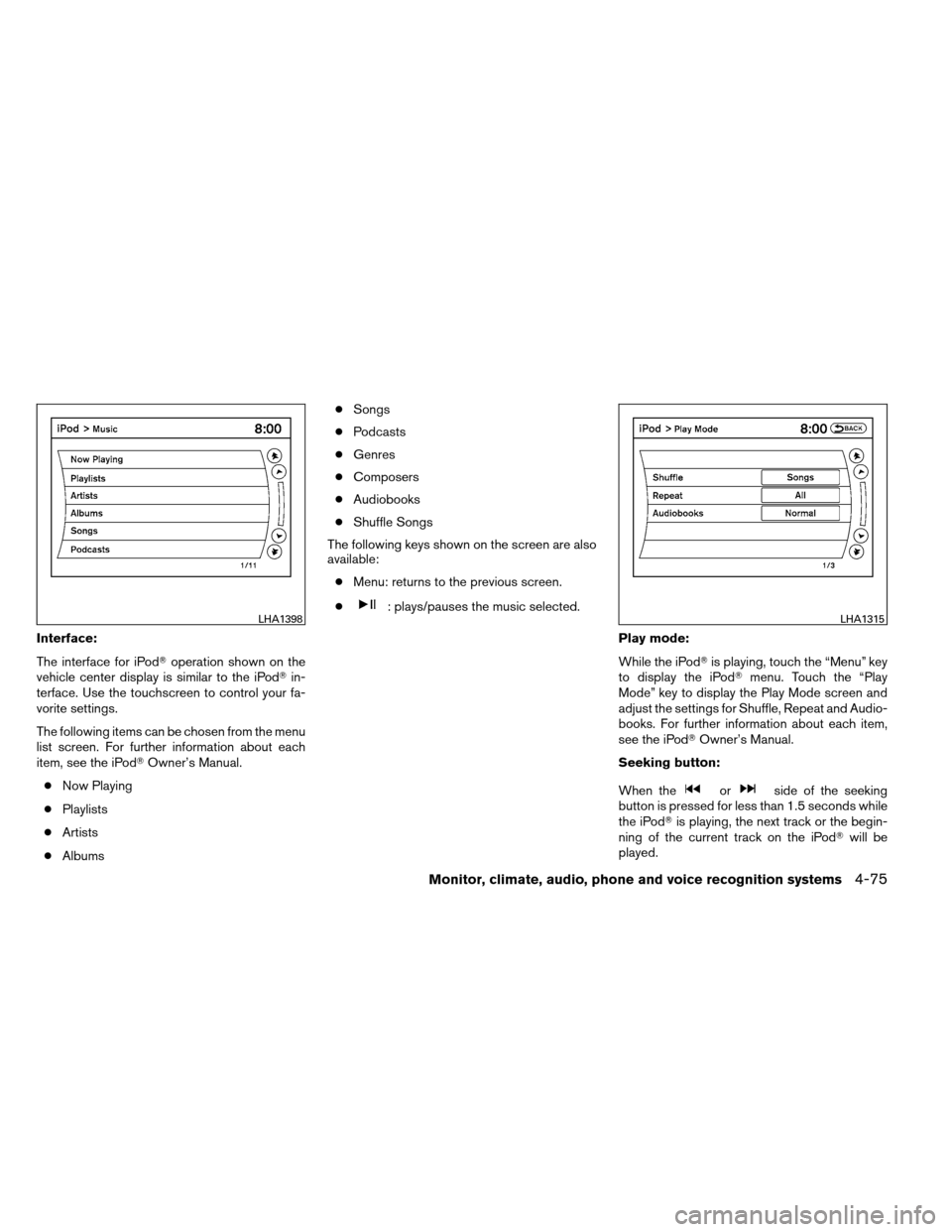

Interface:
The interface for iPodoperation shown on the
vehicle center display is similar to the iPod in-
terface. Use the touchscreen to control your fa-
vorite settings.
The following items can be chosen from the menu
list screen. For further information about each
item, see the iPod Owner’s Manual.
● Now Playing
● Playlists
● Artists
● Albums ●
Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following keys shown on the screen are also
available: ● Menu: returns to the previous screen.
●
: plays/pauses the music selected.
Play mode:
While the iPodis playing, touch the “Menu” key
to display the iPod menu. Touch the “Play
Mode” key to display the Play Mode screen and
adjust the settings for Shuffle, Repeat and Audio-
books. For further information about each item,
see the iPod Owner’s Manual.
Seeking button:
When the
orside of the seeking
button is pressed for less than 1.5 seconds while
the iPod is playing, the next track or the begin-
ning of the current track on the iPod will be
played.
LHA1398LHA1315
Monitor, climate, audio, phone and voice recognition systems4-75
