2013 NISSAN 370Z COUPE Owners Manual

Black plate (375,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-EB65B981-E72F-4FAC-ADF0-40E2A575A79F

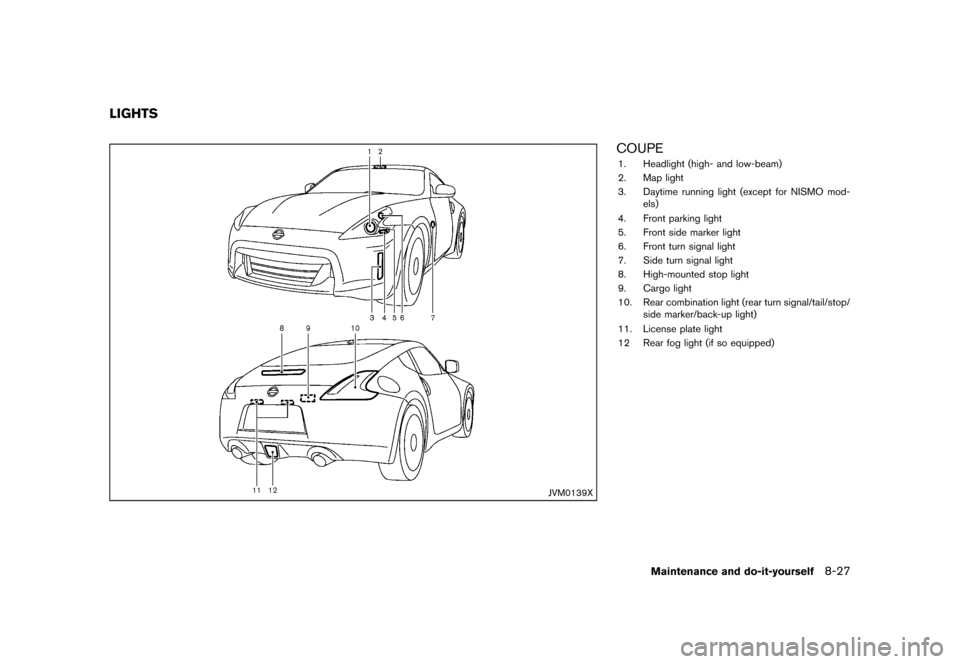

JVM0139X
COUPEGUID-D2ED99C7-EF8E-4A18-AFC1-576969341A871. Headlight (high- and low-beam)
2. Map light
3. Daytime running light (except for NISMO mod-els)
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-mounted stop light
9. Cargo light
10. Rear combination light (rear turn signal/tail/stop/ side marker/back-up light)
11. License plate light
12 Rear fog light (if so equipped)
Maintenance and do-it-yourself8-27
LIGHTS

Black plate (376,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-28Maintenance and do-it-yourself

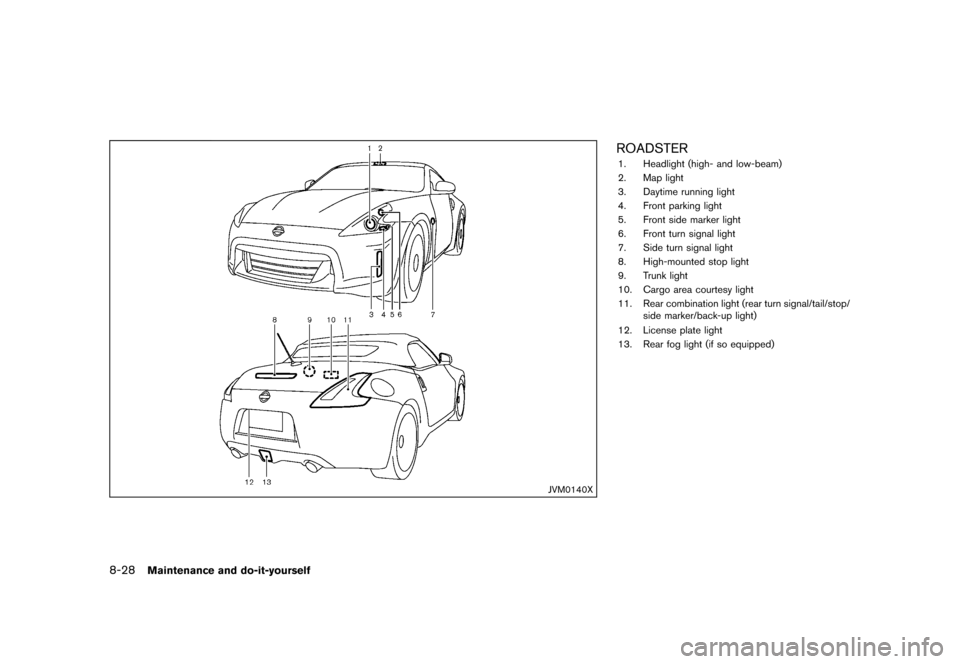

JVM0140X
ROADSTERGUID-DD6E3D5F-4BF6-4D01-9DFF-ADB1800DCFEF1. Headlight (high- and low-beam)
2. Map light
3. Daytime running light
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-mounted stop light
9. Trunk light
10. Cargo area courtesy light
11. Rear combination light (rear turn signal/tail/stop/side marker/back-up light)
12. License plate light
13. Rear fog light (if so equipped)

Black plate (377,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
HEADLIGHTSGUID-68508CC1-7E92-42CD-BC8E-938EDC02B062Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-105F3D6B-9444-472D-BFB1-087774285E30
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” (P.2-
32) .
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see a NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTSGUID-17A30D44-BE09-4C34-ABD1-5E9AA886DA61
Item Wattage (W)Bulb No.
Headlight*
High/Low beams (Xenon) 35 D2S
Front turn signal light* 28/8 7444NA
Front parking light* 5 W5W
Front side marker light* LED —
Side turn signal light* LED —
Daytime running light (except for NISMO models)* LED —
Rear combination light* back-up 16 W16W
turn signal 21WY21W
stop/tail/side marker LED—
Rear fog light (if so equipped)* 21 W21W
License plate light* 5 W5W
Map light 8 —
Vanity mirror light 2 —
Cargo area courtesy light (Roadster)* 5 —
Cargo light (Coupe)* 3.4 —
Trunk light (Roadster)* 3.4 —
High-mounted stop light* LED —
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
Maintenance and do-it-yourself8-29

Black plate (378,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-30Maintenance and do-it-yourself
Replacement proceduresGUID-BE5E958F-B1EB-45FE-9F88-37F2E0CC655BAll other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2352
Map light
SDI1839
Vanity mirror light

Black plate (379,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-022E9C3A-18CA-4B04-820F-41E1C699FB21If you have a flat tire, see “Flat tire” (P.6-2) .
TIRE PRESSUREGUID-EEDF975E-59AB-474A-97F4-DEF110103167
Tire Pressure Monitoring System (TPMS)GUID-5670B8F2-EC94-4840-BB0A-4757F4E686E6This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see “Low tire pressure warning
light” (P.2-12) , “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-3) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-2) .
Tire inflation pressureGUID-7E53980F-5A59-4547-AC6A-8D1943FC5679Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tire
and Loading Information label is affixed tothe driver side center pillar. Tire pressures
should be checked regularly because:
.
Most tires naturally lose air over time.
. Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WARNING
. Improperly inflated tires can fail
suddenly and cause an accident.
. The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. label. The vehi-
cle weight capacity is indicated
on the Tire and Loading Infor-
mation label. Do not load your vehicle beyond this capacity.
Overloading your vehicle may
result in reduced tire life, unsafe
operating conditions due to pre-
mature tire failure, or unfavor-
able handling characteristics
and could also lead to a serious
accident. Loading beyond the
specified capacity may also re-
sult in failure of other vehicle
components.
. Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
. For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Maintenance and do-it-yourself8-31
WHEELS AND TIRES

Black plate (380,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-32Maintenance and do-it-yourself
SDI2462
Tire and Loading Information labelGUID-56ABD494-E0A4-462D-BEE8-7AACB684924F*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See “Vehicle load-
ing information” (P.9-18).
*3Original size: The size of the tires
originally installed on the vehicle at the
factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or morehours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best
balance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size — see “Tire labeling” (P.8-
34).
*6Spare tire size or compact spare tire
size (if so equipped)

Black plate (381,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SDI1949

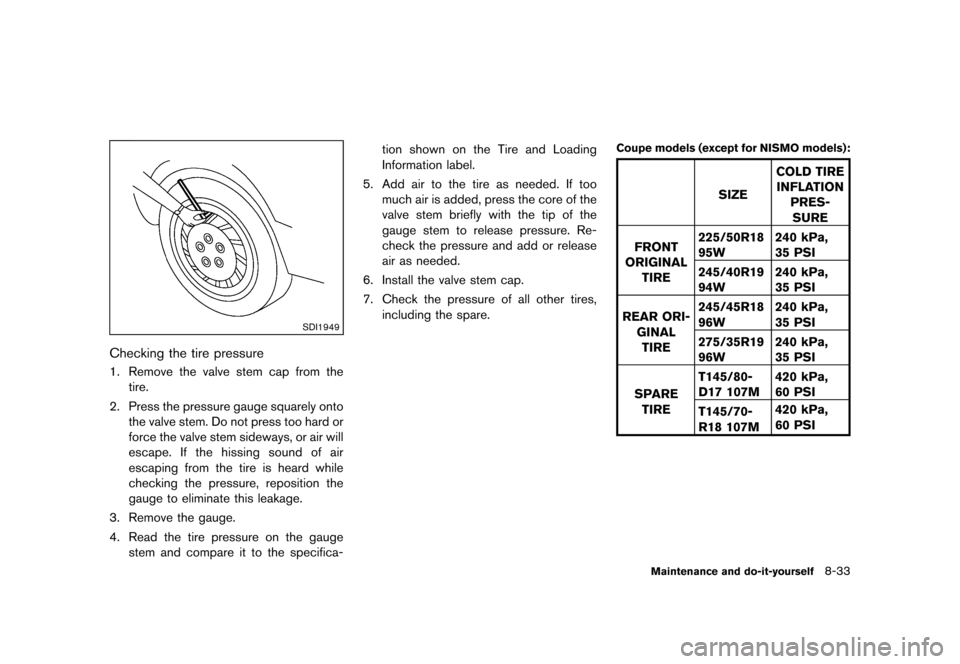

Checking the tire pressureGUID-F869270E-E76B-4E6D-B383-8FB9B8C4051F1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem and compare it to the specifica- tion shown on the Tire and Loading
Information label.
5. Add air to the tire as needed. If too much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, including the spare.
Coupe models (except for NISMO models):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
SIZE COLD TIRE
INFLATION PRES-
SURE
FRONT
ORIGINAL TIRE 225/50R18
95W
240 kPa,
35 PSI
245/40R19
94W 240 kPa,
35 PSI
REAR ORI- GINALTIRE 245/45R18
96W
240 kPa,
35 PSI
275/35R19
96W 240 kPa,
35 PSI
SPARE TIRE T145/80-
D17 107M
420 kPa,
60 PSI
T145/70-
R18 107M 420 kPa,
60 PSI
Maintenance and do-it-yourself8-33

Black plate (382,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-34Maintenance and do-it-yourself

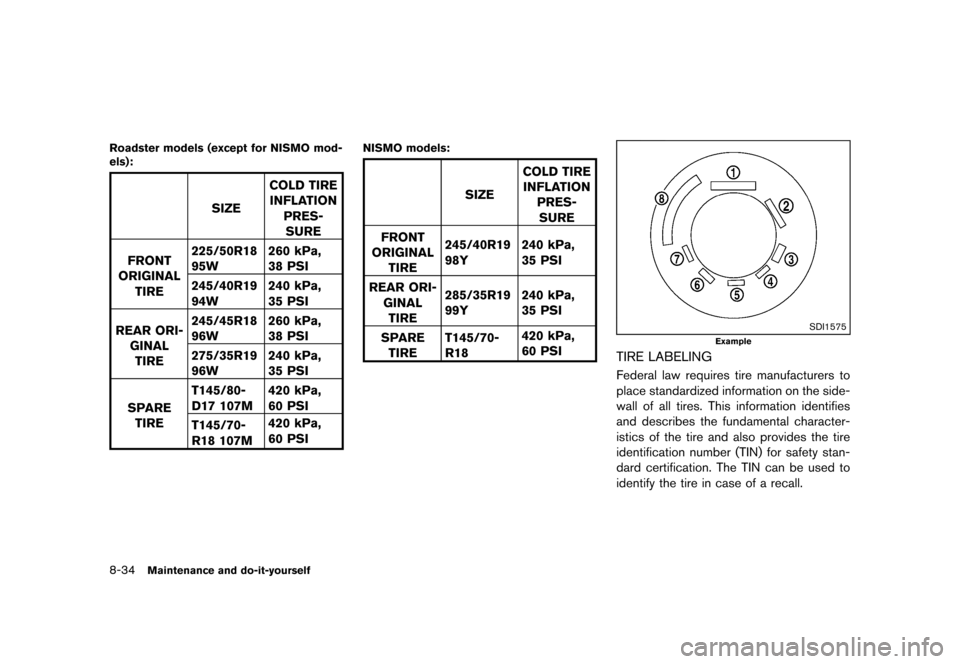

Roadster models (except for NISMO mod-
els):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
SIZECOLD TIRE
INFLATION
PRES-SURE
FRONT
ORIGINAL TIRE 225/50R18
95W
260 kPa,
38 PSI
245/40R19
94W 240 kPa,
35 PSI
REAR ORI- GINAL
TIRE 245/45R18
96W
260 kPa,
38 PSI
275/35R19
96W 240 kPa,
35 PSI
SPARE TIRE T145/80-
D17 107M
420 kPa,
60 PSI
T145/70-
R18 107M 420 kPa,
60 PSI
NISMO models:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
SIZECOLD TIRE
INFLATION PRES-
SURE
FRONT
ORIGINAL TIRE 245/40R19
98Y
240 kPa,
35 PSI
REAR ORI- GINAL
TIRE 285/35R19
99Y
240 kPa,
35 PSI
SPARE TIRE T145/70-
R18 420 kPa,
60 PSI
SDI1575
Example
TIRE LABELINGGUID-9A2BB1B8-1594-4EA6-AE39-1ECE22369400Federal law requires tire manufacturers to
place standardized information on the side-
wall of all tires. This information identifies
and describes the fundamental character-
istics of the tire and also provides the tire
identification number (TIN) for safety stan-
dard certification. The TIN can be used to
identify the tire in case of a recall.
