must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
SAI0046
NISMO modelsGUID-E3BDAA99-6FEC-4DED-B908-DD7C69B14912
CAUTION
Do not use an automatic car wash for
NISMO models. The rear spoiler may be
damaged.
SOFT TOP CARE AND CLEANING
(Roadster models)
GUID-BFB1C149-B6AF-40AC-A770-DA5BD6CCB9D9Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
time you wash the vehicle body, but clean the
top regularly before it becomes quite dirty.
Leaving the soft top dirty or soiled for a long
period will cause deterioration to the quality of
the top material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION
.Do not use strong household soap,
strong chemical detergents, gaso-
line or solvents.
Appearance and care7-3

Black plate (344,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
7-4Appearance and care
.If glass cleaner gets on the soft top,
immediately wash it off with clean
water.
. Do not apply direct water pressure,
such as high pressured water from
household hoses, on the lining of
the soft top and vehicle body, as this
may cause water to leak into the
inside of your vehicle.
After cleaning, always be sure the top and its
storage are completely drybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGGUID-4848C5FA-C612-45BB-B7C8-2820764D534BRegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.
. Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
REMOVING SPOTSGUID-1D190F5C-DDE4-443D-84F6-02902047619ARemove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a NISSAN dealer or any automotive
accessory stores.
UNDERBODYGUID-B4A3FC99-8342-414A-ACE0-C7B9B855D13EIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASSGUID-C42DFAFC-9E05-4F03-9AC2-1BC6EC075C12Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION
. When cleaning the inside of the
windows, do not use sharp-edged
tools, abrasive cleaners or chlorine-
based disinfectant cleaners. They
could damage the electrical conduc-
tors, radio antenna elements or rear
window defroster elements.
. If glass cleaner gets on the soft top,
immediately wash it off with clean
water (Roadster models) .
WHEELSGUID-FB4B77F8-E020-4111-875C-746F1B0EDEE1Wash the wheels when washing the vehicle to
maintain their appearance.
.Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
. Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
. NISSAN recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.

Black plate (345,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
CAUTION
Do not use abrasive cleaners when
washing the wheels.
Aluminum alloy wheelsGUID-F067E84F-FE8D-4C96-ADE0-559A71AFAE46Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid
staining or discoloring the wheels:
.Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSGUID-DFE79010-03B4-48D8-8365-C6E55AA358EFClean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGGUID-E2268C54-2157-4EB4-A599-D414B210C5B8NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves.
. Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
GUID-7DE8D5B9-10B7-466F-BFBC-EB1B135163B1Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
Appearance and care7-5
CLEANING INTERIOR

Black plate (346,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
7-6Appearance and care

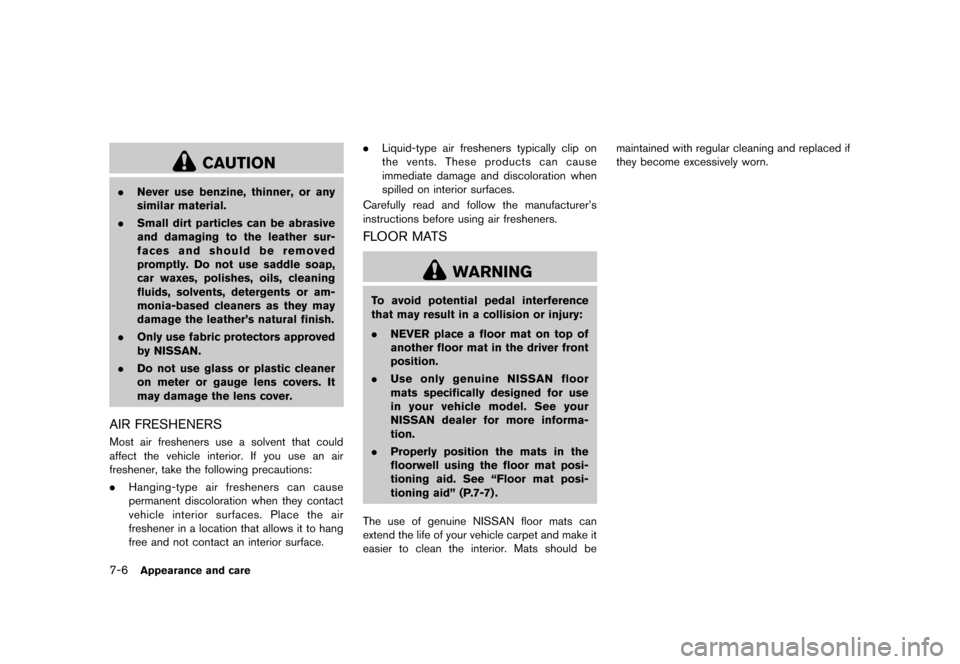

CAUTION
.Never use benzine, thinner, or any
similar material.
. Small dirt particles can be abrasive
and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather’s natural finish.
. Only use fabric protectors approved
by NISSAN.
. Do not use glass or plastic cleaner
on meter or gauge lens covers. It
may damage the lens cover.
AIR FRESHENERSGUID-24C8B388-F206-4D04-9901-70D770689636Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
.Hanging-type air fresheners can cause
permanent discoloration when they contact
vehicle interior surfaces. Place the air
freshener in a location that allows it to hang
free and not contact an interior surface. .
Liquid-type air fresheners typically clip on
the vents. These products can cause
immediate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer’s
instructions before using air fresheners.
FLOOR MATSGUID-D92BA822-B68A-4D5F-BD79-20F72C735A9E
WARNING
To avoid potential pedal interference
that may result in a collision or injury:
. NEVER place a floor mat on top of
another floor mat in the driver front
position.
. Use only genuine NISSAN floor
mats specifically designed for use
in your vehicle model. See your
NISSAN dealer for more informa-
tion.
. Properly position the mats in the
floorwell using the floor mat posi-
tioning aid. See “Floor mat posi-
tioning aid” (P.7-7) .
The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be maintained with regular cleaning and replaced if
they become excessively worn.

Black plate (347,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

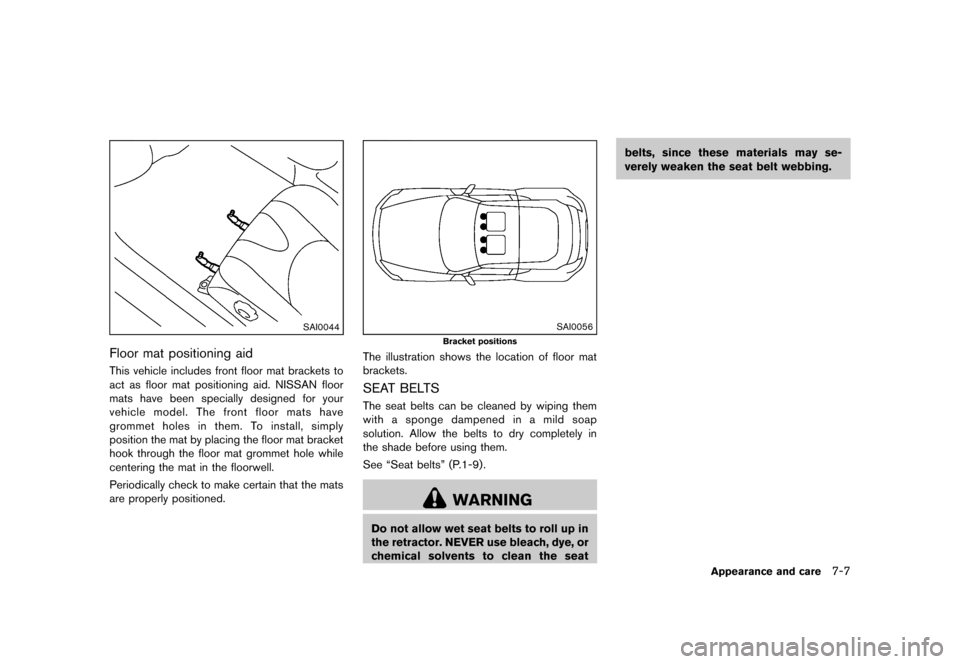

SAI0044
Floor mat positioning aidGUID-2A3DEAF6-CD7F-45A5-A175-22E93F0C1B5EThis vehicle includes front floor mat brackets to
act as floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The front floor mats have
grommet holes in them. To install, simply
position the mat by placing the floor mat bracket
hook through the floor mat grommet hole while
centering the mat in the floorwell.
Periodically check to make certain that the mats
are properly positioned.
SAI0056
Bracket positions
The illustration shows the location of floor mat
brackets.
SEAT BELTSGUID-0FE41C50-56C9-4ACA-8C7E-0D791E98F8DCThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap
solution. Allow the belts to dry completely in
the shade before using them.
See “Seat belts” (P.1-9).
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seatbelts, since these materials may se-
verely weaken the seat belt webbing.
Appearance and care7-7

Black plate (348,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
7-8Appearance and care
GUID-1AFA0C78-C890-4982-BB7E-89520EC077B5MOST COMMON FACTORS CONTRI-
BUTING TO VEHICLE CORROSION
GUID-67C57974-E9DE-4FEB-AF3F-D9F1EDEAA3CD.The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS INFLU-
ENCE THE RATE OF CORROSION
GUID-FC2435B8-508C-4BF8-8483-9D8BC37032C5
MoistureGUID-C449A4DA-87A1-45EC-B0DD-BE070AA201ECAccumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityGUID-6EE073CB-8348-4E26-B659-B0D23F72E520Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureGUID-66337590-A714-4CDB-B8D7-109CB6494DEEA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionGUID-AE672010-5203-4B08-8AA6-02DC301DD452Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
GUID-82466474-2854-4204-AD97-9816A1F122FC.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
.NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose. Remove dirt with a vacuum cleaner.
. Never allow water or other liquids to
come in contact with electronic
components inside the vehicle as
this may damage them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake
lines, brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some areas,
consult a NISSAN dealer.
CORROSION PROTECTION

Black plate (349,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ...
.................................................... 8-3
General maintenance ...
......................................................... 8-3
Where to go for service ...
.................................................... 8-3
General maintenance ...
............................................................... 8-3
Explanation of maintenance items ...
................................... 8-3
Maintenance precautions ...
........................................................ 8-6
Engine compartment check locations ...
.................................. 8-8
VQ37VHR engine model ...
.................................................. 8-8
Engine cooling system ...
............................................................. 8-9
Checking engine coolant level ...
...................................... 8-10
Changing engine coolant ...
............................................... 8-10
Engine oil ...
........................................................................\
......... 8-11
Checking engine oil level ...
............................................... 8-11
Changing engine oil and filter ...
....................................... 8-11
Automatic transmission fluid ...
............................................... 8-13
Power steering fluid ...
............................................................... 8-13
Brake and clutch fluid ...
........................................................... 8-14
Brake fluid ...
........................................................................\
.. 8-14
Clutch fluid (Manual transmission models) ...
............... 8-15
Window washer fluid ...
............................................................ 8-15
Battery ...
........................................................................\
............... 8-16
Jump starting ...
..................................................................... 8-18 Variable voltage control system
...
......................................... 8-18
Drive belts ...
........................................................................\
....... 8-19
Spark plugs ...
........................................................................\
..... 8-19
Replacing spark plugs ...
.................................................. 8-20
Air cleaner ...
........................................................................\
....... 8-20
Windshield wiper blades ...
..................................................... 8-21
Cleaning ...
........................................................................\
... 8-21
Replacing ...
........................................................................\
. 8-21
Brakes ...
........................................................................\
.............. 8-22
Self-adjusting brakes ...
.................................................... 8-22
Brake pad wear warning ...
.............................................. 8-22
Fuses ...
........................................................................\
................ 8-23
Engine compartment ...
..................................................... 8-23
Passenger compartment ...
.............................................. 8-24
Intelligent Key battery replacement ...
................................... 8-25
Lights ...
........................................................................\
................ 8-27
Coupe ...
........................................................................\
....... 8-27
Roadster ...
........................................................................\
... 8-28
Headlights ...
........................................................................\
8-29
Exterior and interior lights ...
............................................ 8-29
Wheels and tires ...
................................................................... 8-31
Tire pressure ...
................................................................... 8-31
Tire labeling ...
..................................................................... 8-34

Black plate (350,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Types of tires...
..................................................................... 8-36
Tire chains ...
........................................................................\
.. 8-37 Changing wheels and tires
...
.......................................... 8-38
Emergency tire puncture repair kit (if
so equipped) ...
................................................................... 8-41
