2013 MITSUBISHI OUTLANDER SPORT child restraint

Seat and restraint systems2-45
2
WARNING
!
Infants and small children should never ride unre-
strained, or lean against the instrument panel. They
should never ride held in your arms or on your lap.
They can be seriously injured or killed in an acci-
dent, especially when the airbags inflate. Seat all
infants and children in the rear seat, properly
restrained in an appropriate child restraint system.
Refer to “Child restraint systems” on page 2-31.
WARNING
!
NEVER put REAR-FACING CHILD RESTRAINT
SYSTEMS or INFANT RESTRAINT SYSTEMS in
the front passenger seat. This places the infant too
close to the passenger airbag. During deployment of
that airbag, the infant can be seriously injured or
killed.
Rear-facing child restraint systems or infant
restraint systems must only be used in the rear seat.
Airbag
BK0150700US.book 45 ページ ２０１２年３月２２日　木曜日　午後６時４６分

2-46 Seat and restraint systems
2
WARNING
!
FRONT-FACING CHILD RESTRAINT SYS-
TEMS should be used in the rear seat whenever pos-
sible. If they must be used in the front passenger
seat, move the seat to the most rearward position
and make sure the child stays in the child restraint
system, properly restrained. Failure to follow these
instructions could result in serious injury or death to
the child.
WARNING
!
Older children should be seated in the rear seat with
their seat belt properly worn, and with an appropri-
ate booster seat (including a booster cushion) if
needed.
Refer to “Children who have outgrown child
restraint systems” on page 2-42.
BK0150700US.book 46 ページ ２０１２年３月２２日　木曜日　午後６時４６分

2-50 Seat and restraint systems
2
Passenger’s seat weight sensors
N00418000322
The passenger’s seat weight sensors are attached to the seat
rails and provide the airbag control unit with information
regarding the weight on the front passenger seat. The airbag
control unit controls deployment of the passenger’s front
airbag in accordance with the information it receives from this
sensor.
The passenger’s front airbag will not deploy in an impact when
the weight on the seat is sensed to be less than approximately
66 pounds (30 kg). In this case, the passenger airbag off indica-
tor will come on.
Refer to “Passenger’s airbag off indicator” on page 2-51.
If there is a problem involving the passenger seat weight sen-
sors, the SRS warning light in the instrument panel will come
on. Refer to “SRS warning light/display” on page 2-52.
WARNING
!
If any of the following conditions occur, you should
have your vehicle inspected by an authorized
Mitsubishi Motors dealer as soon as possible:
• The SRS warning light does not initially come on
when the ignition switch or the operation mode is
under the following conditions.
• [Except for vehicles equipped with the F.A.S.T.- key]
The ignition switch is in the “ON” or “START”
position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.
• The SRS warning light does not go out after sev- eral seconds.
• The SRS warning light comes on while you are
driving.

To ensure that the passenger’s seat weight sensors
can correctly sense the weight being applied to the
seat, observe the following instructions. Failure to
follow these instructions can adversely affect the
performance of the passenger’s airbag system.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-3.
• Do not recline the seatback more than necessary.
• Never have more than one person (adult or child) sitting on the seat.
• Do not place anything between the seat and the floor console.
BK0150700US.book 50 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Seat and restraint systems2-51
2
Passenger’s airbag off indicator
N00418100280
The passenger airbag off indicator is located in the instrument
panel.
The indicator normally comes on when the ignition switch is
turned to the “ON” position or the operation mode is put in
ON, and goes out a few seconds later. In the following situa-
tions, the indicator will stay on to show that the passenger front
airbag is not operational.
The passenger’s seat weight sensors sense a weight of less
than approximately 66 pounds (30 kg) on the front passen-
ger seat.

The front passenger’s seat is not occupied.
When the weight applied to the front passenger seat is sensed
to be approximately 66 pounds (30 kg) or greater, the indicator
goes out to show that the passenger’s front airbag is opera-
tional.
• Do not hang anything on the front passenger’s seatback.
• Do not remove the head restraints.
• When attaching a child restraint system, secure it
firmly.
• Do not place luggage or other objects on the seat.
• Do not use a seat cover or a cushion.
• Do not remove the seats and seat belts.
• Do not modify or replace the seat and seat belt.
• Do not place luggage or other objects under the
seat.
• Do not place the floor mat on the seat rails.
• Do not expose the sensors to liquids or vapors.
• Do not subject the sensors to shock.
• Do not allow rear-seat occupants to push the front passenger seat with their feet or force the front
passenger seat upward.
• Do not allow rear-seat occupants to grasp the front passenger’s seatback or put their arms around it.
• When attaching a child restraint system in the rear seat, make sure it does not interfere with the front
seat.

If the vehicle is involved in a severe impact, have the
SRS sensors inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
WARNING
!
BK0150700US.book 51 ページ ２０１２年３月２２日　木曜日　午後６時４６分

2-62 Seat and restraint systems
2
WARNING
!
Side airbags and curtain airbags can cause serious
injury or death to anyone too close to the airbag
when it deploys. To reduce the risk of injury from a
deploying side airbag or curtain airbag, driver and
front passenger must be properly restrained and
seated well back, upright, and in the middle of the
seat. Do not lean against the door.
WARNING
!
In order to reduce the risk of injury from a deploy-
ing side airbag, do not allow any rear seat passen-
gers to hold onto the back of either front seat.
Special care should be taken with children.
Do not place any objects around the area where the
side airbags deploy. Such objects can interfere with
proper side airbag deployment, and cause injury
during deployment of the side airbag.
Do not place stickers, labels or additional trim on
the back of either front seat. They can interfere with
proper side airbag deployment.
BK0150700US.book 62 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Seat and restraint systems2-63
2
WARNING
!
Do not attach a microphone (A) or any other object
around the part where the curtain airbag (B)
deploys, such as on the windshield, side door glass or
front and rear pillars and roof side rail. When the
curtain airbag inflates, the microphone or other
object may be hurled with great force or the curtain
airbag may not inflate correctly, resulting in death
or serious injury.
WARNING
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
Do not install seat covers or re-cover seats that have
side airbags. Covers can interfere with proper side
airbag deployment and adversely affect side airbag
performance.
Never install a rear-facing child restraint system in
the front passenger seat. Rear-facing child restraint
systems MUST ONLY be used in the rear seat.
Front-facing child restraint systems should also be
used ONLY in the rear seat. If a front-facing child
restraint system must be used in the front passenger
seat, move the seat as far back as possible, and make
sure that the child stays in the child restraint system,
properly restrained and away from the door.
Do not allow a child to lean against or sit close to the
passenger door, even if the child is seated in a child
restraint system. The child’s head should also not
lean against or be close to the section of the seatback
where the side airbag and curtain airbag are
located. It is dangerous if the side airbag or curtain
airbag deploys. Failure to follow all of these instruc-
tions could lead to serious injury or death to the
child.
BK0150700US.book 63 ページ ２０１２年３月２２日　木曜日　午後６時４６分

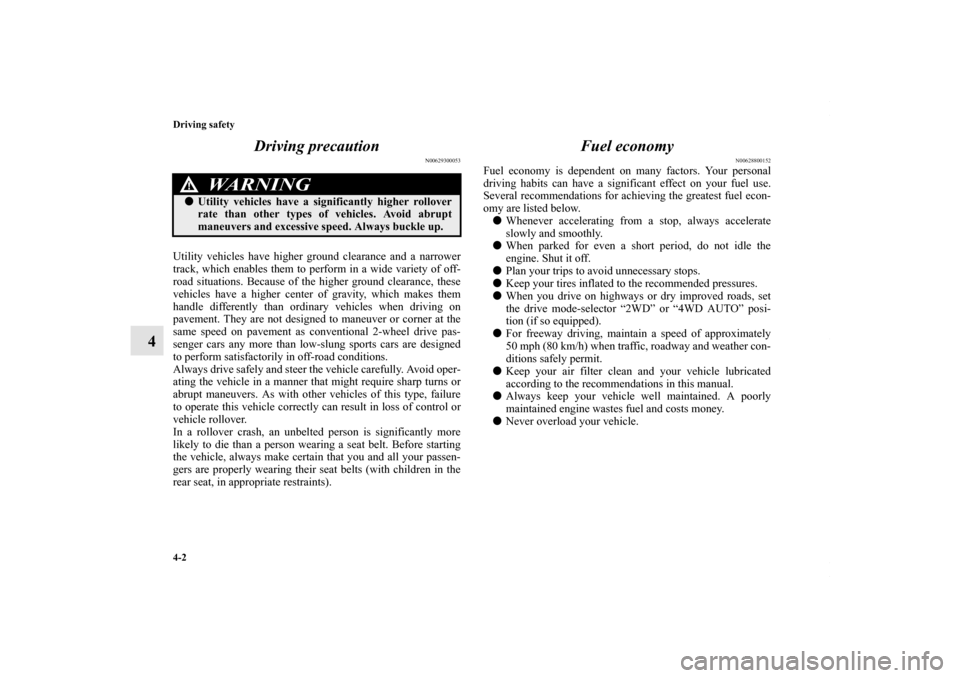

4-2 Driving safety
4Driving precaution
N00629300053
Utility vehicles have higher ground clearance and a narrower
track, which enables them to perform in a wide variety of off-
road situations. Because of the higher ground clearance, these
vehicles have a higher center of gravity, which makes them
handle differently than ordinary vehicles when driving on
pavement. They are not designed to maneuver or corner at the
same speed on pavement as conventional 2-wheel drive pas-
senger cars any more than low-slung sports cars are designed
to perform satisfactorily in off-road conditions.
Always drive safely and steer the vehicle carefully. Avoid oper-
ating the vehicle in a manner that might require sharp turns or
abrupt maneuvers. As with other vehicles of this type, failure
to operate this vehicle correctly can result in loss of control or
vehicle rollover.
In a rollover crash, an unbelted person is significantly more
likely to die than a person wearing a seat belt. Before starting
the vehicle, always make certain that you and all your passen-
gers are properly wearing their seat belts (with children in the
rear seat, in appropriate restraints).
Fuel economy
N00628800152
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.

When parked for even a short period, do not idle the
engine. Shut it off.

Plan your trips to avoid unnecessary stops.

Keep your tires inflated to the recommended pressures.

When you drive on highways or dry improved roads, set
the drive mode-selector “2WD” or “4WD AUTO” posi-
tion (if so equipped).

For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.

Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.

Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.

Never overload your vehicle.
WARNING
!
Utility vehicles have a significantly higher rollover
rate than other types of vehicles. Avoid abrupt
maneuvers and excessive speed. Always buckle up.
BK0150700US.book 2 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Driving safety4-5
4
Vehicle preparation before driving
N00629000669
For a safer and more enjoyable trip, always check for the fol-
lowing:Seat belts and seats

Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors and liftgate are locked.

Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators and multi-information display
for any possible problem.

In the same way, the front passenger seat should also be
moved as far back as possible.

Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.DefrostersCheck these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
Refer to “Defrosting or defogging (windshield, door win-
dows)” on page 5-14, 5-23, 5-33, 5-43.
WARNING
!
Before driving, be sure to check the following:
• Periodically check that the floor mat is properly
secured with the retaining clips.
If you remove the floor mat while cleaning the
inside of your vehicle or for any other reason,
always check the condition of the floor mat after it
has been reinstalled.
• While the vehicle is stopped with the engine off, check that the floor mat is not interfering with the
pedals by depressing the pedals fully.
BK0150700US.book 5 ページ ２０１２年３月２２日　木曜日　午後６時４６分
