2013 MITSUBISHI OUTLANDER SPORT sensor

3-124 Features and controls
3
NOTE
Mirror image is displayed on the screen.

Monitor brightness is adjusted automatically by sensors.

It is possible to change the display language of the screen.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System” or
“Change language or turn off the inside rearview mirror
screen: To change the language of warning text (3)” on
page 3-124.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens. Change language or turn off the inside rearview
mirror screen
N00568900053
It is possible to turn off the screen of the inside rearview mirror
and change the language of the warning messages on the
screen.
To temporarily set the non-display modeIf you press the switch (1) while the image appears on the
screen, it goes off temporarily.
To return to display mode, press the switch again or perform
the following operation.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
Turn the ignition switch to the “ON” position after turning to
“OFF” or “ACC” position.
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
Put the operation mode in ON after putting the operation mode
in OFF.
BK0150700US.book 124 ページ ２０１２年３月２２日　木曜日　午後６時４６分

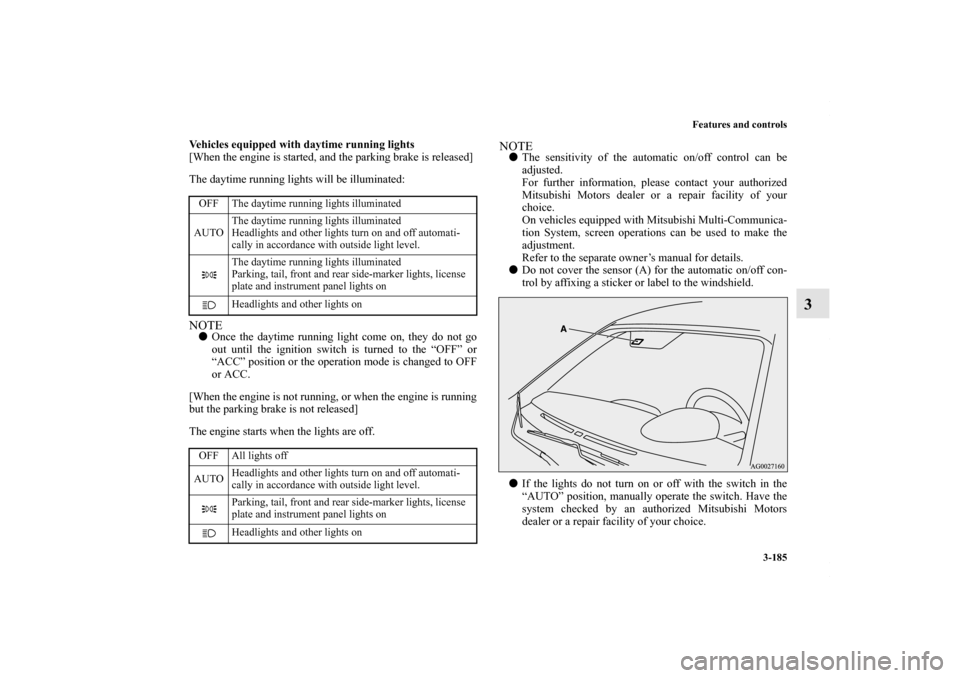

Features and controls3-185
3
Vehicles equipped with daytime running lights
[When the engine is started, and the parking brake is released]
The daytime running lights will be illuminated:NOTE
Once the daytime running light come on, they do not go
out until the ignition switch is turned to the “OFF” or
“ACC” position or the operation mode is changed to OFF
or ACC.
[When the engine is not running, or when the engine is running
but the parking brake is not released]
The engine starts when the lights are off.
NOTE
The sensitivity of the automatic on/off control can be
adjusted.
For further information, please contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.

Do not cover the sensor (A) for the automatic on/off con-
trol by affixing a sticker or label to the windshield.

If the lights do not turn on or off with the switch in the
“AUTO” position, manually operate the switch. Have the
system checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
OFF The daytime running lights illuminated
AUTO The daytime running lights illuminated
Headlights and other lights turn on and off automati-
cally in accordance with outside light level.
The daytime running lights illuminated
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
OFF All lights off
AUTO Headlights and other lights turn on and off automati-
cally in accordance with outside light level.
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0150700US.book 185 ページ
２０１２年３月２２日　木曜日　午後６時４６分

3-194 Features and controls
3

If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the combination headlights and dimmer switch
back to “ ” position, and turning the knob in the direc-
tion of the “ON” position.

Do not use fog lights except in conditions of fog, other-
wise excessive light glare may temporarily blind oncom-
ing vehicle drivers.
Wiper and washer switch
N00523000653
Windshield wipersNOTE
To ensure a clear rearward view, the rear window wiper
will automatically perform several continuous operations
if the gearshift lever or the selector lever is put in the “R”
position while the windshield wipers are operating.
Refer to “Rear window wiper and washer” on page 3-201.Except for vehicle with rain sensorThe windshield wiper and washer can be operated with the
ignition switch or the operation mode is in ON or ACC.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
BK0150700US.book 194 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-196 Features and controls
3
Misting function
The misting function can be used when the ignition switch or
the operation mode is in ON or ACC.
The wipers will operate once if the wiper lever is raised to the
“MIST” position and released. This operation is useful when it
is drizzling, etc. The wipers will continue to operate while the
lever is held in the “MIST” position.
Vehicle with rain sensorThe windshield wipers can be operated with the ignition switch
or the operation mode is in ON or ACC.
If the blades are frozen to the windshield or rear window, do
not operate the wipers until the ice has melted and the blades
are freed, otherwise the wiper motor may be damaged.MIST- Misting functionThe wipers will operate once.
OFF- Off INT- Auto-wiper control Rain sensor
The wipers will automatically operate depending on the
degree of wetness on the windshield.
LO- Slow HI- Fast
BK0150700US.book 196 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-197
3
Rain sensor (if so equipped)
Can only be used when the ignition switch or the operation
mode is in ON.
If the lever is put in the “AUTO” position, the rain sensor (A)
will detect the extent of rain (or snow, other moisture, dust,
etc.) and the wipers will operate automatically.
Keep the lever in the “OFF” position if the windshield is dirty
and the weather is dry.
Wiper operation under these conditions can scratch the wind-
shield and damage the wipers.
CAUTION
!
With the ignition switch or the operation mode in
ON and the lever in the “AUTO” position, the wip-
ers may automatically operate in the situations
described below.
• When cleaning the outside surface of the wind-
shield, if you touch the rain sensor.
• When cleaning the outside surface of the wind- shield, if you wipe with a cloth the rain sensor.
• When using an automatic car wash.
• A physical shock is applied to the windshield.
• A physical shock is applied to the rain sensor.If your hands get trapped, you could suffer injuries
or the wipers could malfunction. Be sure to turn the
ignition switch to the “OFF” position or put the
operation mode in OFF, or move the lever to the
“OFF” position to deactivate the rain sensor.
BK0150700US.book 197 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-198 Features and controls
3
NOTE
To protect the rubber parts of the wipers, this operation of
the wipers does not take place when the vehicle is station-
ary and the ambient temperature is about 32 °F (0 °C) or
lower.

Do not cover the sensor by affixing a sticker or label to the
windshield. Also, do not put any water-repellent coating
on the windshield. The rain sensor would not be able to
detect the extent of rain, and the wipers might stop work-
ing normally.

In the following cases, the rain sensor may be malfunc-
tioning. Have the vehicle checked at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
• When the wipers operate at a constant interval despite
changes in the extent of rain.
• When the wipers do not operate even though it is rain- ing.

The wipers may automatically operate when things such
as insects or foreign objects are affixed to the windshield
on top of the rain sensor or when the windshield is frozen.
Objects affixed to the windshield will stop the wipers
when the wipers cannot remove them. To operate the wip-
ers again, move the lever to the “LO” or “HI” position.
Also, the wipers may operate automatically due to strong
direct sunlight or electromagnetic wave. To stop the wip-
ers, move the lever to the “OFF” position.

Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice when replacing the wind-
shield glass. To adjust the sensitivity of the rain sensor
With the lever in the “AUTO” (rain sensor) position, it is possi-
ble to adjust the sensitivity of the rain sensor by turning the
knob (B).
“+”- Higher sensitivity to rain
“-”- Lower sensitivity to rain
BK0150700US.book 198 ページ ２０１２年３月２２日　木曜日　午後６時４６分

4-6 Driving safety
4
TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressure. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel.Fluid leaksCheck the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
Safe driving techniques
N00629200094
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:
Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
BK0150700US.book 6 ページ ２０１２年３月２２日　木曜日　午後６時４６分

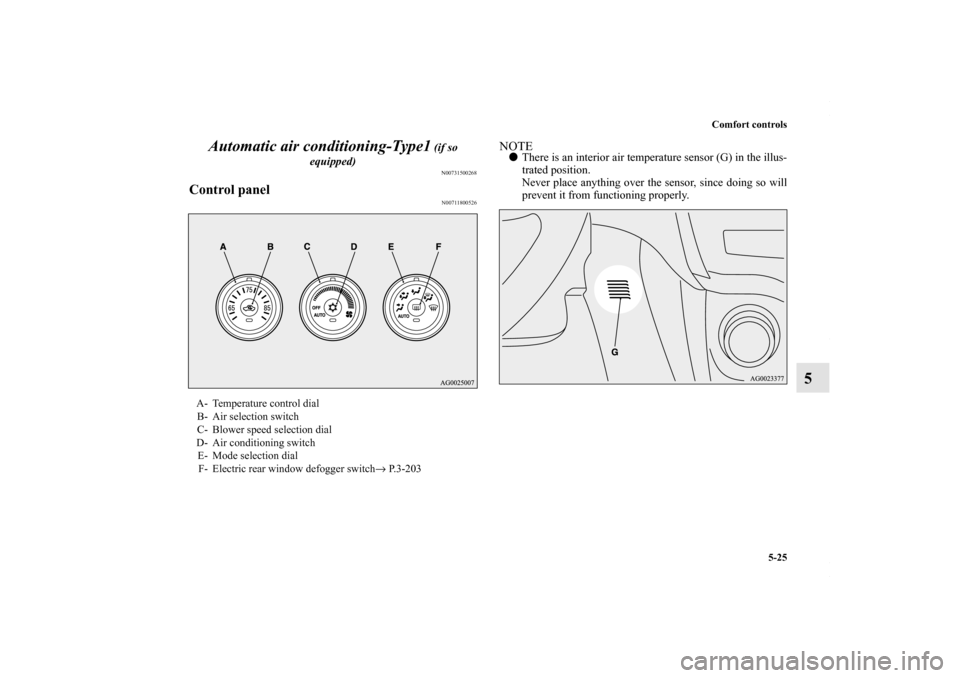

Comfort controls5-25
5
Automatic air conditioning-Type1
(if so
equipped)N00731500268
Control panel
N00711800526
NOTE
There is an interior air temperature sensor (G) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.
A- Temperature control dial
B- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch E- Mode selection dial
F- Electric rear window defogger switch → P.3-203
