Page 108 of 602

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual Features and controls3-11
3
Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remo

Features and controls3-11
3
Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:1. Have available all (current and new) remote control trans- mitters you wish to register.
2. With a valid (already registered) remote control transmit- ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4. 6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE For verification purposes, try to lock and unlock the doors
after the registration is completed.
The indicator light (4) comes on each time a button is
pressed.
The keyless entry system does not work if the key is in the
ignition switch.
The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.
If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.
If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0150700US.book 11 ページ２０１２年３月２２日　木曜日　午後６時４６分

Page 109 of 602

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual 3-12 Features and controls
3
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be

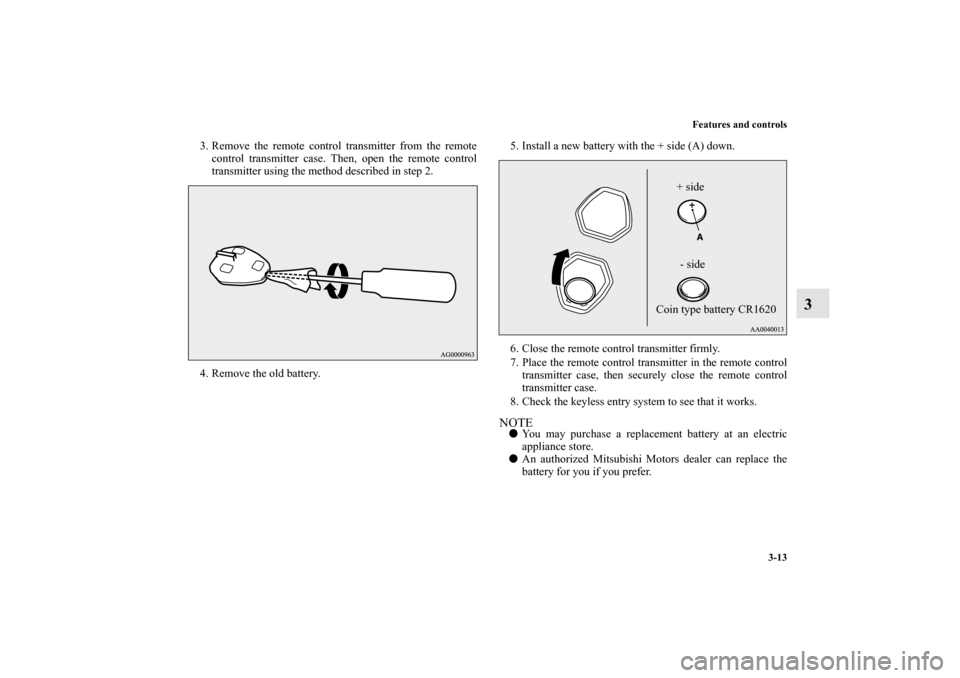

Page 110 of 602

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual Features and controls3-13
3
3. Remove the remote control transmitter from the remotecontrol transmitter case. Then, open the remote control
transmitter using the method described in step 2.
4. Remove

Page 111 of 602

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual 3-14 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100111
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the

Page 112 of 602

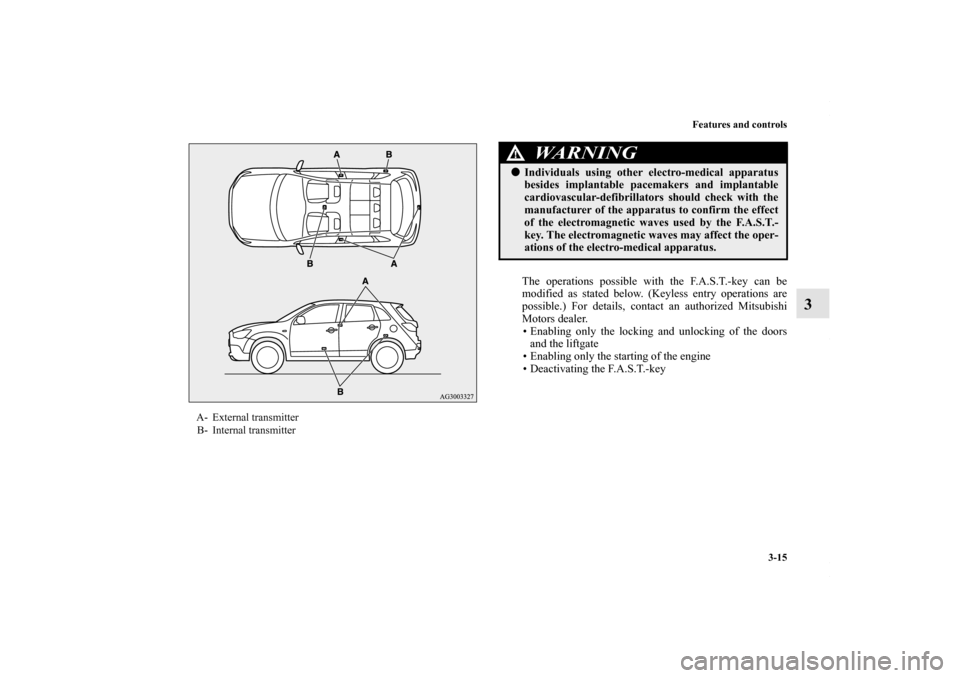

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual Features and controls3-15
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors

Page 113 of 602

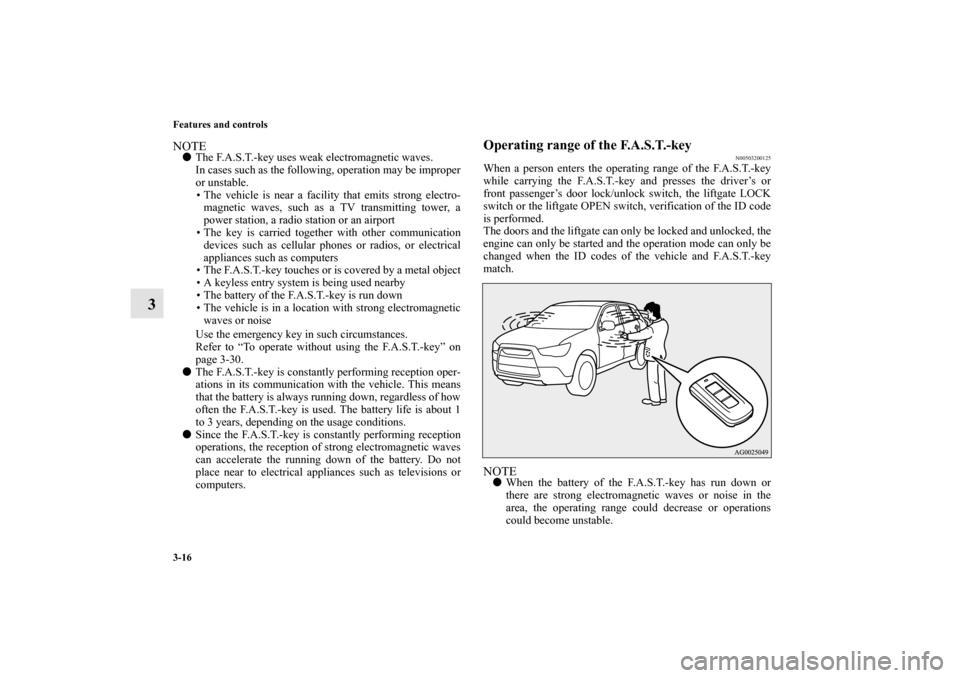

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual 3-16 Features and controls
3
NOTEThe F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits

3-16 Features and controls
3
NOTEThe F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro- magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-30.
The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.
Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200125
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s or
front passenger’s door lock/unlock switch, the liftgate LOCK
switch or the liftgate OPEN switch, verification of the ID code
is performed.
The doors and the liftgate can only be locked and unlocked, the
engine can only be started and the operation mode can only be
changed when the ID codes of the vehicle and F.A.S.T.-key
match.NOTEWhen the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0150700US.book 16 ページ２０１２年３月２２日　木曜日　午後６時４６分

Page 130 of 602

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual Features and controls3-33
3
8. If you wish to register another F.A.S.T.-key, repeat theprocess from step 1 after the operation mode is put in
OFF.NOTE The immobilizer display will go off immediately

Page 131 of 602

MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual 3-34 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTEIf you press the LOCK button (1) twice, the h

3-34 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTEIf you press the LOCK button (1) twice, the horn will
sound once.To u n l o c kPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-189.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-35.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.
Horn deactivation/reactivation
The answerback function can be set in the following three
ways.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step
3.NOTE On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0150700US.book 34 ページ２０１２年３月２２日　木曜日　午後６時４６分
