2013 MITSUBISHI LANCER display

Basic Method 3-3
Destination
NOTE
recently selected
cities from the
corresponding state
can be selected by
touching [Last 5] of
“City”.eng_a048
5 Input the city name>>> “How to Enter Text” (page 2-13)
eng_a047
NOTE
input for the city name, go to step 6.
is input for the city name, a list is displayed and a
city can be selected from the list.
select a city from
the list.
eng_a049
NOTE
Touch [Keyword] to
display only the city
names that include
the input letters.
The city can then
be selected from
this list.
eng_a050
to input the zip
code and specify
the address. Note
that [Last 5] is not
stored for the zip
code.
eng_a051
If there is only one candidate when a character is input for the zip code, go to step 6.

If there are ve candidates or less when a character
is input for the zip code, a list is displayed and a zip
code can be selected from the list.
Touch [List] on
the “Zip Code
Input” screen after
inputting a character
to display only
the zip codes that
start with the input
eng_a052
character. The zip code can then be selected from this list.
6 Touch the “Street” button
NOTE
the corresponding state and city can be selected by
touching [Last 5] of “Street”.
7 Input the street name>>> “How to Enter Text” (page 2-13)
eng_a053
NOTEinput for the street name, go to step 8.
is input for the street name, a list is displayed and a
street can be selected from the list.
select a street from
the list.
eng_a054
Touch [Keyword] to
display only the street
names that include
the input letters. The
street can then be
selected from this list.
eng_a055
\b \b
\f \

  \b
\b \f

Basic Method 3-5
Destination
Intersection InputThe intersection name can be input to set a detailed
address.
1 Input the “State”, “City” and “Street”
in
“From Address/Intersection” (page 3-2)
2 Touch the “Intersection” button

3 Touch the intersection to be set
as the destination
eng_a061
4 Touch [Set]
eng_a062>>> Continued at “Destination Setting” (page 3-12)
Points of Interest (POI) Name
Used when the name of the desired POI is
known.

1 Display the Navi Menu and touch
[Point of Interest]

2 Input the “State” and “City”Input the “State” and “City” with the same operations
as in “From Address/Intersection” (page 3-2).
eng_a063-1
3 Touch the “Category” buttonThe “POI Category” screen is displayed.
The operation in step 5 can be performed even if a
category is not selected.
4 Touch the category of the desired
POI
eng_a064
NOTE
categories that have already been stored. Refer to
“Editing My Categories” (page 3-6) for details on
storing a category.
can be selected by touching [Last 5].

5 Touch category type to select

6 Touch the “Point of Interest”
button

7 Input the POI name>>> “How to Enter Text” (page 2-13)
eng_a065
NOTE
input for the POI name, go to step 7.

If there are five
candidates or less
when a character is
input for the POI name,
a list is displayed
and a POI can be
selected from the list.
eng_a066
will be shown and you can select the related facility.
\b \b
\f \

   \b
\b \f

Basic Method 3-6
8 Touch [Set]
eng_a067
NOTE
When a facility marked
with is selected
from the POI Name
List, [Sub POI] will be
displayed in the lower
part of the screen.
eng_a068to display the
list and select
a detailed POI.
eng_a069
>>> Continued at “Destination Setting” (page 3-12)
Editing My CategoriesFrequently used POI categories can be stored in “My
Categories”.
A maximum of six category items can be stored in “My
Categories”.
1 Display the “POI Category” screen>>> “Points of Interest (POI) Name” (page 3-5)
2 Touch [My Categories]
eng_a064
3 Touch [Edit My Categories]A list is displayed of all categories.
4 Touch the category to store
eng_a070
NOTE
Touch a stored category to clear the stored item.
items.
items are stored before shipment).
5 Touch [Back]
eng_a071The categories currently displayed are stored, and the
display returns to the original “POI Category” screen.
\b \b
\f \

  \b
\b \f

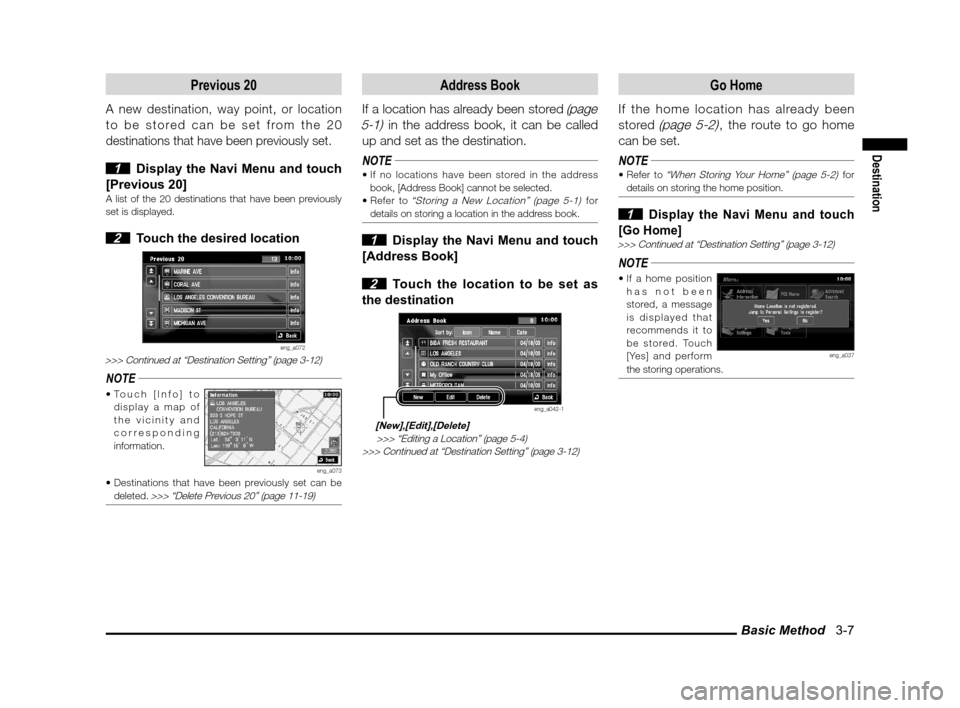

Basic Method 3-7
Destination
Previous 20
A new destination, way point, or location
to be stored can be set from the 20
destinations that have been previously set.
1 Display the Navi Menu and touch
[Previous 20]
A list of the 20 destinations that have been previously
set is displayed.
2 Touch the desired location
eng_a072>>> Continued at “Destination Setting” (page 3-12)
NOTE

display a map of
the vicinity and
corresponding
information.
eng_a073deleted. >>> “Delete Previous 20” (page 11-19)
Address Book
If a location has already been stored (page
5-1)
in the address book, it can be called
up and set as the destination.
NOTE

book, [Address Book] cannot be selected.
to
“Storing a New Location” (page 5-1) for
details on storing a location in the address book.
1 Display the Navi Menu and touch
[Address Book]

2 Touch the location to be set as
the destination
eng_a042-1
[New],[Edit],[Delete]
>>> “Editing a Location” (page 5-4)
>>> Continued at “Destination Setting” (page 3-12)
Go Home
If the home location has already been
stored
(page 5-2), the route to go home
can be set.
NOTE
to “When Storing Your Home” (page 5-2) for
details on storing the home position.
1 Display the Navi Menu and touch
[Go Home]
>>> Continued at “Destination Setting” (page 3-12)
NOTE

has not been
stored, a message
is displayed that
recommends it to
be stored. Touch
[Yes] and perform
eng_a037
the storing operations.
\b \b
\f \

  \b
\b
\f

Advanced Search 3-8
Advanced Search
Separate from the basic search functions,
a specialized search is possible using the
advanced search functions.
1 Press the [Menu]
eng_a645The navi menu is displayed.
2 Touch [Advanced Search]
eng_a502-2
eng_a075-2The “Advanced Search” menu is displayed.
Nearby POI
Searching for POI in the vicinity of the
current location.
A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the current location.
1 Display the “Advanced Search”
menu and touch [Nearby POI ]

2 Touch the category of the desired POI
eng_a076-1
NOTE
categories that have already been stored. Refer to
“Editing My Categories” (page 3-6) for details on
storing a category.
can be selected by touching [Last 5].

3 Touch category type to select
\b \b
\f \

  \b
\b
\f

Advanced Search 3-9
Destination
4 Touch the desired POI
eng_a077>>> Continued at “Destination Setting” (page 3-12)
NOTE
display a map of
the vicinity and
corresponding
information.
eng_a078
From the Scroll MenuPOIs in the vicinity of a specified location can be
searched for from the scroll menu.
1 Scroll the map and place the
cursor on the location of the desired
facility, and press the [ENT] key
eng_a646
2 Touch [Nearby POI ]The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8).
eng_a603
POI along Route
Searching for POI along the set route. A
maximum of 100 POIs can be searched
for.

1 Display the “Advanced Search”
menu and touch [POI along Route]
The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8).
POI by Dest./Way Point
Searching for POI in the vicinity of the set
destination/way point.
A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the destination or way
point.
1 Display the “Advanced Search”
menu and touch [POI by Dest./WP]
2 Touch the destination or way point
eng_a081The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8).
NOTE
Touch [Info] to display
a map of the vicinity
and corresponding
information.
eng_a082
\b \b
\f \

  \b
\b
\f

Advanced Search 3-10
POI along a Street
Searching for POI along a speci ed street.

1 Display the “Advanced Search”
menu and touch [POI along a Street]

2 Input the “State”, “City” and “Street”Input the “State”, “City” and “Street” with the same
operations as in “From Address/Intersection” (page 3-2)
eng_a083
NOTE
location, “No POI found” is displayed. Touch [OK]
and set a different location.
3 Touch the “Category” button

4 Touch the category of the desired POI
eng_a084
5 Touch the “Point of Interest”
button
6 Input the POI name>>> “How to Enter Text” (page 2-13)
eng_a085
NOTE
input for the POI name, go to step 7.

If there are five
candidates or less
when a character is
input for the POI name,
a list is displayed and
a POI can be selected
from the list.
eng_a086
7 Touch [Set]
eng_a087>>> Continued at “Destination Setting” (page 3-12)
POI by Freeway
Searching for POI along a freeway or in
the vicinity of the exit.
Can only be used when driving on a
freeway.

1 Display the “Advanced Search”
menu and touch [POI by FWY]
The FWY area list screen is displayed.
2 Touch the desired area
eng_a088The map for the POI with the highest priority in the
desired exit area is displayed.
NOTE
] is displayed
when there are
two or more POIs
in the area.
Touch
[ ] to display the
POI list and make a
detailed selection.
eng_a089
\b \b
\f \


 \b
\b \f

Advanced Search 3-11
Destination
3 Touch [Set]
eng_a090>>> Continued at “Destination Setting” (page 3-12)
FWY Area List Screen
eng_a090
A) Area information
a) Exit number
b) Freeway name
c) Distance from vehicle
B) The POI with the highest priority in the vicinity of the exit
d) The closest POI to the exit
C) POI list display button

Displayed if there are two or more facilities in the area
vicinity. Displays the list and enables selection of stored
facilities at the destination or along the route.
Map Point
Searching for a location by scrolling (page
2-8)
the map.

1 Display the “Advanced Search”
menu and touch [Map Point]
The scroll menu is displayed.
The remaining operations are the same as from
“Destination Setting for Sc rolled Position” (page 2-8).
Return Trip
The starting position when setting a route
can be set as a new destination.

1 Display the “Advanced Search”
menu and touch [Return Trip]
A map of the vicinity is displayed with the starting
position at the center.
>>> Continued at “Destination Setting” (page 3-12)
Latitude/Longitude
The destination can be set by specifying
the latitude/longitude.

1 Display the “Advanced Search”
menu and touch [Latitude/Longitude]
The latitude/longitude of the current location are
displayed.
2 Touch [Latitude] or [Longitude]
eng_a091The latitude or longitude can now be edited.
3 Input the latitude/longitude of the
destination
eng_a092
NOTE ] or [ ] to change the input position.
4 Touch [Set]>>> Continued at “Destination Setting” (page 3-12)
a)
c) b)d)
A) B) C)
