2013 MITSUBISHI LANCER display

Intersection Guidance 2-10
Intersection Guidance
An enlarged intersection map is displayed
when an intersection is approached.
The guidance mode can be changed with the
settings.
NOTE
“Guidance Mode” (page 11-14) for details on
how to change the guidance mode.
Guidance Map
The screen changes from the normal map
screen to the intersection guidance map.
eng_a638
NOTE
there is a ferry terminal.
eng_a030

eng_a639
Turn List
The screen changes from the turn list to
the intersection guidance map.
eng_a640
NOTE
The toll booth mark is displayed
when there is a toll booth.
eng_a207The ferry mark is displayed when
there is a ferry terminal.
eng_a029

eng_a639
\b \b
\f \


 \b
\b \f

Intersection Guidance 2-11
Basic Operation
Arrow Guide
The screen changes from the arrow guide
to the intersection guidance map.
eng_a641
NOTE
The ferry illustration
is displayed when
there is a ferry
terminal.
eng_a642

eng_a639
\b \b
\f \



 \b
\b \f

Listening to the Voice Guide 2-12
Listening to the Voice Guide
The voice guide provides information
regarding the distance to the next intersection
on the route and the direction you should turn.
The voice guide comes on automatically
when approaching in intersection, but can
be activated at any time by the following
operation:

1 Touch the [Maneuver icon]
Maneuver Icon
eng_a643
eng_a644The intersection guidance map is displayed, and voice
guidance is performed.
NOTEThe voice guidance volume and male or female voice
selection can be changed.

>>> “Other Settings” (page 11-5)
\b \b
\f \


 \b
\b \f

How to Enter Text 2-13
Basic Operation
How to Enter Text
The text input keyboard is displayed when
searching for a location or for the name of a
stored location.
Capital letters, small letters, and symbols can
be input depending on the function.
NOTE

for editing stored locations, but operations for other
input keyboards are performed in the same way.
[Alphabet] and [PC] using “Keyboard Layout” in
“Other Settings”
(page 11-6)
eng_a036
Entering a letter
1 Touch the letters
eng_a036The touched letters are input.
Entering a Symbol
1 Touch [More]

2 Touch the symbols
eng_a038
eng_a039The touched symbols are input.
Deleting Text
1 Touch [ ]
eng_a039
eng_a036The letters are deleted one by one.
\b \b
\f \


 \b
\b \f

How to Enter Text 2-14
Clear All Text

1 Touch [Clear All]
eng_a036
eng_a040All the input letters are deleted.
Switching between Upper Case
and Lower Case
1 Touch [A/a]
eng_a041The letter changes to lower case.
2 Touch [A/a] again
eng_a036The letter returns to upper case.
Completing the input
1 Touch [Set] The input letters are set, and the screen returns to the
original display.
\b \b
\f \


\b \b
\b \f

Voice Operation 2-15
Basic Operation
Voice Operation
(if so equipped)
Mobile Phone voice control is available if
your vehicle is equipped with a Bluetooth® 2.0
interface, iPod and USB memory device.
To use the voice operation
1 Press the SPEECH button
SPEECH button
2 Say the voice command out loud
NOTE
The voice commands
are displayed when
the [Help] button is
touched.
eng_a675
\b \b
\f \


 \b
\b \f

Basic Method 3-1
Destination
Destination
Navigation operations start with the location
search.
If a map of the destination can be displayed,
the route to the destination can be set and the
location can be stored in the address book.
The following search methods are available
to search for locations according to various
conditions.
Basic Method
From Address/Intersection (page 3-2)Used when the address or intersection of 2 streets at
the destination is known.
Points of Interest (POI) Name (page 3-5)Used when the name of the desired POI is known.
Previous 20 (page 3-7)A new destination can be set from the 20 destinations
that have been previously set.
Address Book (page 3-7)If a location has already been stored (page 5-1) in
the address book, it can be called up and set as the
destination.
Go Home (page 3-7)If the home location has already been stored (page
5-3), the route to go home can be set.
“POI”=Points of Interest
Advanced Search
Nearby POI (page 3-8)Searching for POI in the vicinity of the current location.
POI along Route (page 3-9)Searching for POI along the set route.
POI by Dest./Way Point (page 3-9)Searching for POI in the vicinity of the set destination/
way point.
POI along a Street (page 3-10)Searching for POI along a speci ed street.
POI by Freeway (page 3-10)Searching for POI along a freeway or in the vicinity of
the exit.
Can only be used when driving on a freeway.
Map Point (page 3-11)Searching for a location by scrolling (page 2-8) the
map.
Return Trip (page 3-11)The starting position when setting a route can be set
as a new destination.
Latitude/Longitude (page 3-11)The destination can be set by specifying the latitude/
longitude.
\b \b
\f \


 \b
\b \f

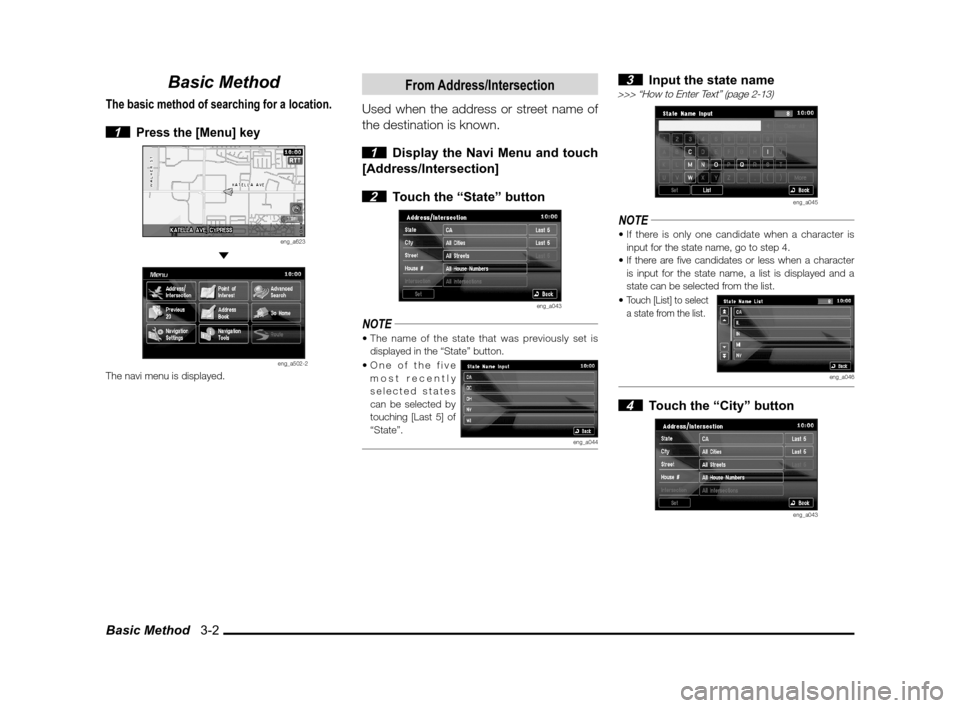

Basic Method 3-2
Basic Method
The basic method of searching for a location.
1 Press the [Menu] key
eng_a623
eng_a502-2The navi menu is displayed.
From Address/Intersection
Used when the address or street name of
the destination is known.

1 Display the Navi Menu and touch
[Address/Intersection]

2 Touch the “State” button
eng_a043
NOTE
displayed in the “State” button.
most recently
selected states
can be selected by
touching [Last 5] of
“State”.
eng_a044
3 Input the state name>>> “How to Enter Text” (page 2-13)
eng_a045
NOTEinput for the state name, go to step 4.
is input for the state name, a list is displayed and a
state can be selected from the list.

Touch [List] to select
a state from the list.
eng_a046
4 Touch the “City” button
eng_a043
