2013 MITSUBISHI LANCER EVOLUTION brake

Overview
Instruments and controls (Instrument panel)
N00100201420
Vents P.5-2
Supplemental restraint system - airbag (for front
passenger’s seat) P.2-33, 2-43
Twin Clutch SST control
mode switch
(if so equipped) P.3-106 Gearshift lever P.3-94, 3-97
Ashtray (if so equipped)
P.3-257Cup holder
(for front seats) P.3-268 Parking brake lever
P. 3 - 7 6 Fuel tank filler
door release lever
P. 1 - 4
Trunk lid release
lever P.3-59
Heated seat switch (if so equipped)
P. 2 - 6Glove compartment
P.3-264
USB input terminal
(if so equipped)
P.3-250
AWC switch
(if so equipped) P.3-122
Floor console box P.3-267
BK0150900US.book 2 ページ ２０１２年５月７日　月曜日　午後１２時９分

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701080
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-
155.

These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P.3-200
or
Brake warning light
If this light comes on while driving, check to see that the parking
brake is fully released.

If this light stays on after releasing the parking brake, stop and check
the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.P.3-198
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)
Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P.3-199
BK0150900US.book 1 ページ ２０１２年５月７日　月曜日　午後１２時９分

4 Quick indexCannot shift the gearshift lever
from the “P” (PARK) position.
(for vehicles with Twin Clutch
SST)Shift the gearshift lever while pressing the brake pedal.
Check that the ignition key or ignition switch is in the “ON” position.P.3-97
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-10, 5-20,
5-30
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-18
Problem
Do this
Ref. page
BK0150900US.book 4 ページ ２０１２年５月７日　月曜日　午後１２時９分

6 Quick index
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-7
Twin Clutch SST does not
shift.
Vehicle cannot move.
Acceleration is slow.
The vehicle does not creep.
A large shock is felt when
shifting.
Shifting occurs at higher
engine speed.
Response is slow.
(for vehicles with Twin Clutch
SST)The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin Clutch
SST has been activated due to a possible malfunction in the Twin Clutch SST, or there is
a possible malfunction in the engine electronic control module.P.3-101,
3-117,
3-199
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6 - 9BK0150900US.book 6 ページ ２０１２年５月７日　月曜日　午後１２時９分

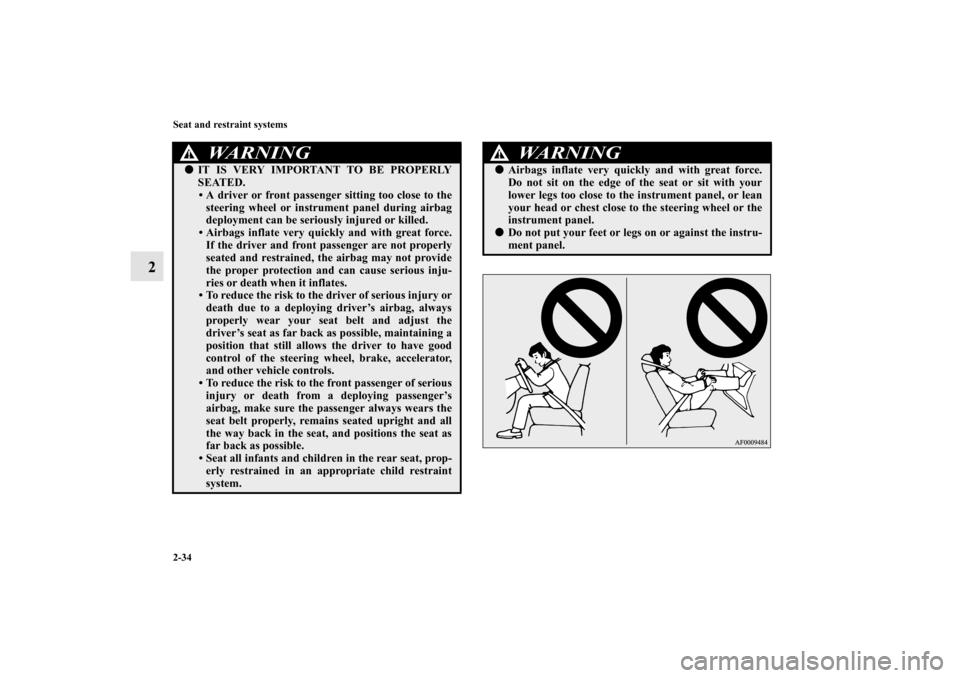

2-34 Seat and restraint systems
2
WA R N I N G
!
IT IS VERY IMPORTANT TO BE PROPERLY
SEATED.
• A driver or front passenger sitting too close to the
steering wheel or instrument panel during airbag
deployment can be seriously injured or killed.
• Airbags inflate very quickly and with great force.
If the driver and front passenger are not properly
seated and restrained, the airbag may not provide
the proper protection and can cause serious inju-
ries or death when it inflates.
• To reduce the risk to the driver of serious injury or
death due to a deploying driver’s airbag, always
properly wear your seat belt and adjust the
driver’s seat as far back as possible, maintaining a
position that still allows the driver to have good
control of the steering wheel, brake, accelerator,
and other vehicle controls.
• To reduce the risk to the front passenger of serious
injury or death from a deploying passenger’s
airbag, make sure the passenger always wears the
seat belt properly, remains seated upright and all
the way back in the seat, and positions the seat as
far back as possible.
• Seat all infants and children in the rear seat, prop-
erly restrained in an appropriate child restraint
system.
WA R N I N G
!
Airbags inflate very quickly and with great force.
Do not sit on the edge of the seat or sit with your
lower legs too close to the instrument panel, or lean
your head or chest close to the steering wheel or the
instrument panel.
Do not put your feet or legs on or against the instru-
ment panel.
BK0150900US.book 34 ページ ２０１２年５月７日　月曜日　午後１２時９分

2-38 Seat and restraint systems
2
When the impact sensors detect a front or side impact sufficient
to deploy the airbag(s), the appropriate airbag(s) will be
deployed.
When airbags deploy, some smoke is released accompanied by
a loud noise. The smoke is not harmful, but do not intentionally
inhale the smoke as it may cause temporary irritation to people
with respiratory problems.
After deployment, the airbags will quickly deflate, so quickly
that some people may not even realize the airbags inflated.
Airbag inflation does not prevent the driver from seeing or
being able to steer the vehicle, and does not prevent people
from leaving the vehicle.
Event Data Recording
N00418600230
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or
near crash-like situations, such as an airbag deployment or hit-
ting a road obstacle, data that will assist in understanding how
a vehicle’s systems performed.
The EDR is designed to record data related to vehicle dynam-
ics and safety systems for a short period of time, typically 30
seconds or less.
The EDR in this vehicle is designed to record such data as:

How various systems in your vehicle were operating;

Whether or not the driver and passenger safety belts were
buckled/fastened;

How far (if at all) the driver was depressing the accelera-
tor and/or brake pedal; and,

How fast the vehicle was traveling.
These data can help provide a better understanding of the cir-
cumstances in which crashes and injuries occur.
CAUTION
!
Airbags inflate very quickly and with great force. In
certain situations, contact with an inflating airbag
may cause small cuts, abrasions, and bruises. Refer
to “Supplemental Restraint System (SRS) - airbag”
on page 2-33.
BK0150900US.book 38 ページ ２０１２年５月７日　月曜日　午後１２時９分

3
Features and controls
Break-in period. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Sunroof (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 73
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 81
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 86
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 87
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 92
Clutch pedal operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 93
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 94
Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) . . . 3- 96
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 118
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . . . 3- 118
S-AWC (Super-All Wheel Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 120
Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 126
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 130
Limited-slip differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134Service brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 136
Power steering system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 145
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 151
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 155
Indicator light, warning light, and information screen display list . . . . 3- 186
Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 198
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 198
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 201
Combination headlights and dimmer switch. . . . . . . . . . . . . . . . . . . . . 3- 203
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 212
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 213
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 213
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 223
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 224
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 250
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
Ashtray (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 258
Interior lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 259
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 263
Cup holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
BK0150900US.book 1 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-2 Features and controls
3Break-in period
N00508700301
For future performance and economy of your vehicle, we rec-
ommend that you carry out the following precautions.

Avoid revving the engine. Do not exceed 5,000 rpm for
the first 600 miles (1,000 km).

Avoid rough driving such as fast starts, prolonged high-
speed driving and rough shifting for the first 300 miles
(500 km).

The high-performance brake pads on your vehicle require
a short break-in period. Avoid hard braking for the first
300 miles (500 km) to prevent future abnormal brake
noise and vibration from your vehicle’s brake pads.

The standard-equipment tires use a high-grip compound.
Thus drive with extra care for the first 200 miles (300
km).

Do not overload the vehicle. Observe the seating capacity
(See “Cargo loads precautions” on page 4-13).

Do not use this vehicle for trailer towing.
Keys
N00508800588
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0150900US.book 2 ページ ２０１２年５月７日　月曜日　午後１２時９分
