2013 MERCEDES-BENZ SL-CLASS ROADSTER wheel

These tires have been specially adapted for
use with the control systems, such as ABS
or ESP
®
, and are marked as follows:
R MO = Mercedes-Benz Original
R MOE =
Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only
certain AMG tires)
Mercedes-Benz Original Extended tires
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories
tested and approved by Mercedes-Benz.
Certain characteristics, e.g. handling,
vehicle noise emissions or fuel
consumption, may otherwise be adversely
affected. In addition, when driving with a
load, tire dimension variations could cause
the tires to come into contact with the
bodywork and axle components. This could
result in damage to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires,
wheels or accessories other than those
tested and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
Overview of abbreviations used in the
following tire tables:
R BA: both axles
R FA: front axle
R RA: rear axle
The recommended pressures for various
operating conditions can be found:
R on the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
R in the tire pressure table on the inside of
the fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions
(Y page 529). Check tire pressures regularly, and only when
the tires are cold. Comply with the
maintenance recommendations of the tire
manufacturer in
the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with:
R tires of the same size on a given axle (left/
right)
R the same type of tires at a given time
(summer tires, winter tires, MOExtended
tires)
Vehicles equipped with MOExtended tires are
not equipped with a TIREFIT kit at the factory.
It is therefore recommended that you
additionally equip your vehicle with a TIREFIT
kit if you mount tires that do not feature run-
flat properties, e.g. winter tires. A TIREFIT kit
may be obtained from a qualified specialist
workshop.
i Not all wheel and tire combinations are
available ex factory for all countries.
i On the following pages, you can find
information on approved wheel rims and
tire sizes for equipping your vehicle with
winter tires. Winter tires are not available
ex factory as standard equipment or
optional extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in
certain circumstances, require rims of the
appropriate size. The sizes of the approved
winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further
information, can be obtained at a qualified
specialist workshop. Wheel and tire combinations
553
Wheels and tires Z

Tires
SL 550 BlueEFFICIENCY Summer tires
R18
Tires Alloy wheels
FA: 255/40 R18 95 Y
RA: 285/35 R18 97 Y3 FA: 8.5 J x 18 H2
Wheel offset: 1.40 in
(35.5 mm

)
RA: 9.5 J x 18 H2
Wheel offset: 1.87 in (47.5 mm) FA:
255/40 R18 95 Y MOExtended
RA: 285/35 R18 97 Y MOExtended , 3 FA: 8.5 J x 18 H2
Wheel offset: 1.40 in
(35.5 mm

)
RA: 9.5 J x 18 H2
Wheel offset: 1.87 in (47.5 mm) R19
Tires Alloy wheels
FA:
255/35 R19 96 Y XL
RA: 285/30 R19 98 Y XL 3 FA: 8.5 J x 19 H2
Wheel offset: 1.40 in
(35.5 mm

)
RA: 9.5 J x 19 H2
Wheel offset: 1.87 in (47.5 mm) FA:
255/35 R19 96 Y XL MOExtended
RA: 285/30 R19 98 Y XL MOExtended , 3 FA: 8.5 J x 19 H2
Wheel offset: 1.40 in
(35.5 mm

)
RA: 9.5 J x 19 H2
Wheel offset: 1.87 in (47.5 mm) FA:
255/35 ZR 19 96 Y XL
RA: 285/30 ZR19 98 Y XL 3 FA: 8.5 J x 19 H2
Wheel offset: 1.40 in
(35.5 mm

)
RA: 9.5 J x 19 H2
Wheel offset: 1.89 in (48 mm) 3
The use of snow chains is not permissible. Observe the notes in the "Snow chains" section.554
Wheel and tire combinations
Wheels and tires

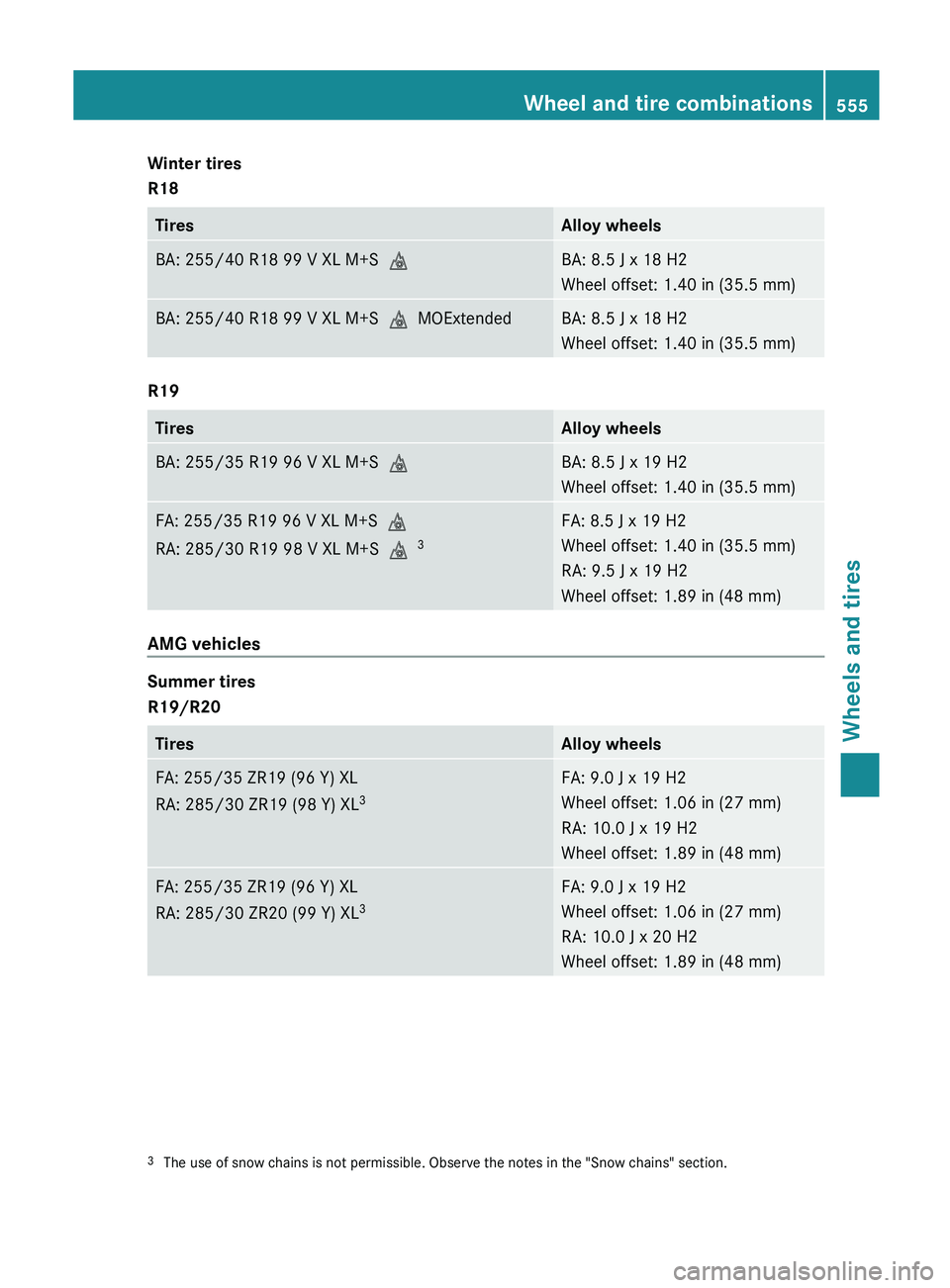

Winter tires
R18
Tires Alloy wheels
BA: 255/40 R18 99 V XL M+S
i BA: 8.5 J x 18 H2
Wheel offset: 1.40 in
(35.5 mm
)BA: 255/40 R18 99 V XL M+S
iMOExtended BA: 8.5 J x 18 H2
Wheel offset: 1.40 in
(35.5 mm

)R19
Tires Alloy wheels
BA: 255/35 R19 96 V XL M+S
i BA: 8.5 J x 19 H2
Wheel offset: 1.40 in
(35.5 mm

)FA: 255/35 R19 96 V XL M+S
i
RA: 285/30 R19 98 V XL M+S i3 FA: 8.5 J x 19 H2
Wheel offset: 1.40 in
(35.5 mm

)
RA: 9.5 J x 19 H2
Wheel offset: 1.89 in (48 mm) AMG vehicles
Summer tires
R19/R20
Tires Alloy wheels
FA: 255/35 ZR19 (96 Y) XL
RA: 285/30
ZR19 (98 Y) XL 3 FA: 9.0 J x 19 H2
Wheel offset: 1.06 in
(27 mm)
RA: 10.0 J x 19 H2
Wheel offset: 1.89 in

(48 mm)FA: 255/35 ZR19 (96 Y) XL
RA: 285/30
ZR20 (99 Y) XL 3 FA: 9.0 J x 19 H2
Wheel offset: 1.06 in
(27 mm)
RA: 10.0 J x 20 H2
Wheel offset: 1.89 in

(48 mm)3
The use of snow chains is not permissible. Observe the notes in the "Snow chains" section. Wheel and tire combinations
555
Wheels and tires Z

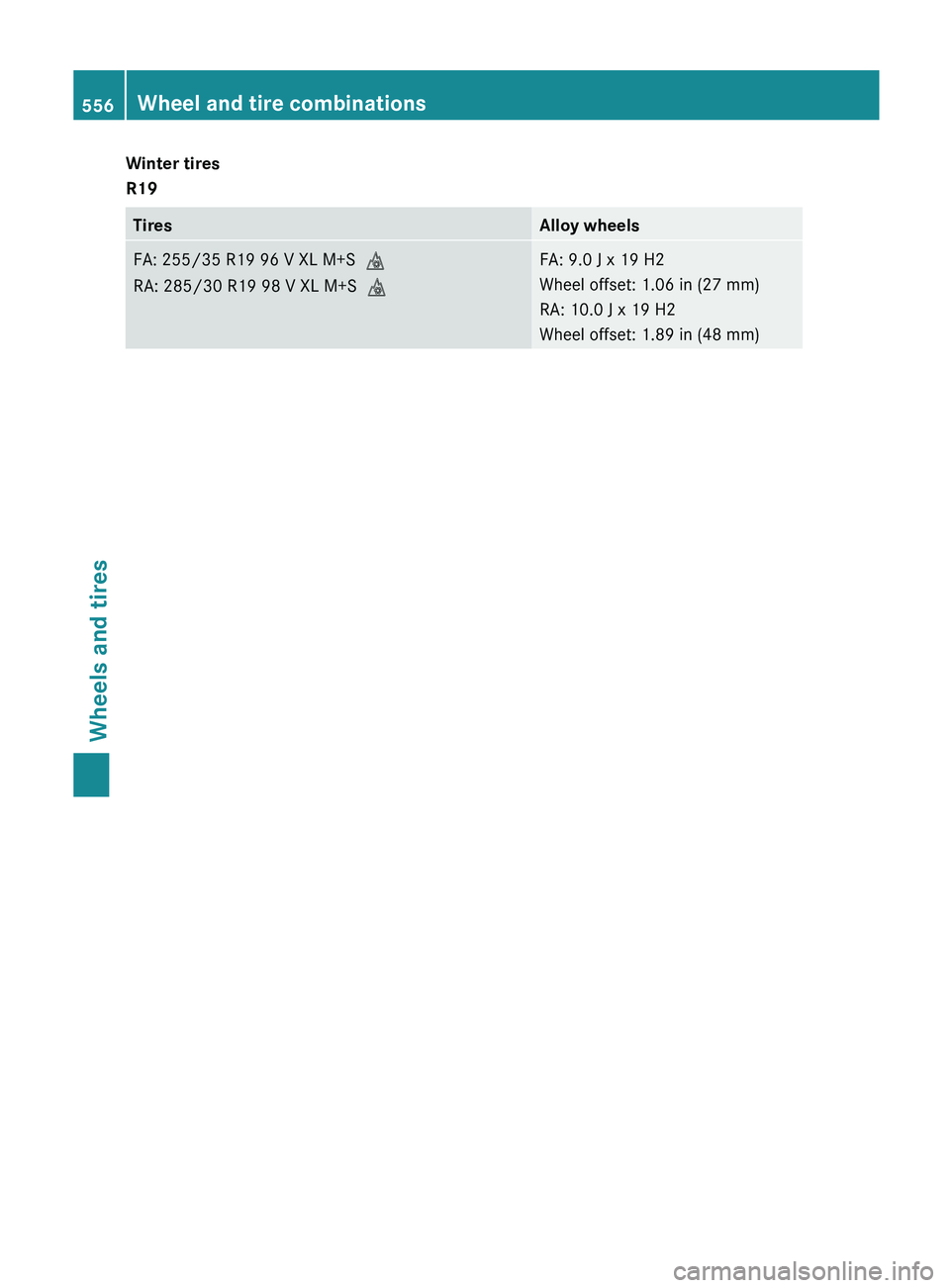

Winter tires
R19
Tires Alloy wheels
FA: 255/35 R19 96 V XL M+S
i
RA: 285/30 R19 98 V XL M+S i FA: 9.0 J x 19 H2
Wheel offset: 1.06 in
(27 mm)
RA: 10.0 J x 19 H2
Wheel offset: 1.89 in
(48 mm)556
Wheel and tire combinations
Wheels and tires

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please
note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 31).Information regarding technical data
i The data

stated here specifically refers to
a vehicle with standard equipment. Consult
a Mercedes-Benz Center for the data for all
vehicle variants and trim levels. Genuine Mercedes-Benz parts
G
WARNING
Driving safety may be impaired if non-
approved parts, tires and wheels or safety-
relevant accessories are used.
This could lead to malfunctions in safety-
relevant systems,

e.g. the brake system. This
could cause you to lose control of your vehicle
and cause an accident.
For this reason, Mercedes-Benz recommends
that you use genuine Mercedes-Benz parts or
parts of equal quality. Only use tires, wheels
and accessories that have been specifically
approved for your vehicle. H
Environmental note
Daimler
AG also supplies reconditioned major
assemblies and parts which are of the same
quality as

new parts. They are covered by the
same Limited Warranty entitlements as new
parts. !
Air bags and Emergency Tensioning
Devices, as well as control units and
sensors for

these restraint systems, may be
installed in the following areas of your
vehicle:
R doors
R door pillars
R door sills
R seats
R cockpit
R instrument cluster
R center console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operating efficiency of the restraint
systems.
Have aftermarket accessories installed at
a qualified specialist workshop.
Genuine Mercedes-Benz parts are subject to
strict quality control. Each part has been
specially developed, manufactured or
selected for Mercedes-Benz vehicles and
fine-tuned for them. Only genuine Mercedes-
Benz parts should therefore be used.
More than 300,000 different genuine
Mercedes-Benz parts are available for
Mercedes-Benz models.
All Mercedes-Benz Centers maintain a supply
of genuine Mercedes-Benz parts for
necessary service and repair work. In
addition, strategically located parts delivery
centers provide quick and reliable parts
service.
Always specify the vehicle identification
number (VIN) ( Y page 559) and the engine
number (Y page 560) when ordering
genuine Mercedes-Benz parts. Warranty
Your vehicle

is covered under the terms of the
warranties printed in the Service and
Warranty Information booklet. 558
Warranty
Technical data

Missing values were not available at time of
going to print.
SL 550
BlueEFFICIENCY
Vehicle length
181.7 in (4616 mm)
Vehicle length
when opening/
closing the roof
188.9 in (4797 mm)
Vehicle width
including exterior
mirrors
82.6 in (2099 mm)
Vehicle height
51.8 in (1316 mm)
Vehicle height
when opening/
closing the roof
66.8 in (1697 mm)
Wheelbase
101.8 in (2585 mm)
Turning radius
36.2 ft (11.04 m)
Maximum trunk
load
220 lb (100 kg)
SL 63 AMG and
SL 65 AMG
Vehicle length
182.9 in (4646 mm)
Vehicle length
when opening/
closing the roof
190.8 in (4846 mm)
Vehicle width
including exterior
mirrors
82.6 in (2099 mm)
Vehicle height
51.4 in – 53.7 in
(1305 mm –1363 mm )Vehicle height
when opening/
closing the roof
67.5 in – 70.5 in
(1714 mm –1791 mm )Wheelbase
101.8 in (2585 mm) SL 63 AMG and
SL 65 AMG
Turning radius
36.3 ft (11.05 m)
Maximum trunk
load566
Vehicle dataTechnical data
