2013 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-27)lEngine coolant level (page 8-25)lEngine oil level (page 8-23)lWasher fluid level (page 8-29)
qAt Least Monthly
Tire inflation pressures (page 8-40)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lAutomatic transaxle fluid level (page 8-28)lPower steering fluid level (page 8-27)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 8-25)lEngine oil (page 8-21)
8-16
Maintenance and Care
Owner Maintenance

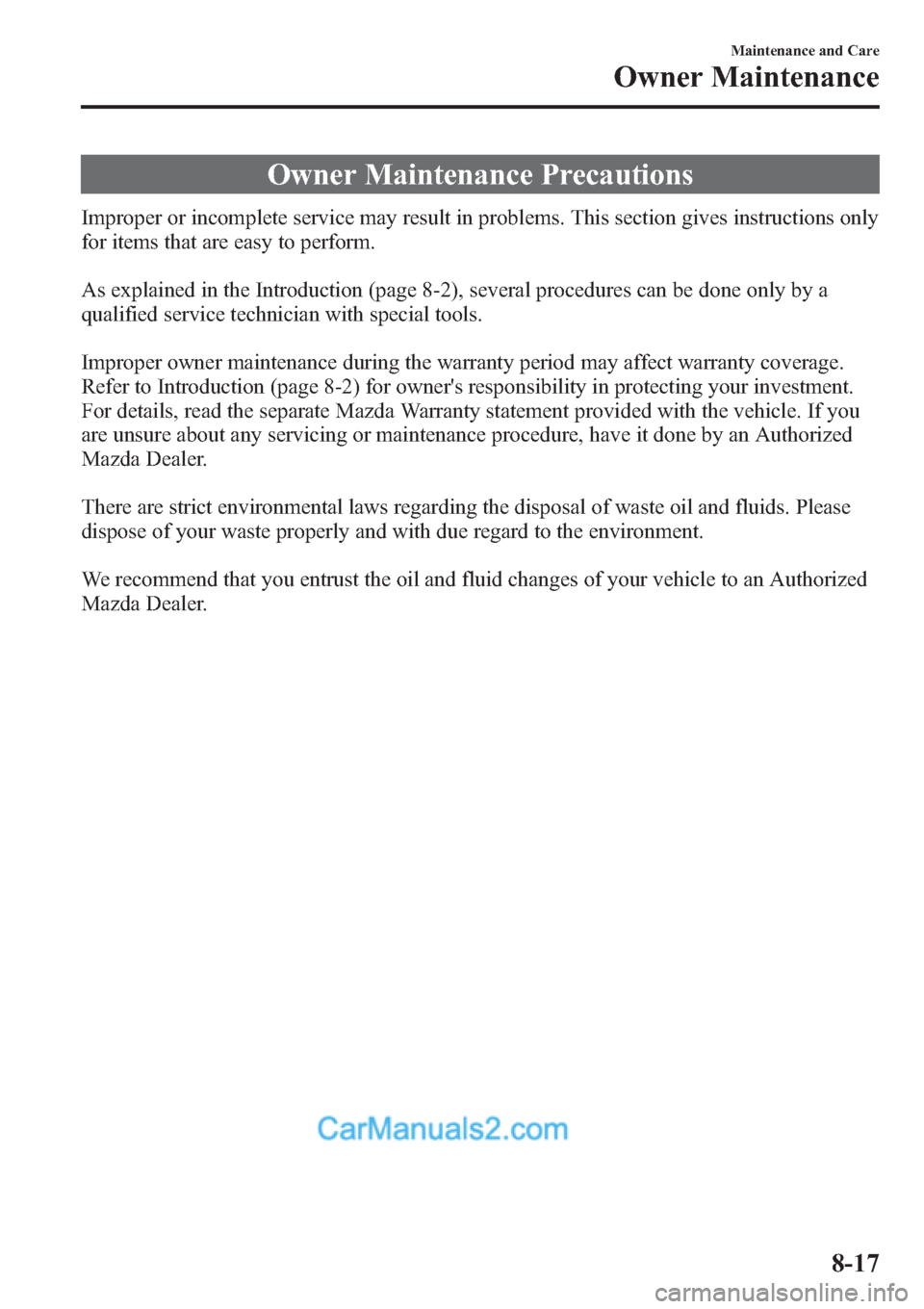

Owner Maintenance Precautions
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 8-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-17

WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or
the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You
can be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even
more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Switch the ignition to off and make sure the fan is not running before attempting to
work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do
not forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a
fire leading to an unexpected accident.
8-18
Maintenance and Care
Owner Maintenance

Engine Compartment Overview
Power steering fluid reservoir
Windshield washer fluid reservoir
Power steering fluid reservoir
Windshield washer fluid reservoir
Engine coolant reservoir Fuse block
Engine coolant reservoir
Engine oil-filler capEngine oil-filler cap
Engine oil dipstick Engine oil dipstick
Brake/Clutch fluid reservoir
Brake/Clutch fluid reservoir
Battery
Battery
Fuse block
Automatic transaxle fluid-level dipstick
(Only for automatic transaxle)
MZR 2.0 and MZR 2.5 SKYACTIV-G 2.0
Maintenance and Care
Owner Maintenance
8-19

Power steering fluid reservoir
Windshield washer fluid reservoir
Engine coolant reservoir
Engine oil-filler capBrake/Clutch fluid reservoirBattery
Fuse block
MZR 2.3 DISI Turbo
Engine oil dipstick
8-20
Maintenance and Care
Owner Maintenance

Engine Oil
NOTE
Changing the engine oil should be performed
by an Authorized Mazda Dealer.
Refer to Introduction (page 8-2) for owner's
responsibility in protecting your investment.
qRecommended Oil
SKYACTIV-G 2.0, MZR 2.0 and MZR
2.5
U.S.A. and CANADA
0W-20 full synthetic recommended:
Mazda Genuine Oil is used in your Mazda
vehicle and is the recommended 0W-20
lubricant. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.
Recommended viscosity: SAE 0W-20
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
®(U.S.A. only).
(ILSAC)
Only use SAE 0W-20 oil with the
American Petroleum Institute (API)
symbol and ILSAC GF-4/GF-5.
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.
80
60
40 20
0 –40 –20
30
120 100
50 40 20
10 0
–10 –20
–30 –40
Except U.S.A. and CANADA
Use SAE 5W-20 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
®(Mexico only).
Maintenance and Care
Owner Maintenance
8-21

(ILSAC)
(Mexico)
Use SAE 5W-20 engine oil. If SAE 5W-
20 engine oil is not available, use SAE
5W-30 engine oil.
The quality designation SM, or ILSAC
must be on the label.
80
60
40 20
0 –40 –20
30
120 100
50 40 20
10 0
–10 –20
–30 –40
MZR 2.3 DISI Turbo
U.S.A. and CANADA
5W-30 recommended:
Mazda Genuine Oil is used in your Mazda
vehicle and is the recommended 5W-30
lubricant. Mazda Genuine 5W-30 Oil is
required to achieve optimum fuel
economy.
Recommended viscosity: SAE 5W-30For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
®(U.S.A. only).
(ILSAC)
Only use SAE 5W-30 oil with the
American Petroleum Institute (API)
symbol indicated.
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.
80
60
40 20
0 –40 –20
30
120 100
50 40 20
10 0
–10 –20
–30 –40
8-22
Maintenance and Care
Owner Maintenance

Except U.S.A. and CANADA
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
®(Mexico only).
(ILSAC)
The quality designation SM, or ILSAC
must be on the label.
80
60
40 20
0 –40 –20
30
120 100
50 40 20
10 0
–10 –20
–30 –40
qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
SKYACTIV-G 2.0
Full
OK
Low
Maintenance and Care
Owner Maintenance
8-23
