Bulb type
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Remove the liftgate upper trim.
3. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector sideward to the
left.
4. Turn the socket and bulb assembly
counterclockwise and remove it.5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
License plate lights
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
8-56
Maintenance and Care
Owner Maintenance

3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of the removal procedure.
qReplacing Interior Light Bulbs
Overhead light (Front)/Map lights,
Overhead light (Rear), Vanity mirror
lightsí
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light (Front)/Map lights
Overhead light (Rear)
Edge
Vanity mirror lightsí
3. Install the new bulb in the reverse order
of the removal procedure.
Trunk light (4 Door)
1. Press both sides of the lens cap to
remove it.
Maintenance and Care
Owner Maintenance
8-57íSome models.

2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of the removal procedure.
Luggage compartment light (5 Door)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
8-58
Maintenance and Care
Owner Maintenance

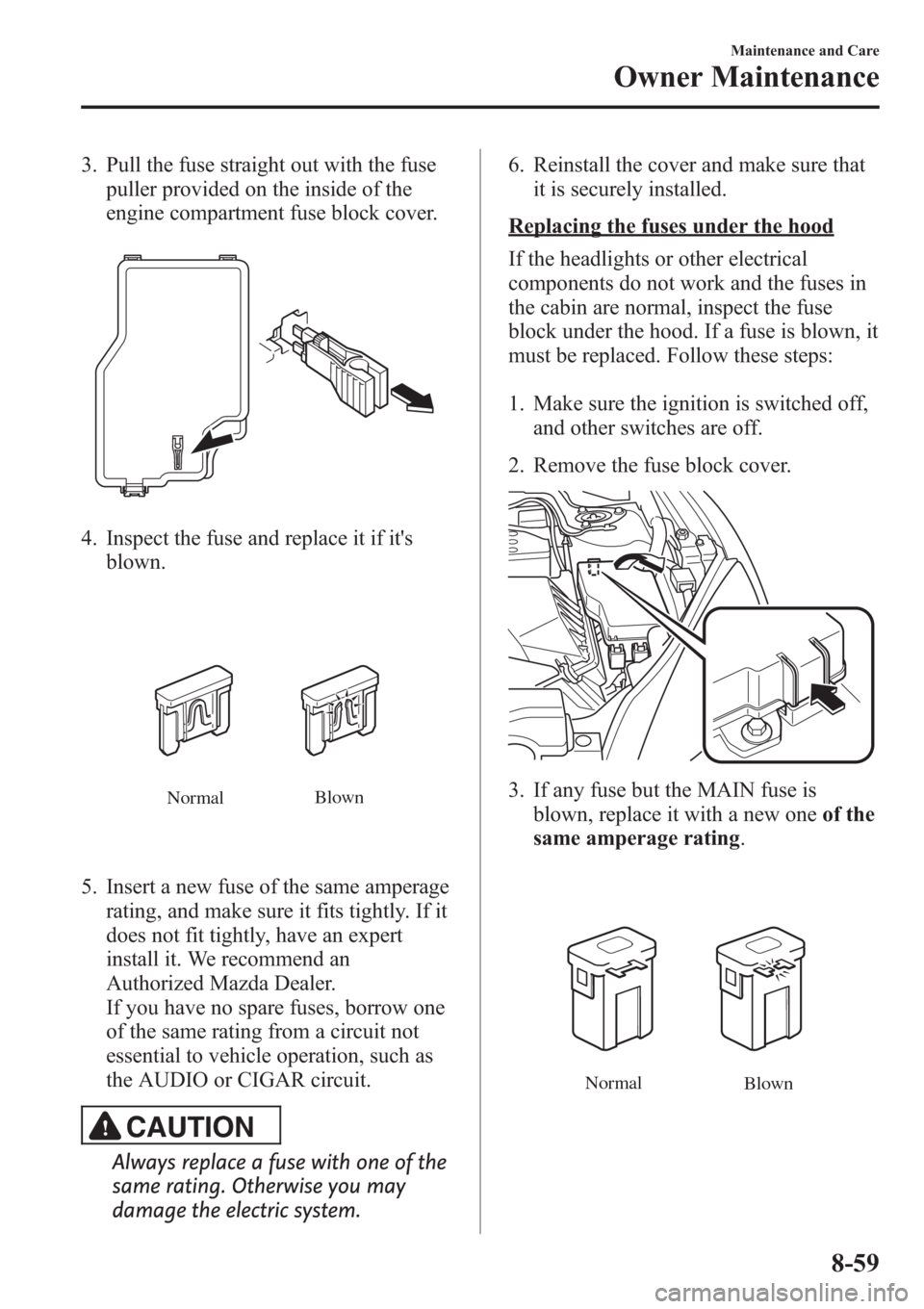

3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
Maintenance and Care
Owner Maintenance
8-59

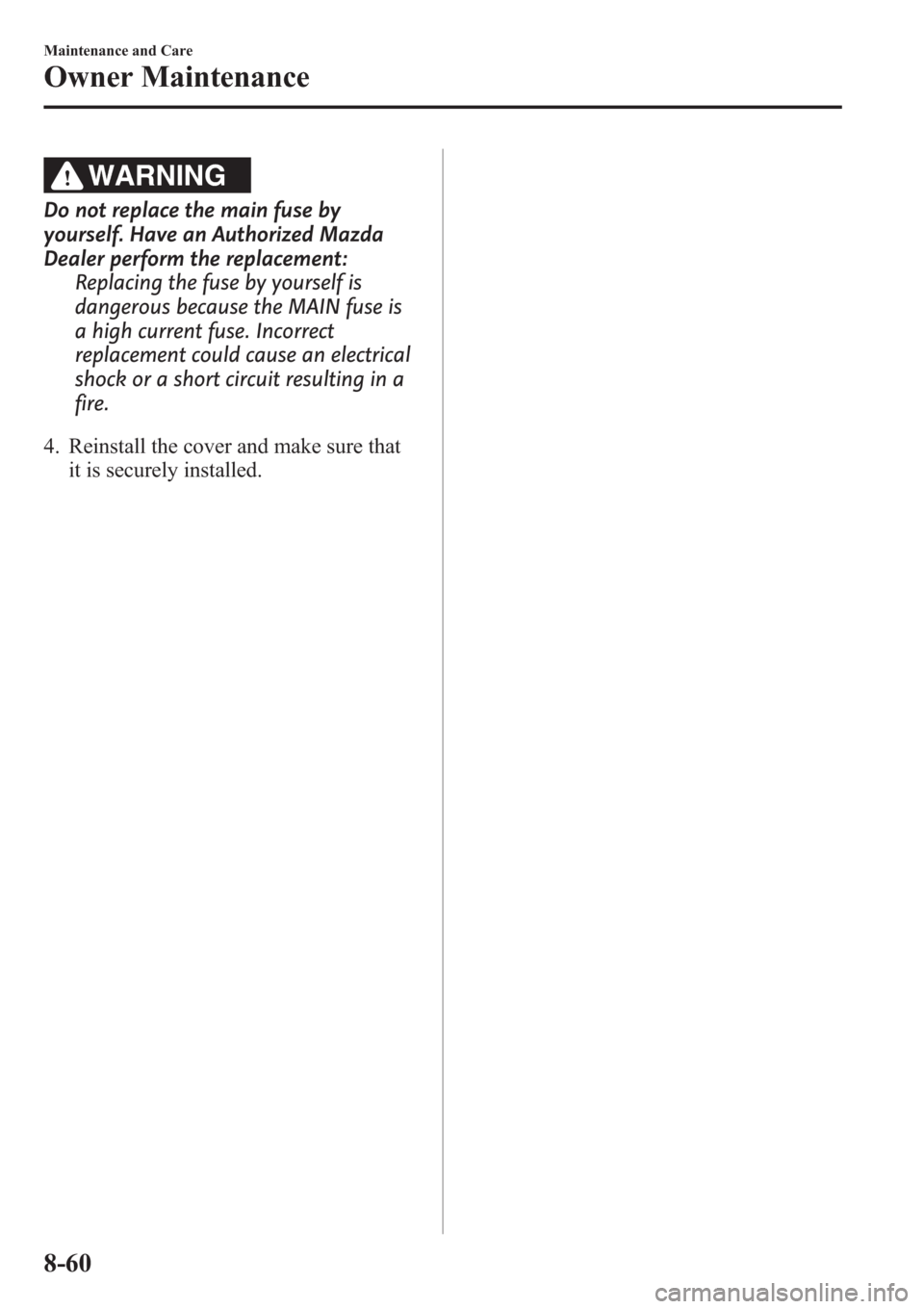

WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that
it is securely installed.
8-60
Maintenance and Care
Owner Maintenance

qFuse Panel Description
Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
5 4 1 2 3 678
13 12 14 15 16
22
11 10 9
21 20 19
23 24 25
29 30 3127
28 26 17 18
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1DCDC
*1――
FA N 2*240 A Cooling faní
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
í
7 H/L WASH――
8 SUNROOF 15 A Moonroofí
9HEATER*140 A Air conditioner
F.DEF RH*2――
10EVVT*120 A Engine control system
F.DEF LH*2――
11 FAN 1 40 A Cooling faní
12 ROOM 15 A Overhead lights
13 TCM 15 A Transaxle control systemí
14 DSC 20 A Dynamic Stability Control systemí
Maintenance and Care
Owner Maintenance
8-61íSome models.

DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
15 BTN 2 7.5 A For protection of various circuits
16 AT PUMP――
17PTC
*1――
HEATER*240 A Air conditioner
18 INJ 30 A Engine control systemí
19 R.DEF 30 A Rear window defroster
20 IGKEY 2 40 A For protection of various circuits
21 IGKEY 1 40 A For protection of various circuits
22 HORN 15 A Horn
23 STOP 15 A Brake lights
24
10A Engine control system
25 FUEL PUMP 25 A Fuel system
26 ABS 40 A ABS
27 SEAT WARM 20 A Seat warmer
í
28 EHPAS 80 A Power assist steering
29―― ―
30 ABS IG 7.5 A ABS
31 SWS 7.5 A Air bag
32 H/L LO RH 15 A Headlight low beam (RH)
33 H/L LO LH 15 A Headlight low beam (LH)
34 ILLUM 7.5 A Instrument panel illumination
35 TAIL 15 A Taillights, Parking lights, License plate lights
36 ENG INJ 15 A Engine control system
37 ENG BAR 15 A Engine control system
38ENG INJ2
*115 A Engine control system
ENG BAR 2*220 A Engine control system
39EHPAS IG*1――
ETV*215 A Engine control system
*1 SKYACTIV-G 2.0
*2 MZR 2.0, MZR 2.3 DISI Turbo and MZR 2.5
8-62
Maintenance and Care
íSome models.
Owner Maintenance

Fuse block (Left side)
1 4 7 10131619
5 8 11 14 17 20
6 9 12 15 18 21
28 30 22 24 26
29 31 23 25 2732 33 34 2
3
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 BOSE――
2 P SEAT 30 A Power seat
í
3 P.WIND 30 A Power window
4 D.LOCK 25 A Power door lock
5―― ―
6―― ―
7 ESCL――
8 SAS 15 A Air bag
9―― ―
10 HAZARD 15 A Hazard warning flashers, Turn signal lights
11 METER 15 A Instrument cluster
12 OUTLET 15 A Accessory sockets
13 R.WIPER 15 A Rear window wiper and washer
í
14 CIGAR 15 A Accessory sockets
15 ROOM2――
16 HEATER 10 A Air conditioner
17 MIRROR 10 A Power control mirror
18 ST SIG 10 A Engine control system
19―― ―
Maintenance and Care
Owner Maintenance
8-63íSome models.
