2013 MAZDA MODEL 3 4-DOOR Owners Manual

Black plate (433,1)

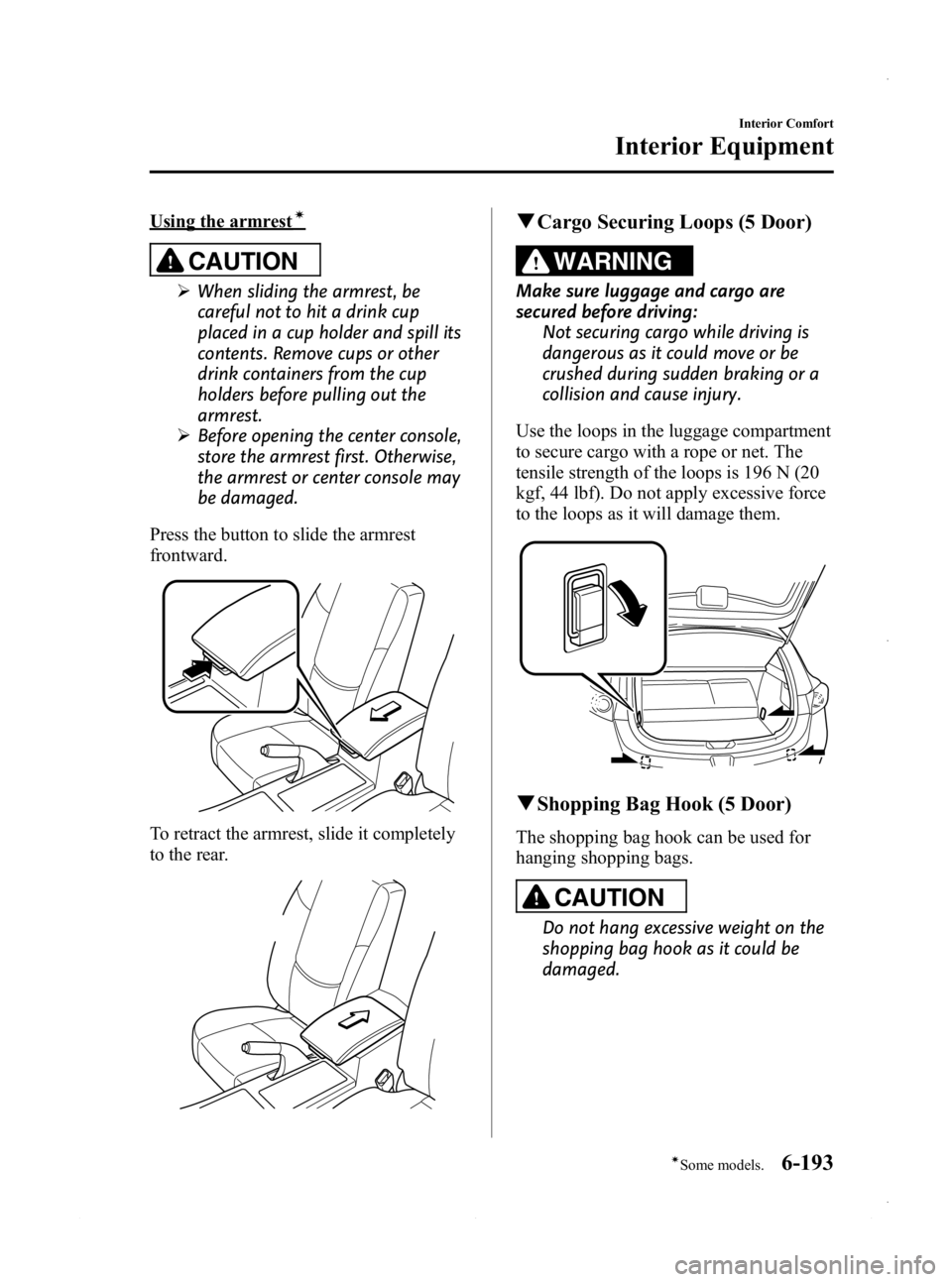

Using the armrestí
CAUTION
ØWhen sliding the armrest, be
careful not to hit a drink cup
placed in a cup holder and spill its
contents. Remove cups or other
drink containers from the cup
holders before pulling out the
armrest.
Ø Before opening the center console,
store the armrest first. Otherwise,
the armrest or center console may
be damaged.
Press the button to slide the armrest
frontward.
To retract the armrest, slide it completely
to the rear.
q Cargo Securing Loops (5 Door)
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
q Shopping Bag Hook (5 Door)
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Interior Comfort
Interior Equipment
6-193íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page433
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (434,1)
Shopping bag hook
(tensile strength: 3 kg
(6.6 lb))
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
To use, press the cover and open it.
With Seat Warmer
Without Seat Warmer
6-194
Interior Comfort
Interior Equipment
Mazda3_8CV6-EA-12H_Edition3 Page434
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (435,1)
Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
Ø Noise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-195
Mazda3_8CV6-EA-12H_Edition3 Page435
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (436,1)
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord throughthe cutout of the console and insert the
plug into the accessory socket.
Plug
6-196
Interior Comfort
Interior Equipment
Mazda3_8CV6-EA-12H_Edition3 Page436
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (437,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-16 Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18 Starting a Flooded Engine ....................................................... 7-18
Jump-Starting .......................................................................... 7-19
Push-Starting ........................................................................... 7-24
Emergency Towing ..................................................................... 7-25 Towing Description ................................................................. 7-25
Tiedown Hook ........................................................................ 7-26
Recreational Towing ............................................................... 7-28
7-1
Mazda3_8CV6-EA-12H_Edition3 Page437
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (438,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8CV6-EA-12H_Edition3 Page438
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (439,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare tire
Jack Jack handleTiedown eyelet
Lug wrench
Bolt for flat tire
4 Door
In Case of an Emergency
Flat Tire
7-3
Mazda3_8CV6-EA-12H_Edition3 Page439
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (440,1)
Spare tire
Jack
Jack handle
Lug wrenchTiedown eyelet
Spare tire
Jack
Jack handle
Lug wrenchTiedown eyelet
Bolt for flat tire Bolt for flat tire
5 Door
(Type A)
(Type B)
7-4
In Case of an Emergency
Flat Tire
Mazda3_8CV6-EA-12H_Edition3 Page440
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H
