2013 MAZDA MODEL 3 4-DOOR Owners Manual

Black plate (25,1)

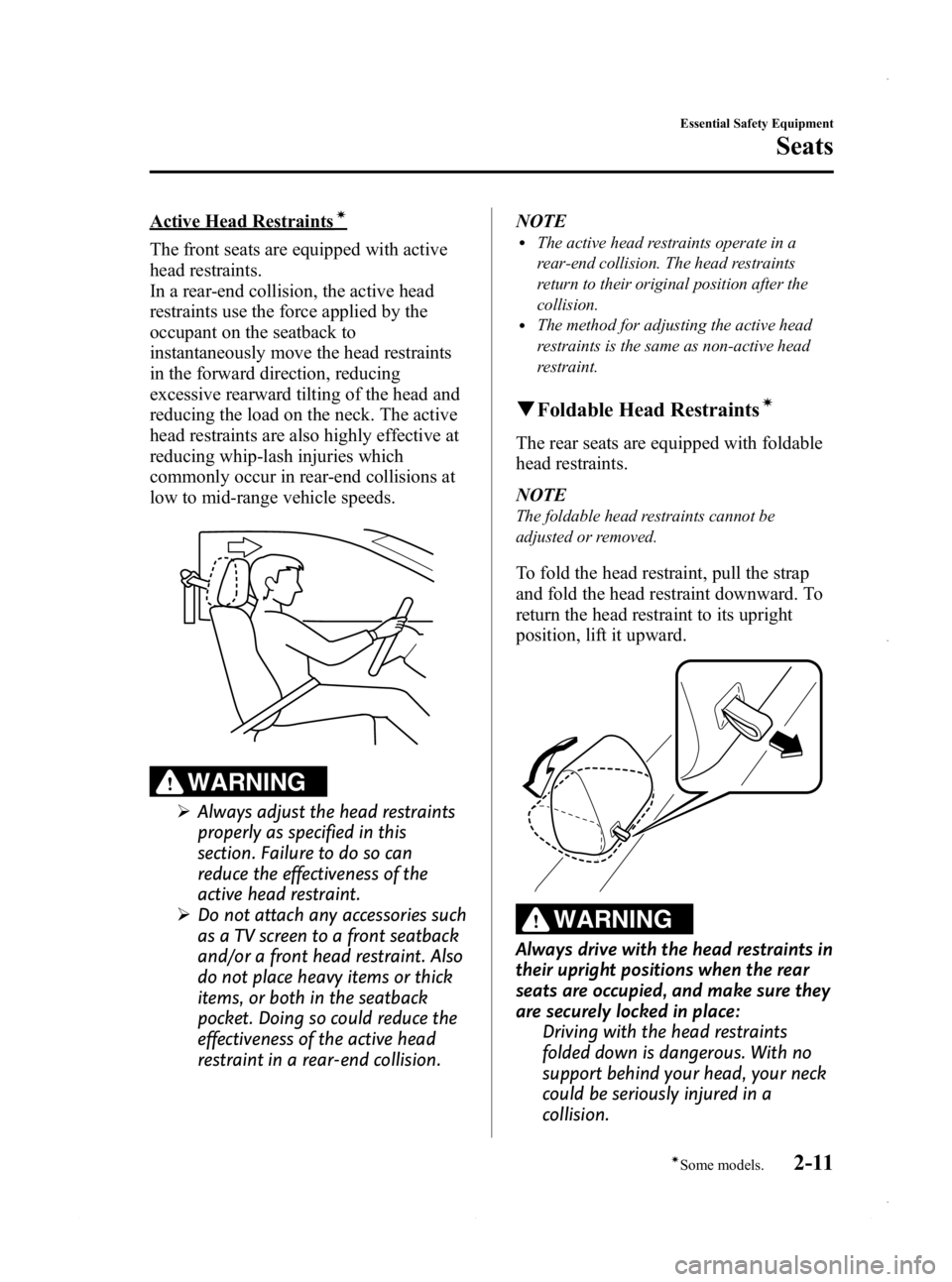

Active Head Restraintsí
The front seats are equipped with active
head restraints.
In a rear-end collision, the active head
restraints use the force applied by the
occupant on the seatback to
instantaneously move the head restraints
in the forward direction, reducing
excessive rearward tilting of the head and
reducing the load on the neck. The active
head restraints are also highly effective at
reducing whip-lash injuries which
commonly occur in rear-end collisions at
low to mid-range vehicle speeds.
WARNING
ØAlways adjust the head restraints
properly as specified in this
section. Failure to do so can
reduce the effectiveness of the
active head restraint.
Ø Do not attach any accessories such
as a TV screen to a front seatback
and/or a front head restraint. Also
do not place heavy items or thick
items, or both in the seatback
pocket. Doing so could reduce the
effectiveness of the active head
restraint in a rear-end collision. NOTE
lThe active head restraints operate in a
rear-end collision. The head restraints
return to their original position after the
collision.
lThe method for adjusting the active head
restraints is the same as non-active head
restraint.
q
Foldable Head Restraintsí
The rear seats are equipped with foldable
head restraints.
NOTE
The foldable head restraints cannot be
adjusted or removed.
To fold the head restraint, pull the strap
and fold the head restraint downward. To
return the head restraint to its upright
position, lift it upward.
WARNING
Always drive with the head restraints in
their upright positions when the rear
seats are occupied, and make sure they
are securely locked in place:
Driving with the head restraints
folded down is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
Essential Safety Equipment
Seats
2-11íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page25
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (26,1)
Seat Warmerí
The driver and front passenger seats can
be warmed by rotating the applicable seat
warmer dial while the ignition is switched
ON.
The seat temperature increases as the
number on the dial increases. When the
seat warmers are not in use, rotate the seat
warmer dials to 0.
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Ø Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
Ø Do not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
Ø Do not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
2-12
Essential Safety Equipment
íSome models.
Seats
Mazda3_8CV6-EA-12H_Edition3 Page26
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (27,1)
NOTE
Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
Essential Safety Equipment
Seats
2-13
Mazda3_8CV6-EA-12H_Edition3 Page27
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (28,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
2-14
Essential Safety Equipment
Seat Belt Systems
Mazda3_8CV6-EA-12H_Edition3 Page28
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (29,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended: Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazda3_8CV6-EA-12H_Edition3 Page29
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (30,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-73).
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda3_8CV6-EA-12H_Edition3 Page30
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (31,1)
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-26).
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda3_8CV6-EA-12H_Edition3 Page31
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (32,1)
Seat Belt
qFastening the Seat Belt
1. Grasp the seat belt tongue.
2. Slowly pull out the lap/shoulder belt.
Seat belt
tongue
Lap/shoulder
belt
3. Insert the seat belt tongue into the seat
belt buckle until you hear a click
sound.
Seat belt
buckle Seat belt tongue
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible, not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Keep low on
hip bone
Too highTake up slack
WARNING
Positioning the Lap Portion of the Seat
Belt:The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda3_8CV6-EA-12H_Edition3 Page32
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H
