2013 LINCOLN MKZ length

Vehicle Sensitive Mode
This is the normal retractor mode,
which allows free shoulder belt length
adjustment to your movements and
locking in response to vehicle
movement. For example, if the driver
brakes suddenly or turns a corner
sharply, or the vehicle receives an
impact of approximately 5 mph (8
km/h) or more, the combination
safety belts will lock to help reduce
forward movement of the driver and
passengers.
In addition, the retractor is designed
to lock if the webbing is pulled out too
quickly. If this occurs, let the belt
retract slightly and pull webbing out
again in a slow and controlled
manner.
Automatic Locking Mode
In this mode, the shoulder belt is
automatically pre-locked. The belt
will still retract to remove any slack in
the shoulder belt. The automatic
locking mode is not available on the
driver safety belt.
When to Use the Automatic
Locking Mode
This mode should be used any time a
child safety seat, except a booster, is
installed in passenger front or rear
seating positions. Children 12 years old
and under should be properly
restrained in a rear seating position
whenever possible. See Child Safety
(page 15).
How to Use the Automatic Locking
Mode
Non-inflatable safety belts
1. Buckle the combination lap and
shoulder belt.
2. Grasp the shoulder portion and pull downward until the entire belt
is pulled out. As the belt retracts,
you will hear a clicking sound. This
indicates the safety belt is now in
the automatic locking mode.
Rear outboard inflatable safety
belts (second row only –if
equipped) 1. Buckle the combination lap and
shoulder belt.
34
Safety BeltsE142591 E146363

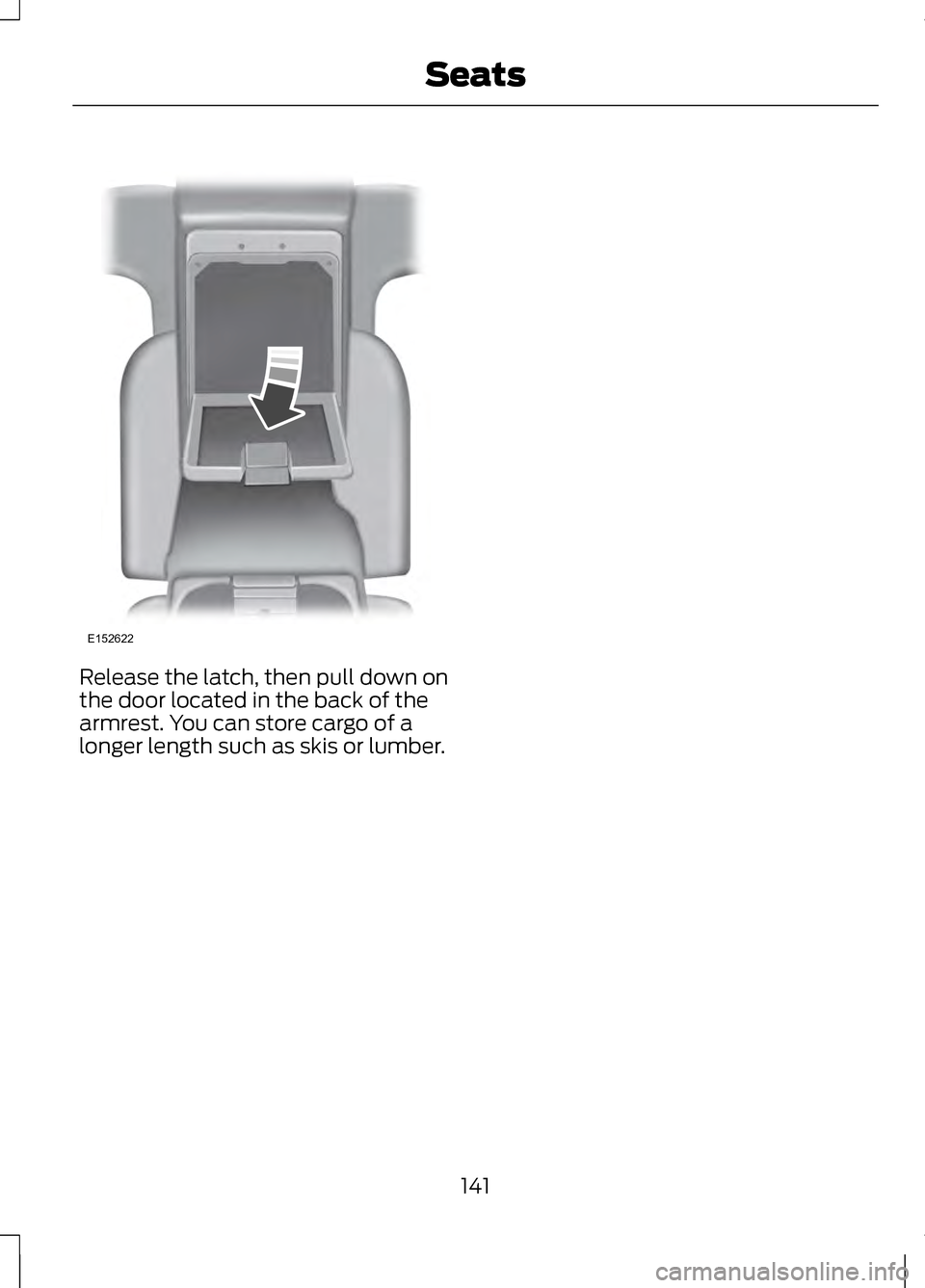

Release the latch, then pull down on
the door located in the back of the
armrest. You can store cargo of a
longer length such as skis or lumber.
141
SeatsE152622

The system does not offer a particular space
The vehicle is farther than 6.5 ft (2.0 m) from the parking space
The vehicle is closer than 16 in. (40 cm) from neighboring parked vehicles
The transmission is in R (Reverse); the vehicle must be moving forward to
detect a parking space The system does not position the vehicle where I want in the space
The vehicle is rolling in the opposite direction of the transmission (i.e. rolling
forward when R [Reverse] is selected)
The transmission is in R (Reverse); the vehicle must be moving forward to
detect a parking space
An irregular curb along the parking space prevents the system from aligning
the vehicle properly
Vehicles or objects bordering the space may not be positioned correctly
The vehicle was pulled too far past the parking space. The system performs
best when you drive the same distance past the parking space
The tires may not be installed or maintained correctly (i.e. not inflated correctly,
improper size, or of different sizes)
A repair or alteration has changed detection capabilities
A parked vehicle has a high attachment (i.e. salt sprayer, snowplow, moving
truck bed, etc.)
The parking space length or position of parked objects changed after your
vehicle passed
The temperature around your vehicle changes quickly (i.e. driving from a heated
garage into the cold, or after leaving a car wash)
190
Parking Aids

UTILIZING THE
MEDIATION/ARBITRATION
PROGRAM (CANADA ONLY)
For vehicles delivered to authorized
Canadian dealers. In those cases
where you continue to feel that the
efforts by Ford of Canada and the
authorized dealer to resolve a
factory-related vehicle service
concern have been unsatisfactory,
Ford of Canada participates in an
impartial third party
mediation/arbitration program
administered by the Canadian Motor
Vehicle Arbitration Plan (CAMVAP).
The CAMVAP program is a straight
forward and relatively speedy
alternative to resolve a disagreement
when all other efforts to produce a
settlement have failed. This procedure
is without cost to you and is designed
to eliminate the need for lengthy and
expensive legal proceedings.
In the CAMVAP program, impartial
third-party arbitrators conduct
hearings at mutually convenient times
and places in an informal
environment. These impartial
arbitrators review the positions of the
parties, make decisions and, when
appropriate, render awards to resolve
disputes. CAMVAP decisions are fast,
fair, and final as the arbitrator
’s award
is binding on both you and Ford of
Canada. CAMVAP services are available in all
Canadian territories and provinces.
For more information, without charge
or obligation, call your CAMVAP
Provincial Administrator directly at
1-800-207-0685 or visit
www.camvap.ca.
GETTING ASSISTANCE
OUTSIDE THE U.S. AND
CANADA
Before exporting your vehicle to a
foreign country, contact the
appropriate foreign embassy or
consulate. These officials can inform
you of local vehicle registration
regulations and where to find
unleaded fuel.
If you cannot find unleaded fuel or can
only get fuel with an anti-knock index
lower than is recommended for your
vehicle, contact a regional office or
owner relations/customer relationship
office.
The use of leaded fuel in your vehicle
without proper conversion may
damage the effectiveness of your
emission control system and may
cause engine knocking or serious
engine damage. Ford Motor
Company/Ford of Canada is not
responsible for any damage caused
by use of improper fuel. Using leaded
fuel may also result in difficulty
importing your vehicle back into the
U.S.
247
Customer Assistance
