2013 LINCOLN MKZ HYBRID display

Note:
SYNC does not download read
text messages from your phone.
You can send and receive text
messages using Bluetooth, read them
aloud and translate text messaging
acronyms, such as LOL.
1. Touch the top left corner of the display to access the Phone
menu.
2. Select
Messaging.
3. Choose from the following:
• Listen (speaker icon)
• Dial
• Send Text
• View
• Delete.
Composing a Text Message
Note: This is a speed-dependent
feature. It is unavailable when your
vehicle is traveling at speeds over 3
mph (5 km/h).
Note: Downloading and sending text
messages using Bluetooth are
phone-dependent features.
1. Touch the top left corner of the display to access the
Phone
menu.
2. Touch
Messaging > Send Text.
3. Enter a phone number or choose from your phonebook.
4. You can select from the following options: •
Send
, which sends the message
as it is.
• Edit Text
, which allows you to
customize the pre-defined
message or create a message on
your own.
You can then preview the message,
verify the recipient as well as update
the message list. Text message options
I’ll call you back in a few minutes. I just left, I’ll be there soon.Can you give me a call? I’m on my way.
I’m running a few minutes late.
I’m ahead of schedule, so I’ll be there early.
I’m outside.
I’ll call you when I get there. OK
Yes No
Thanks
Stuck in traffic. Call me later. LOL
392
MKZ (CC9) MyLincoln Touch
™

Receiving a Text Message
Note:
If you select View and your
vehicle is traveling over 3 mph (5
km/h), the system offers to read the
message to you instead of allowing you
to view it while driving.
When a new message arrives, an
audible tone sounds and the screen
displays a pop-up with the caller
name and ID, if supported by your
phone. You can press:
• View to view the text message.
• Listen
for SYNC to read the
message to you.
• Dial
to call the contact.
• Ignore
to exit the screen.
Phone Settings
Press
Phone > Settings.
Bluetooth Devices
Touch this tab to connect, disconnect,
add or delete a device, as well as save
it as a favorite.
Bluetooth
Touch this tab to turn Bluetooth off
or on.
Do Not Disturb
Touch this tab if you want all calls to
go directly to your voice mail and not
ring in the vehicle. When this feature
is on, text message notifications do
not ring inside the cabin either. 911 Assist
Turn on or turn off the 911 Assist
feature. See Information (page 400).
Phone Ringer
Select the ring tone you want to hear
when you receive a call. Choose from
possible system ring tones, your
currently paired phone
’s ring tone, a
beep, text-to-speech or a silent
notification.
Text Message Notification
Select a text message notification, if
supported by your phone. Choose
from possible system alert tones,
text-to-speech or silent.
Internet Data Connection
If your phone is compatible, use this
screen to adjust your internet data
connection. Select to make your
connection profile with the personal
area network or to turn off your
connection. You can also choose to
adjust your settings or have the
system always connect, never
connect when roaming or query on
connect. Press ? for more information.
Manage Phonebook
Touch this button to access features
such as automatic phonebook
download, re-download your
phonebook, add contacts from your
phone as well as delete or upload your
phonebook.
393
MKZ (CC9) MyLincoln Touch
™

ELECTRIC VEHICLE
INFORMATION Your system has special
electric vehicle screens,
which display power flow
and charge settings. To
access these screens, press the EV
Info button. Power
A
395
MKZ (CC9) MyLincoln Touch
™E161716 E163044
A

High voltage battery power represents your high-voltage battery. A
circle illuminates around the node when the high-voltage battery is
receiving power from regenerative braking or engine charging. The
higher the power going into the high-voltage battery, the larger the
circle around this node.
F
Fuel
represents the fuel tank in the vehicle.
G
Fuel-to-engine flow
shows flow from the fuel tank to the engine
when the engine is on and using fuel (there are some cases where the
engine is on, but not using any fuel). When the engine is on, but not
using fuel, the engine node is active, but the fuel flow path is off. An
example of this is when your foot is off the accelerator pedal and the
vehicle is traveling at a high speed.
H
Engine On due to
provides you with the reason(s) the gasoline engine
is on. When the gasoline engine is off, this display does not appear.
Engine On due to
reasons displayed by the system are in a chart
following this list.
I
Motor-to-engine flow
shows the direction of power flow between
the engine and the electric motor. The direction indicates if the engine
is providing power to the high-voltage electrical system, or if the
high-voltage electrical system is providing power to control or start
the engine.
J
Engine power represents the gasoline engine. It illuminates only when
the gasoline engine is on. The higher the engine power is, the larger the
circle around this node.
K
Engine-to-wheels flow
shows the direction of the power flow
between the engine and the wheels.
L
Drive power
represents the power going to the wheels. The higher the
wheel power is, the larger the circle around this node. When the engine
is off, drive power is shown in blue. When the engine is on, drive power
is shown in grey.
M
1 The battery-to-motor flow includes
battery power the vehicle is using for
acceleration. It does not include
energy the vehicle is using for
accessories (such as air conditioning,
headlights and radio). This screen
displays accessories and climate
usage separately. 2
Accessories
indicates electrical
power demands from your vehicle ’s
accessory systems. Accessories use
power but do not contribute to making
the vehicle move. The power flow
displays power usage from the
climate control system and other
accessories separately.
397
MKZ (CC9) MyLincoln Touch
™

If your vehicle is not equipped with
Navigation:
•
Turn-by-turn directions appear in
the information display, in the
status bar of your touchscreen
system and on the SYNC Services
screen. You also receive driving
instructions from audible prompts.
• When on an active route, you can
select Route Summary or Route
Status using the touchscreen
controls or voice commands to
view the
Route Summary Turn
List or the Route Status ETA.
You can also turn voice guidance
on or off, cancel the route or
update the route. If you miss a turn, SYNC automatically
asks if you want the route updated.
Just say, "Yes" when prompted and
the system delivers a new route to
your vehicle.
If your vehicle is equipped with
Navigation, SYNC Services downloads
your requested destination to the
navigation system. The navigation
system then calculates the route and
provides driving instructions. See
Navigation
(page 415).
Disconnecting from SYNC Services
1. Press and hold the hang-up phone
button on the steering wheel.
2. Say "Good-bye" from the SYNC Services main menu. SYNC Services quick tips
You can personalize your Services feature to provide
quicker access to your most used or favorite
information. You can save address points, such as
work or home. You can also save favorite informa-
tion like sports teams, such as Detroit Lions, or a
news category. You can learn more about personal-
ization by logging onto www.SYNCMyRide.com.
Personalizing
Press the voice button at any time (while connected
to SYNC Services) to interrupt a voice prompt or an
audio clip (such as a sports report) and say your
voice command.
Push to interrupt
Your subscription is associated with your Bluetooth-
enabled cellular phone number, not your VIN
(Vehicle Identification Number). You can pair and
connect your phone to any vehicle equipped with
SYNC Services and continue enjoying your person-
alized services.
Portable
403
MKZ (CC9) MyLincoln Touch
™

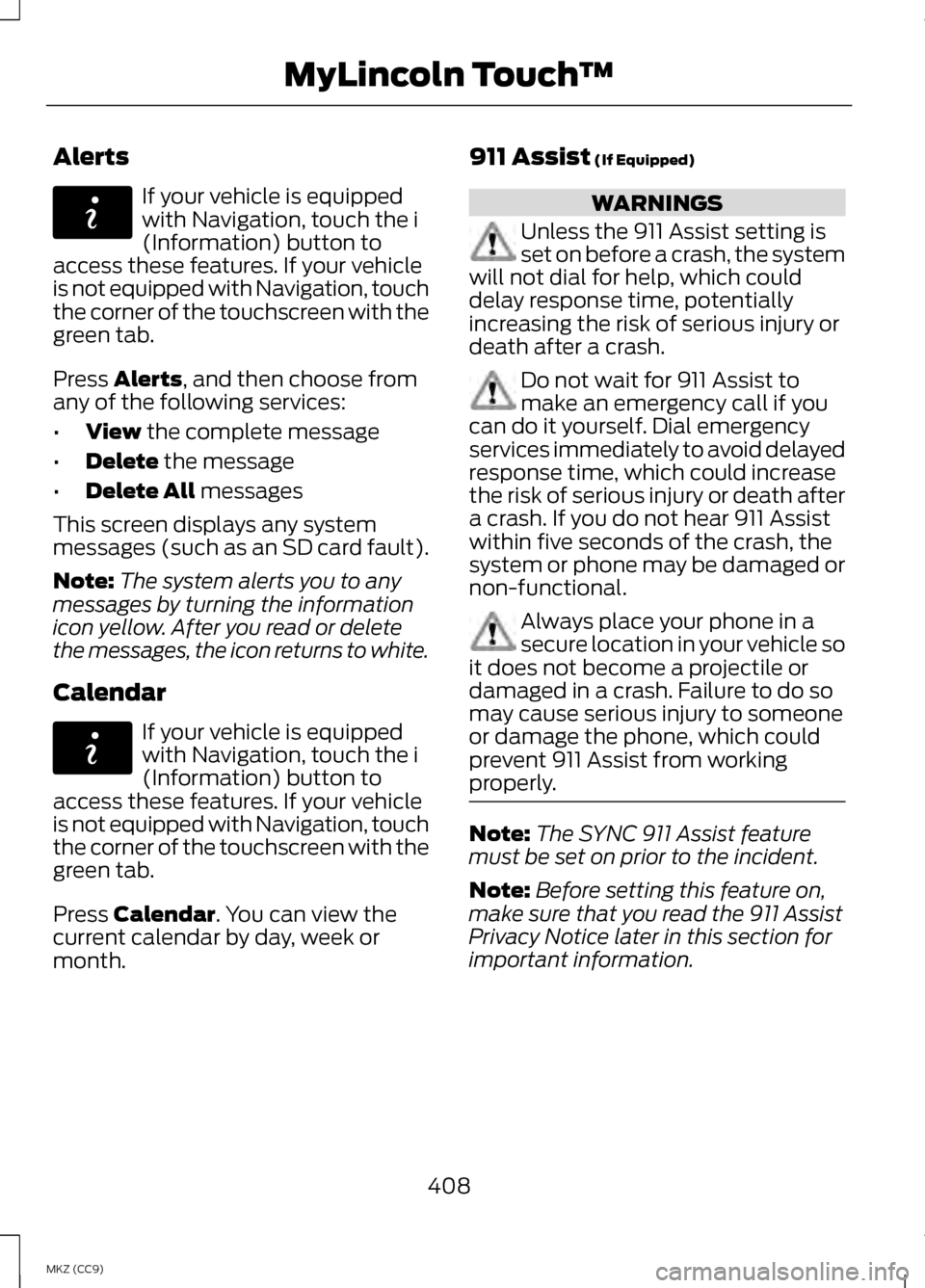

Alerts
If your vehicle is equipped
with Navigation, touch the i
(Information) button to
access these features. If your vehicle
is not equipped with Navigation, touch
the corner of the touchscreen with the
green tab.
Press Alerts, and then choose from
any of the following services:
• View
the complete message
• Delete
the message
• Delete All
messages
This screen displays any system
messages (such as an SD card fault).
Note: The system alerts you to any
messages by turning the information
icon yellow. After you read or delete
the messages, the icon returns to white.
Calendar If your vehicle is equipped
with Navigation, touch the i
(Information) button to
access these features. If your vehicle
is not equipped with Navigation, touch
the corner of the touchscreen with the
green tab.
Press
Calendar. You can view the
current calendar by day, week or
month. 911 Assist
(If Equipped) WARNINGS
Unless the 911 Assist setting is
set on before a crash, the system
will not dial for help, which could
delay response time, potentially
increasing the risk of serious injury or
death after a crash. Do not wait for 911 Assist to
make an emergency call if you
can do it yourself. Dial emergency
services immediately to avoid delayed
response time, which could increase
the risk of serious injury or death after
a crash. If you do not hear 911 Assist
within five seconds of the crash, the
system or phone may be damaged or
non-functional. Always place your phone in a
secure location in your vehicle so
it does not become a projectile or
damaged in a crash. Failure to do so
may cause serious injury to someone
or damage the phone, which could
prevent 911 Assist from working
properly. Note:
The SYNC 911 Assist feature
must be set on prior to the incident.
Note: Before setting this feature on,
make sure that you read the 911 Assist
Privacy Notice later in this section for
important information.
408
MKZ (CC9) MyLincoln Touch
™E142608 E142608

Note:
If any user turns 911 Assist on or
off, that setting applies for all paired
phones. If 911 Assist is turned off, either
a voice message plays or a display
message (or icon) comes on (or both)
when your vehicle is started after a
previously paired phone connects.
Note: Every phone operates differently.
While SYNC 911 Assist works with most
cellular phones, some may have
trouble using this feature.
If a crash deploys an airbag (excludes
knee airbags and rear inflatable safety
belts [if equipped]) or activates the
fuel pump shut-off, your
SYNC-equipped vehicle may be able
to contact emergency services by
dialing 911 through a paired and
connected Bluetooth-enabled phone.
You can learn more about the 911
Assist feature, visit
www.SYNCMyRide.com,
www.SYNCMyRide.ca or
www.syncmaroute.ca.
See Supplementary Restraints
System (page 42). Important
information regarding airbag
deployment is in this chapter.
See
Roadside Emergencies (page
250). Important information regarding
the fuel pump shut-off is in this
chapter. Setting 911 Assist On If your vehicle is equipped
with Navigation, touch the i
(Information) button to
access these features. If your vehicle
is not equipped with Navigation, touch
the corner of the touchscreen with the
green tab.
Touch
Apps > 911 Assist, then select
On. You can also access 911
Assist by:
• Pressing the Settings icon >
Settings
> Phone > 911 Assist,
or
• Pressing the Settings icon >
Help
> 911 Assist.
To make sure that 911 Assist works
properly:
• SYNC must be powered and
working properly at the time of the
incident and throughout feature
activation and use.
• The 911 Assist feature must be set
on prior to the incident.
• You must pair and connect a
Bluetooth-enabled and
compatible phone to SYNC.
• A connected Bluetooth-enabled
phone must have the ability to
make and maintain an outgoing
call at the time of the incident.
409
MKZ (CC9) MyLincoln Touch
™E142608 E142607

When you have selected a point of
interest, the location and information
appear, such as address and phone
number. If cityseekr lists the point of
interest, more information is available,
such as a brief description, check-in
and checkout times or restaurant
hours.
Press More Information for a longer
review, a list of services and facilities,
the average room or meal price as
well as the website. This screen
displays the point of interest icon such
as: Hotel
Coffeehouse
Food & Drink
Nightlife
Attraction
This icon appears when your
selection exists in multiple
categories within the
system. When you are viewing more
information for hotels, cityseekr also
tells you if the hotel has certain
services and facilities using icons, such
as:
•
Restaurant
• Business center
• Handicap facilities
• Laundry
• Refrigerator
• 24 hour room service
• Fitness center
• Internet access
• Pool
• Wi-fi.
For restaurants, cityseekr can provide
information such as star rating,
average cost, review, handicap
access, hours of operation, and
website address.
For hotels, cityseekr can provide
information such as star rating, price
category, review, check-in and
checkout times, hotel service icons
and website address.
Setting Your Navigation
Preferences
Select settings for the system to take
into account when planning your
route. Press the Settings icon >
Settings
> Navigation.
418
MKZ (CC9) MyLincoln Touch
™E143884 E142636 E142637 E142638 E142639 E142640 E142607
