Page 225 of 494

DRIVER ALERT (IF EQUIPPED)
WARNING:The driver alert system is designed to aid you. It is
not intended to replace your attention and judgment. You are still
responsible to drive with due care and attention.
Note:The system will store the on/off setting in the information display
menu through ignition cycles.
Note:If enabled in the menu, the system will be active above the
40 mph (64 km/h).
Note:The system works as long as one lane marking can be detected by
the camera.
Note:If the camera is blocked or if the windshield is damaged, the
system may not function.
Note:The system may not be available in poor weather or other low
visibility conditions.
The system automatically monitors your driving behavior using various
inputs including the front camera sensor.
If the system detects that your driving alertness is reduced below a
certain threshold, the system will alert you using a chime and a message
in the cluster display
Switching the System On and Off
By default, the system is enabled. You may disable or re-enable the
system by selecting Setting then Driver Assist then Driver Alert in the
menu. When activated, the system will monitor your alertness level based
upon your driving behavior in relation to the lane markings, and other
factors.
System Warnings
Note:The system will not issue warnings below approximately 40 mph
(65 km/h).
The warning system is in two stages. At first the system issues a
temporary warning that you need to take a rest. This message will only
appear for a short time. If the system detects further reduction in driving
alertness, another warning may be issued which will remain in the
information display for a longer time. Press OK on the steering wheel
control to clear the warning.
Driving Aids225
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
Page 226 of 494

System Display
When active the system will run automatically in the background and
only issue warning if required. You can view the status at any time using
the information display.
Select Information then Driver Alert to show the status screen in the
information display.
The alertness level is shown by six steps in a colored bar.
The current assessment of your
alertness is within a typical range.
The current assessment of your
alertness indicates that you should
rest as soon as safely possible.
The status bar will travel from left to right as the calculated alertness
level decreases. As the rest icon is approached the color turns from
green to yellow to red. The yellow position represents the first warning is
active and the red position represents the second warning is active.
Note:If you have recently received a warning; you should consider
resting, even if the current assessment is with the typical range.
Note:The alertness level will be show in grey if the camera sensor
cannot track the road lane markings or if the vehicle speed drops below
approximately 40 mph (65 km/h).
Resetting the System
You can reset the system by either:
•Switching the ignition off and on.
•Stopping the vehicle and then opening and closing the driver’s door.
226Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
Page 227 of 494

LANE KEEPING SYSTEM (IF EQUIPPED)
WARNING:The system is designed to aid the driver. It is not
intended to replace the driver’s attention and judgment. The
driver is still responsible to drive with due care and attention.
The system detects unintentional drifting toward the outside of the lane
and alerts and/or aids (if equipped) the driver to stay in the lane through
the steering system and instrument cluster display. The system
automatically detects and tracks the road lane markings using a camera
that is mounted behind the interior rear view mirror.
Note:The system needs to be activated by the driver at each key cycle.
Note:The system works above 40 mph (64 km/h).
Note:The system works as long as one lane marking can be detected by
the camera.
Note:If the camera is blocked or if the windshield is damaged, the
system may not function.
Note:When Aid mode is on and the driver’s hands are off the steering
wheel for a short continuous period of time, the system alerts the driver
to put their hands on the steering wheel. The system may detect a light
grip/touch on the steering wheel as hands off driving. SeeSystem
settings.
Switching the System On and Off
To turn the system on, the button
must be pressed each time the
vehicle is started. The system can
be turned off by pressing the button
again.
Note:The system is defaulted to off each time the vehicle is started,
unless a MyKeyis detected. If a MyKeyis detected, the system is
defaulted to on.
Note:If a MyKeyis detected, pressing the button will not affect the
on/off status of the system. Only the Mode, Sensitivity and Intensity
settings can be changed when a MyKeyis present.
Driving Aids227
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
Page 228 of 494

System Settings
The system has one standard feature setting and two optional setting
menus available. To view or adjust them, select Settings > Vehicle
Settings > Driver Assist > Lane Keeping Sys in the left-hand instrument
cluster display using the OK button on the steering wheel. The
last-known selection for each of these settings is stored by the system.
You do not need to readjust your settings each time you turn on the
system.
Mode:This setting allows the driver to select which of the system
features will be enabled and turned on when the button is pressed.
Note:Some vehicle are only equipped with the alert function only.
•Alert only – Provides a steering wheel vibration when an unintended
lane departure is detected.
•Aid only (if equipped) – Provides a steering input toward the lane
center when an unintended lane departure is detected.
•Alert + Aid (if equipped)
Sensitivity:This setting affects where in the lane a warning is provided
(e.g. the increased sensitivity setting will move the warning zones in
closer). This setting does not impact the aid mode.
•Normal
•Increased
Intensity (if equipped):This setting affects the intensity of the
steering wheel vibration used for the alert mode. This setting does not
impact the aid mode.
•Low
•Medium
•High
System Display
When the system is turned on, an overhead graphic of a vehicle
with lane markings will be displayed in the left-hand instrument
cluster display. If the aid mode is selected when the system is
turned on, a separate white icon will also appear in the instrument
cluster.
228Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
Page 229 of 494

When the system is turned off, the lane marking graphics will not be
displayed.
Note:The overhead vehicle graphic may still be displayed if adaptive
cruise control is enabled.
While the system is on, the color of the lane markings will change to
indicate the system status.
Gray: Indicates that the system is temporarily unable to provide a
warning or intervention on the indicated side(s). This may be because:
•the vehicle is under the activation speed
•the turn indicator is active
•the vehicle is in a dynamic maneuver
•the road has no or poor lane markings in the camera field-of-view
•the camera is obscured or unable to detect the lane markings due to
environmental conditions (e.g. significant sun angles or shadows, snow,
heavy rain, fog), traffic conditions (e.g. following a large vehicle that is
blocking or shadowing the lane), or vehicle conditions (e.g. poor
headlamp illumination).
SeeTroubleshootingfor additional information.
Green: Indicates that the system is available or ready to provide a
warning or intervention, on the indicated side(s).
Yellow (if equipped): Indicates that the system is providing or has just
provided a lane keeping aid intervention.
Red: Indicates that the system is providing or has just provided a lane
keeping alert warning.
The system can be temporarily suppressed at any time by the following:
•Pressing the button
•Quick braking
•Fast acceleration
•Using the turn signal indicator
•Evasive steering maneuver
Driving Aids229
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
Page 230 of 494

Troubleshooting
Why is the feature not available (line markings are gray) when I
can see the lane markings on the road?
Vehicle speed is outside the operational range of the feature
Sun is shining directly into the camera lens
Quick intentional lane change
Staying too close to the lane marking
Driving at high speeds in curves
Previous feature activation happened within the last one second
Ambiguous lane markings (mainly in construction zones)
Rapid transition from light to dark or vice versa
Sudden offset in lane markings
ABS or AdvanceTrac activation
Camera blockage due to dirt, grime, fog, frost or water on the
windshield
Too close to the vehicle in front of you
Transitioning between no lane markings to lane markings or vice versa
Standing water on the road
Faint lane markings (partial yellow lane markings on concrete roads)
Lane width too narrow or too wide
Camera not calibrated after a windshield replacement
When driving on tight roads or on uneven roads
Why does the vehicle not come back into the middle of the lane
always, as expected, in the Aid or Aid + Alert mode?
High cross winds
Large road crown
Rough roads, grooves, shoulder drop-offs
Heavy uneven loading of the vehicle or improper tire inflation pressure
If the tires have been exchanged (including snow tires), or the
suspension has been modified
230Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

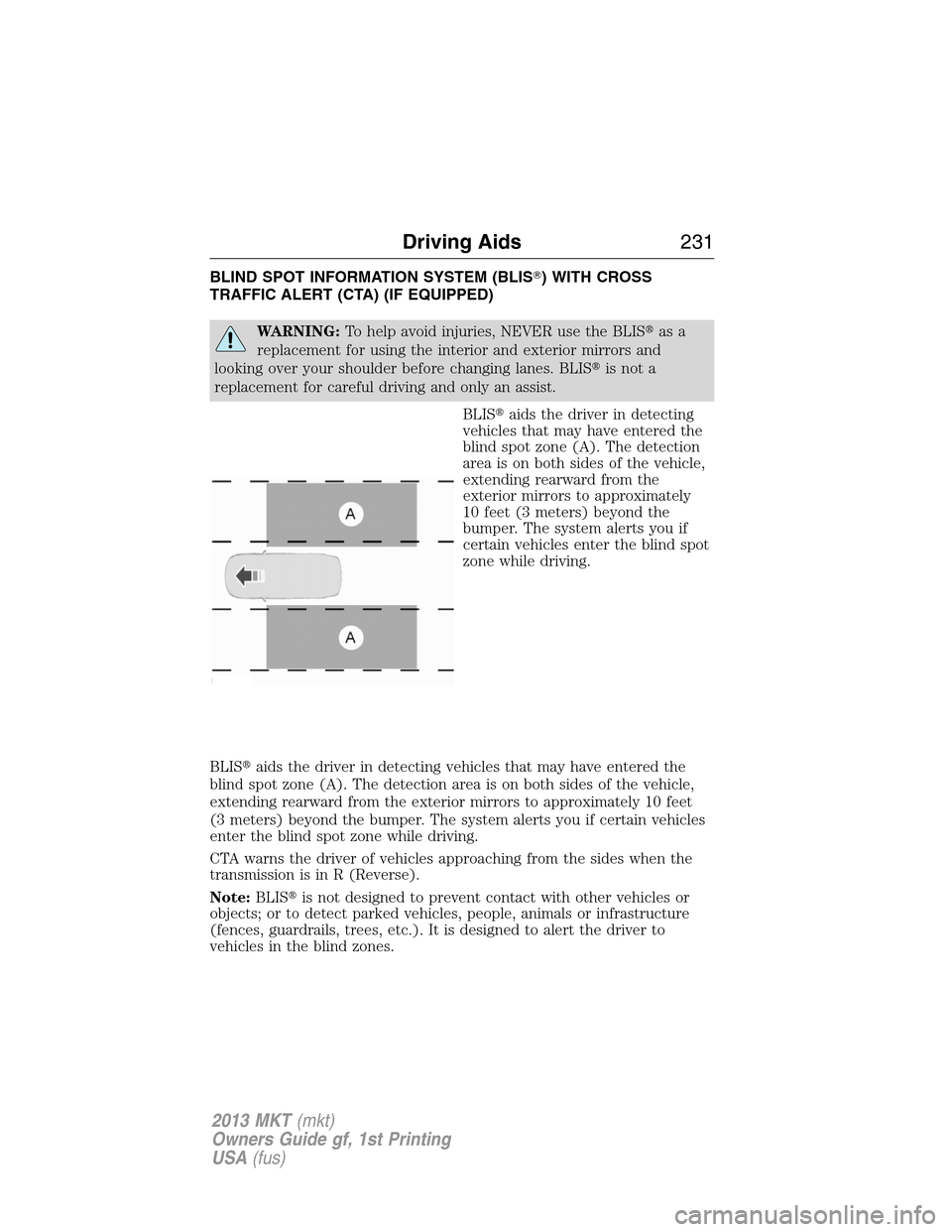

Page 231 of 494

BLIND SPOT INFORMATION SYSTEM (BLIS) WITH CROSS
TRAFFIC ALERT (CTA) (IF EQUIPPED)
WARNING:To help avoid injuries, NEVER use the BLISas a
replacement for using the interior and exterior mirrors and
looking over your shoulder before changing lanes. BLISis not a
replacement for careful driving and only an assist.
BLISaids the driver in detecting
vehicles that may have entered the
blind spot zone (A). The detection
area is on both sides of the vehicle,
extending rearward from the
exterior mirrors to approximately
10 feet (3 meters) beyond the
bumper. The system alerts you if
certain vehicles enter the blind spot
zone while driving.
BLISaids the driver in detecting vehicles that may have entered the
blind spot zone (A). The detection area is on both sides of the vehicle,
extending rearward from the exterior mirrors to approximately 10 feet
(3 meters) beyond the bumper. The system alerts you if certain vehicles
enter the blind spot zone while driving.
CTA warns the driver of vehicles approaching from the sides when the
transmission is in R (Reverse).
Note:BLISis not designed to prevent contact with other vehicles or
objects; or to detect parked vehicles, people, animals or infrastructure
(fences, guardrails, trees, etc.). It is designed to alert the driver to
vehicles in the blind zones.
Driving Aids231
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
Page 232 of 494

Note:When a vehicle passes quickly through the blind zone (typically
fewer than two seconds), the system does not trigger.
Using the Systems
BLISturns on when the engine is started and the vehicle is driven
forward above 3 mph (5 km/h); it remains on while the transmission is in
D (Drive) and N (Neutral). If shifted out of D (Drive) or N (Neutral), the
system enters CTA mode. Once shifted back into D (Drive), BLISturns
back on when the vehicle is driven above 3 mph (5 km/h).
Note:BLISdoes not function in R (Reverse) or P (Park) or provide
any additional warning when a turn signal is on.
CTA detects approaching vehicles from up to 45 feet (14 meters) away
though coverage decreases when the sensors are blocked. Reversing
slowly helps increase the coverage area and effectiveness.
WARNING:To help avoid personal injury, NEVER use the CTA
system as a replacement for using the interior and exterior
mirrors and looking over your shoulder before backing out of a parking
space. CTA is not a replacement for careful driving and only an assist.
In this first example, the left sensor is only partially obstructed; zone
coverage is nearly maximized.
232Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
