7777-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
engine tem>.Start the
engine with
the elec-
tronic key
present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
“START STOP
ENGINE”
<“POWER”> switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the “START
STOP ENGINE”
<“POWER”> switch
was not turned off.Tu r n t h e
“START
STOP
ENGINE”
<“POWER”
> switch off
or bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)

7837-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio
sound.
Once
The “START STOP
ENGINE”
<“POWER”> switch
has been turned off
with the shift lever
in a position other
than P or N.
Shift the
shift lever to
P.
Once
After the “START
STOP ENGINE”
<“POWER”> switch
has been turned off
with the shift lever
in a position other
than P, the shift
lever has been
shifted to P.
Tu r n t h e
“START
STOP
ENGINE”
<“POWER”>
switch off.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(Flashes)

7947-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on
the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
( P. 835)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace the compact spare tire after the tire
pressure warning light comes on, the light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving wi th the compact spare tire compared to
when driving with standard tires.
■If you have a flat front tire on a road co vered with snow or ice (vehicles with a com-
pact spare tire)
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the
following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
1
2
3

7967-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
NOTICE
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving perfor-
mance.
■When replacing the tires
When removing or fitting the wheels, tire s or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.

ES350 300h_OM_OM33A01U_(U)
8458-1. Specifications
8
Vehicle specifications
This information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Depart-
ment of Transportation.
It provides the purchasers and/or prospective purchasers of Lexus vehi-
cles with information on uniform tire quality grading.
Your Lexus dealer will help answer any questions you may have as you read this
information.
■DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlle d conditions on a specified govern-
ment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as well
on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of their
use. Performance may differ significantly from the norm due to variations in
driving habits, service practices and differences in road characteristics and cli-
mate.
■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire’s ability to stop on wet pavement as measured
under controlled conditions on sp ecified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking (straight
ahead) traction tests and does not include cornering (turning) traction.
Uniform Tire Quality Grading

846
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing the
tire’s resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditio ns on a specified indoor labora-
tory test wheel.
Sustained high temperature can cause th e material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger car tires
must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory test
wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly inflated
and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.

865
ES350 300h_OM_OM33A01U_(U)
8-3. Items to initialize
8
Vehicle specifications

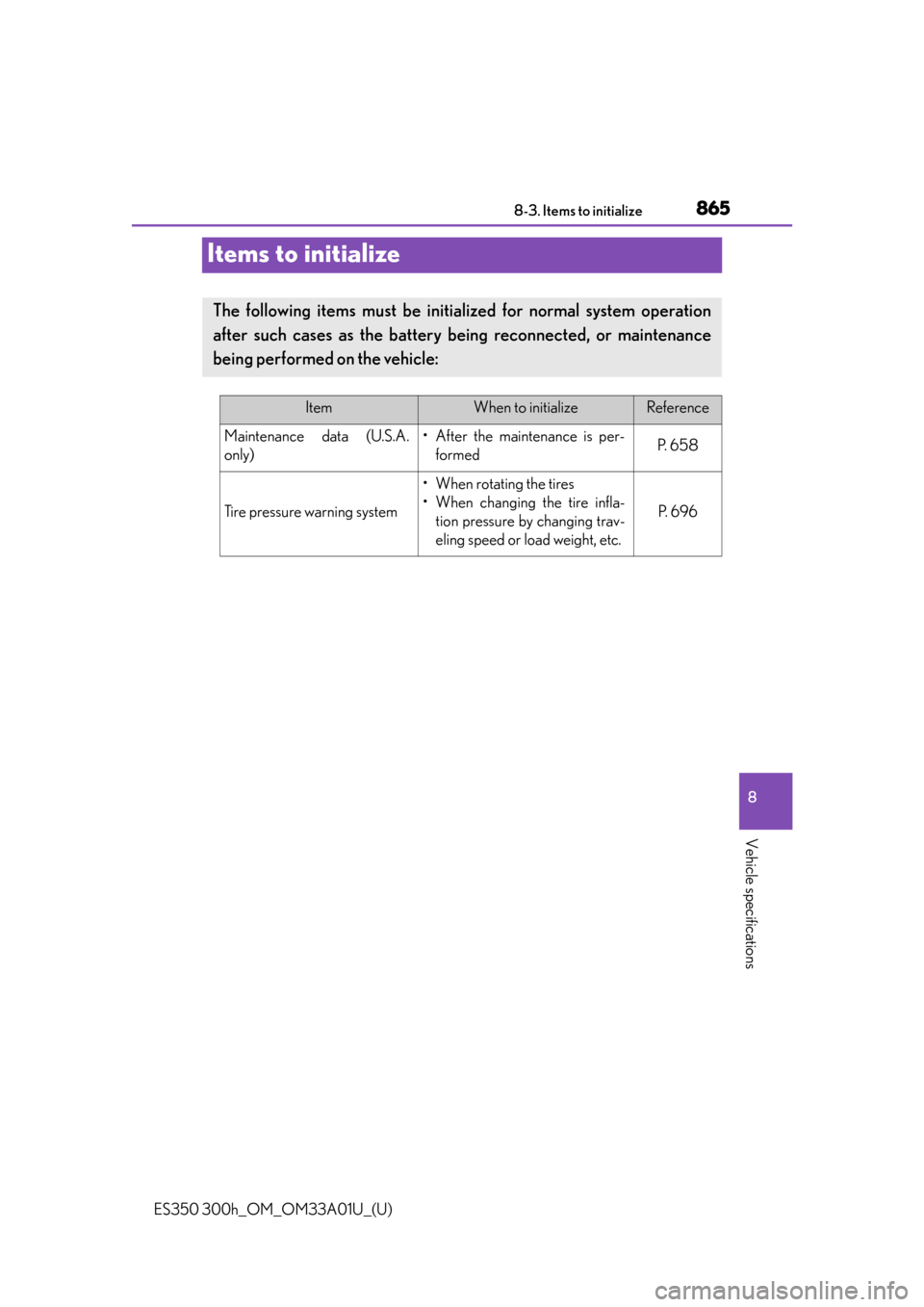

Items to initialize
The following items must be initialized for normal system operation
after such cases as the batter y being reconnected, or maintenance
being performed on the vehicle:
ItemWhen to initializeReference
Maintenance data (U.S.A.
only)• After the maintenance is per- formedP. 6 5 8
Tire pressure warning system
• When rotating the tires
• When changing the tire infla-tion pressure by changing trav-
eling speed or load weight, etc.
P. 6 9 6

886What to do if... (Troubleshooting)
ES350 300h_OM_OM33A01U_(U)●
The seat belt remind
er light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 7 5 4 )
●The parking brake indicator is on
Is the parking brake released? ( P. 222)
Depending on the situation, ot her types of warning buzzer may
also sound. ( P. 751, 761)
●Did anyone inside the vehicle op en a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( P. 8 4 )
To stop the alarm, turn the “START STOP ENGINE” <“POWER”>
switch to IGNITION ON mo de or start the engine system>.
●Is the electronic key left insid e the vehicle or the moon roof
opened?
Check the message on the multi-information display.
( P. 76 1 )
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
