2013 Lexus ES350 Quick Guide

8
ES350_QG_OM33A11U_(U)
“DISP” button P.29
Telephone switches P.59
Vehicle-to-vehicle distance button∗ P.40
Back switch P.59
Talk switch P.59
Audio remote control switches
P.63, 77, 84
LDA (Lane Departure Alert)
switch
∗ P.42
Cruise control switch∗
Dynamic radar cruise control switch
∗
P.37
P.39
Horn*
Tilt and telescopic steering control switch∗*
∗: If equipped
*: Refer to “Owner’s Manual”.

9
ES350_QG_OM33A11U_(U)
OverviewInstrument Panel
Remote Touch∗ P.48
Heated steering wheel switch∗*
VSC OFF switch*
Seat heater switches∗/seat heater
and ventilator switches
∗ P.86
Driving mode select switch P.46
Shift lever P.35
Rear sunshade switch∗ P.87
Lexus Display Audio controller∗ P.68

10
ES350_QG_OM33A11U_(U)
OverviewRoof∗
: If equipped
*: Refer to “Owner’s Manual”.
Moon roof switches P.98
Personal lights*
Interior light*
“SOS” button∗ P.91
Garage door opener switches P.89
Inside rear view mirror*
Vanity lights*

11
ES350_QG_OM33A11U_(U)
Consumption Screen (if equipped)
■Displaying the consumption screen
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch, then select “Info/Apps” on the “Menu”
screen.
Select “Fuel Consumption” on the “Information” screen.
Vehicles with Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, then select “Car” on the
“Menu” screen.
● Trip information
If the “Trip Information” screen is no t displayed, select “Trip Information”.
Vehicles with a navigation system
Current fuel consumption
Fuel consumption in the past 15 min-
utes
Regenerated energy in the past 15
minutes (if equipped)
Displays the average vehicle speed
since the engine was started.
Displays the elapsed time since the
engine was started.
Cruising range
Reset the consumption data
“Past Record” (Navigation system) or
“History” (Lexus Display Audio sys-
tem) screen appears
“Energy Monitor” screen appears (if
equipped)
Vehicles with Lexus Display Audio system
You can view the status of your vehicle on th
e navigation system screen or Lexus Display
Audio system screen.
1
2
1
2
3
4
5
6
7
8
9

12
ES350_QG_OM33A11U_(U)
●Pa s t re c o r d
If the “History” or “Past Record” screen is not displayed, select “History” or “Past Record”.
Vehicles with a navigation system
Average fuel consumption
Previous fuel consumption record
Best recorded fuel consumption
Update the average fuel consumption
data
Reset the past record data
“Trip Information” screen appears
“Energy Monitor” screen appears (if
equipped)
Vehicles with Lexus Display Audio system
1
2
3
4
5
6
7

13
ES350_QG_OM33A11U_(U)

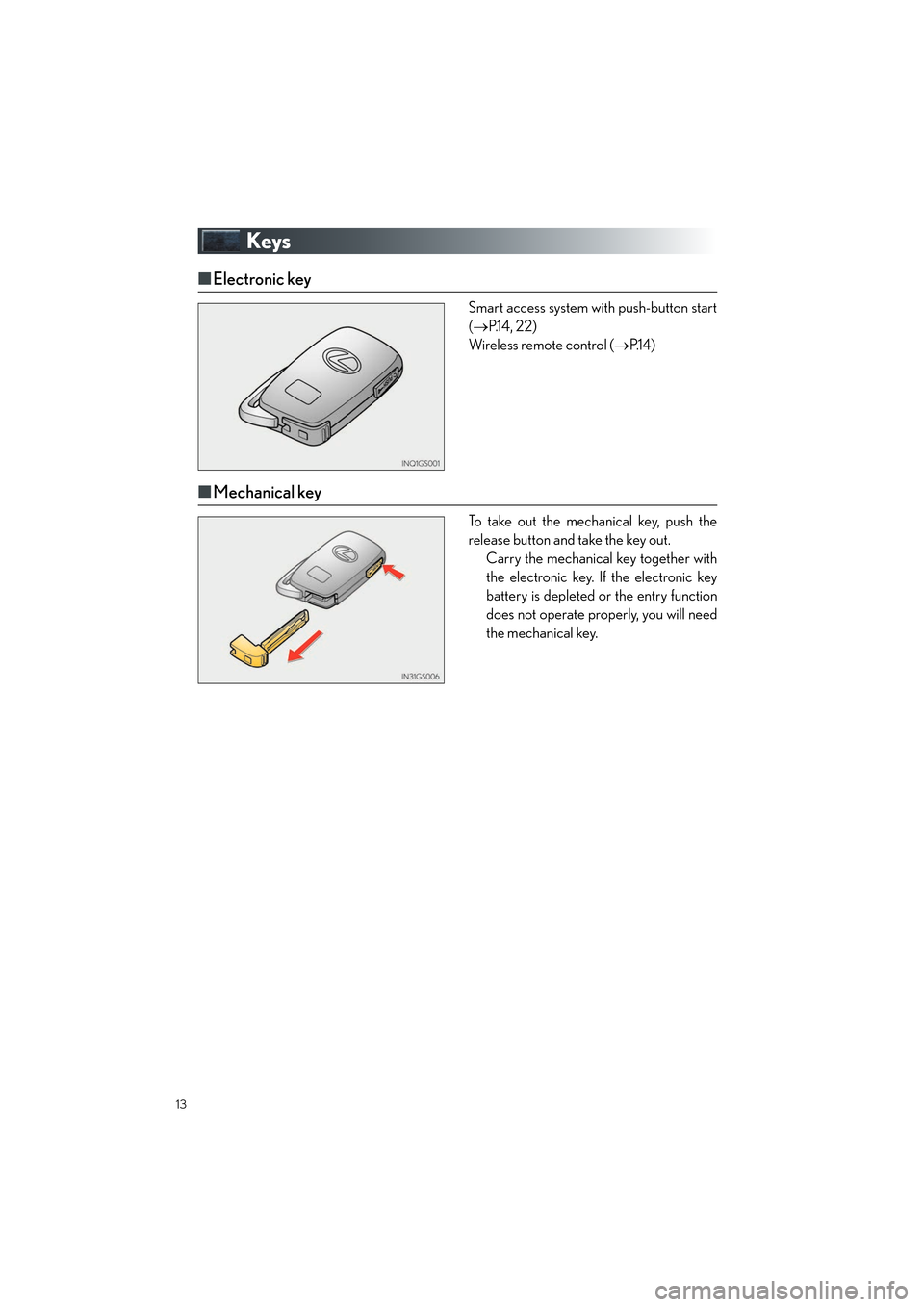

Keys
■Electronic key
Smart access system with push-button start
(→ P.1 4 , 2 2 )
Wireless remote control ( →P.1 4 )
■Mechanical key
To take out the mechanical key, push the
release button and take the key out.
Carry the mechanical key together with
the electronic key. If the electronic key
battery is depleted or the entry function
does not operate properly, you will need
the mechanical key.

14
ES350_QG_OM33A11U_(U)
■Wireless remote control
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within
5 seconds unlocks the other doors.
Opens the windows and moon roof
(press and hold)
*
Opens the trunk (press and hold)
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
Sounds the alarm (press and hold)
*: This setting must be customized at your
Lexus dealer.
Smart Access System with Push-button Start
■ Entering the vehicle
Grip the driver’s door handle to unlock the
door. Grip the passenger’s door handle to
unlock all the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.
1
2
3
4
5
The following operations can be performed simply by carrying the electronic key on your
person, for example in your pocket. (The driver should always carry the electronic key.)
For details on starting the engine, see page 22.

15
ES350_QG_OM33A11U_(U)
■Exiting the vehicle
Touch the lock sensor (the indentation on
the upper part of the door handle) to lock
all the doors.
■Opening the trunk
Press the button.
If the vehicle is equipped with power
trunk opener and closer, the trunk lid
automatically opens fully.
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote con-
trol.
Turn the “START STOP ENGINE” switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release th e buttons, wait for at least 5 seconds, and
repeat step .)
1
2
2
