2013 Lexus ES350 Quick Guide

96
ES350_QG_OM33A11U_(U)
Door Locks
■Door lock switch
Locks all the doors
Unlocks all the doors
■Inside lock button
Locks the door
Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
The vehicle can be locked and unlocked using the entry function, wireless remote control
or door lock switches.
For details the entry function or wireless remote control ( → P.13, 14)
1
2
1
2

97
ES350_QG_OM33A11U_(U)
■Rear door child-protector lock
The door cannot be opened from inside the
vehicle when the lock is set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch to
lock both rear doors.
Powe r Wi n d ows
■Po w e r w i n d o w s w i t c h e s
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pushing the switch in the opposite direc-
tion will stop window travel partway.
■ Wi n dow lo ck swi tc h
Press the switch down to lock the passen-
ger window.
Use this switch to prevent children from
accidentally opening or closing a pas-
senger window.
1
2
1
2
3
4

98
ES350_QG_OM33A11U_(U)

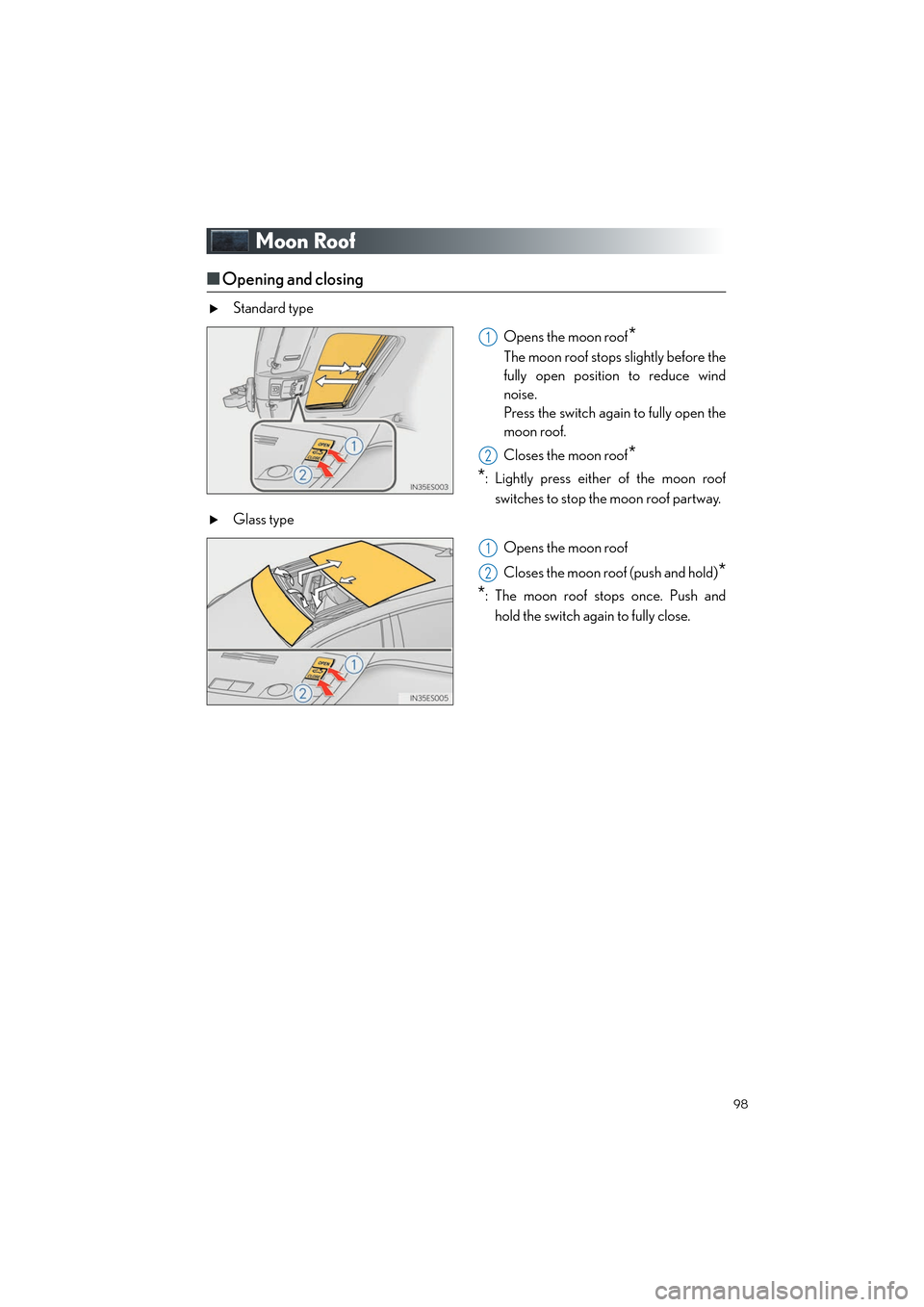

Moon Roof
■Opening and closing
Standard type
Opens the moon roof
*
The moon roof stops slightly before the
fully open position to reduce wind
noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof
*
*
: Lightly press either of the moon roof
switches to stop the moon roof partway.
Glass type
Opens the moon roof
Closes the moon roof (push and hold)
*
*
: The moon roof stops once. Push and
hold the switch again to fully close.
1
2
1
2

99
ES350_QG_OM33A11U_(U)
■Tilting up and down
Standard type
Tilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either of the moon roof
switches to stop the moon roof partway.
Glass type Tilts the moon roof up
*
Tilts the moon roof down (push and
hold)
*: Lightly press either way of the moon roofswitch to stop the moon roof partway.
1
2
1
2

100
ES350_QG_OM33A11U_(U)
Fuel Tank Cap
■Before refueling the vehicle
● Close all the doors and windows, and turn the “START STOP ENGINE” switch off.
● Confirm the type of fuel.
■Opening the fuel tank cap
Press the opener switch to open the
fuel filler door.
Turn the fuel tank cap slowly to open.
Hang the fuel tank cap on the back of
the fuel filler door.1
2
3

101
ES350_QG_OM33A11U_(U)
Trunk
■Opening the trunk
● From inside the vehicle
Press the opener switch.If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully
Turn the main switch in the glove box off to
disable the trunk opener. On
Off
The trunk lid cannot be opened even with
the wireless remote control or the entry
function.
● From outside the vehicle
• Entry function
→ P.1 4
• Wireless remote control → P.1 4
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automatically
close it to the fully closed position.
■Trunk closer switch (vehicles with power trunk opener and closer)
Pressing the switch closes the trunk lid
automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid is
closing opens the trunk lid again.
1
2

102
ES350_QG_OM33A11U_(U)
Floor mat
Use only floor mats designed specifically for vehicles of the same model and model year as
your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retaining
hook (clip) to secure the floor mats in
place.
*:Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
1
*
2
■When installing the driver’s floor mat
• Do not use floor mats designed for other models or different model year vehicles, even
if they are Lexus Genuine floor mats.
• Only use floor mats designed for the driver’s seat.
• Always install the floor mat securely using the retaining hooks (clips) provided.
• Do not use two or more floor mats on top of each other.
• Do not place the floor mat bottom-side up or upside-down.

What to do if...
103
ES350_QG_OM33A11U_(U)
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lamp(Flashes)
“PCS” warning light
(if equipped)
(Canada)Slip indicator
SRS warning light
(Blinking and then continu-
ously on)
Tire pressure warning light
(U.S.A.)
ABS warning light
(Canada)
Automatic headlight leveling
system warning light
(if equipped)
Electric power steering
system warning light
For further information, refer to the Owner’s Manual.
