2. Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is turned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features →P. 8 5 2 )
3425-1. Lexus Display Audio system
ES350 300h_OM_OM33A01U_(U)

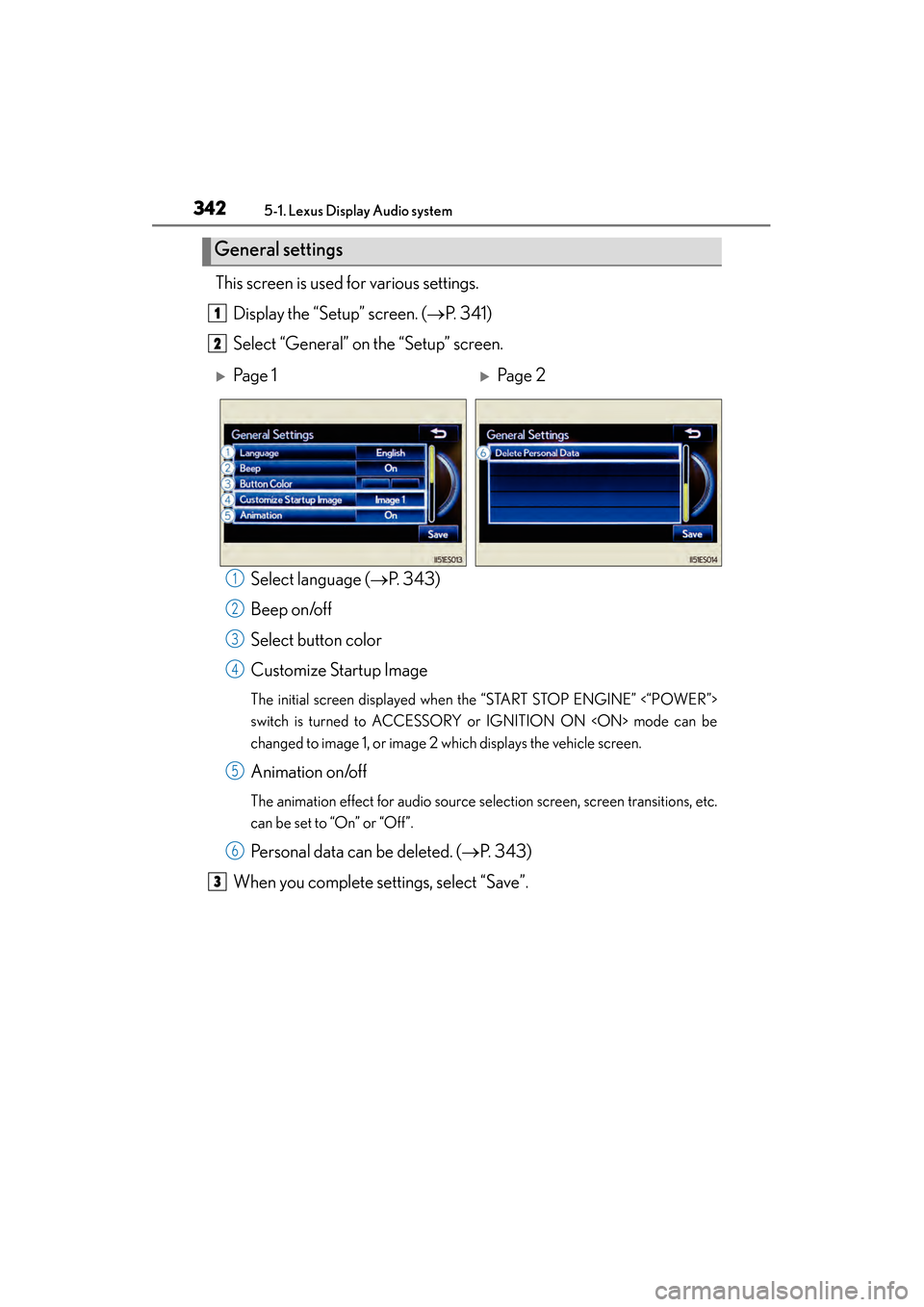

This screen is used for various settings.Display the “Setup” screen. ( →P. 3 4 1 )
Select “General” on the “Setup” screen.
Select language ( →P. 343)
Beep on/off
Select button color
Customize Startup Image
The initial screen displayed when the “START STOP ENGINE” <“POWER”>
switch is turned to ACCESSORY or IGNITION ON mode can be
changed to image 1, or image 2 which displays the vehicle screen.
Animation on/off
The animation effect for audio source selection screen, screen transitions, etc.
can be set to “On” or “Off”.
Personal data can be deleted. ( →P. 343)
When you complete settings, select “Save”.
General settings
1
2
XPa g e 1 XPa g e 2
1
2
3
4
5
6
3
