POWER CONVERTIBLE TOP OPERATION AND WARNING MESSAGES
When the appropriate conditions exist, the PTCM displays various power convertible top operation and warning messages in
the Electronic Vehicle Information Center (EVIC), or in the Odometer for vehicles not equipped with the EVIC. Refer to the
following chart for message related information:EVIC
MessageEVIC
Message
Display
Time
Odometer
Message
(< 8 km/h) Odometer
Message
Display
TimeOdometer
Message
(> 8 km/h) Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
Complete—
— — The Sys-
tem is
Lowering
or Raising
the Top—
CONVERT-
IBLE TOP
COM-
PLETE 9 sec. TOP
DONE Display
Scrolls for
6 sec.—
— Single
ChimeThe Sys-
tem Com-
pletes Op-
eration of
Lowering
or Raising
the Top —
SECURE
CARGO
SHIELD 9 sec. SET
CARGO
SHIELD Display
Scrolls for
9 sec.—
— Single
ChimeThe Top
Fails to
Move
When Op-
erating the
Power Top
Control Position
the Cargo
Shield in
the Trunk
to Allow
Top Op-
eration
62

EVIC
MessageEVIC
Message
Display
Time
Odometer
Message
(< 8 km/h) Odometer
Message
Display
TimeOdometer
Message
(> 8 km/h) Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
NOT
SECURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
CompleteTOP nOT
SECUrE
Until Op-
eration is
CompleteSingle
Chime
The Sys-
tem Fails
to Com-
plete Op-
eration of
Lowering
or Raising
the Top Cycle
Power Top
Control
SPEED
TOO HIGH 9 sec. SPEED
TOO
HIGH Display
Scrolls for
9 sec.TOP 6 sec. Single
ChimeYou Are
Operating
the Power
Top at a
Vehicle
Speed
Greater
Than
0 km/h The Top
Will Not
Operate
Unless the
Vehicle is
Stationary.
TRUNK
AJAR Continu-
ousDECK Continu-
ousDECK Continu-
ousSingle
ChimeThe Trunk
Lid is Un-
latched or
Open The Top
Will Not
Operate
Unless the
Trunk Lid
is Closed
63

EVIC
MessageEVIC
Message
Display
Time
Odometer
Message
(< 8 km/h) Odometer
Message
Display
TimeOdometer
Message
(> 8 km/h) Odometer
Message
Display
Time
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
MAL-
FUNC-
TION 6 sec. TOP FAIL Display
Scrolls for
6 SecondsTOP 6 sec. Single
ChimeThe PTCM
Activated
the System
LOCK-
OUT
Feature Refer to
Foot Note

CONVERT-
IBLE TOP
MAL-
FUNC-
TION Until
Fault is
No Lon-
ger De-
tected or
RepairedTOP FAIL Display
Scrolls
until
Fault is
No Lon-
ger De-
tected or
RepairedTOP Display
Flashes
until
Fault is
No Lon-
ger De-
tected or
RepairedSingle
Chime
The PTCM
Activated
the System
LOCK-
OUT
Feature See your
authorized
dealer for
service
If so equipped.
For vehicles not equipped with the EVIC.
The PTCM will lockout the power convertible top system if the vehicle charging system is malfunctioning, or the
battery is run down, or the hydraulic pump is overheating.
 If the vehicle charging system is malfunctioning, see your authorized dealer for service.
 If the battery is run down, have it recharged and tested at your authorized dealer.
 Hydraulic pump overheating can occur if you lower and raise the top consecutively (usually more than six or seven
times depending upon the ambient temperature). Wait at least five minutes before operating the power top again.
NOTE: If lockout occurs due to hydraulic pump overheating, the system will allow you to raise the top without waiting
five minutes. However, do so only if necessary.
64

The Headlights with Wipers feature can
be turned on or off through the Elec-
tronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle In-
formation Center (EVIC)/Customer-
Programmable Features” in “Under-
standing Your Instrument Panel” for
further information.HEADLIGHT TIME DELAY
This feature is particularly useful
when exiting your vehicle in an unlit
area. It provides the safety of head-
light illumination for up to 90 seconds
after turning the ignition switch to the
LOCK position.
To activate the delay, turn the ignition
switch to the LOCK position while the
headlights are still on. Then, turn off
the headlights within 45 seconds. The
delay interval begins when you turn
off the headlights. Only the headlights
will illuminate during this time.
If you turn the headlights, parking
lights, or ignition switch ON again,
the system will cancel the delay.If you turn the headlights off before
the ignition, they will turn off in the
normal manner.
The Headlight delay time is program-
mable on vehicles equipped with the
Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle In-
formation Center (EVIC)/Customer-
Programmable Features” in “Under-
standing Your Instrument Panel” for
further information.INSTRUMENT PANEL
DIMMER
Rotate the center portion of the lever
to the extreme bottom position to fully
dim the instrument panel lights and
prevent the interior lights from illumi-
nating when a door is opened.
Rotate the center portion of the lever
up to increase the brightness of the
instrument panel lights when the
parking lights or headlights are on.
Rotate the center portion of the lever
upward to the next detent position to
brighten the odometer and radio
when the parking lights or headlights
are on.Rotate the center portion of the lever
upward to the last detent to turn on
the interior lighting.
FOG LIGHTS
To activate the front fog lights,
turn on the parking lights, low
beam headlights or automatic
headlights and pull out on the end of
the multifunction lever.
Dimmer Control
Front Fog Light Control
95

on when the brake fluid level in the
master cylinder has dropped below a
specified level.
The light will remain on until the
cause is corrected.
NOTE: The light may flash mo-
mentarily during sharp cornering
maneuvers which change fluid
level conditions. The vehicle
should have service performed,
and the brake fluid level checked.
If brake failure is indicated, immedi-
ate repair is necessary.WARNING!
Driving a vehicle with the brake
light on is dangerous. Part of the
brake system may have failed. It
will take longer to stop the vehicle.
You could have a collision. Have the
vehicle checked immediately.
Vehicles equipped with Anti-Lock
brakes (ABS), are also equipped with
Electronic Brake Force Distribution
(EBD). In the event of an EBD failure,
the Brake Warning Light will turn on
along with the ABS Light. Immediate
repair to the ABS system is required. The operation of the Brake Warning
Light can be checked by turning the
ignition switch from the OFF position
to the ON/RUN position. The light
should illuminate for approximately
three seconds. The light should then
turn off unless the parking brake is
applied or a brake fault is detected.
If the light does not illuminate, have
the light inspected by an authorized
dealer.
The light also will turn on when the
parking brake is applied with the igni-
tion switch in the ON/RUN position.NOTE: This light shows only
that the parking brake is applied.
It does not show the degree of
brake application.
12. Tachometer
The silver area of the scale shows the
permissible engine revolutions-per-
minute (RPM x 1000) for each gear
range. Before reaching the red area,
ease up on the accelerator to prevent
engine damage.
13. Shift Lever Indicator
The Shift Lever Indicator is self-
contained within the instrument clus-
ter. It displays the gear position of the
automatic transmission.
NOTE: You must apply the
brakes before shifting from PARK.
14. Odometer Display/Trip Odom-
eter Display
The odometer display shows the total
distance the vehicle has been driven.
The two trip odometers show indi-
vidual trip mileage. To switch from
odometer to trip odometers, press and
release the Trip Odometer button. To
reset a trip odometer, display the de-
sired trip odometer to be reset then
push and hold the button until the
display resets (approximately 2 sec-
onds). Refer to “Trip Odometer But-
ton” for additional information.
113

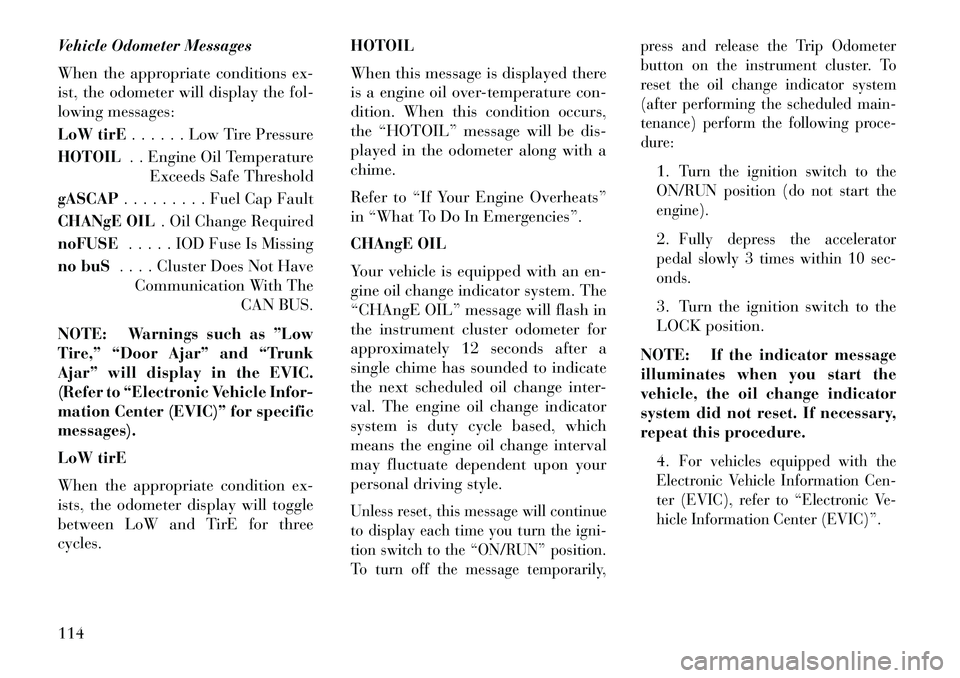

Vehicle Odometer Messages
When the appropriate conditions ex-
ist, the odometer will display the fol-
lowing messages:
LoW tirE. . . . . . Low Tire Pressure
HOTOIL . . Engine Oil Temperature
Exceeds Safe Threshold
gASCAP . . . . . . . . . Fuel Cap Fault
CHANgE OIL . Oil Change Required
noFUSE . . . . . IOD Fuse Is Missing
no buS . . . . Cluster Does Not Have
Communication With The CAN BUS.
NOTE: Warnings such as ”Low
Tire,” “Door Ajar” and “Trunk
Ajar” will display in the EVIC.
(Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” for specific
messages).
LoW tirE
When the appropriate condition ex-
ists, the odometer display will toggle
between LoW and TirE for three
cycles. HOTOIL
When this message is displayed there
is a engine oil over-temperature con-
dition. When this condition occurs,
the “HOTOIL” message will be dis-
played in the odometer along with a
chime.
Refer to “If Your Engine Overheats”
in “What To Do In Emergencies”.
CHAngE OIL
Your vehicle is equipped with an en-
gine oil change indicator system. The
“CHAngE OIL” message will flash in
the instrument cluster odometer for
approximately 12 seconds after a
single chime has sounded to indicate
the next scheduled oil change inter-
val. The engine oil change indicator
system is duty cycle based, which
means the engine oil change interval
may fluctuate dependent upon your
personal driving style.
Unless reset, this message will continue
to display each time you turn the igni-
tion switch to the “ON/RUN” position.
To turn off the message temporarily, press and release the Trip Odometer
button on the instrument cluster. To
reset the oil change indicator system
(after performing the scheduled main-
tenance) perform the following proce-
dure:
1.
Turn the ignition switch to the
ON/RUN position (do not start the
engine).
2.
Fully depress the accelerator
pedal slowly 3 times within 10 sec-
onds.
3. Turn the ignition switch to the
LOCK position.
NOTE: If the indicator message
illuminates when you start the
vehicle, the oil change indicator
system did not reset. If necessary,
repeat this procedure. 4.
For vehicles equipped with the
Electronic Vehicle Information Cen-
ter (EVIC), refer to “Electronic Ve-
hicle Information Center (EVIC)”.
114

15. Cruise IndicatorThis indicator shows that
the Electronic Speed Con-
trol System is ON.
16. Odometer/Trip Odometer Reset
Button
Trip OdometerPress and release this button to change
the display from odometer to “Trip A.”
Press and release it a second time to
change the display to “Trip B.” Press
and release it a third time to change the
display back to the odometer.
To reset the trip odometer, first display
the trip mileage that you want to reset,
“Trip A” or “Trip B.” Then push and
hold the button (approximately 2 sec-
onds) until the display resets to 0 miles
(km). The odometer must be in Trip
Mode to reset the trip odometer.
17. Electronic Throttle Control
(ETC) Indicator Light
This light informs you of a
problem with the Electronic
Throttle Control (ETC) sys-
tem. If a problem is detected,
the light will come on while the engine is
running. If the light remains lit with the
engine running, your vehicle will usu-
ally be drivable and not need towing,
however see your authorized dealer for
service as soon as possible.
If the light is flashing when the engine
is running you may experience power
loss, an elevated/rough idle, and in-
creased brake pedal effort, and your
vehicle may require towing. Immedi-
ate service is required.
The light will come on when the igni-
tion switch is first turned on and re-
main on approximately 15 seconds as
a bulb check. This is normal. If the
light does not come on during start-
ing, have the system checked by an
authorized dealer. 18. Park/Headlight ON Indicator
This indicator will illumi-
nate when the park lights or
headlights are turned on.
19. Electronic Stability Control
(ESC) OFF Indicator Light This light indicates the
Electronic Stability Control
system (ESC) has been
turned off by the driver.
20. Turn Signal Indicators
The arrows will flash in uni-
son with the exterior turn
signal, when using the turn
signal lever. A chime will
sound if the vehicle is driven more than
1.6 km with either turn signal on.
NOTE: If either indicator flashes
at a rapid rate, check for a defec-
tive outside light bulb.
21. Front Fog Light Indicator
This indicator will illuminate
when the front fog lights are on.
115

Headlamps With Wipers
(Available with Auto Headlights
Only)
When ON is selected, and the head-
light switch is in the AUTO position,
the headlights will turn on approxi-
mately 10 seconds after the wipers are
turned on. The headlights will also
turn off when the wipers are turned
off if they were turned on by this
feature. To make your selection, press
the SELECT button until ON or OFF
appears.
NOTE: Turning the headlights on
during the daytime causes the in-
strument panel lights to dim. To
increase the brightness, refer to
“Lights” in “Understanding The
Features Of Your Vehicle.”
Key Off Power Delay
When this feature is selected, the
power window switches, radio,
Uconnect™ phone, and power outlets
will remain active for up to 10 min-
utes after the ignition switch is turnedto the LOCK position. Opening either
front vehicle door will cancel this fea-
ture. To make your selection, press the
SELECT button until OFF, 45 sec,
5 min, or 10 min appears.
Illumin. Approach
When this feature is selected, the head-
lights will activate and remain on for up
to 90 seconds when the doors are un-
locked with the remote keyless entry
transmitter. To make your selection,
press the SELECT button until “OFF,”
“30 sec,” “60 sec,” or “90 sec” appears.Display Units In
The EVIC and odometer can be
changed between English and Metric
units of measure. To make your selec-
tion, press and release the SELECT
button until “U.S.” or “METRIC”
appears.
Compass Variance
Refer to “Compass Display” for more
information.
Calibrate Compass
Refer to “Compass Display” for more
information.
SOUND SYSTEMS
Refer to your Sound Systems Booklet.
SETTING THE ANALOG
CLOCK
To set the analog clock, located at the
top center of the instrument panel,
press and hold the button in until the
setting is correct. The clock will adjust
slowly at first and then quicker the
longer the button is held.
Setting The Analog Clock
127
