2013 KIA Sportage Owner's Manual

68
Specifications & Consumer information
I040000AAM-EU

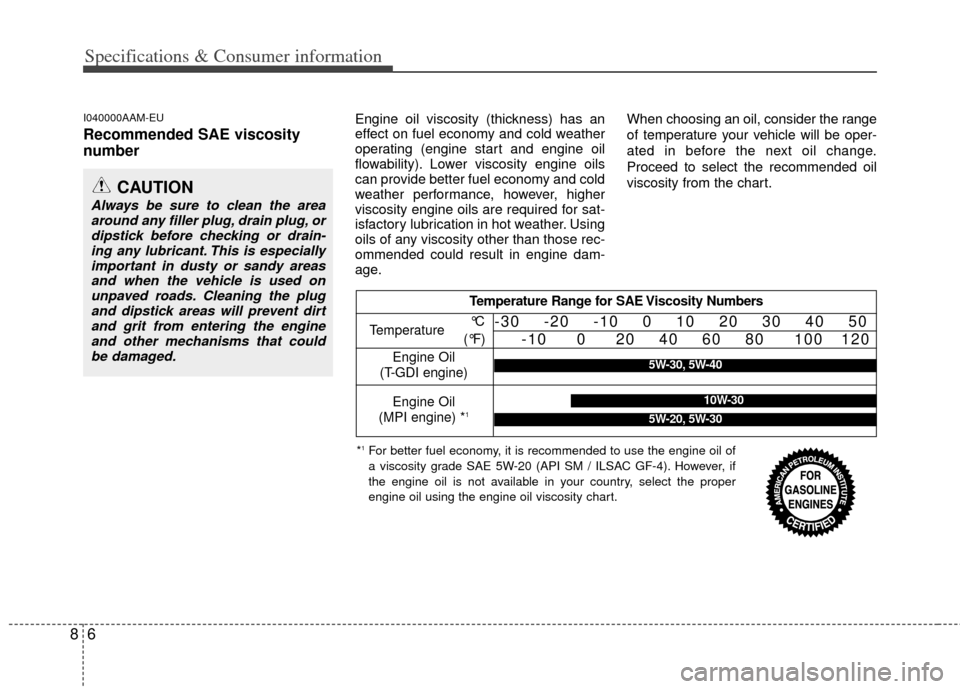

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil
(MPI engine) *
1
Engine Oil
(T-GDI engine) °C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-20, 5W-30
5W-30, 5W-40
*1For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.

87
Specifications & Consumer information
H010000AAM

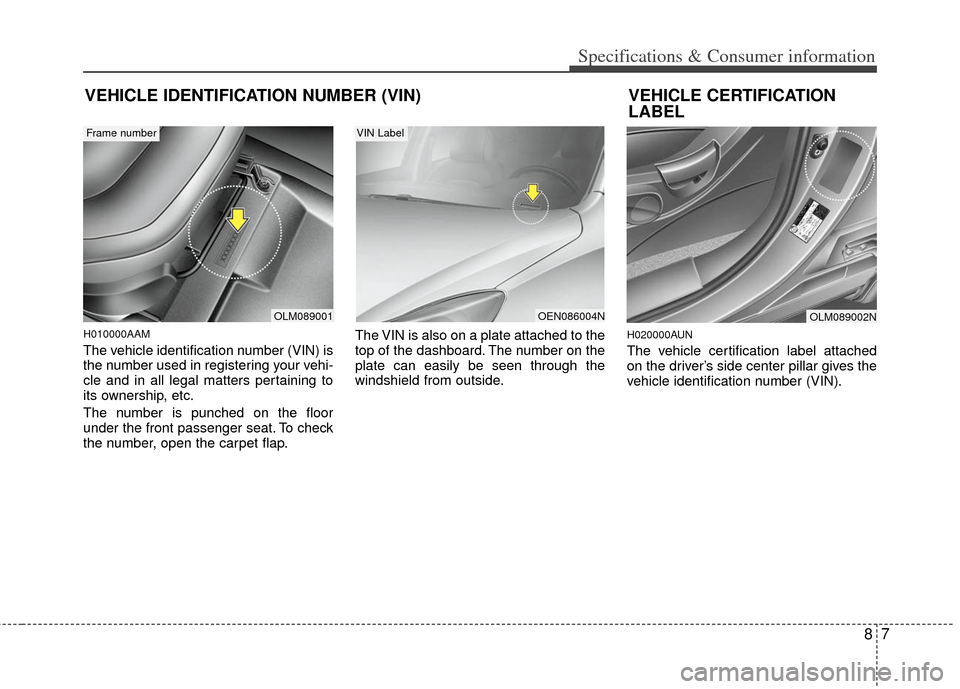

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the front passenger seat. To check
the number, open the carpet flap.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AUN
The vehicle certification label attached
on the driver’s side center pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OLM089002N
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN Label
OLM089001
Frame number

H030000APB

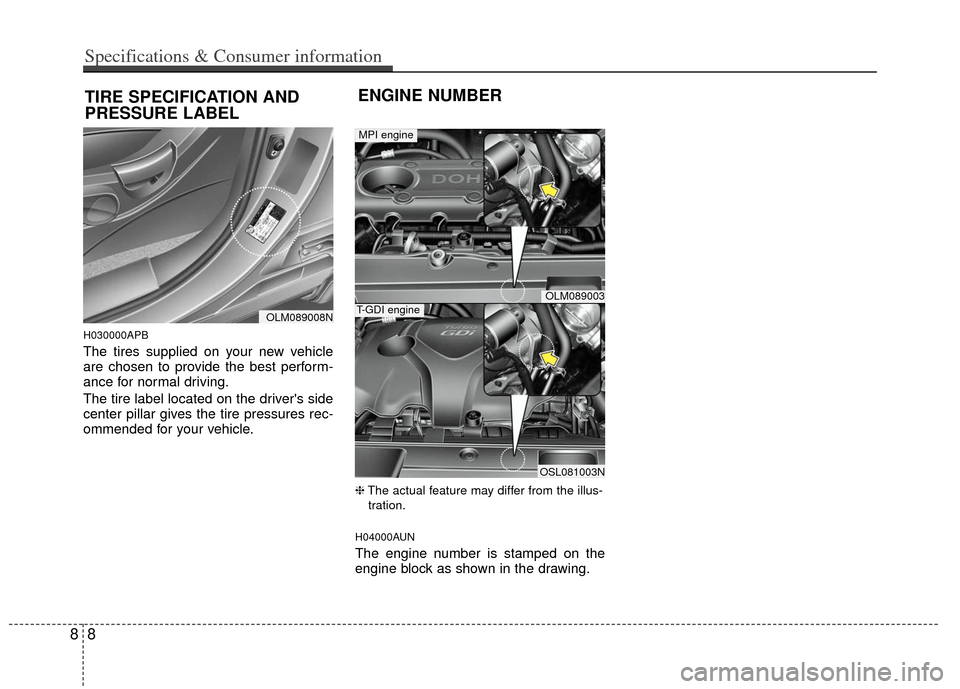

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.
❈The actual feature may differ from the illus-
tration.
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
OLM089008N
TIRE SPECIFICATION AND
PRESSURE LABEL
OLM089003
OSL081003N
MPI engine
T-GDI engine
