Features of your vehicle
10
4
✽✽

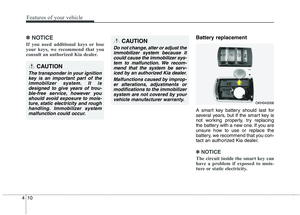

NOTICE
If you need additional keys or lose
your keys, we recommend that you
consult an authorized Kia dealer.Battery replacement
A smart key battery should last for
several years, but if the smart key is
not working properly, try replacing
the battery with a new one. If you are
unsure how to use or replace the
battery, we recommend that you con-
tact an authorized Kia dealer.
✽✽ NOTICE
The circuit inside the smart key can
have a problem if exposed to mois-
ture or static electricity.
CAUTION
The transponder in your ignition key is an important part of theimmobilizer system. It is designed to give years of trou-ble-free service, however youshould avoid exposure to mois- ture, static electricity and roughhandling. Immobilizer systemmalfunction could occur.
CAUTION
Do not change, alter or adjust theimmobilizer system because itcould cause the immobilizer sys- tem to malfunction. We recom-mend that the system be serv-iced by an authorized Kia dealer.
Malfunctions caused by improp-er alterations, adjustments or modifications to the immobilizersystem are not covered by yourvehicle manufacturer warranty.
OKH042006

411
Features of your vehicle
1. Pry open the rear cover of thesmart key.
2. Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the batteryposition.
3. Install the battery in the reverse order of removal.
✽✽NOTICE
 Using the wrong battery can cause the smart key to malfunction. Be
sure to use the correct battery.
 Circuits inside the smart key may develop problems when dropped,
exposed to moisture or static elec-
tricity.
 If you suspect that your smart key might have sustained some dam-
age, or you feel your smart key is
not working correctly, we recom-
mend that you contact an author-
ized Kia dealer.
CAUTION
An inappropriately disposed
battery can be harmful to theenvironment and human health.
Dispose the battery according toyour local law(s) or regulation.

Features of your vehicle
12
4
THEFT-ALARM SYSTEM (IF EQUIPPED)
This system is designed to provide
protection from unauthorized entry
into the car. This system is operated
in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights. Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1.Turn off the engine.
2.Make sure that all doors, the
engine hood and trunk lid are closed and latched.
Lock the doors by pressing the but- ton of the outside door handle with
the smart key in your possession.
After completion of the steps
above, the hazard warning lights
operate once to indicate that the
system is armed.
If any door remains open, the doors
won't lock and the chime will sound
for 3 seconds. Close the door and
try again to lock the doors.
If trunk lid or engine hood
remains open, the hazard warn-
ing lights won't operate and theft-
alarm will not arm. After this, if the
trunk lid and engine hood are
closed, the hazard warning lights
will blink once.
lock button on the smart key.
After completion of the steps
above, the hazard warning lights
will operate once to indicate that
the system is armed.
If any door, trunk lid or engine hood
remains open, the hazard warning
lights won't operate and theft-
alarm will not arm. After this, if all
doors, trunk lid and engine hood
are closed, the hazard warning
lights will blink once.
Do not arm the system until all passengers have left the vehi-
cle. If the system is armed while
a passenger(s) remains in the
vehicle, the alarm may be acti-
vated when the remaining pas-
senger(s) leave the vehicle. If
any door, trunk lid or enginehood is opened within 30 sec-onds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm.
Armedstage
Theft-alarm stageDisarmedstage

413
Features of your vehicle
Theft-alarm stage
The alarm will be activated if any of
the following occurs while the system
is armed.
A door is opened without using thesmart key.
The trunk is opened without using the smart key.
The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously
for approximately 27 seconds. To turn
off the system, unlock the doors with
the smart key. Opening the trunk with the alarm armed (if equipped)
When the alarm is armed, the alarm
will not sound if the trunk lid is
opened with the smart key.
Once the trunk is opened and then
closed, the trunk will lock automatical-
ly and the system will be armed again.
Also, if any of the doors or hood is
opened while the trunk lid is opened
and the alarm armed, the alarm willsound.
Disarmed stage
The system will be disarmed when
the doors are unlocked with the
smart key.
After depressing the unlock button,
the hazard warning lights will blinktwice to indicate that the system is
disarmed.
After depressing the unlock button, if
any door (or trunk) is not opened
within 30 seconds, the system will be
rearmed.
✽✽
NOTICE
 Avoid trying to start the engine while the alarm is activated. The
vehicle starter motor is disabled
during the theft-alarm stage.
If the system is not disarmed with
the transmitter, insert the key into
the ignition switch, turn the ignition
switch to the ON position and wait
for 30 seconds. Then the system will
be disarmed. (except China)
 If you lose your keys, we recom- mend that you consult an author-
ized Kia dealer.

Features of your vehicle
14
4
CAUTION
Do not change, alter or adjust
the theft-alarm system becauseit could cause the theft-alarm system to malfunction and werecommend that the system beserviced by an authorized Kia dealer.
Malfunctions caused by improp-er alterations, adjustments ormodifications to the theft-alarmsystem are not covered by your vehicle manufacturer warranty.

415
Features of your vehicle

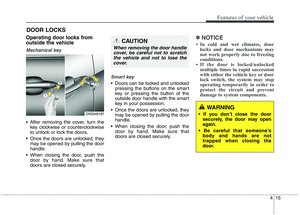

Operating door locks from
outside the vehicle
Mechanical key
After removing the cover, turn thekey clockwise or counterclockwise
to unlock or lock the doors.
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
Smart key
Doors can be locked and unlockedpressing the buttons on the smart
key or pressing the button of the
outside door handle with the smart
key in your possession.
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
✽✽ NOTICE
 In cold and wet climates, door locks and door mechanisms may
not work properly due to freezing
conditions.
 If the door is locked/unlocked multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
DOOR LOCKS
OVG049187
WARNING
securely, the door may open
again.
body and hands are not
trapped when closing the
door.
CAUTION
When removing the door handle
cover, be careful not to scratchthe vehicle and not to lose the cover.

Features of your vehicle
16
4
Power door latch (if equipped)
If a door isn’t closed completely but is closed to the first detent position,
the door will close automatically. Operating door locks from
inside the vehicle
With the door lock button
To unlock a door, push the door
lock button (1) to the “Unlock” posi-
tion. The red mark (2) on the door
lock button will be visible.
To lock a door, push the door lock button (1) to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button
will not be visible.
To open a door, pull the door han- dle (3) outward. If the inner door handle of the dri-
ver’s (or front passenger’s) door is
pulled when the door lock button is
in lock position, the button is
unlocked and door opens.
Doors cannot be locked if the smart key is in the vehicle and anydoor is opened.
OKH042012
Lock Unlock
WARNING - Door lock
malfunction
If a power door lock ever fails to
function while you are in the
vehicle, try one or more of the
following techniques to exit:
Operate the door unlock fea- ture repeatedly (both electron-
ic and manual) while simulta-
neously pulling on the door
handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the key to unlock the door
from outside.
OKH042011
WARNING
If the door is open slightly, be
careful not to nip fingers in the
door.
CAUTION
Before closing the door, ensure that all obstructions areremoved.

417
Features of your vehicle
Rear door lock button
To lock a rear door, press the doorlock button (1). The indicator on the
button will illuminate.
To unlock a rear door, press the door unlock button (2). The indica-
tor on the button will illuminate.
With central door lock/unlock but-
ton switchLocking
When pressing the door lock but- ton (1), all vehicle doors will lock
and the indicator on the button will
illuminate. If any door is unlocked,
the indicator will turn off.
If the smart key is in the vehicle and any door is opened, doors will
not lock.
Unlocking
When pressing the door unlock but-
ton (2), all vehicle doors will unlock
and the indicator on the button will
illuminate.
If any door is locked, the indicator will
turn off.
OKH042014OKH042013
OKH042014
Driver’s door
Passenger’s door
