Maintenance
FUSESA vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 fuse panels, one
located in the driver’s side panel bol-
ster, another is in the engine com-
partment.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside thefuse will be melted.
If the electrical system does not
work, first check the driver’s sidefuse panel.
Before replacing a blown fuse, dis-
connect the negative battery cable.
Always replace a blown fuse with
one of the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and we
recommend that you consult an
authorized Kia dealer.
Three kinds of fuses are used: blade
type for lower amperage rating, car-
tridge type, and fusible link for higher
amperage ratings. ✽
✽
NOTICE
The actual fuse/relay panel label
may differ from equipped items.
WARNING - Fuse replace-
ment
Never replace a fuse with any- thing but another fuse of the same rating.
A higher capacity fuse could cause damage and possibly a
fire.
Never install a wire or alu- minum foil instead of the prop-
er fuse even as a temporary
repair. It may cause extensive
wiring damage and a possible
fire.
CAUTION
Do not use a screwdriver or any
other metal object to removefuses because it may cause a short circuit and damage thesystem.
OKH072054L
Normal
Normal
■
Blade type
■ Cartridge type
■ Multi fuse type Blown
Blown
Normal Blown
Normal Blown

Maintenance
54
7
Instrument panel fuse replace- ment
1. Turn the ignition switch and all
other switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight
out. Use the removal tool provided
in the engine compartment fusepanel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, we recommend that
you consult an authorized Kia dealer.
If you do not have a spare, use a
fuse of the same rating from a circuit
you may not need for operating the
vehicle, such as the cigarette lighter
fuse.CAUTION
When replacing a blown fuse or relay with a new one, makesure the new fuse or relay fitstightly into the clips Theincomplete fastening fuse or relay may cause the vehiclewiring and electric systemsdamage and a possible fire.
Do not remove fuses, relays and terminals fastened withbolts or nuts. The fuses, relaysand terminals may be fas-tened incompletely, and it maycause a possible fire. If fuses, relays and terminals fastenedwith bolts or nuts are blown,we recommend that you con- sult with an authorized Kiadealer.
Do not input any other objects except fuses or relays intofuse/relay terminals such as a driver or wiring. It may causecontact failure and systemmalfunction.
OKH072019
■ Drive side panel
OKH072020

757
Maintenance
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Disassemble the negative cable ofbattery.
2. Remove the nuts shown in the pic- ture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
✽✽ NOTICE
If the multi fuse is blown, we recom-
mend that you consult an authorized
Kia dealer.Fuse/relay panel description
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OKH072024

Maintenance
60
7

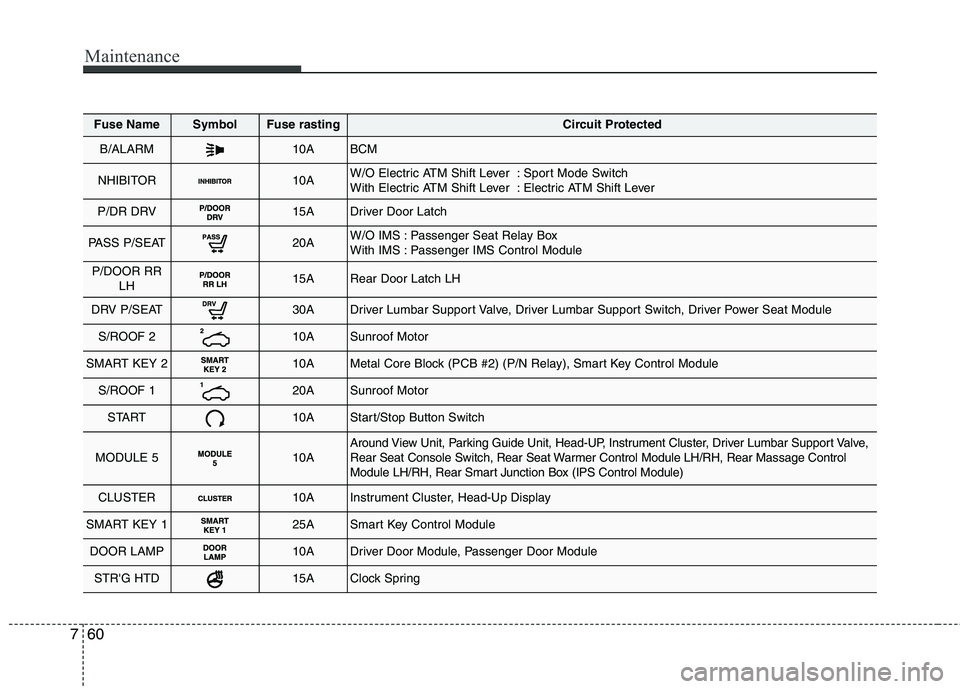

Fuse NameSymbolFuse rastingCircuit Protected
B/ALARM10ABCM
NHIBITOR10AW/O Electric ATM Shift Lever : Sport Mode Switch
With Electric ATM Shift Lever : Electric ATM Shift Lever
P/DR DRV15ADriver Door Latch
PASS P/SEAT20AW/O IMS : Passenger Seat Relay Box
With IMS : Passenger IMS Control Module
P/DOOR RR
LH15ARear Door Latch LH
DRV P/SEAT30ADriver Lumbar Support Valve, Driver Lumbar Support Switch, Driver Power Seat Module
S/ROOF 210ASunroof Motor
SMART KEY 210AMetal Core Block (PCB #2) (P/N Relay), Smart Key Control Module
S/ROOF 120ASunroof Motor
START10AStart/Stop Button Switch
MODULE 510AAround View Unit, Parking Guide Unit, Head-UP, Instrument Cluster, Driver Lumbar Support Valve,
Rear Seat Console Switch, Rear Seat Warmer Control Module LH/RH, Rear Massage Control
Module LH/RH, Rear Smart Junction Box (IPS Control Module)
CLUSTER10AInstrument Cluster, Head-Up Display
SMART KEY 125ASmart Key Control Module
DOOR LAMP10ADriver Door Module, Passenger Door Module
STR'G HTD15AClock Spring

761
Maintenance
Fuse NameSymbolFuse rastingCircuit Protected
MODULE 610ASmart Key Control Module, BCM
A/BAG15ADriver Seat Belt Pretensioner, Passenger Seat Belt Pretensioner, SRS Control Module
A/BAG IND10AInstrument Cluster
IGN 120AE/R Fuse & Relay Box LH (FUSE : F20, F21, F23, F25, F26, F27)
MEMORY 110APassenger IMS Control Module, Driver/Passenger Door Module, Driver/Passenger Power Seat
Switch, Rear Door Module LH/RH, Power Trunk Module, Instrument Cluster, BCM,
Security Sensor, Analogue Clock, A/C Control Module, Head-Up Display
MULTI MEDIA10AExternal Buzzer, Driver/Passenger Smart Connector, Rear Monitor Module, Keyboard, A/V
Navigation Head Unit, Front Monitor, Rear Monitor LH/RH
ROOM LAMP10ARear Seat Foot Lamp LH/RH, Trunk Room Lamp LH/RH, Driver/Passenger Foot Lamp,
Room Lamp, Overhead Console Lamp, Front Vanity Lamp Switch LH/RH, Rear Vanity Lamp
Switch LH/RH, Garnish Lamp LH/RH, Garnish Center Lamp, Glove Box Lamp
MEMORY 310ARF Receiver
EPB 115AElectric Parking Brake Module
SPARE15ASpare
IGN 220AE/R Fuse & Relay Box LH (Fuse : F29, F30)
A/CON10AA/C Control Module, Ionizer, AQS Sensor, Incar Sensor, Metal Core Block (PCB #2) (Blower
Relay)
AFLS15AAdaptive Front Lighting Module, HEAD LAMP LH/RH
SPARE10ASpare
P/OUTLET FR15AFront Power Outlet

Maintenance
64
7
Fuse NameSymbolFuse rastingCircuit Protected
Stop Lamp15AStop Signal Electronic Module
Brake SW10AStop Lamp Switch, Smart Key Control Module
AAF10ANot Used
Injector15ANot Used
SMK (IGN1)40AE/R Fuse & Relay Box LH (RLY.5)
ESP 140AESP Control Module
ALT200AE/R Fuse & Relay Box LH (Fuse : F9, F15, F16, F18, F19), Alternator
Cooling70AE/R Fuse & Relay Box LH (RLY.6)
SMK (IGN2)30AE/R Fuse & Relay Box LH (RLY.3)
ESP 240AESP Control Module
Diagnosis25AMultipurpose Check Connector
H/Lamp Washer25AE/R Fuse & Relay Box LH (RLY.7)
Battery 340ASmart Junction Box (Fuse : F5, F6, F8, F9, F10)
SMK (ACC)40AE/R Fuse & Relay Box LH (RLY.9)
TCU10AECM, Transmission Range Switch, Transmission Park Postilion Sensor & Switch
ESP 310ASteering Angle Sensor, ESP Control Module
B/UP Lamp 110AE/R Fuse & Relay Box LH (RLY.4)

765
Maintenance
Fuse NameSymbolFuse rastingCircuit Protected
Vaccum15ANot Used
ECM10AECM
EHPS10AEHPS Module
Inhibitor10AA/T Console Switch, Electric ATM Shift Lever
Washer15AE/R Fuse & Relay Box LH (RLY.8)
Wiper10AE/R Fuse & Relay Box LH (RLY.1)
B/UP Lamp 210ABack View Camera & Back-Up Lamp, A/T Console Switch, Electro Chromic Mirror,
A/V & Navigation Head Unit

767
Maintenance
FuseFuse NameSymbolFuse rastingCircuit Protected
METALCORE
BLOCK
(PCB #1)
Sensor 310ARear Smart Junction Box (Fuel Pump Relay)
P/Door PASS15APassenger Door Latch
SPARE15ASpare
Deicer15AMetal Core Block (PCB #1) (Front Deicer Relay)
Ignition20AIgnition Coil #1~6, Condenser #1, #2
Horn15AMetal Core Block (PCB #1) (Horn Relay)
Sensor 210AMass Air Flow Sensor, Oxygen Sensor #1~4, E/R Fuse & Relay Box LH (RLY.6)
SPARE15ASpare
Wiper30AWiper Motor
EMS30AMetal Core Block (PCB #1) (ECU Main Relay)
ECS40AMetal Core Block (PCB #1) (Air ECS Relay)
METAL CORE
BLOCK
(PCB #2)
Sensor 115APurge Control Solenoid Valve, ECM, Variable Intake Solenoid Valve,
Oil Control Valve #1~4
Injector15AInjector #1~6
SPARE10ASpare
SPARE20ASpare
SPARE10ASpare
