2013 HONDA PILOT buttons

276
Features

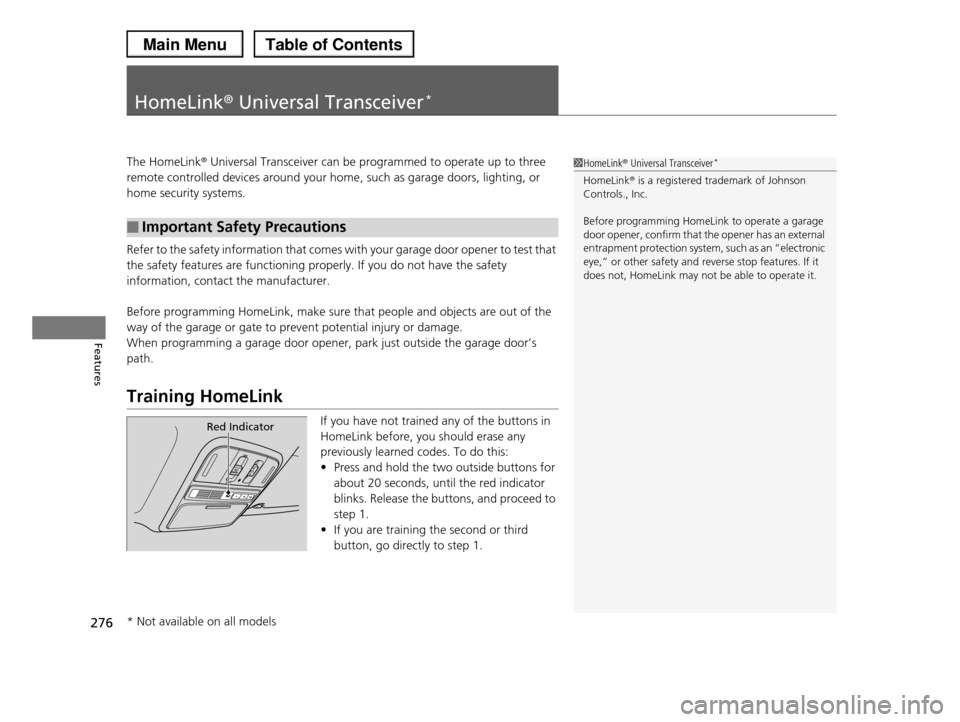

HomeLink® Universal Transceiver*
The HomeLink® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.
Refer to the safety information that comes with your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s
path.
Training HomeLink
If you have not trained any of the buttons in
HomeLink before, you should erase any
previously learned codes. To do this:
•Press and hold the two outside buttons for
about 20 seconds, until the red indicator
blinks. Release the buttons, and proceed to
step 1.
•If you are training the second or third
button, go directly to step 1.
■Important Safety Precautions
1HomeLink® Universal Transceiver*
HomeLink® is a registered trademark of Johnson Controls., Inc.
Before programming HomeLink to operate a garage door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it does not, HomeLink may not be able to operate it.
Red Indicator
* Not available on all models

277

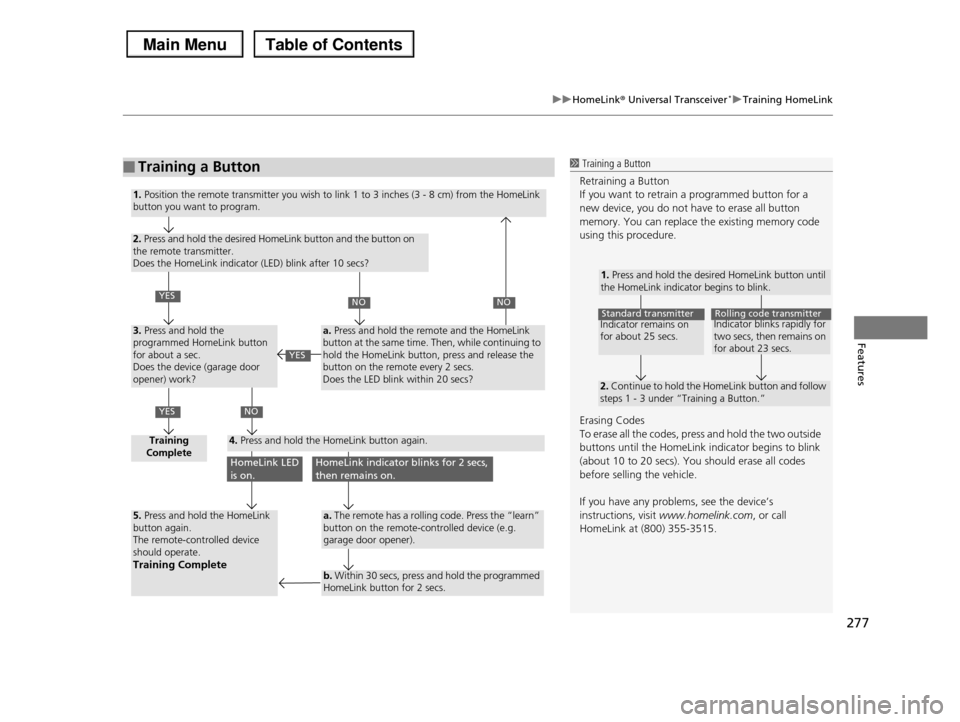

uuHomeLink® Universal Transceiver*uTraining HomeLink
Features
■Training a Button1 Training a Button
Retraining a Button
If you want to retrain a programmed button for a new device, you do not have to erase all button
memory. You can replace the existing memory code
using this procedure.
Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink indicator begins to blink (about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com, or call
HomeLink at (800) 355-3515.
1. Press and hold the desired HomeLink button until the HomeLink indicator begins to blink.
2. Continue to hold the HomeLink button and follow steps 1 - 3 under “Training a Button.”
Indicator remains on for about 25 secs.
Standard transmitterIndicator blinks rapidly for two secs, then remains on for about 23 secs.
Rolling code transmitter
1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the HomeLink button you want to program.
2. Press and hold the desired HomeLink button and the button on the remote transmitter. Does the HomeLink indicator (LED) blink after 10 secs?
3. Press and hold the programmed HomeLink button for about a sec. Does the device (garage door opener) work?
Training Complete4. Press and hold the HomeLink button again.
5. Press and hold the HomeLink button again.The remote-controlled device should operate.Training Complete
a. Press and hold the remote and the HomeLink button at the same time. Then, while continuing to hold the HomeLink button, press and release the button on the remote every 2 secs.Does the LED blink within 20 secs?
a. The remote has a rolling code. Press the “learn” button on the remote-controlled device (e.g. garage door opener).
b. Within 30 secs, press and hold the programmed HomeLink button for 2 secs.
YES
YES
NONO
NO
HomeLink LED is on.HomeLink indicator blinks for 2 secs, then remains on.
YES

278
Features
Bluetooth® HandsFreeLink®
Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up) button: Press to end a call.
(Talk) button: Press to call a number with a stored voice tag.
(Back) button: Press to cancel a command.
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth® HandsFreeLink®
To use HFL, you need a Bluetooth-compatible cell phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com, or call 1-888-528-7876.
•Canada: Visit www.handsfreelink.ca, or call 1-888-
528-7876.
Voice control tips
•Aim the vents away from the ceiling and close the windows, as noise coming from them may interfere
with the microphone.
•Press and release the button when you want to
call a number using a stored voice tag. Speak clearly and naturally after a beep.
•If the microphone picks up voices other than yours,
the command may be misinterpreted.•To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.
State or local laws may prohibit the operation of
handheld electronic devices while operating a vehicle.
Models without navigation system
Talk Button
Volume up
Microphone
Hang-up Button
Pick-up ButtonVolume down
Selector Knob
PHONE Button
Back Button

uuBluetooth® HandsFreeLink®uHFL Menus
298
Features
■To make a call using the call history
Call history is stored by All Calls, Dialed Calls, Received Calls, and Missed Calls.
1.Press the PHONE button or the button.
2.Rotate to select Call History, then press
.
3.Rotate to select All Calls, Dialed Calls,
Received Calls, or Missed Calls, then
press .
4.Rotate to select a number, then press
.
uDialing starts automatically.
■To make a call using a speed dial entry
1.Press the PHONE button or the button.
2.Rotate to select Speed Dial, then press
.
3.Rotate to select a number, then press
.
uDialing starts automatically.
1To make a call using the call history
The call history displays the last 20 dialed, received, or missed calls.
(Appears only when a phone is connected to HFL.)
Some phones do not support All Calls.
1To make a call using a speed dial entry
On the Phone screen, the first six speed dials on the
list can be directly selected by pressing the
corresponding audio preset buttons (1-6).
Select Select another speed dial to view another
paired phone’s speed dial list. You can make a call from that list using the currently connected phone.
Any voice-tagged speed dial entry can be dialed by voice from any screen.
Press the button and follow the prompts.

301Continued
Features
Bluetooth® HandsFreeLink®
Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up) button: Press to end a call.
(Talk) button: Press to call a number with a stored voice tag.
PHONE button: Press to go directly to the Phone screen.
(Back) button:Press to cancel a command.
Interface dial: Rotate or move to select an item on the screen, then press .
■HFL Buttons
1Bluetooth® HandsFreeLink®
To use HFL, you need a Bluetooth-compatible cell phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com, or call 1-888-528-7876.
•Canada: Visit www.handsfreelink.ca, or call 1-888-
528 -7876.
Voice control tips
•Aim the vents away from the ceiling and close the windows, as noise coming from them may interfere
with the microphone.
•Press and release the button when you want to
call a number using a stored voice tag. Speak clearly and naturally after a beep.
•If the microphone picks up voices other than yours,
the command may be misinterpreted.•To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.
State or local laws may prohibit the operation of
handheld electronic devices while operating a vehicle.
Models with navigation system
Talk Button
Volume upMicrophone
Hang-up Button
Pick-up Button
Volume down
Interface Dial
PHONE Button
(Back) Button

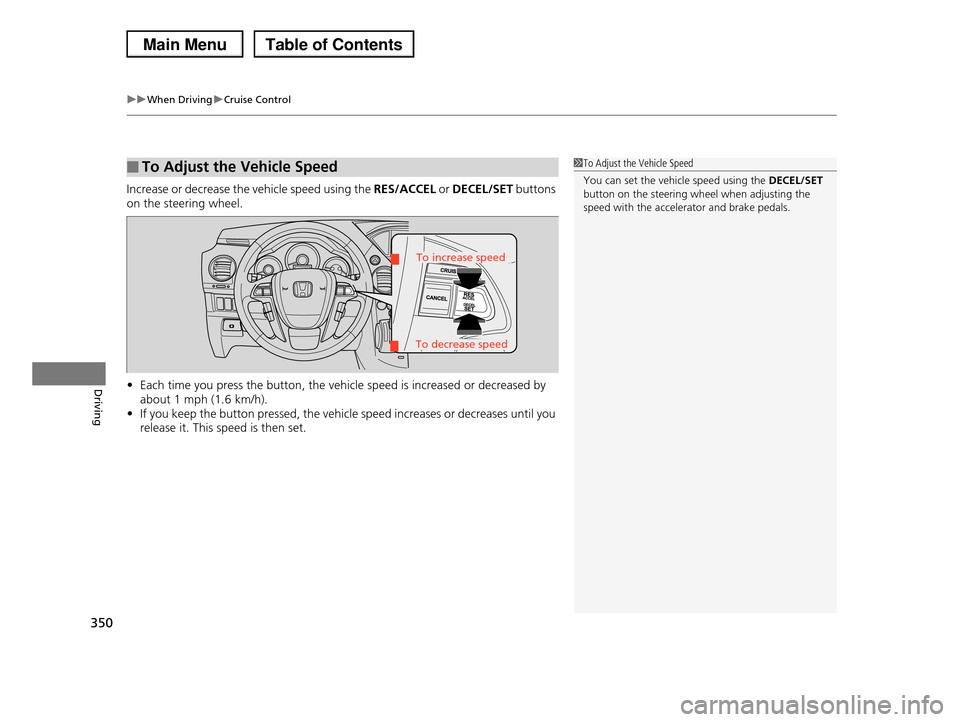

uuWhen DrivinguCruise Control
350
Driving
Increase or decrease the vehicle speed using the RES/ACCEL or DECEL/SET buttons
on the steering wheel.
•Each time you press the button, the vehicle speed is increased or decreased by
about 1 mph (1.6 km/h).
•If you keep the button pressed, the vehicle speed increases or decreases until you
release it. This speed is then set.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
You can set the vehicle speed using the DECEL/SET button on the steering wheel when adjusting the
speed with the accelerator and brake pedals.
To decrease speed
To increase speed

425Continued
Maintenance
Remote Control and Wireless Headphone Care*
Replacing the Battery
If it takes several pushes on the remote control buttons to operate the rear
entertainment system*.
1.Remove the cover.
2.Make sure to replace the battery with the
correct polarity.
■Remote Control
Models with rear entertainment system
1Replacing the Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Battery type: BR3032
* Not available on all models

481
Index
Automatic Import of Cellular Phonebook and
Call History ................................... 291, 312
Automatic Transferring ................... 289, 311
HFL Buttons .................................... 278, 301
HFL Menus...................................... 280, 303
HFL Status Display ........................... 279, 302
Making a Call ................................. 295, 316
Options During a Call...................... 300, 319
Phone Setup ................................... 283, 305
Receiving a Call............................... 299, 319
Speed Dial ...................................... 292, 313
To Clear the System ........................ 290, 312
To Create a Security PIN .................. 288, 310
Hazard Warning Button.............................. 2
Head Restraints........................................ 141
Headlights................................................ 125
Aiming.................................................... 402
Automatic Operation .............................. 126
Dimming......................................... 125, 127
Operating ............................................... 125
Heaters (Seat)........................................... 162
HFL (HandsFreeLink®)...................... 278, 301
High Beam Indicator.................................. 75
Hill Start Assist System............................. 343
I
Identification Numbers............................ 466
Engine and Transmission ......................... 466
Vehicle Identification............................... 466
Ignition Switch......................................... 124
Illumination Control................................. 130
Knob ....................................................... 130
Immobilizer System.................................. 118
Indicator .................................................... 76
Indicators.................................................... 68
A/T Temperature ....................................... 73
ABS (Anti-lock Brake System) ..................... 71
Charging System ............................... 69, 450
CRUISE CONTROL .............................. 77, 349
CRUISE MAIN .................................... 77, 348
Door Open .......................................... 28, 72
Fog Light ................................................... 75
Fuel Economy ............................................ 76
High Beam ................................................ 75
Immobilizer System .................................... 76
Lights On ................................................... 75
Low Fuel .................................................... 70
Low Oil Pressure ................................ 68, 450
Low Tire Pressure ....................... 74, 355, 357
Low Tire Pressure/TPMS ..................... 74, 355
Maintenance Minder ......................... 77, 381
Malfunction Indicator Lamp ............... 69, 451
Parking Brake and Brake System ........ 68, 452
Power Tailgate ........................................... 77
Seat Belt Reminder .............................. 30, 70
Security System Alarm ............................... 76
Shift Lever Position .................................... 69
Side Airbag Off .................................... 50, 75
Starter System ........................................... 76
Supplemental Restraint System ............ 48, 71
System Message ........................................ 73
Tailgate Open............................................ 72
TPMS ................................................ 74, 358
Transmission ............................................. 70
Turn Signal ................................................ 75
VSA® (Vehicle Stability Assist) System 72, 352
VSA® OFF .......................................... 72, 353
VTM-4® System ................................. 71, 354
Washer Level ............................................. 77
Information.............................................. 463
Information Display................................... 81
Instant Fuel Economy........................... 82, 88
Instrument Panel........................................ 67
Brightness Control................................... 130
Integrated Sunshades.............................. 164
Interior Lights........................................... 150
Interior Rearview Mirror.......................... 135
iPod®......................................................... 240
J
Jack (Wheel Nut Wrench)........................ 439
Jump Starting........................................... 445
K
Key Number Tag....................................... 100
Keyless Lockout Prevention..................... 102
Keys............................................................. 99
Lockout Prevention.................................. 102
Master Keys .............................................. 99
Number Tag ............................................ 100
